The Art of Precision: Mastering the Wood Laser Engraving Machine

The advent of laser engraving on wood has exponentially increased the scope of creativity as it combines technology and art in very sophisticated ways. This article explores the intricate craft of wood laser engraving and its relevance for both professionals and amateurs. Understanding the mechanics of the equipment, followed by its techniques and methods, sets the groundwork for precision and detail, thus ensuring every user is equipped to make the most out of this machine. If you are looking to personalising gifts, advancing your woodworking skills, or seeking your next artistic endeavor, mastering this machine will distinguish you from your peers. Continue reading to find out how you can enhance your engraving capabilities.

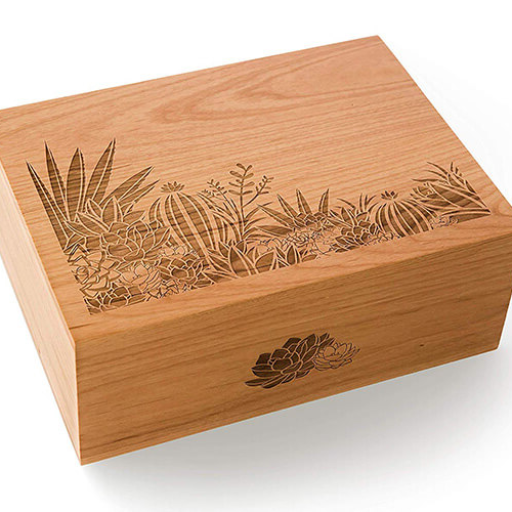

How Does a Laser Engraving Machine Work on Wood?

To laser engrave wood requires specialized equipment known as a laser engraving machine. This machine first vaporizes the wood’s surface. It then uses a focused beam of light to remove material according to pre-programmed designs like patterns or text, software engraves. The laser is capable of heating the apparatus in precise areas.

Theory behind Laser Technology

The term laser stands for light amplification by stimulated emission of radiation, this means at the very least, that a laser is designed to produce light in a certain controlled manner. This is best stamped out in the definition of laser where the focus is scope of a certain wavelength.

With engraving, the used technology consists of CO2 laser machines, fiber laser machines and even diode laser machines which all work bests on their assigned materials. Wood is best cut and engraved by CO2 machines, cutting organic material is what these machines are meant for. Their preferred wavelength is 10.6 micrometers as this works excellently with the celluose in wood.

Modern tools allow for the output precision of 1,000 DPI, or dots per inch, which is incredibly detailed. Machine operation speeds vary, with the best models reaching 150 inches per second. Some newer laser engravers, depending on the settings and power of the laser, can engrave wood from 0.1 mm to several millimeters in a single pass.

Efficiency optimization is just as important. The power of a laser cutter is measured as its output in several case, watts. Common engravers and cutters for small projects usually range from 10 to 60 watts, with 150 watts or more being used for industrial applications. A 40W CO2 laser, for example, is ideal for wood engraving since it can do so with precision and is suitable for hobbyists and professionals.

Recent development also include AI design software that automates alignment for better optimization and reduced material wastage. Coupled with advancements in safety mechanisms like enclosed chambers with automatic power shutdowns, these improvements make wood laser engraving not only efficient but safe and accessible to everyone.

What is the Role of a CO2 Laser in Engraving?

The precision, versatility, and efficiency of a CO2 laser make it one of the most important tools in wood engraving. It marks intricate designs onto wood using a focus beam of infrared light, which is absorbed by the wood’s surface. As of late, numerous industry experts claim that CO2 lasers are now capable of engraving at speeds of over 1000 millimeters per second, depending on the material and design complexity, which makes it possible to achieve both intricate patterns and rapid production workflows.

A wide variety of wood types are now compatible with CO2 lasers, expanding their use to softwoods such as pine and extending to hardwoods, like oak and maple, as well as engineered woods like plywood and MDF. More recent advances in power settings mean that engravers can now adjust the strength of the laser, achieving much greater control over the depth and quality of the finish. Additional studies suggest that the global laser engraving market is projected to expand with a compound annual growth rate (CAGR) of more than 6% through 2028, indicating greater use in home décor, bespoke items, and industrial manufacturing.

As with the design software modifications which include vector graphics integration, real-time engraving previews, and other features, CO2 laser engraving machines augment functionality with a user experience second to none. Because of these advances in technology, CO2 lasers still maintain industry leadership in innovation and performance.

Steps in Engraving Wood with Laser Machine

The laser machine wood engraving process commences with a creation of a design file. Engraving is performed in specialized software where one can either create a design or import an existing vector-based design with distinct borders that are precisely scalable. After the design is complete, it is uploaded to the engraving machine that prints it using laser cut commands.

The computer connected to the laser engraver sends the file to be engraved to be interpreted. The detail of the engraving is determined by the amount of power sent through the laser. Depending on factors like the type of wood, its thickness and detail required soft woods such as pine can require lower power levels than harder woods like oak. Recent findings suggest that commercial CO2 laser machines have an average engraving speed of 50-300 mm/s depending on the model, wood and type of device used.

With rotary attachments, users can now engrave cups, pens, and other cylindrical wooden objects, and higher wattage lasers have enabled faster production without loss in quality. Interest in the craft has clearly grown considering that Google Trends indicates searches for “laser wood engraving techniques” have surged over 45% in the previous year.

Wood, glass, and acrylic are some of the materials that can be laser engraved using a CO2 laser machine. The resolution of engraving can go as high as 1000 DPI (dots per inch) for intricate designs of logos, texts, or artworks. Notably, studies show an increase of up to 30% in production efficiency after laser engraving was adopted by various industries compared to other traditional methods.

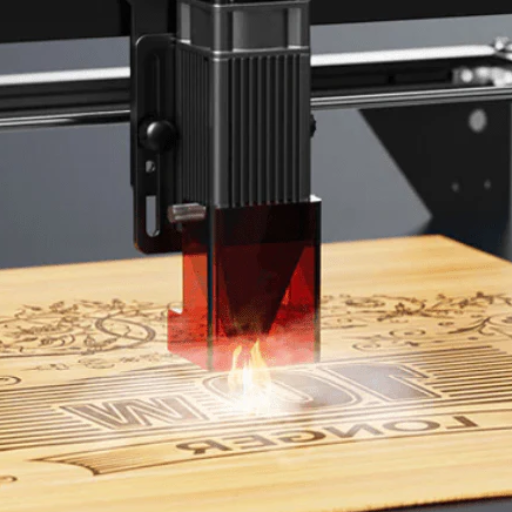

Choosing the Right Wood Laser Cutter for Your Needs

• Material Compatability: Confirm that the cutting device is specifically crafted for wood and that it woods you intend to use are compatible.
• Power and Speed: Choose a laser cutter that has significant power for cutting through thicker wood without compromising efficiency.
• Bed Size: Ensure that the machine’s bed size is suitable for the dimensions of your typical projects.
• Resolution and Precision: Focus on a laser cutter that is capable of high resolution engravings or cuts to ensure utmost accuracy and detail.
• Budget: Balance features that a machine offers with its price alongside your budget. For smaller-scale projects reliable entry-level models and industrial options for larger demands are good choices.
• Manufacturer Support: Look out for brands that offer customer support, warranties, and easy access to altrenate parts.

Types of Laser Engraving Machines for Wood

• CO2 Laser Machines: Best suited to wood engraving, CO2 laser machines offer versatility combined with ease of use. They outperform with different types of wooden materials and achieve great precision in engraving.
• Diode Laser Machines: These are low-energy devices that can only work on light-duty tasks. Diode lasers work efficiently on softwoods and small projects but lack the power required for larger, thicker pieces of material.
• Fiber Laser Machines: Because these machines perform better with engraving on metal and plastics, they should not be recommended for wood.

Key Characteristics To Examine In A Laser Engraver

• Power and Wattage – It is the laser’s power which determines how well it can cut or engrave particular materials. For thicker woods, higher wattage is ideal. Higher wattage also enables faster engraving speeds.
• Size of Engraving Area – The size of the workspace affects the size of the materials you are able to work with. Choose a machine with an area appropriate to the dimensions of your projects.
• Compatibility with Materials – Check that the engraver is meant to work with wood or any other materials you wish to use. Certain types of lasers work best with particular categories of materials.
• Precision and Resolution – For detailed work to be performed, make sure that the machine has high DPI (dots per inch) ratings.
• Software Compatibility – Make sure that the engraver works with intuitive design software and can accept the formats used in your files.
• Cooling Systems – Proper operation of the machine’s cooling mechanism may lead to overheating and damages during several hours of use. A dependable cooling mechanism will not allow this.
• Safety Features – Closure designs, safe ventilation systems, and emergency shutdown options are a few critically important cuts of the laser engraver’s safety.
• Ease of Maintenance and Customer Support – Equipment that features exposed and easy to service parts is best, as does enduring customer care.

Comparing CO2 Laser Machines for Wood

CO2 laser machines for wood include models such as Epilog Laser, Glowforge, OMTech, Thunder Laser, Trotec, and Boss Laser.

Key Point	Epilog	Glowforge	OMTech	Thunder	Trotec	Boss
Power (W)	30-120	40-45	40-150	40-130	30-120	50-150
Bed Size	Varies	Medium	Large	Large	Varies	Large
Price ($)	15k+	4-7k	2-6k	5-10k	20k+	4-12k
Cut Depth	Up to 1″	5″	75″	75″	Up to 1″	75″
Support	Premium	Basic	Mixed	Good	Premium	Good
Ease of Use	High	High	Moderate	Moderate	High	High
Speed	Fast	Moderate	Fast	Fast	Superior	Fast
Software	Custom	Custom	Manual	Manual	Custom	Manual

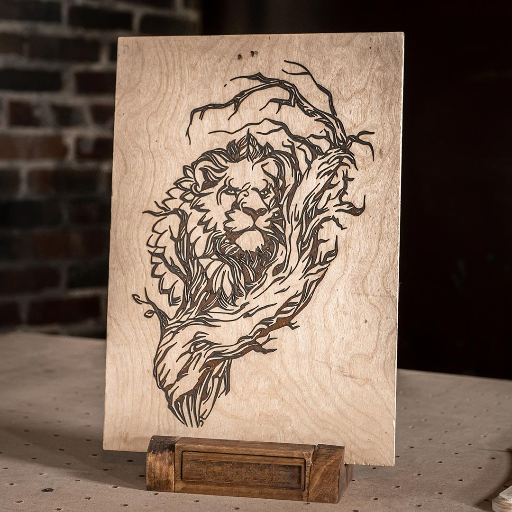

What Materials Can You Use with a Laser Engraver and Cutter?

• Wood: Great for engraving or cutting due to its myriad types and innate texture.
• Acrylic: Exceptional for engravings or vibrant, precise, clean cuts.
• Leather: Commonly used for engraving because of its durability makes it ideal for creating personalized designs.
• Paper and Cardstock: Very good for crafting intricate cutouts and for cutting precise shapes.
• Glass: Good for engraving the surface, but not cutting.
• Fabric: Both synthetic and natural fabrics of varying types allows intricate cut patterns.

Researching the Best Wooden Products for Engraving

• Plywood: An easy to transport and flexible option, plywood is also a popular choice for engraving, adding signs and decorative items to its vast uses. Its demand is surging because of its slow expansion due to the warping that commonly affects other tree products. Plywood is engraved with consistent results thanks to uniform surfaces. However, to achieve good engraving, one must start with quality plywood or their engraving may be uneven due to voids within the layers.
• Basswood: Its fine, soft and even grain make basswood the go to choice for crafting and artistic engraving projects that require precise engravings and intricate designs. To add to the list of advantages, basswood is very light too.
• Birch: Popular among laser engraving lovers, Birch wood, especially Baltic birch is smooth, low resin birch wood, which makes it ideal for coasters, plaques and ornaments.
• Maple: Hard maple is particularly appropriate for engraved gifts and awards because it takes on a sharp, polished look after engraving. Also, the fine grain maple allows for very intricate designs because of the high precision it allows.
• Cherry: Cherry wood is very popular because of its natural reddish colors along with its smooth grain. This wood produces excellent engravings for cherry handles since the engraved parts get darker over time, thus increasing contrast.
• Walnut: This is one of the hardest woods which has the finest durability. It also has a dark rich color that is appealing for high-end engraving walnut is commonly used for furniture, plaques, and other expensive custom products.

Engraving Cherry Handles with a Laser Machine or Other Acrylic Material

Laser engraving works well with acrylic because the material has good clarity and is durable. It also easy to engrave and cut. There are two main types of acrylic: cast acrylic and extruded acrylic. Each has its own advantages and they can such works for different needs. Engraving cast acrylic is the best because its surface becomes frosted and clearer than the underlying color or surface. On the other hand, extruded acrylic is ideal for making signs, displays, and other intricate designs because the cuts are neat and smooth.

Laser engraving isn’t limited to wood and acrylic – glass, leather, and metal can easily be incorporated as well for unique and creative projects. Glass, for instance, produces stunningly elegant etched designs that are commonplace in awards or decorative pieces. In leather, exquisite custom engravings can be made on wallets, belts, or journals, showcasing intricate patterns. Depending on the metal, engraving may need fiber lasers or coatings specialized for the material to achieve the most striking and contrasting results.

The customization market is particularly seeing heightened demand in laser-processed goods according to a recent report. It states that the global market for laser engraving is set to increase to about $4.4 billion by 2030, propelled by the growing demand for personalized goods from decorative items to industrial components. Durable and design intricate materials like metals and acrylics that can easily be lasered are becoming increasingly common in amateur and professional settings, further fueling the market.

As technology advances, the understanding of the properties of each material allows the user to combine powerful lasers to craft exceptionally intricate projects for a plethora of industries and artistic fields.

How to Maintain and Troubleshoot Your Laser Cutting and Engraving Machine?

• Routine Procedures – To prevent damage from dirt or debris, regularly clean the lenses, mirrors, and cutting bed to ensure optimal performance and prevent any damage.
• Check Alignment – For precision purposes, periodically check and adjust the alignment of the laser beam.
• Inspect Components – Look over the belts and motors for wear or damage along with the wiring and replace parts if needed.
• Monitor Cooling System – To prevent overheating of the laser tube, check that the cooling system functions properly.
• Follow Manufacturer Guidelines – Maintain the equipment as suggested per the manufacturer’s recommended maintenance schedules.

Suggested Regular Procedures for CO2 Laser Machines

• Clean the Optics – With the proper cleaning solution, polish the lenses and mirrors with a lint-free cloth. Dirty optics can cause light diffusion and decrease cutting or engraving efficiency.
• Check for Air Leaks – Check for leaks on the air-assist system to ensure optimal cutting performance and to prevent material debris from collecting over time.
• Maintain Work Area – In order to eliminate contamination, clean the laser cutting bed and the surrounding area after each use.
• Replace Filters – Care should be taken for any machining processes with fume extraction or air filtration systems installed by adhering to the manufacturer’s guidelines by replacing filters for proper airflow and protection of the working environment.
• Test the Laser Power – Conduct periodic testing of the laser’s power output to ensure optimal functioning as power degradation can occur over time.

Common Problems and Solutions in Laser Engraving

In my experience one of the problematic issues within laser engraving is inconsistent engraving depth. This specific problem usually occurs due to a misaligned focus lens or a dirty one. What I do to solve this issue is clean the lens often and check its alignment before every project. Another problem that I’ve dealt with is burns and unwanted marks on the surface of the material that is being engraved. The way I avoid this issue is I change the power settings and cover the exposed surface with masking tape. Lastly, improper cuts can result from weakening laser power over time, for which I test and recalibrate the laser power regularly.

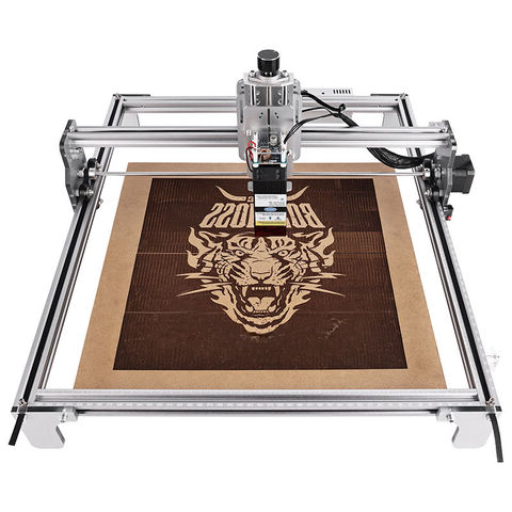

Advanced Techniques in Laser Wood Engraving

For more precise engravings, use appropriate vector graphics software to create intricate patterns. Cutting and burning woods can be improved by adjusting the laser speed and power on differing wood types. To bring out better dimension and depth to your work, engrave at varying depths. For clearer engravings, air assist systems can clear smoke and debris. Clear cutting maintenance and configuration of the laser will guarantee consistent quality and long life for the equipment.

Getting Started with Rotary Engraving on Wood

Rotary engraving machines allow for fine carvings to be done on the sides of rounded and cylindrical wooden objects like cups, bowls, and rolling pins. To master this skill, one has to balance the understanding of the equipment and the different kinds of wood used. It is crucial to use the correct chuck or roller when positioning the object for rotary engraving, to prevent any slips or precision loss.

The parameters of your laser, for example, speed and power settings, are very important when engraving cylindrical wood forms. For example, a setting that seems to work well for softer woods like pine is 20% power at 500mm/s. Conversely, there is a denser wood like oak that may require 40% power at a 300mm/s feed rate to achieve sufficient etching depth. To avoid wastage, testing on a scrap piece of similar wood is ideal.

Another consideration on rotary engraving is the direction of the grain as well as the grain moisture content. Wood with low moisture and uniform grain patterns is less likely to warp due to laser induced heat and thus enables greater detailing. Moreover, printing high quality vectors on the wood surface and aligning them adequately ensure professional standards and minimum errors.

Out of all other features one can pick, investing in rotary attachments for laser engravers is among the most important as they enable engraving of full 360-degree designs on round objects. Additionally, for more complex designs, other software such as Lightburn which supports rotatable designs enable precise tweaking of outlines on forms. Proper maintenance of your rotary tool like lubricating moving parts or adjusting roller tension improves precision while increasing the lifespan of the tool.

When the techniques mentioned previously are well blended with periods of experimentation and proper tuning, exceptional rotary engravings that reflect creativity and craftsmanship can be done.

Using the Laser’s Power for Fine Laser Engraving

When one needs to do detailed and fine engravings, controlling and managing laser power’s amplitude and frequency is important. The power of your laser directly affects the depth, clarity, and precision of the engraving with respect to various materials. For example, lower power settings (generally around 10%-30%) are favorable for thin raw materials such as paper, fabric, or even thin wood since they don’t result in burning or over-engraving. Tougher or thicker materials, such as acrylic, metal, or stone, require higher power settings (above 50%) that allow deeper cuts or more pronounced engravings.

With engraving, laser power level and speed also determine how much detail is present. By enhancing the accuracy and setting speeds to moderate levels, careful penetration can be achieved without losing detail in the intricate design. Recent changes suggest the latest files with software upgrades do make it simpler. Photorealistic results could be accomplished easily in previous CO₂ and fiber laser systems engravers by switching the laser intensity across the design. Further, modern Trotec and Epilog lasers are hugely promising in their claims of achieving 1200dpi engraving resolution, which provides exceptional detail on small designs.Moreover, the kind of material and its preparation also affects the outcomes. For example, employing marking sprays on metal surfaces makes it possible for CO2 lasers to engrave in a way that is clear and detailed, as they cannot etch bare metal directly. Marked metals need to be treated prior to lasering and accurate laser focus needs to be set along with selection of the appropriate power range, to ensure quality results.

The level of sophistication of projects can be enhanced with the proper tools, software, and precise control of laser powers, which enable engraving fine details that will make the project stand out.

Emblazoned Patterns with a Laser Machine

Thinking outside the box during the designing phase, and while manufacturing pieces with laser machines provides users with unmatched precision and efficiency has been radically redefined by laser system technology. Manufacturers and businesses, as well as individuals, harness state-of-the-art technology in laser machines to cut out and engrave designs in various types of materials unlike any other with extraordinary precision. As it has been reported, there is a growing trend in market wanting for laser cut machines which is anticipated to increase by 8.5% compound growth annually for a decade starting 2023 because of high demand from the automotive, construction, and aerospace sectors.

Today’s laser systems are equipped with advanced software such as CAD which enhances the creation mark. These programs allow users to tailor engravings into jewelry, scalpel components, architectural models, and more with intricate details at the micrometer level. Reflective metals can be managed effectively and rapidly with fiber lasers, boasting speeds up to four times faster than conventional CO2 lasers.

In addition, the expandement of beam quality and power have greatly enhanced the range of user materials. These businesses are now able to work with a broader spectrum of materials such as wood, acrylic, leather as well as more glass and ceramic. Their wide application scope encourages and enables effective sustainable engravings, like cutting from recycled materials, laser products designed for sculpting consumer interest.

With the application of new tools, the technology enables mass customization, where form and function are designed with precision to meet individual specifications. This feature makes laser technology a valuable asset for artisans and industialists alike.

Reference sources

1. Optimization of Parameters for Laser Marking and Engraving on Plywood and Pine Wood Materials
   • Authors: Artis Stanislavs Gusts, Imants Adijans
   • Publication Date: April 23, 2021
   • Source: HUMAN. ENVIRONMENT. TECHNOLOGIES. Proceedings of the Students International Scientific and Practical Conference
   • Summary:
     • This study investigates the effects of different speeds and power settings on CO2 laser marking and engraving on plywood and pine wood.
     • The authors utilized a SUNTOP CC-9060 CO2 laser machine and measured the depth of marked and engraved lines.
     • The research highlights the importance of optimizing laser parameters to achieve desired engraving quality on wood materials.
   • Methodology:
     • The study involved experimental setups where plywood and pine wood were subjected to various combinations of speed and power settings.
     • Measurements of engraving depth were taken to assess the effectiveness of different parameter combinations(Gusts & Adijans, 2021).
2. CO2 Laser Marking Machine for Wood/Fabric/Leather etc. Non-Metal Materials
   • Authors: W. F. Sales, A. E. Diniz, Á. R. Machado
   • Publication Year: 2001 (not within the last 5 years but relevant)
   • Source: Journal of The Brazilian Society of Mechanical Sciences
   • Summary:
     • This paper discusses the application of CO2 laser marking technology on various non-metal materials, including wood.
     • It provides insights into the operational parameters and the versatility of CO2 lasers in marking different substrates.
   • Methodology:
     • The authors conducted experiments to evaluate the marking quality on different materials, focusing on the laser’s operational settings(Sales et al., 2001, pp. 227–240).
3. Wood Engraving Using 3 Axis CNC Machine
   • Authors: Disha D. Devardekar, Ms. Aishwarya J. Gudale, Ms. Rutuja R. Karande
   • Publication Year: 2018 (not within the last 5 years but relevant)
   • Summary:
     • This paper explores the use of a 3-axis CNC machine for wood engraving, detailing the processes involved in achieving high-quality engravings.
   • Methodology:
     • The study involved practical applications of CNC technology to engrave designs on wood, assessing the machine’s capabilities and the quality of the finished products(Devardekar et al., 2018).
4. Top CNC Laser Marking Machine Manufacturer and Supplier in China

Frequently Asked Questions (FAQs)

Q: What is laser marking and how does it function on wood?

A: Laser marking is the process of using a concentrated light beam to engrave or etch illustrations on materials. In the case of wood marking, a laser is used to burn the surface of the wood into plates, inflicting marks that are exact and enduring, without damaging the inner structure of the wood. This is ideal to use in woodworking projects.

Q: What are the benefits of using a laser wood cutter and engraver?

A: Benefits of using a laser wood cutter and engraver include economy of time, precision, and the ability to do a wide range of works. Very complicated patterns and designs can be done, it is effective and productive for both small and large projects, and less raw material is used in comparison to other woodworking methods.

Q: What is the difference between a CO2 laser cutter and a diode laser wood engraver?

A: A diode laser is less powerful when compared to a carbon dioxide laser. A CO2 laser cutter uses a gas mixture to create a strong beam that is great for cutting and engraving thicker materials while a diode laser uses semi-conductor technology and is typically used for finer engravings on wood.

Q: What do I need to think about before buying a desktop CO2 laser engraver?

A: Think about the power output, like 80w, 100w, or 130w; the working area size; software compatibility such as Light Burn, and other features, including the presence of a chiller to avoid overheating.

Q: If a laser engraver is made for wood, can it engrave other materials too?

A: Typically, a wood laser engraver can also engrave and cut leather, acrylic, glass, and some metals, though this depends on the type and power of the laser. Always refer to the machine specifications to check for compatibility.

Q: Why is the laser head important when it comes to laser engraving and cutting machines?

A: The laser head is fundamental because the laser beam is focused and applied to the material, which determines the engrave and cut quality as well as accuracy. The best quality laser head guarantees the best quality and cleanness of the results.

Q: In which ways does a CNC laser system improve wood cutting and engraving?

A: The CNC laser system automates the processes of wood cutting and engraving, thus enhancing precision and repeatability, which is crucial for production at a large scale and for sophisticated designs.

Q: What are the advantages of using it for DIY laser projects?

A: As an example, an xtool for DIY laser projects has easy to use software, versatility in cutting and engraving various materials, and appealing features for novices and hobbyists which makes it suitable for personal and small-scale commercial projects.

Q: How critical is the working area size in a laser engraving cutting machine?

A: It is critical, since the working area size determines the material’s maximum dimensions without repositioning it. Enhanced productivity and efficiency for larger projects with work materials that offered prolonged scope increased working area size.

Q: What safety measures should be taken when working with a laser engraver for wood and metal?

A: Safety measures include protecting eyes with safety glasses, providing adequate ventilation to prevent fume inhalation, restricting flammable materials, having regular maintenance checks to ensure proper mechanical functioning.
