Laser marking technology is advancing because of its usefulness in varied industries. It provides high precision, efficiency, and versatility when creating permanent marks on different materials. Examples of these technologies are UV Laser Marking Machines and Fiber Laser Marking Machines. Both types are used for high-quality marking. However, their applications, working mechanisms, and material compatibilities differ. This blog post focuses on the significant differences between these two technologies so that you can make informed decisions about which one is better for your needs. This understanding would benefit those in manufacturing and electronics and all other industries looking for enhanced operational effectiveness and output quality. Make sure to stick with us as we discuss their unique features, advantages, and use cases.

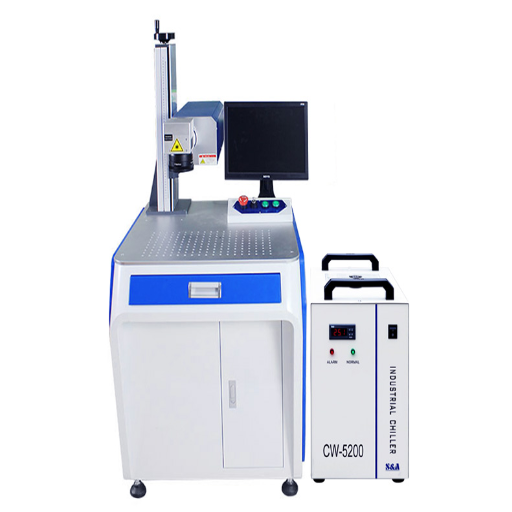

What is a UV Laser Marking Machine?
A UV laser marking machine creates excellent, long-lasting marks. It does this with a device that delivers high-powered ultraviolet light. The light cleaves the chemical bonds on the material’s surface in a low-heat process, yielding precise marks. This “cold marking” procedure is perfect for sensitive materials like glass, metals, and plastics because it mitigates damage to the material while yielding great results. Their usage is ubiquitous in electronics, medical devices, and packaging industries, where detailed and precise marking is routine.
How does a UV Laser Marking Machine work?
A UV laser marking machine uses a short wavelength ultraviolet laser beam to mark items. The ultraviolet laser very precisely focuses on an area 355 nanometers wide, or 0.355 microns, allowing for better accuracy than infrared lasers. The process starts when the ultraviolet laser is projected onto the material’s surface. The ultra-high energy photons erase the surface bonds, forming a permanent mark with no heat infliction—known as the ‘cold processing’ method.
As discussed in the previous paragraph, cold processing has minimal impact on the heated material, which helps in preventing deformation, discoloration, or melting. This allows the primary competing materials to remain undamaged and work without overlapping issues of effect and disassembly. Notably, this intense level of precision is particularly beneficial for industries needing intricate designs like QR codes, serial numbers, logos, tiny logos, or other emblems on delicate components like circuit boards or medical instruments. This shows that UV laser marking machines are tremendously precise since they can deliver marking line widths as fine as 0.01mm, sharpened patterns, and texts etched on surfaces enduring micrometric scaling. Noteworthy is that these machines perform extremely impressive marking speeds of over 7000 mm/s, proving to be ultra-productive in bulk production environments.
In addition, the UV laser marking method creates marks that are long-lasting and can endure severe conditions, including exposure to chemicals and extreme temperatures. Because of this, they are highly valued in industries where dependability and accuracy are of the utmost importance.
What materials can be marked with UV Laser?
The versatility offered by UV laser marking technologies places them at the forefront of modern laser systems for a diverse mixture of materials, including:
- Plastics: Polycarbonate, polyethylene, ABS, and polypropylene are some types of plastic that can be UV-marked without being thermally damaged, which is crucial for high-clarity applications like medical devices or electronics.
- Glass: Laser marking of glass results in smooth and accurate convex markings without cracks or finger fractures. They can be used for falls like glass tubes, optical components, or touchscreen panels.
- Coated Metals: Although UV lasers are NOT the most effective at marking bare metals, they work very effectively on anodized aluminum, coated metals, or painted ones, providing high contrast that marks last – abrasion resistant.
- Ceramics: Due to their unique structure, ceramics can be marked with UV lasers for high-detail applications that require permanence, ideal in aerospace or automotive.
- Rubber: Used in industrial components or automotive seals, rubber can be laser inscribed with high amounts of detailing.
- Silicon Wafers: The marking of a silicon wafer is crucial in the semiconductor industry, where UV marking deals with the material without thermal stress.
The importance of UV Laser Marking systems stems from their versatile applications and adaptability to growing marking needs in medical devices, consumer electronics, microelectronics, and even laser engraving and marking on metals. Brand marking features such as logos and product identification can be engraved on metals or incorporated into the product’s surface during manufacturing for aesthetic purposes.
Silicon wafers and semiconductor devices are uniquely identifiable and traceable due to the integration of marks, logos, suppliers, and vendors. In comparison to other standard marking techniques, UV laser systems significantly reduce marker target area, which ultimately results in quicker access time. The result is cleaner and lower strike damage to more sensitive components. Contamination and particle fallout are also reduced.
The high-tech and incredibly sensitive fabrications and etchings of UV lasers as small as 10 microns, qualify them to function in microelectronics that need ultra-fine precision. Detail-sensitive fields ensure the lowest mark precision exceeds 3 microns to sustain performance. Mark-free eroded areas can also be achieved under sentry lasers. Effective materials can range from metals and chips to soldered, bonded or encapsulated devices with glass or ceramics on the optically exposed surface.
Advantages of using a UV Laser for marking
- Precision of Marking and Micro Processing
With the help of a UV Laser, intricate designs, including text parts of a word, can be marked on materials with feature sizes from 10 microns upwards, allowing the marking of minute details important in medicine and microelectronics.
- Precision of Marking and Micro Processing
Short wavelengths of UV lasers reduce any zone bearing the effects of heat, making melting, cracking, or burning nearly impossible. This is important for sensitive materials like plastic, ceramics, and Glass.
- Precision of Marking and Micro Processing
Many industries, such as eyewear, automotive, and aerospace, are capable of using UV lasers because they can mark a wide range of composites, ceramics, glass, plastic, and metals.
- Efficient and Cost-Effective Eco-Friendly Process
With modern technology, lasers need no ink or consumables, making marking non-contact and reducing overall equipment expenses, giving an efficient and eco-friendly process.
- Standard Compliance Check
UV laser marking works for quality and safety standards so that it can be used in aerospace, semiconductor manufacturing, and medical sectors.
- High Efficiency and Throughput
UV lasers enhance production efficiency through their high speed and quality marking. This results in lower manufacturing times and improved output.

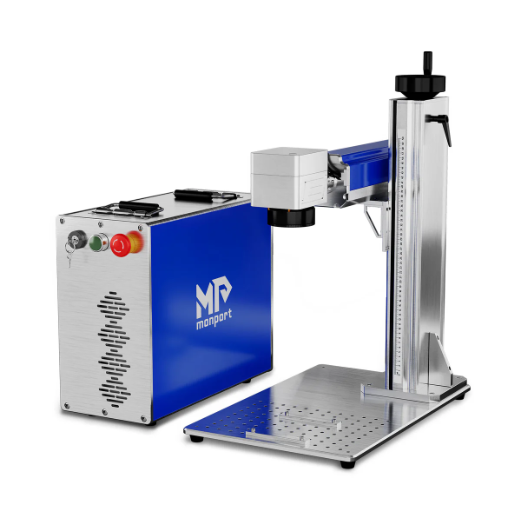

What is a Fiber Laser Marking Machine?
A fiber laser marking machine can now mark metals, plastics, and ceramics. This device uses a fiber laser source to make permanent marks on different materials. Its high-speed and contactless laser marking ensures accuracy. Thanks to laser technology, marking is done with minimal error and maximum durability.
The system’s versatility lets it work with many materials while still producing high-quality outcomes. It is highly efficient, requires little maintenance, and runs on low energy, making it appropriate for industrial use. Branding, product identification, and traceability can all be fiber laser system applications. Because of these reasons, these systems are a great fit for industrial work.
How does a Fiber Laser Marking Machine work?
The techniques to etch designs, text, or codes onto surfaces use high-concentration light beams. Fiber laser marking machines utilize lasers generated from optical fibers equipped with precise and intense beam delivery systems. Key constituents of this machine include the control unit, scan head, focusing lens, and laser source. To accomplish detailed markings, the scan head controls the laser beam using two mirrors to enhance and further detail the beam’s movement.
Fiber lasers optimally absorb polymers, metals, ceramics, and some forms of glass. Their wavelength of approximately 1,064 nanometers enhances absorption and reduces potential loss. Marking speeds of thousands of millimeters per second further improve manufacturing productivity. Furthermore, varying the laser’s power alters cutting depth; therefore, higher-strength lasers will result in deeper engravings.
Often accomplishing more than 100,000 hours of operation, fiber laser systems severely reduce maintenance and replacement costs compared to conventional laser systems. They are reliable due to high energy efficiency and consistent output, ensuring sustainable marking in aerospace, automotive, electronics, and medical devices. The machines’ unmatched accuracy and adaptability and modern manufacturing speed requirements capture their role in meeting the demand for precision and accuracy.
What materials are suitable for Fiber Laser marking?
Laser marking with fiber lasers is exact and can be done on a diverse set of soft and hard materials. Below is a comprehensive list of materials that fiber lasers can mark.
- Metals
Fiber lasers have varying applications. As far as metals are concerned, things like aluminum, brass, copper, gold, silver, stainless steel, and even titanium can be worked around. These are specifically employed in the medical and aerospace industries due to their excelled durability, conductivity, and application. Titanium and stainless steel form a large chunk of the material, having high-contrast, corrosion-resistant, and wear-resistant marks that make dull permanent anchors.
- Plastics
One of the advantages of laser technology is the reduction of time needed to cut various kinds of materials- polymers included. Most plastics aren’t suitable, but some work pretty well with fiber lasers, such as polyamide, polypropylene, ABS, and even polycarbonate. T tin is used for car parts, consumer goods, and electronics. Regardless, the types of plastics selected need to be those that provide, under laser energy, clean and cavity-free marks.
- Ceramics
Nurses, surgery robots, and prosthetic devices use fiber lasers to perform incision tasks. Precision cutting and even marking technical ceramics like zirconia and alumina are performed routinely. Marks made on them tend to be smoother than other marks and have boosted strength in challenging situations.
- Coated and Painted Materials
Laser marking of painted or anodized aluminum surfaces and coated metals is well-optimized. The fiber laser leaves contrasting markings on the surface without damaging the base material by removing or altering the top layer.
- Composites
Fiber lasers easily mark lightweight advanced CFRP composites, which is crucial in the aerospace and automotive industries, where precision marking is important.
- Silicon Wafers
Micron-precision, non-contact marking using fiber lasers makes them the preferred tool in marking silicon wafers in the semiconductor sector. Precision on delicate parts is vital, and any unintentional damage is unacceptable.
Fiber lasers are vital across various sectors because of how easily they adapt to different materials. Stringent regulatory and manufacturing requirements are met due to the precise, clear, and enduring markings.
Benefits of Fiber Laser Marking Technology
Precision and Accuracy Fiber laser markings are exceptional with regard to precision. They achieve detailed work at the micron level, which is required for intricate designs or fine texts. They also ensure that markings are clear without any mistakes.
Sustained Marking Durability Fiber lasers withstand scratching, chemicals, and extreme geological factors, leading to strong marking durability. This is extremely important for the industrial sector where parts are under rough conditions.
High Operation Speed Marking materials at high speed using fiber lasers does not reduce quality, which increases processing speed and production efficiency. This is beneficial for Volume Industries due to its high efficiency.
Broad Material Application Metals such as stainless steel, aluminum, and titanium can be used alongside non-metals like plastics, ceramics, and glass, making fiber lasers effective marking tools. Their diversity makes them preferable solutions in numerous industrial applications due to their versatility.
Reduced Operational Maintenance Non-moving parts in fiber lasers lead them to have a long lifespan, especially with over 100,000 hours of use. The reduced maintenance will lower the operational cost and downtime increase.
Eco-Friendly Technology
Unlike traditional marking methods, fiber lasers require minimal energy and do not use solvents, inks, or other consumables, greatly minimizing waste.
Compliance with Regulatory Standards
These markings are also permanent and durable, maintaining compliance with industry and regulatory-grade necessities such as product tracing, serialization, and safety labeling.
Cost-Efficiency
Even if the initial purchase of the equipment may be high, fiber lasers prove economical in the long run because they do not have ongoing supply costs, and they have low maintenance requirements and extended life.
These reasons explain the increased adoption of fiber laser marking technology across several industries because of its unmatched precision, efficiency, and sustainability.
What is the Difference Between UV and Fiber Laser Marking?
The main differences between UV and fiber laser marking are their wavelength, suitable application, and material compatibility. UV lasers operate on a shorter wavelength of around 355nm, which allows for low power, high precision marking, or material alteration during engraving that does not result in significant heating or destruction of the material and is ideal for sensitive materials like plastic, glass, and medical devices. Conversely, fiber lasers operate on a longer wavelength of around 1064nm, better suited for marking or engraving metals and other rigid surfaces at high speeds and with more durability.
UV laser technology markings are more suitable for applications where attention to detail and surface finish are of the utmost importance. On the other hand, fiber lasers are better suited for industrial applications where durability and output are primary concerns. The specific material and the marking requirements of the intended application determine which technologies to use.
Comparison of laser wavelengths used in UV and Fiber Laser
A UV laser usually works at a frequency of 355nm, which is in the ultraviolet region. Because the wavelength is very high, the cold marking technique, or marking with lasers with very little thermal impact (cold marking), is enabled. This makes UV lasers perfect for sensitive and precise surgical operations like marking delicate materials such as plastic, glass, silicon, et cetera without causing deformation or destruction.
By contrast with UV lasers, Fiber lasers are known to emit light of 1064nm in the near-infrared band. The longer wavelength will give deep access to metals and other hard surfaces. For this reason, fiber lasers are excellent and very efficient for industrial work such as engraving, cutting, and marking on steel, aluminum, copper, etc. Because of the power given and the increased effectiveness of these lasers, there will be a decline in the time needed to process and how long it is used, both vital in high-production factories.
One of the main distinguishing factors is the absorption features of the two types of lasers. Plastics and glass will fall under the broader category of converts that respond to the UV wavelength because they mark with more clearly defined borders. For bold and high-contrast markings, which are common in industrial sites, materials crafted from metal will be used, as metal is more active with the fiber laser’s infrared wavelength.
Selecting laser technology, be it UV or fiber, requires consideration of specific factors like the material’s thermal sensitivity, marking precision, processing speed, and material composition. UV lasers are the best for more delicate and intricate marking needs and weaker materials, while fiber lasers prove unbeatable for severe environments and materials due to their unmatched strength and efficiency.
Speed and efficiency in laser marking systems
Modern industrial laser marking system providers are constantly evolving to meet the demands of new industrial applications due to added pressure from industries. It has become possible to exceed previous speeds and efficiency due to incorporating new technologies. For example, high-speed laser markers get to and exceed marking speeds of over 10 meters per second depending on the material as well as the requirements of the marking. For example, fiber lasers are popular and are known for their fast marking times on metals and hard plastics. High-speed fiber lasers significantly boost production lines’ efficiency whilst yielding the same quality.
Other notable hallmarks include optimized outer power output and intelligent software integration. Harnessing the full potential of control software allows the automation of marking procedures. The latest innovations in control software reduce setup time, repeatable processes ensure the same outcome, and with dynamic focusing technology, interchangeable 3D surfaces can be marked quickly and accurately.
Adopting high-speed laser marking systems has transformed industries like automotive, aerospace, electronics, and even medical devices, where some of the latest technologies are heavily relied on. In the electronics sector, there is a need for micromanaging and, at the same time, high-speed laser marking. At accelerated speeds of several thousand parts per hour, micrometer precision is employed when marking serial numbers and barcodes on circuit boards. Further cooled devices, accompanied by energy-deficient models, lead to lowered operational expenses, allowing for enhanced sustainability and affordability of these systems.
Due to their ability to blend speed, precision, and flexibility, laser marking systems help meet high-volume and high-quality requirements in various applications.
Cost differences between UV and Fiber Laser Machines
Analyzing the cost differences between UV and Fiber laser machines, it can be noted that they are typically more costly upfront because of their specialized parts and versatility in marking a wider array of materials. This is contrasted by Fiber lasers, which have a lower initial cost and require less maintenance, making them more economical for standard applications such as etching metals and certain plastics. In this case, the determining factor is the specific requirements you have and the materials you intend to use.

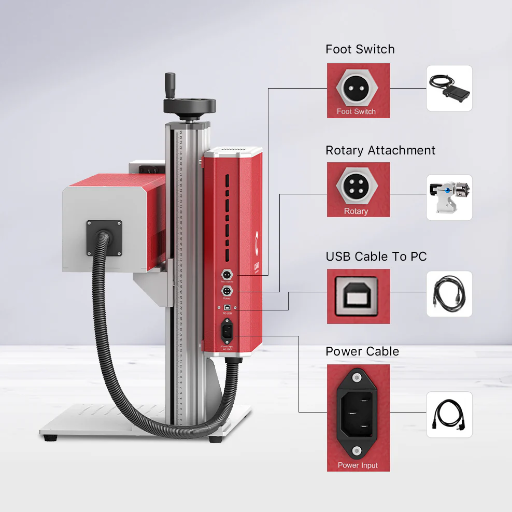

When to Use a UV Laser Marking System?
UV laser marking systems are perfect for jobs that demand great accuracy and high quality on delicate materials. Their applications include marking glass and ceramics as well as other heat-sensitive plastics. Furthermore, UV lasers are applicable in electronics, medical devices, and even high-end goods where clear, detailed marks are critical and visually appealing. The precision with which these devices engrave diverse materials without inflicting substantial harm renders them exceptionally advantageous for specialized tasks.
Best applications for UV Laser Marking
- Section: Electronics Industry
UV laser marking is standard in electronics for marking circuit boards, semiconductors, and connectors. UV Laser marking accomplishes no damage to delicate electronic parts, even in the dead zones of high-density circuits. It is helpful for traceability code markers, QR code markers, and serial number markers for tiny components.
- Section: Medical Devices
The medical sector gains a pronounced advantage from UV laser marking because of the high contrast, permanence, sterility, cleanliness, and toughness marks on medical instruments and devices. Stainless steel, titanium, and some plastics used for medical tools are permissibly marked without any impairment to functionality and cleanliness—this is required clean essential for compliance (i.e., under UDI stipulations).
- Section: Luxury Goods
Jewelry, watches, and other premium items use UV laser marking. UV technology makes it possible to add brand identity, personalization, or decorative designs to delicate and sophisticated materials owing to unparalleled precision marcato while ensuring the preservation of aesthetic appeal without damaging the surfaces of said goods.
- Glass and Ceramics
Bottles, other kitchenware, and optical lenses all need UV laser marking technology. The method avoids thermal stress and cracking while permitting clear and lasting marks like logos, batch specifics, or recycling emblems.
- Aerospace and Automotive Industries
Identification marks are crucial for tracking and ensuring safety and must be precise and durable for aerospace and automobile parts. For gears, sensors, and plastic housings, UV laser marking permits extreme accuracy and long-term readability even when subjected to harsh conditions.
- Packaging and Labels
UV lasers easily mark packaging materials such as coating paper, plastic film, and labels. They enable non-contact data marking for lot numbers, production dates, and barcodes, which is crucial in the pharmaceutical, food, and beverage industries.
- Solar Panels
Solar panel manufacturers use UV lasers to perform delicate marking procedures, such as branding or serial coding, on photovoltaic materials sensitive to laser marking.
Across different applications, UV laser marking keeps gaining popularity as a dependable marking technique.
Industries that benefit from UV Marking
- Medical and Pharmaceutical Field
UV laser marking, as marking with ultraviolet lasers, is extensively utilized in the medical and pharmaceutical industries because of its accuracy and potential to engrave on fragile substances. It is routinely performed to engrave high contrast marks on pharmaceutical-grade plastic containers, medical apparatus, and surgical instruments. This also guarantees meeting the UDI (Unique Device Identification) regulatory requirements. For example, the UV marking devices used for traceability and anti-counterfeit marking solutions are on the rise since the counterfeit medical devices market posed a $400 billion risk globally in 2022.
- Electronics Field
As with ultraviolet lasers, UV laser marking has shown its versatility in the electronics industry by augmenting the productivity of engraving microchips, circuit boards, and even delicate electronic parts. The laser’s provision of nonthermal damage marks dramatically enhances functionality in delicate parts that often suffer from mark-induced damage. The global semiconductor markable parts industry, approximately $600 billion in 2023, has drastically increased the requirement for noninvasive marking technologies.
- Aerospace and Automotive Industry Marking Specializations
UV laser marking guarantees the readability and precision of marks inflicted on parts and components, such as engine pieces and interior controls. This is particularly important for high-stress fields such as aerospace and automotive. The markings, which are traceable, support safety marking compliance. Marking technologies have to meet high-performance standards, especially with the recent surge of focus on electric vehicles. The EV market is projected to hit $1 trillion by 2030.
- Food and Beverage Industry
Unlike other laser marking systems, UV laser marking achieves non-contact, high-resolution markings on metal, glass, and plastic food containers; this includes date codes, QR codes, or batch numbers, which are critical for food safety. Globally, food packaging revenue rose over $400 billion in 2023. Manufacturers are shifting to UV marking as a green and precise coding solution.
- Luxury and Consumer Goods
UV marking finds a broad application in the luxury sector, where intricate logos, serial numbers, and unique designs are engraved on premium goods. Strengthening brand image and product authenticity is important in this age of counterfeiting, a multibillion-dollar industry that hurts brands, and UV marking helps achieve this while delivering exquisite detail.
UV laser marking services are more essential than ever for various industries, as they combine effectiveness, resilience, and flexibility to adapt to market changes.

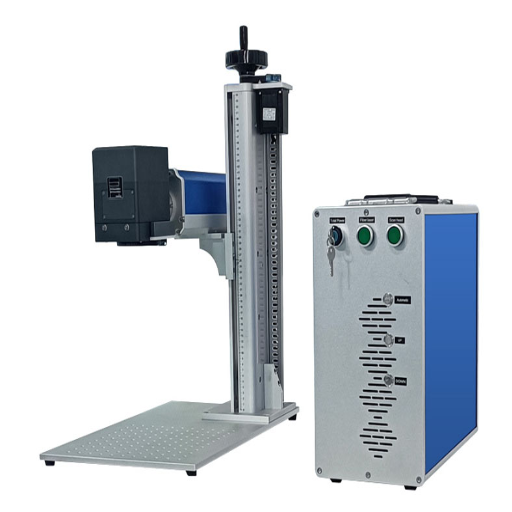

When to Use a Fiber Laser Marking Machine?
A fiber laser marking machine is the ideal choice when working with certain plastics. It works exceptionally well for marking stainless steel, aluminum, brass, titanium, and even for engineered plastic marks in sharp contrast. These machines effectively work with applications that require fast processing speed, deep engraving, or high durability, making them perfect for the automotive, aerospace, and medical manufacturing industries. Fiber laser marking is the best option when precision and clear visibility are required, such as with brand logos, serial numbers, or barcodes.
Applications best suited for Fiber Laser Engraving
- Automotive Industry
Engraving with fiber lasers is used for marking features such as forgotten engine parts, chassis number, and safety features. The marking’s durability corroborates that it remains legible under extreme temperatures and mechanical wear.
- Aerospace Industry
Aerospace components require precise and permanent identification. Fiber lasers are the best for marking serial numbers and specifications, along with the certification codes on traceable materials like titanium and aluminum, which is essential for compliance and traceability.
- Medical Device Manufacturing
Medical devices often require a clean mark for identification purposes and regulatory compliance. Surgical instruments, implants, and medical tools are fiber laser engraved to ensure surgical-grade biocompatibility and quality.
- Electronics and Semiconductor Industry
Engraving microchips, connectors, and circuit boards require extreme precision, making them ideal candidates for fiber laser marking. These components meet the standards set by the industry’s defendable precision.
- Tool and Die Industry
Marking bearing tools, molds or dies with product designs, part number or logo is common in laser tooling. The precision of engraving hard metals with any logo increases durability even in the most demanding environments.
- Jewelry and Luxury Items
Fiber lasers engrave logos, brand names, monograms, and intricate patterns on rings, necklaces, and watches with extreme precision. As a result, high-end materials remain untouched as lasers operate on a non-contact basis.
- Shipping and Packaging
Lasers are utilized in the engraving sector for anti-counterfeiting purposes by marking QR codes, barcodes, lot numbers, and expiration dates on product containers. The technique is especially popular in the pharmaceutical and food industries.
- Industry and Construction
Fiber lasers are used on industrial and heavy machinery to create safety, inventory, and lifecycle management labels and mark engravings for tracking fibers. The mark’s identity is vital to the item’s value and its subordinate parts.
- Military and Defense
Tactical gear and firearms require extreme precision, robust construction, and dependable marking via fiber laser engraving; even under harsh environmental field conditions, the devices were built to endure.
- Custom and Promotional Goods
Companies laser engrave custom designs or logos using fiber lasers on tech devices, keychains, and pens to create long-lasting promotional items.
These industries have found value and efficiency in fiber lasers for their various applications.
Common industries utilizing Fiber Laser Marking
- Automotive Industry
In the automotive industry, fiber lasers are used extensively for marking components like engine parts, gear systems, and safety components. Engraved markings include serial numbers, barcodes, and DMC (Data Matrix Codes) for better quality and traceability control. Automotive applications require precise markings because they are subjected to high temperatures, friction, and other harsh conditions, which makes laser engraving ideal.
- Medical Industry
In the medical industry, laser engravers are used to mark surgical instruments, medical devices, and implants. UDI (unique device identifier) marks improve traceability and compliance with regulations designed for patient safety. Fiber laser marking is capable of making permanent, high-contrast marks without harming softer materials such as stainless steel or titanium, which is crucial for sterilization and reuse.
- Electronics Industry
Device manufacturers heavily rely on fiber laser marking to engrave circuit boards, microchips, and other electronic parts. Precision engraving on small and delicate parts in the electronics industry is significant. Moreover, as non-contact tools, fiber lasers cannot damage sensitive electronic materials, ensuring their safety while coming in contact with the laser engraver.
- The Aerospace Sector
The aerospace industry requires high-fidelity parts with lifetime tracking and the ability to withstand harsh environments. Fiber laser marking technology is utilized for engraving serial numbers, batch codes, and safety markings on titanium, aluminum, and other heat-resistant alloys. These markings necessitate compliance with regulatory requirements while upholding the component’s integrity.
- Jewelry and Luxury Items
The jewelry and luxury goods sector takes advantage of the fine precision laser equipment offers to mark intricate patterns, serial numbers, and trademarks at the surface of items such as rings, watches, and other precious metals. The ability to engrave or laser mark jewelry in high detail separately along with customizations increases the goods value and authenticity.
- Food and Package Industry
Fiber laser marking technology is increasingly used in food packaging to mark use by dates, batch identification numbers, and barcodes on glass, plastic, and metal containers. Its eco-friendliness and ability to eliminate consumables such as ink, combined with its speed, make it ideal for mass production.
Supporting Data
According to new industry reports, the fiber laser marking market is expected to be valued at more than 6 billion dollars by 2030, an 8.3% compound annual growth rate from 2023. The automotive, electronics, and medical device industries drive this growth because they require advanced precision engraving solutions. Moreover, the laser marking technology’s ability to operate at low costs and its eco-friendliness contribute to its continued use across various sectors.

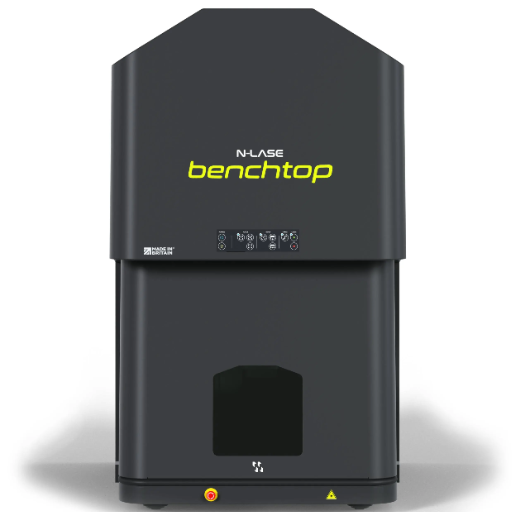

What is MOPA Fiber Laser, and how does it differ?
MOPA fiber lasers are quite different from other types of laser technology. They stand out due to their adaptability in pulse duration and repetition rate. Unlike the typical Continuous Wave (CW) or Q-switched lasers, MOPA lasers enable control of the pulse width, which makes them adjustable for different applications and materials.
These advantages also allow for changes in performance flexibility over various items ranging from metals and plastics to pretty complex ceramics. MOPA fiber lasers work effectively with precision engraving, marking, and cleaner. The MOPA lasers have the advantage of lower operational heat, significantly lessening the risk of damage or deformation to materials. The overall adaptability of MOPA lasers is much higher than that of traditional lasers, as they can operate across various industries such as medical devices, aerospace, and even electronics.
Understanding the features of MOPA Fiber Laser
MOPA (Master Oscillator Power Amplifier) fiber lasers are notable for their adaptability and accuracy, making them highly in demand throughout various sectors. Some of the most essential features of these lasers are:
- Adjustable Pulse Duration
One of the main pros of MOPA fiber lasers is their flexible pulse duration, which ranges from nanoseconds to microseconds. This means that different types of materials and applications can be used with them, and finer results can be achieved.
- Wide Range of Wavelengths
MOPA fiber lasers have a broad range of wavelengths, typically from 1064 nm to 532 nm. This wide range allows them to be used on sensitive materials like plastics that need less energy for processing, as well as hard materials such as metals and ceramics.
- Superior Quality Marking
MOPA lasers have high beam quality, which allows for fine and precise markings on materials. This enables clear and precise markings on various materials and is useful for sharp characters and logos. It can also be used for small-scale engraving required in medical or electronic devices.
- Minimal Heat-Affected Zones (HAZ)
The heat-affected zones are far smaller since MOPA fiber lasers create less heat while operating. As a result, damage or deformation to the surrounding material is either non-existent or, at the bare minimum, protecting even the most sensitive items.
- High Processing Speeds
The high pulse repetition rates MOPA and MOPA lasers possess, exceeding 100kHz, translates to high processing speeds. This highly benefits the automotive and aerospace industries, which value efficiency and high production rates.
- Application Versatility
MOPA fiber lasers can adapt to perform black marking on anodized aluminum or color marking on metals, as well as clean sensitive surfaces. This breadth of capabilities makes MOPA fiber lasers ideal for applications requiring high precision.
- Exceptional Lifetime
MOPA fiber lasers exceed 100,000 hours of operational lifespan, giving them long-term cost efficiency and reliability. This durability ensures dependable functionality, even in harsh operational environments, with little maintenance.
Because MOPA fiber lasers provide unparalleled precision and efficiency across diverse applications, they stay unmatched in the laser technology domain.
Advantages of MOPA Fiber Laser over traditional Fiber Lasers
- Controlling Pulse Duration
MOPA fiber lasers are superior in comparison to traditional fiber lasers because they contain the ability to tune pulse durations to specific needs, unlike conventional fiber lasers, which come with fixed pulse durations. This makes MOPA lasers suitable for various materials and applications such as marking, surface engraving, or surface cleaning with great accuracy. For instance, short pulse durations during micro-processing tasks limit the resulting heat-affected zones and thus lower the extent of damage to materials.
- Improved Quality of Marks
Unlike other marking tools, one of the most notable features of MOPA fiber lasers is their ability to mark coated metals and polymers with high-contrast permanent marks without the fear of damaging the material. MOPA lasers outperform traditional fiber lasers in precision engraving because they achieve precise results without discoloration or material distortion on most challenging surfaces.
- Wider Application Range
With their unique features, MOPA lasers are capable of performing a wide range of tasks and require limited pre-treatment for Marking Removal, annealing, color marking, cutting, or even drilling. Their adjustable pulse features make processing gold, copper, aluminum, and even stainless steel possible, which is difficult for traditional fiber lasers.
- Fine Color Marking on Metals
MOPA lasers do an excellent job of marking metals with colors, a feature traditional fiber lasers have difficulty accomplishing. This makes MOPA lasers ideal for the luxury goods and decorative applications industries, which require detailed and aesthetic finishes.
- Improved Processing Speed
MOPA fiber lasers are traditional models that are more efficient at engraving and cutting due to their optimized pulse shaping and power delivery. As a result, cycle times in industrial production are reduced, increasing throughput while maintaining exceptional quality.
- Reduced Heat Damage
The ability to adjust the pulse duration means MOPA fiber lasers can process materials with minimal heat. This is advantageous for thin-film cutting or welding, where the integrity of neighboring material layers needs to be preserved.
- Durability and Long Operational Life
Both MOPA fiber lasers and traditional fiber lasers are known for their durability. However, MOPA fiber lasers outshine their competitors in more extreme environments due to superior engineering, energy-efficient designs, and versatile functionality, allowing them to outlast their counterparts with minimal downtime.
MOPA fiber lasers have unrivaled flexibility, precision, and efficiency, making them ideal for demanding applications such as high-precision tasks. These advanced features, especially in growth and technological innovation, put them ahead of traditional fiber lasers.
Reference Sources
-
Laser Marking Methods1:
- Focus: This study systematizes various laser marking methods for different materials and shapes.
- Key Findings: The study emphasizes the importance of selecting specific laser marking methods based on material type, marking type, and production needs. It also highlights the flexibility and precision of laser marking systems.
- Methodology: The research involved analyzing different laser marking techniques and their industry applications.
-
Laser Marking as Environmental Technology2:
- Focus: This research explores the environmental benefits of laser marking compared to traditional methods.
- Key Findings: Laser marking reduces waste and eliminates the need for paints or chips. UV lasers, such as excimer lasers, achieve marking through photochemical transformations, offering high contrast and minimal waste.
- Methodology: Experiments were conducted using the TruMark 6020 laser system, varying parameters like pulse frequency and energy. Surface morphology was analyzed using scanning electron microscopy (SEM).
-
Laser Marking System for Plastic Products3:
- Focus: This paper addresses challenges in marking plastic products, particularly for food industry applications.
- Key Findings: UV lasers provide high-resolution marking without requiring metal additives, which are unsafe for food-grade plastics. The system supports high-speed marking (up to 100,000 caps/hour) with adaptive focusing and 2D/3D scanning technologies.
- Methodology: The study developed a UV laser marking system and tested it on various materials, including plastics, metals, and ceramics, ensuring safety and efficiency.
- Top UV Laser Marking Machine Manufacturer and Supplier in China
Frequently Asked Questions (FAQs)
Q: What is the main difference between UV and fiber laser marking machines?
A: The main difference lies in their wavelength and application. UV lasers operate at a shorter wavelength (355 nm) compared to fiber lasers, which have a standard wavelength typically around 1064 nm. This difference allows UV lasers to perform “cold marking,” making them suitable for delicate materials, while fiber lasers are more effective for engraving on metals and other tougher materials.
Q: What are the advantages of the UV laser marking machine?
A: The UV laser’s advantage is its ability to mark and engrave on a variety of materials without causing heat damage. This makes it ideal for sensitive substrates like plastics and glass. Additionally, UV lasers provide high precision and excellent detail, making them perfect for applications requiring fine markings.
Q: Can a fiber laser engraver be used for all materials?
A: Fiber laser engraving machines are versatile and can mark a wide range of materials, but they are particularly effective on metals and some plastics. However, they may not be suitable for certain delicate materials that require a UV laser’s “cold marking” capability.
Q: Which laser system is better for metal marking: UV laser or fiber laser?
A: Fiber lasers are generally considered superior for metal marking. They are specifically designed to handle the reflective properties of metal surfaces, allowing for deeper engravings and better contrast. On the other hand, UV lasers are not as effective for metal but excel on non-metal surfaces.
Q: How do UV and fiber lasers compare regarding laser power?
A: Fiber lasers typically offer higher power than UV lasers, making them more suitable for high-speed applications and deeper engravings. While lower in power, UV lasers provide finer details and are better suited for applications requiring precision over depth.
Q: What is the best application for a UV laser engraver?
A: A UV laser engraver is best suited for applications that require high precision and minimal heat impact, such as marking on plastics, glass, and certain types of ceramics. It also effectively creates intricate designs and detailed logos on sensitive materials.
Q: How do I choose the right laser marking machine?
A: To choose the right laser marking machine, consider the types of materials you will be marking, the required engraving depth, and the level of detail needed. If you work with metals, a fiber laser engraving machine may be the best choice, while a UV laser machine is ideal for delicate surfaces.
Q: Are CO2 laser marking machines better than fiber and UV lasers?
A: CO2 laser marking machines are effective for non-metal materials like wood, acrylic, and glass. However, they may not match the performance of fiber and UV lasers regarding metal marking or precision engraving on sensitive materials. The choice depends on the specific applications and materials used.
Q: What types of laser marking are available?
A: The main types of laser marking include engraving, etching, and marking. Each type varies in application and depth of marking, with fiber and UV lasers commonly used for these processes based on the material requirements.
