CNC (Computer Numerical Control) and VMC (Vertical Machining Center) milling machines are elenments of precision machining and they have global significance in the manufacturing processes. For those looking to acquire these technologies, distinguishing between the two can often be overwhelming. What are the distinguishing characteristics of VMCs and CNC machines? Do they serve the same purpose or are they completely different? In this guide, we shed light on the major differences between them, assess their functionalities, and assist you in determining the most appropriate option based on your requirements. This article aims to deliver insights, irrespective of your experience in machining, enhancing your decision-making skills.
What Are CNC Machines and How Do They Work?
CNC machines, also known as Computer Numerical Control machines, are automated devices utilized in modern production for their accuracy. These tools “read” and “understand” instructions fed into them via specialized software, cutting, shaping, and fabricating metals, plastics, and even wood. Consistency and accuracy are hallmarks of these machines and industries requiring drilling, milling, turning, and even engraving rely heavily on CNC machines, as they can perform all these functions simultaneously with unparalleled precision.
Benefits of CNC Technology in Today’s Manufacturing Sector
CNC technology has transformed modern manufacturing with sharp accuracy, absolute speed, and precise repeatable actions. A more recent industry study shows that production time is slashed by an astounding 50% when comparing it to the time spent on manual machining.” This is possible due to the fully automated processes devoid of human error and enables reproducible complex designs with tolerances upwards of 0.25 millimeters (0.001 inches).
Minimal downtime is ensured with reaching high output levels, which is one of the key benefits of the systems. The productivity of many sectors, such as aerospace, automotive, and medical device manufacturing, where precision is indispensable, has increased with the automation of CNC. Additionally, the integration of other technologies with CNC machines, such as high-speed spindles and adaptive control software, have broadened the range of materials that can be accurately worked on, further enhancing their capabilities.
The use of CNC technology has also advanced the evolution of sustainable practices in manufacturing industries. These machines feature precision dividers that electronically index material being divided into parts, providing more accurate results than non-computer controlled diverted. Because of the reduced amount of waste material produced when using CNC machines, these machines greatly improve the eco-friendliness of the production process. An industry study shows that these technologies can reduce material waste by 20-30%, demonstrating the resource benefits and cost efficiency provided by CNC technology.
The Development of CNC Technology and Its Effects
With the introduction of more sophisticated systems and tools, CNC technology has evolved in many ways over the years. Today’s CNC machines include sophisticated software and updated hardware which greatly boosts accuracy, efficiency, and speed of production. For example, 5-axis machining has now more advanced capabilities. It has allowed manufacturers to do highly detailed parts in one set up, further reducing the time required to complete the part. Current industry research shows that 5-axis machines are estimated to enhance efficiency by 50 percent when compared to 3-axis systems.
In addition, the inclusion of automation has redefined the rules of the game in CNC manufacturing. Robotic arms for part pick and place add automation to the CNC system, eliminating human interaction, allowing for around-the-clock production. Some studies state automated CNC processes have the potential to reduce operational downtimes by 40 to 60 percent when compared to processes without automation. The ability to control and monitor the machine from anywhere in the world has been made possible with new technologies such as cloud CNC software, enabling instant modifications to the work, thereby improving the workflow even further.
A great deal of processing innovations have also been made. The newer CNC routers and mills can work with a large range of materials, including titanium alloys, composites, and advanced plastics. This feature is useful to the aerospace, automobile, as well as medical appliance industries that require complex and ultra-light parts.
Such developments show the precision and productivity that modern industry and engineering as a whole can achieve by applying CNC technology.
How CNC Control Systems Operate in Modern Manufacturing
The CNC (computerized numerical control) systems work when the tools of execution are controlled and guided to create articles from blocks of materials in a required shape and structure. Modern control systems are interfaces with powerful programs such as CAD and CAM systems that bridge the gap between digital cad work and actual setup production. These CNC systems use several axes — most have three to five and more advanced setups operate with seven or more — that allow programmable automation and manipulation of devices such as lathes and mills to make repetitive movements to create intricate geometrical shapes and components.
New information reveals the CNC systems have a great deal of impact on production efficiency. For example, CNC machines are now believed to reduce material waste by almost 25% due to precise cutting and path optimization. In addition, automated setups of CNCs have been proven to reduce manufacturing lead times by 30 to 40%, which gives companies the ability to meet deadlines without reducing quality. Newer inventions such as automatic tool changers and real-time machining monitoring have further enhanced productivity, allowing for more aggressive scaling.
CNC systems provide unrivaled consistency, achieving tolerances as tight as ±0.0001 inches. This consistency is crucial for the aerospace and medical industries as it ensures the utmost safety and reliable functionality. The integration of IoT and machine learning has never been broader with the ability of CNC systems to perform predictive maintenance—assessing the health of a machine and notifying manufacturers prior to a breakdown. These advancements do most of the work in minimizing downtime and the overall cost of owning the machine during its lifecycle.
To sum it up, new CNC systems are a combination of advanced engineering and digital innovation.
What Is a VMC Machine and Its Specific Characteristics?
- Vertical Spindle Orientation: The Vertical position of the spindle allows the user to do high precision machining.
- Multi-Functionality: VMCs can perform multiple tasks like cutting, drilling and tapping in a single setup.
- CNC Control: Most modern VMCs are fitted with Computer Numerical Control (CNC) Systems which increases automation and precision.
- Compact Design: Their layout is aimed at effective utilization of space of the floor and increasing the output.
Advancements in Vertical Machining Centers (VMC)
The integration of new technologies has greatly advanced modern vertical machining centers (VMCs) with increased efficiency and flexibility. For example, VMCs now have greater spindle speeds of over 20,000 RPM, which allows for faster work material removal rates as well as better surface finish. Improvements to multi-axis capabilities such as 4-axis or 5-axis configurations enable complex part machining to be done in one setup, drastically cutting down production time.
Recent information shows us that VMCs with hybrid technologies such as modules for additive manufacturing are being increasingly used in aerospace because of complex geometry and need for light weight structures. An example is, uncrewed VMCs with IoT integration are claimed to allow real-time monitoring of systems such as predictive maintenance which reduces average downtime by 30%.
The inclusion of new technologies like Computer Aided Manufacturing (CAM) systems has improved VMC programming. This has reduced the time needed to set up the machines, which enhances productivity on the shop floor. In addition, modern advancements with tool changers allow these machines to store between twenty and one hundred and twenty tools, increasing flexibility when different components have to be manufactured simultaneously.
VMCs have not lost their relevance, but industries are still improving them to fulfill today’s needs for speed, accuracy, and automation, which are critical in the competitive world of manufacturing.
The Importance of the Laser’s Power and Speed in Contemporary Manufacturing
The introduction of laser systems in contemporary manufacturing has transformed operations in many industries because of their unmatched accuracy and quick operational speed. Laser marking, for example, is an essential part of automobile, electronic, medical, and aerospace machinery production. The efficiency of laser marking machines is often evaluated by their speed of marking, depth of marking, and the surface finish, all of which stem from the optimal parameters of laser power & speed that are set.
The efficiency of production lines has been enhanced by recent developments in marking technology, allowing for an average marking speed of 7,000 millimeters per second using high-power fiber lasers. Quality is not sacrificed at these speeds because of sophisticated control systems that manage these lasers. Managing laser power and the material surface for metals with high reflectivity is essential to achieving desired outcomes without overheating or material damage.
Moreover, manufacturers are making use of data-driven algorithms and machine learning to automatically and in real-time adjust laser power and speed depending on the design complexity and material type. This flexibility further enhances dependability, cost savings, and industry-standard compliance. Researches suggest that adjusting the parameters of the laser can improve marking times by as much as 40%, which contributes to quicker delivery times and enhanced profit margins.
Optimized Laser Applications in Modern Manufacturing: A Step Toward Sustainable Industry
Optimized lasers improve the dependability and accuracy of processes in modern manufacturing. Stricter operational requirements broaden the scope of innovation to enhance metrics like beam intensity, pulse duration, and scan speed. For example, more recent studies indicate that optimizing these factors can result in up to 30-50% greater energy efficiency, drastically cutting operational expenses.
Moreover, new laser systems are equipped with predictive wear analytics that help reduce maintenance and downtime by adapting settings ahead of time. Proactive industry estimates suggest this approach improves equipment lifespan by as much as 25%, which can save a significant amount over time. In addition, optimized systems also enable lasers to process faster, with some studies showing a 35% reduction in cycle times, improving throughput and productivity.
These innovations improve efficiency in production while also reducing energy spent, which helps green manufacturing initiatives. This further illustrates the importance of adopting modern laser technologies for competitiveness in the rapidly evolving manufacturing landscape.

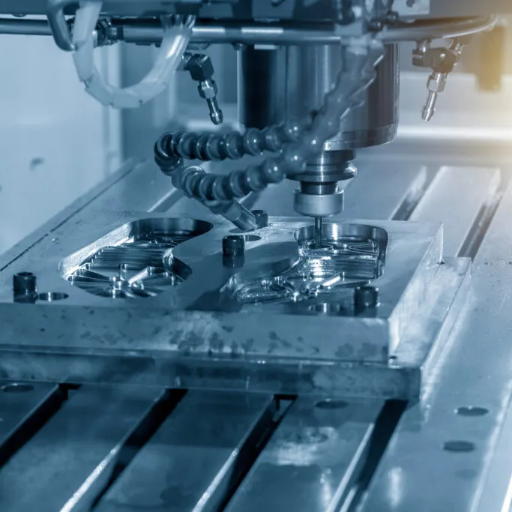

Key Differences Between CNC and VMC Explained
The design and purpose of CNC (Computer Numerical Control) and VMC (Vertical Machining Center) machines differ from each other. Computer controlled automated equipment designed to perform various tasks such as cutting, milling, or drilling is referred to as the CNC machine. A CNC machine with a vertically oriented spindle is called VMC, and it is used for vertical cutting or other related tasks. Both are useful in manufacturing, cross VMC is meant for more specialized vertical machining projects while CNC pertains to a larger variety of machines and their functions.
VMC and CNC Differences Explained
Machines classified under Vertical Machining Centers (VMCs) and CNC counterparts are both essential for use in manufacturing processes, however, there is a difference in the application and operation of both types. VMCs, due to the placement of the spindle, can perform precise vertical cuts, drills, and milling, offering productivity for the automotive and aerospace sectors as well as for mold production. A much broader category of tools under the Computer Numerical Control (CNC) includes lathes, horizontal machining centers and other specialized equipment, all of which are controlled via a computer system.
Newly published research states that the global CNC machine market was valued at roughly 90 billion dollars as of 2023 and is anticipated to expand at a compound annual growth rate (CAGR) of nearly 5.5% by 2030, owing to the precision manufacturing and automation. VMC machines will be a major contributor to this growth as industries try to find better answers to intricately high-precision vertical machining operations. The efficient and wider application of these machines is also supported by the rising adoption of sophisticated technologies such as machine learning and the IoT (Internet of Things). In addition, VMC machines are becoming more popular because of their capability to handle diverse materials from metals to plastics and to be used in various manufacturing processes.
Being able to make the distinction VMCs and CNC machines enables businesses to streamline their production processes by choosing the correct machine that suits their requirements.
Latest Developments in VMC and CNC Machine Precision
The refinement of CNC and VMC machines is further developing due to the ongoing advancement of technologies and new developments in the manufacturing world. They also work best when executing complex designs. In some cases, CNC machines have been known to work with tolerances of ±0.002 inches. Equally, vertically mounted VMC machines designed to vertically machine specific workpieces also achieve remarkable tolerances, especially for parts produced vertically aligned and processed.
Modern VMCs achieve greater accuracy through high-speed spindles and advanced controllers capable of more complex cutting sequences. For instance, modern VMCs can now go to spindle speeds greater than 20,000 RPM. This leads to higher productivity as well as wonderfully smooth finished surfaces. Furthermore, components like direct-drive spindle motors and linear optical encoders with no backlash significantly enhance motion control and enable better accuracy.
The application of Industry 4.0 technologies alongside CNC and VMC machines has transformed these segments of industry. Now, precision enhancement is coupled with real-time monitoring and correction capabilities. Any slight inaccuracies or inconsistencies that occur during the machining process can be detected by the integrated sensors. This means that either the machine’s operators or even automated systems can modify certain parameters instantly. Recent figures suggest that implementing these smart technologies have offered up to 25% increase in machining accuracy for top manufacturing facilities.
In the end, as much as both CNC and VMC machines are precise, one of the deciding factors on choosing one over the other is the specific requirements of the procedure, the materials used, and the degree of automation sought in the production line. With these advances in technologies, manufacturers are geared not only towards better quality, but also astonishing levels of cost savings.
Differences in Workpiece Positioning and Cutting Tool Movement
As far as workpiece positioning and cutting tool mobility is concerned, I think that most CNC machines are more versatile because the workpiece can be stationary while the tools move in various directions. In contrast, with VMC machines, the workpiece is usually secured to the table and the cutting tools rotate mainly about the vertical axis. This difference makes CNC machines more flexible and capable of handling more complex sculptured geometries while VMCs excel in repetitive vertical cutting operations.
Which Industries Benefit Most from VMC vs. Other CNC Machines?
VMCs are widely used in automotive, aerospace, and general manufacturing industries. Considered one of the most complex manufacturing processes, vertical machining involves components like engine parts, aerospace support brackets, and detailed cast cavity molds. Other industries such as medical device manufacturing and advanced engineering, which involve the need for highly detailed shapes and multi-axis machining, prefer other CNC machines. Every industry has different practices and standards which guide their equipment selection based on the machining needs for their parts.
Use of VMCs in Aero-space and Auto-mobile Manufacturing
In the aerospace and automotive sectors Vertcal Machining Centers (VMCs) have proved to be invaluable. While applying efficiency and precision, these industries have a high dependency of VMCs. With high-performance components needing to be tailored with the utmost care, advanced technology is a must. New information shows that VMCs are commonly utilized for machining engine blocks, turbines, and structural parts because they undergo intensive fabrication processes with multi-micron tolerances.
Taking the aerospace industry into consideration, only the precision machining part of the aerospace market was valued at more than \$17.1 billion in 2022 and is expected to rise heavily over the next ten years. Aircraft demand significant reduction in weight and to achieve that, VMCs are crucial with providing the capability to manufacture titanium and aluminum alloys which are not only light but have high strength and can withstand extreme conditions.
VMCs are also crucial to the manufacture of high-precision parts needed in electric vehicles (EVs) within the automotive industry. Research indicates that the EV segment is anticipated to expand at a CAGR 23.1% from 2023 to 2030. This figure indicates that the demand for VMCs for reliable and efficient battery housing, drivetrain, and lightweight chassis component production will further increase. These details illustrate the continuously evolving innovations driven by VMC applications.
Precision Machining Requirements That Favor VMC Usage
Vertical Machining Centers are of great importance to the manufacturing and automotive industries as they transform raw material into precision parts in volume while ensuring low costs. Turbine blades and other detailed parts forming the turbine are manufactured by the aerospace sector while using VMCs. These components endure extreme environmental and mechanical stress; thus, tight tolerances and superior surface finish are indispensable.
Recent market research reveals that the global VMC market is set to grow significantly due to the adoption of automated systems and Industry 4.0 technologies. VMCs are equipped with smart systems such as sensors connected to the internet, enabling remote tracking of the unit’s functionality. Real-time servicing monitoring ensures efficiency while reducing production cycles, downtime, and operation costs.
Also, automotive and medical device manufacturing industries require VMCs to repeat procedures with a high deal of precision and repeatability. For instance, medical implants need to be machined with a precision of a few micrometers, in order to be anatomically compatible, and VMCs have become one of the most important tools for this purpose. Other recent studies also reveal an annual increase of over 18% in the use of multi-axis VMCs, which indicates that the industry is adopting more sophisticated multi-purpose machining systems. This change demonstrates how VMCs are advancing modern manufacturing processes.
Aspects to Evaluate While Opting For VMC
While choosing other CNC machines, a VMC should be selected by considering several options. Most important ones include material type, complexity of the component and, required fitter accuracy and cut efficiency. A sample which illustrates this, VMCs offer unparalleled vertical accuracy unmatched in the vertical plane which is a necessity when manufacturing complex parts such as molds, medical devices and, components used in the aerospace industry.The latest information indicates that VMCs offer unique benefits for businesses with needs in rapid prototyping or small to medium production volumes. As per industry analytics, more than 60% of small manufacturers specifically report VMCs as their preferred vertical machine due to their lower costs and simpler integration compared to horizontal counterparts. Also, new developments in spindle technologies have dramatically increased the speed of machining processes, with modern VMCs achieving up to 15,000 RPM for high-speed work, boosting productivity within the industry’s standards for precision.
One of the most distinguishing advantages of VMCs is their versatility with a wide scope of tools. They allow integration with automation equipment such as robots, arms, tool changers, and palettes which allow for uninterrupted workflows. Their adaptability with various equipment has led to their increased use across multiple sectors as well as market analysis predicting close to 6.5 percent compound annual growth rate (CAGR) for VMCs in the market until 2028.

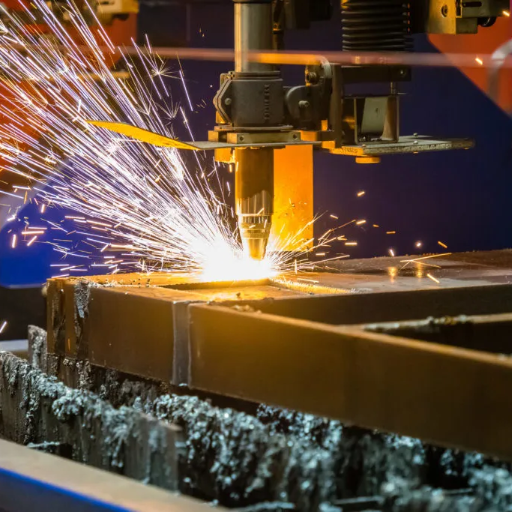

How to Choose Between CNC and VMC for Your Manufacturing Needs?
- Operations Require Complexity: Choose a more advanced CNC machine if you need both turning and milling operations performed, as it offers greater multifunctionality. VMCs are specialized machines that perform vertical milling with high precision.
- Product Development: VMCs are a much better choice when drilling or contouring requires intricate vertical cuts. For general machining, CNC machines have far more adaptable functions than VMCs.
- Financial Cost: VMCs are lower in cost, as long as the work is confined to vertical milling. Purchasing CNC machines comes at a higher cost because of their multifunctional uses.
- Automation Systems: Integrated VMCs with automation systems work wonders in automated production environments, but CNC machines also provide high levels of automation in many different operations.
Primary Features of Milling Efficiency
- Spindle Speed and Feed Rate: These two parameters have a direct impact on material removal rate, surface finish, and tool wear. Measurement of optimal spindle revolutions varies with the material; softer materials like aluminum yield higher speeds while harder materials like titanium slow to avoid tool wear. Research suggests a 10% lift to feed rate improves productivity but reduces precision slightly.
- Material Properties and Tool Selection: The relation of the workpiece material and the cutting tool pair greatly influences the efficiency of machining operations. For instance, carbide tools are best suited for hard alloys, because of their durability and high thermal resistivity. On the other hand, softer materials can be machined with high-speed steel (HSS) tools as they are more economical.
- Toolpath Strategies: More sophisticated toolpath strategies, such as adaptive clearing, can reduce machining time as much as 30% while increasing tool life. Such strategies greatly reduce air-cutting times and help maintain constant material contact for the cutting tool.
- Machine Accuracy and Tolerance: The newest CNC and VMC machines perform in the domains of aerospace and medical manufacturing and are able to achieve tolerances of ±0.002 inches. Consistently accurate machines improve workpiece quality and decrease the required amount of secondary processes performed.
- Chatter and Vibration Control: Chatter control is the foremost issue in balancing tool stabilities with effective surface finish capabilities. It is demonstrated that the careful choice of cutting parameters along with appropriate damping techniques may give as high as 50% reduction in vibration amplitude.
- Coolant and Lubrication: Adequate coolant application prolong tool life and protect from excessive heat. Flood coolant techniques are being replaced with cryogenic cooling and minimum quantity lubrication (MQL) which in some scenarios increase effectiveness by 20-30%.
Cost Analysis of VMCs and CNC Machines
The comparison of basic CNC machines and Vertical Machining Centers (VMCs) must include both the upfront cost and the ongoing operational costs. Entry-level General CNC models sell for about $15,000 to $20,000, making them more economical. VMCs, however, have a significantly higher starting price, typically between $50,000 and $150,000. The extra cost of VMCs can be attributed to their superior speed and precision, alongside other capabilities like spindle construction which enable them to outperform general CNC machines.
Operational components are equally important to consider because they affect the overall cost. Due to the heavy-duty structure and superior design of cooling systems, VMCs require less maintenance and servicing over the long term. With advanced automation features built into many VMCs—even user-friendly tools like software-controlled tool changers direct labor savings to flow through the system—total operating expense can drop by as much as forty percent in high-output scenarios. General CNC machines, in contrast, are much less automated and require sustained manual oversight, driving labor expenses higher over time.
The other important aspect as of VMCs is energy efficiency and the tailored power utilization features which are often integrated into the VMC’s design. As an example, some VMC models offer up to 25% energy savings relative to older or more generic CNC counterparts. These savings, especially in multi machine operational environments, can help tremendously in reducing the operational cost.
As mentioned, VMCs come with sophisticated features which is why they are more expensive, but with regards to productivity, precision, and long-term operational reliability, the investment often pays off for large scale or high-precision manufacturers. In contrast, general CNC machines are more affordable for lower scale businesses or less complex operations. Careful evaluation of production requirements and strategic objectives enables the manufacturers to select the most suitable machine for the desired return on investment.
The Effect of Laser Power on the Production Efficiency
Industries that need accuracy and repeatability use modern laser marking systems owing to them being the fiber marking of parts systems. The speed at which a laser is able to mark and the power it utilizes are synergistically related. Marking is done faster with higher laser power because the machine with higher power can mark surfaces in a shorter duration of time. A case in point is fiber lasers, which are famous for marking metals, as they work tirelessly in industrial settings. It is reported that fiber lasers of 30W and above can mark up to 7 meters per second depending on the material and the type of engraving needed.
Also, the volume of production is affected significantly by the level of laser power. Production volume is directly proportional to the power of the machine. High-powered machines are advantageous in high-throughput settings because they spend less time per marking at high quality. For example, manufacturers who process stainless steel or aluminum can aim at using lasers with variable power settings to strike a balance between speed and depth and achieve best results for shallow engravings and deep markings.
These events highlight the need to choose the appropriate laser characteristic concerning material appropriateness, pace of production, and marking standards to achieve desired outcomes. Through analyzing the most recent technological advancements, companies can optimize their investments in laser systems to operational aspirations—enhancing productivity and precision simultaneously.
Reference sources
- Study: Comparison of the Effect of Variable Helix Angle Geometry Tools on CNC Vertical Milling Machines on Chatter1
- Objective: To analyze the impact of tool geometry and machining parameters on chatter vibrations in CNC vertical milling machines.
- Methodology: The study used experimental methods to evaluate the stability lobe diagrams (SLD) of CNC vertical milling machines. It tested different spindle speeds, feed rates, and cutting depths using variable helix angle tools.
- Key Findings:
- VMC machines, a subset of CNC machines, are particularly effective for vertical milling operations.
- The study highlighted the importance of tool geometry and machining parameters in minimizing chatter and improving surface quality.
- VMC machines demonstrated high precision and stability in machining processes, making them suitable for applications requiring vertical spindle orientation.
- Study: Experimental and Analysis of Process Parameters of Aluminium Alloys using CNC and VMC4
- Objective: To evaluate the performance of CNC and VMC machines in processing aluminum alloys, focusing on process parameters and output quality.
- Methodology: The study conducted experiments using friction stir welding on aluminum alloys with CNC and VMC machines, analyzing tensile strength, hardness, and surface finish.
- Key Findings:
- CNC machines are versatile and can handle a wide range of machining tasks, including turning, drilling, and milling.
- VMC machines, as a specialized type of CNC machine, excel in vertical milling operations due to their design and spindle orientation.
- The study emphasized the importance of selecting appropriate process parameters (e.g., spindle speed, feed rate) to optimize performance and output quality in both CNC and VMC machines.
- Top Stone CNC Router Machine Manufacturer And Supplier In China
Frequently Asked Questions (FAQs)
Q: What is the basic difference between Computer Numerical Control (CNC) and VMC?
A: The term CNC, which stands for Computer Numerical Control, refers to a broad area of technology focused on operating machine tools with computers. VMC, or Vertical Machining Center, refers to a specific form of CNC machine where the spindle axis is oriented vertically. Thus, every VMC is a CNC machine, but not every CNC machine is a VMC. CNC technology covers a wide range of equipment, such as CNC lathes, CNC routers, and CNC milling machines, while VMC applies solely to the CNC machine with vertical spindle orientation used mainly for milling.
Q: What sets a CNC router apart from other kinds of CNC machinery in manufacturing?
A: A CNC router cuts and carves out shapes on woods, plastics, and even soft metals using a rotating cutter which moves on the z-axis. Unlike CNC routers, CNC milling machines are more precise and built for more powerful metalwork. Routers are cruder and less powerful, built for softer materials. They have less precision than machining centers, but greater work areas. While VMCs and HMCs are focused on metalwork with extreme precision, woodworking, signmaking, and artistic uses are CNC router’s domain, making it different, though not less important, in the industry.
Q: What are the key advantages of using a VMC in the manufacturing process?
A: VMCs or Vertical Machining Centers are VMCs are advantageous in manufacturing because: they enable effortless inspection and setup of the workpiece; primary vertical milling operations can be done efficiently; they occupy less space as compared to horizontal machines; the effect of gravity works in favor of the vertical milling; they are more cost effective in comparison to HMCs; their part fulling capabilities are superior and complex features are produced with accuracy; and their versatility applies to a broad spectrum of materials. These reasons explain why many industries prefer to use a VMC for numerous machining operations.
Q: How does understanding CNC technology impact modern manufacturing?
A: The understanding of CNC technology is one of the most important factors in modern the need for manufacturing as it changed the methods of production. The consistent repetitive and precise functions that are performed by CNC machines greatly eliminate mistakes made by humans and increase output, thus efficiency. It permits the fabrication of intricate components that cannot be achieved manually, permit integration of CAD design through CAD/CAM systems, and offers flexibility in production where various products can be manufactured just by reprogramming changes. Various fields like aerospace and medical devices rely on parts manufactured with precision using CNC technology and the lack of such knowledge in the industry is a loss to the manufacturing industry.
Q: What are the primary differences between CNC milling and CNC turning operations?
A: The difference between CNC milling and CNC turning is that they apply distinct methods of machining. In CNC milling usually done on VMC machines, the workpiece is kept in a set position, and pieces of material are removed from it using rotary cutting tools to achieve the desired shape. The cutting of the workpiece is done by end mills moving in several axes, which is most practical for flat areas, pockets, and more intricate curves. In CNC turning on the other hand, the workpiece rotates and a static cutting tool is used to remove material from the rotating workpiece. This is most suitable for the cylindrical parts. As turning predominantly concentrates on cylindrical items, considering prismatic items, which are mostly flat, are best produced by milling.
Q: How does a VMC compare to an HMC in terms of capabilities and applications?
A: Vertical and horizontal machining centers differ from each other mainly by their spindle orientation. VMCs have vertical spindles which are best suited for face milling and flat workpieces. They provide easier workpiece access, lower operational expenditure, and are simpler to control. VMCs are best used for small production runs or prototypes. In contrast, HMCs have horizontally oriented spindles. This allows for better chip removal and accommodating multiple fixtures on a pallet system. HMCs excel in heavy cutting operations due to enhanced rigidity and strength. Generally, HMCs are more productive for large-scale production because they require less time per setup. VMCs, however, are more flexible with varying tasks that require vertical approaches to the workpiece.
Q: What industries commonly make use of VMC machines for their manufacturing operations?
A: VMC machines serve an extensive range of sectors because they can be used to manufacture parts with great accuracy. In the automotive sector, VMCs are used for making engine blocks, transmission parts, and aftermarket modifications. VMC machines are used in the Aerospace sector to make parts with extreme precision, such as components of aircraft engines or parts of the airframe structure. Surgical instruments and some components of implants are manufactured by the medical device industry using VMCs. The mold and die industry relies on VMCs to fabricate intricate tooling used in the manufacturing processes. Not to mention, vertical milling centers are used by general machining job shops, electronics for enclosures and heat sinks, and the energy industry for specially designed parts.
Q: What factors should be considered when choosing CNC over VMC systems?
A: Consider the following when choosing general CNC equipment over a VMC: the kind of parts you intend to manufacture (cylindrical parts may be better suited to CNC lathes while intricate 3D parts with flat surfaces will benefit more from a VMC); your financial plan (VMCs represent a particular expenditure in comparison to other CNC alternatives); available floor space (vertical machines have different footprints than horizontal ones); the materials to be machined (some CNC machines are better suited for specific materials); the volume of production; the level of complexity of the parts (VMCs excel at certain geometries); the available manpower and expertise; and overall operator skill. It is important to note that the transaction need not be “either/or” considering that a VMC is a subtype of a CNC machine. The question then becomes which specific CNC technology best meets your manufacturing needs.
