Leveling and measuring accurately is critical across various industries, including construction and interior design. The advancement of technology over the years has bred many tools that make these operations easier, most recently with the introduction of 3D and 4D laser levels. These advanced devices are changing how professionals and DIY enthusiasts approach leveling projects by improving efficiency and accuracy through powerful features. But with similar names and overlapping purposes, how do you know which one suits your needs? This thorough guide will highlight the most critical aspects distinguishing 3D from 4D laser levels, enabling you to appreciate their functionalities and applications. With this article, regardless of your familiarity with laser leveling, you will have adequate information to strategically decide on your next project. Stay tuned as these groundbreaking tools are explained.

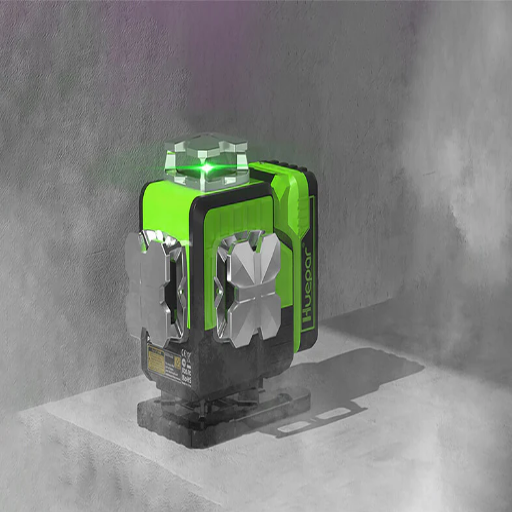

What Are 3D and 4D Laser Levels?
A 3D laser level projects three 360-degree planes of laser light, one horizontally and two vertically. This allows for leveling, alignment, and square layout in three dimensions. They are suited for precise tasks that include installing shelves, tiles, and framing walls.
4D laser levels add an additional 360-degree plane to 3D models, often enhancing functionality with additional slope features or greater accuracy. These tools are best suited for more advanced construction, surveying, or custom installation work requiring multi-dimensional measurements.
Basics of Laser Level Technology
Laser levels function on the principle of accurately labeling horizontal or vertical beams of lasers with respect to a movable marker, which is used as a reference for various level construction and alignment activities. Modern laser levels utilize diode lasers so that beamed light is not dispersed too much, ensuring maximum focus of the laser beam and, hence, accuracy and visibility of the laser beam even over longer distances.
Technology advances in lasers have introduced additional self-leveling features segregated under ‘additions’. These features automatically level the device concerning gravity to maintain accuracy within fractions of a degree, typically from ±0.2 to ±0.5 degrees. For instance, a standard cross-line laser level is equipped to beam out cross lines with the accuracy of ±1/8 inch at 30 feet, making it suitable for more advanced cabinetry or tile alignment.
Furthermore, today, laser levels are more likely to be equipped with multiple modes of projection, such as horizontal and vertical lines, as well as complete rotation coverage of 360-degree planes encompassing an entire room. Often equipped are high-end 4D laser levels, which cover more distances and offer ranges surpassing the 100-foot mark and reaching up to 200 feet when paired with detectors outdoors. These tools have also been integrated with rechargeable lithium batteries, providing extended operational times of up to 20 hours depending on the projection mode and power settings.
Compared to red lasers, applying green lasers has become increasingly common since green light is four times more visible to our eyes than red. This trait is beneficial for working outdoors or in brightly lit places. Other studies show that green lasers have a more extended operating range, although they may require more energy.
These devices are vital tools in construction, interior design, and precision engineering. Their technology is continuously advancing, with the addition of Bluetooth-capable connections, mobile application control, and enhanced durability of IP54 or IP65 ratings for dust and waterproofing.
Understanding 3D Laser Levels
3D laser levels, sometimes called multilayer or multi-plane laser levels, are specialized tools that can project 360-degree lasers horizontally and vertically in three horizontal and two vertical planes. Their comprehensive layout references are handy for construction projects and complex alignments in interior design. They are used for precise plumb alignments with the vertical lines, whereas with the horizontal line, leveling is done.
One of the most important benefits of 3D laser levels is that they do not require frequent repositioning to cover an entire room. Efficiency and accuracy are also enhanced when multiple lines are projected simultaneously, for example, when tiling, putting cabinets, or framing walls. Unlike less modern versions, modern 3D laser levels are accurate to ±1/16 inch at 30 feet, with the altealter slightly between models. Moreover, they offer operational ranges up to 100 feet indoors and even farther when paired with optional laser receivers.
Self-leveling technology allows the tool to adjust to within +/- 4 degrees of level. Now, many models include rechargeable lithium batteries that can sustain 8 to 10 hours of operation, ensuring reliability on extended workdays. The addition of 3D laser level technology also enables the use of green lasers which improve visibility by four times over red lasers, particularly in brighter environments.
These devices are well-suited for demanding environments, with enhanced durability, including IP54 and IP65 ratings for dust and water resistance. Applications of 3D laser levels include installing drop ceilings, aligning wall studs, and even more complex layout designs for industrial or residential projects. With the advancement of technology, many models now offer app-controlled connectivity that allows for remote adjustments, thus enhancing workflow efficiency.
What is 4D Technology?
4D technology pertains to images, holograms, or other forms of rendering that allow for a three-dimensional viewing experience but includes some sort of movement, hence the ‘4D’ dimension. This new technology has tremendous applications in imaging, illustration, production, manufacturing, and other fields, providing active and engaging results. For example, in medical imaging, four-dimensional technology permits experts to see not only the 3-D frameworks but also their transformations over time, such as the movement of organs or blood flow, increasing the diagnostics’ accuracy.
4D technology allows for a more intense experience by adding timed transformations, physical movements, and interactive environments to virtual reality. An excellent example is cinema, where the currently popular 4D films significantly increase the listeners’ enjoyment by having the rides/rocks shown, the seats move, and water splashes on people while they’re watching.
Moreover, the value of 4D technology is emerging in simulations and predictive modeling. In construction and architecture, for instance, 4D modeling allows project managers to visualize a build’s progress over time, improving planning accuracy and reducing delays. Research suggests that projects that have utilized 4D simulations experience a marked increase in efficiency, with construction overruns supported by data reduced by as much as 25%. Integrating spatial and temporal data so easily makes 4D technology critical across many disciplines.

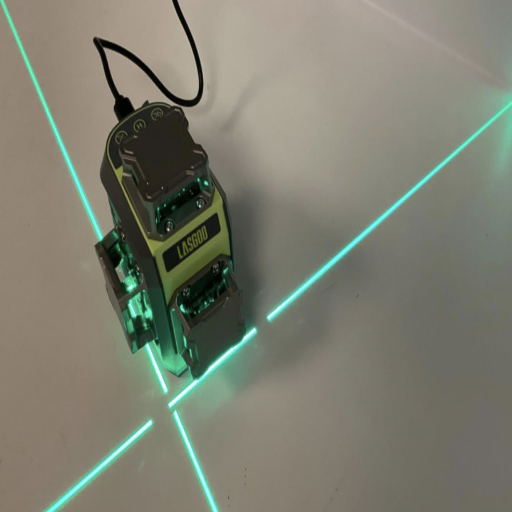

How Do 3D Laser Levels Work?
To create visible and accurate reference lines on surfaces in all planes – horizontal, vertical, or both – 3D laser levels utilize laser projection. These devices use a rotating laser or multiple diodes to emit beams that create a 360-degree reference around a room or work area. The emitted laser lines facilitate accurate alignment or leveling of surfaces, which is essential for professionals during tiling, wall fixture installation, or framing. Self-leveling mechanisms are integrated in most 3D laser levels, and their rechargeable batteries enhance ease of use. Self-leveling mechanisms ensure a smooth operation on mildly uneven terrain.
Precision and Accuracy in 3D Laser Levels
To provide unparalleled accuracy of often ±1/16 inch for laser devices measuring up to 33 feet, modern 3D laser leveled use the most advanced technology. These devices use sophisticated optics and high-end laser diodes to ensure visibility of the emitted laser lines, even in bright light or over distances. With stability add-on, some models also incorporate dual-axis compensators, which enhances accuracy and precision even further during leveling and alignment tasks.
Thanks to progress made in the field of self-leveling motors, these tools are now easier to use. Their high-speed adjustment enables them to achieve perfect horizontal or vertical alignment in seconds. Enhanced with laser receivers, these tools can work from distances of 100 feet and beyond, making them appropriate for exterior and interior use.
3D laser levels are set to serve professionals given the precision, reliability, and error-free use, making them incredibly time and cost-efficient on projects. Durable 3D devices are equipped with shock-resisting and waterproofed casings, which enables them to withstand condition working sites while maintaining functionality.
Typical Applications for 3D Laser Levels
3D laser levels are highly flexible and functional, as I have encountered them being undertaken for several tasks. For instance, I use such construction tools to set up more advanced projects like wall tiling or cabinetry installations, which require a great deal of precision. It’s also invaluable for leveling floors, aligning partitions, or laying out ceiling grids. Regardless of whether the work is indoors or outdoors, these tools simplify and enhance the accuracy of intricate leveling tasks.

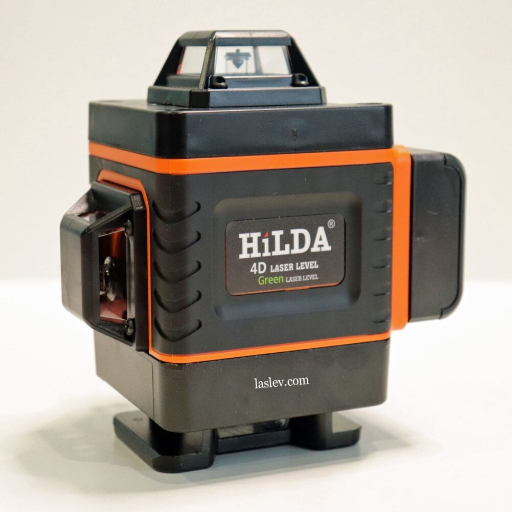

What Are the Advantages of 4D Laser Levels?
Adding supplementary reference points and rotational lasers on 4D laser levels enhances their versatility and incorporates advanced functionality. These tools are ideal for complex structure realignment or tasks involving multi-dimensional precision, such as advanced layout designs. Compared to traditional laser levels, 4D laser levels outperform them in accuracy and efficiency, perfect for professional-grade projects. Moreover, many 4D laser levels have self-leveling capabilities and increased range for reliable performance indoors and outdoors.
Innovations in 4D Laser Level Technology
The development of 4D laser levels brought new features that improve precision, usability, and versatility. One of the most important developments is the addition of Bluetooth and a smartphone interface, enabling remote device control adjustment through an app. This capability improves function within convoluted or remote spaces, decreasing setup time and enhancing workflow efficiency.
Another advancement was made in the accuracy of the beams, which now achieve measurement tolerances of ±1/16 inch at 30 feet. When combined with range capabilities—with some models now exceeding 100 feet indoors and up to 300 feet when used with a detector—the tools are now more effective than ever for large-scale construction or exterior alignment tasks.
There has also been improved durability, as many devices come equipped with additional waterproofing and shock resistance. Models with IP65 or more outstanding ratings are dust- and water-resistant, making them suitable for challenging conditions on a job site. Also, increased operating periods are now available with built-in rechargeable lithium-ion batteries, with many devices offering 8 to 12 hours of use per charge.
Ultimately, integrating green laser technology transforms visibility because green lasers are up to four times stronger than red lasers, providing clear visibility even during bright daylight. Coupled with self-leveling and multi-plane projection systems, these developments underline why 4D laser levels are gaining popularity amongst professionals and DIY enthusiasts who seek unparalleled performance and reliability.
Use Cases for 4D Laser Levels in Construction
4D laser levels are now standard in construction due to their versatility and contributions to precision and efficiency, all while enhancing many processes. For instance, these devices are widely used in interior projects such as alignments for cabinetry installation, ceiling grids, or even tiling. Their accuracy—usually within ±1/16 inch at 33 feet—guarantees flawless symmetry and alignment, which helps them achieve almost perfect accuracy without any margin for error.
4D laser levels are essential in framing, partitioning, and setting foundations during large-scale construction. The ability to see multiple planes at once helps project workers to view horizontal, vertical, and angular reference points simultaneously. This is essential in multi-story projects where leveling everything in precise increments adds to the already complex challenge. Often advanced models come with a working range of up to 300 feet with detectors, making them suitable even for large job sites.
In addition to all these features, 4D laser levels are highly effective for outdoor site grading and landscaping due to their green laser technology. A wide range of applications is made easier thanks to how well green lasers maintain visibility even in bright daylight, which is critical for ensuring accuracy in exterior projects. Further, the durability of these devices, which makes them IP54 or higher rated in dust and water resistance, becomes essential for the harsh environments typically found on construction sites.
The use of 4D laser levels offers considerable time and labor savings. Studies indicate that automated leveling instruments, including 4D laser levels, can decrease project completion time by 30% relative to older practices. Improved productivity and reduced costs are some of the factors supporting the growing acceptance of this technology in the current construction industry.

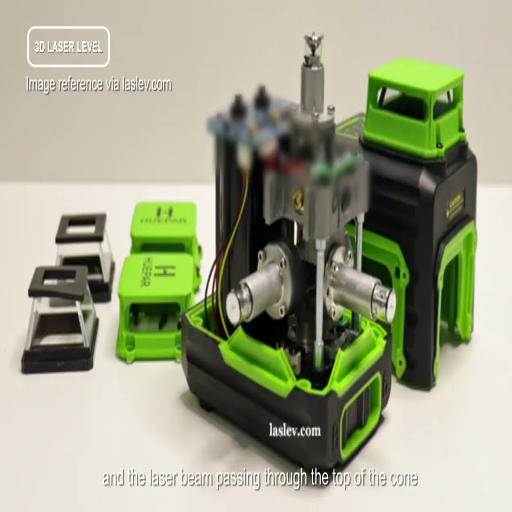

How Do 3D and 4D Laser Levels Compare?
3D and 4D laser levels primarily differ in functionality and scope of use. A 3D laser level projects vertical and horizontal laser lines across three planes, achieving alignment and leveling. It is used for basic construction, interior work, and DIY activities.
A 4D laser level builds on this by adding complex features like automation, self-leveling capabilities, and greater working ranges. Such enhancements improve efficiency and precision, making 4D laser levels ideal for meticulous construction or large-scale projects.
Key Differences Between 3D and 4D Laser Levels
- Number of Planes:
A 3D laser level projects a singular horizontal plane along with two verticals, which provides 360-degree coverage for standard alignment tasks. A 4D laser level, on the other hand, projects one additional plane or offers finer adjustments, enabling greater flexibility and accuracy.
- Precision and Accuracy:
3D laser levels provide reliable accuracy for general construction with indoor projects, whereas 4D laser levels are designed with enhanced precision, making them ideal for highly detailed and intricate tasks.
- Self-Leveling Capability:
Most 3D laser-level models cannot self-level, while some offer basic self-leveling functions. 4D laser levels usually have high-tech self-leveling capabilities, saving time and reducing human error.
- Working Range:
The working area of a 3D laser level suffices for smaller regions and tasks like home renovations or typical construction sites. For a 4D laser level, they are equipped with extended.
- Price:
3D laser levels are more affordable and accessible to DIY enthusiasts or smaller projects than 4D laser levels. However, these 3D laser levels are accompanied by advanced features, making them complex and expensive, suitable only for professionals working on large-scale projects.
- Purpose:
A 3D laser level works well for general activities like installing shelves, tile work, or basic construction tasks. The 4D laser level is more appropriate for more challenging activities that require laser-level precision such as bridge construction, large industrial installations, or intricate detailed architectural works.
- Technology and Features:
4D laser levels integrate additional features like remote controls, lower interval battery life, and the ability to project finer lines for better visibility. Such features are often unavailable or more constrained in the 3D laser-level models.
Every laser level is tailored to offer specific advantages, and the decision is based on the scale and intensity of the project. Knowing these differences helps choose the most appropriate tool for the user’s requirements.
Choosing the Best Option for Your Needs
Many considerations need to be considered while selecting the best laser level for your requirements, such as the type of project that needs to be undertaken, the amount of precision required, budgetary constraints, and the usability features of the laser level itself. For example, professionals engaged in significant level construction work might consider rotary laser levels the most useful because of their ability to range over vast distances—up to 2,600 feet with the detector—with precise leveling. Cross-line laser levels, on the other hand, excel in accomplishing cabinet installation and tile alignment tasks as they offer accuracy within ±1/8 inch at 30 feet, which is appropriate for smaller-scale projects.
The power source of the laser level is also essential. Self-leveling laser levels powered by rechargeable batteries often give more operational time than alkaline ones. Some recent models offer up to 10 hours of continuous use on a single charge. Also, many new laser levels are equipped with user-friendly features such as simple control panels, smartphone remotes for making adjustments, and green lasers four times brighter than red lasers for visibility enhancements under bright light conditions.
Checking for a device’s durability feature is equally as important. Make sure to get laser levels with an IP54 rating or above as these are resistant to dust and water, maintaining consistent performance in varying environmental settings. Estimating one’s needs provides the best value from an investment, considering basic models are below $50 and high-end professional-graded models go above $500. Before starting a project, determining a budget is crucial for purchasing a tool to balance features, quality, and price to achieve the desired results.

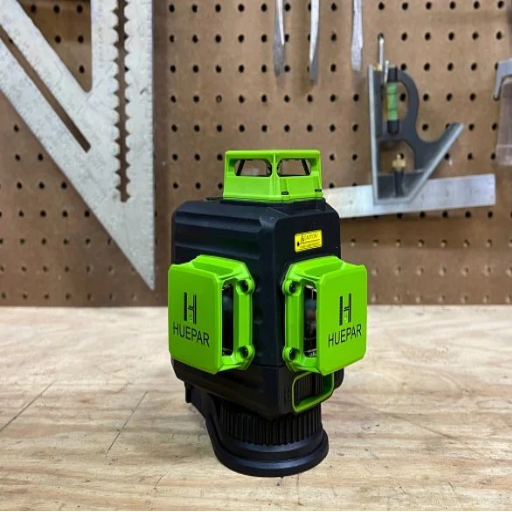

What Are the Best 3D and 4D Laser Levels Available?
- DeWalt DW089LG 3D Laser Level
The DeWalt DW089LG is a top performer for its reliability, accuracy, and visibility. It is considered to have the best battery life and the strongest indoor and outdoor performance due to the bright green beams emanating from it, making it ideal for professionals.
- Huepar S03CG 3D Laser Level
The Huepar S03CG has some of the best pricing in the market, considering it uses a 3-plane laser system that offers 360° coverage. It offers green beams meant for enhanced visibility, along with a tough design, all at a lower price for professionals and even DIY-ers on a budget.
- Bosch GLL3-330CG 3D Laser Level
Like most Bosch models, this one is also famous for their precision and ease of use, however, this model carries a special feature as it comes with green lines that are visible and Bluetooth connectivity for remote operations. Being compact makes this model easier to carry around, while being durable makes it reliable for many applications.
- Kiprim LV03T 4D Laser Level
Kiprim LV03T is known for its high precision, with dual 360-degree horizontal and vertical planes giving a true 4D experience. It is user-friendly and light, which makes it suitable for a range of different projects.
The above laser levels are indeed some of the most accurate and power-efficient tools available in the market today. They are also reliable enough to cater to multi-project needs on limited budgets.
Top Features to Look For in 3D Laser Levels
Bearing in mind efficiency, convenience, and precision, the following features need to be analyzed when selecting a 3D laser level:
- Coverage
Providing horizontal and vertical planes at 360-degree coverage is a feature that a 3D laser level should possess because it greatly improves overall alignment accuracy throughout large rooms or spaces without the need to frequently readjust the positioning of the device.
- Self Leveling Function
Most models today offer a self-leveling function, which ensures perfect accuracy is maintained even on slightly rough surfaces. Many models boast a range of self-leveling within ±4 degrees, making them reliable.
- Empirical Capabilities
Employing self-leveling improves ease of use, but it should not detract from the level’s accuracy. The best laser levels on the market, unsurprisingly, provide an accuracy of around 1/16 inch per 33 feet. The working range is also critical, and most devices can offer around 130 feet indoors, with even greater ranges offered when using detectors outdoors.
- Power Sources associated with the Unit and Battery Life
Reliable and easy-to-use lasers come with long battery lives. Make sure that you opt for models that feature rechargeable lithium-ion batteries, as they can provide 8-10 hours of uninterrupted service. Some devices also feature dual battery options for additional convenience.
- Durability and IP Rating
Having a high durability level is extremely important for rugged job site use. Many 3D laser levels come with an IP54 or higher rating, ensuring resistance to impact, water, and dust, ensuring reliability in tough conditions.
- Mounting Versatility
Versatility in installation options, such as wall mounting, tripod use, or magnetic mounting, can make a significant difference in usability across different tasks.
By focusing on these features, you can pinpoint a 3D laser level that caters to your specific requirements, whether for complex construction works or tasks involving home renovation. With just a little effort and the right innovative technology, achieving professional results has never been easier.
Leading Brands and Models of 4D Laser Levels
When picking a 4D laser level, it is essential to consider the brand for optimal performance and trustworthiness. Given the challenges and innovations in the market, here are some of the names and brands with the most recent technology Bosch GLL3-330CG.
Bosch is one of the GLL3-330CG’s manufacturers and also is famous for their precision tools. This model of 4D laser level is the best of its kind as it shows a complete 360-degree green laser, which has great visibility and can be seen even during harsh lighting. It has Bluetooth® technology so its users can set their preferences on a phone application. Furthermore, it has a receiver range that extends to 200 feet.
- DeWalt DW089LG
DeWalt’s products are trusted to be tough and long-lasting, and the DW089LG model is no different. This 4D laser level comes with green beam technology, making it easier to see and increasing the working distance to 165 feet. It is also built with durable over-mold construction for unforgiving job site conditions. It also boasts of sturdiness. This feature is made possible with built-in rechargeable batteries. The system allows for continued usage without having frequent charges.
- S04CG Huepar
<b> S04CG Huepar</b> With other laser levels, Chupar has built a reputable name by getting the balance between quality and price right. Each level has a green laser for better visibility and 4 360 degree laser lines. It has a pulse mode for outdoors use and a remote control and magnetic mounting base for easier usability.
- Topcon RL-H5A
As far as professional-grade laser levels go, we have Topcon’s RL—H5A, which withstands the test of time and can be considered reliable. This level is designed for specific outdoor use, but it is capable of withstanding 4D leveling and constructs IP66 rigid durability. This laser offers impressive accuracy and range. Compared to other devices, this is on a different level when it comes to distance. It can easily measure distances up to 2,600 feet when using a laser receiver.
- KAIWEETS KT360A
This model is more advanced than the previous one, which is why it becomes appealing to DIY enthusiasts. It offers a self-leveling and locking smart pendulum system alongside green beam technology. KAIWEETS KT360A comes with 4 360-degree laser planes that allow it to offer complete and detailed coverage.
These models are some of the finest 4D laser levels in the market today, offering an unprecedented level of accuracy and precision for tasks. Each device offers varied customization to best suit the user’s preferences. Whether they are looking to prioritize visibility, durability, advanced connectivity features, or smooth usability, they will find all of that in these devices.
Reference Sources
-
Physical Modeling of 3D and 4D Laser Imaging1:
- Key Findings: This study highlights the evolution from 3D point cloud systems to 4D full-waveform data systems. While inaccuracies limit 3D systems due to local opto-geometric characteristics and partial occultation, 4D systems improve telemetry and provide a more accurate representation of reality. The research emphasizes the importance of simulating 3D and 4D laser imaging for better data processing and accuracy.
- Methodology: A numerical model was developed to predict the output data of 3D and 4D laser imagers. The model accounts for laser pulse characteristics, atmospheric propagation, object interaction, and optoelectronic reception.
-
4D Laser Camera for Medical Applications2:
- Key Findings: A 4D laser camera was developed for precise diagnostic and therapeutic radiology patient imaging. It enables real-time recording of movements in 3D and 4D formats, improving patient positioning accuracy and reducing errors in procedures like PET-CT imaging. The system also supports adaptive therapy and image fusion across modalities.
- Methodology: The study utilized a complementary metal-oxide semiconductor camera to capture laser beam intersections with patient surfaces. The system was tested for applications like breathing motion detection and tumor imaging, demonstrating its potential for enhanced accuracy in medical imaging.
- Top 3D Laser Marking Machine Manufacturer And Supplier In China
Frequently Asked Questions (FAQs)
Q: What is the primary evolution in laser levels from 3D to 4D?
A: The evolution from 3D to 4D laser levels introduces the ability to project a 360-degree plane, enhancing versatility for complex projects and offering higher precision in construction and DIY tasks.
Q: How does a cross-line laser function for everyday tasks?
A: A cross-line laser projects straight lines onto surfaces, making it ideal for tasks like hanging pictures and installing cabinets. It ensures accurate measurements and alignment.
Q: What are the unique benefits of using 4D laser levels compared to traditional 3D ones?
A: 4D laser levels offer a new level of functionality by providing full 360-degree coverage, which is essential for larger spaces and complex projects, while traditional 3D laser levels are limited to specific tasks.
Q: How can the Huepar app enhance the use of laser levels?
A: The Huepar app allows users to see real-time measurements and adjustments, making it easier to understand laser levels and optimize their use for various construction and DIY projects.
Q: What should I consider when choosing between 3D vs 4D laser levels?
A: When deciding on the best choice between 3D and 4D laser levels, consider the scope of your projects, the required precision, and whether you need full room coverage or specific angled lines.
Q: Can 4D laser levels be used for outdoor applications?
A: Yes, 4D laser levels can be effectively used for outdoor outdoor landscaping and construction, where accurate measurements and full coverage are necessary.
Q: How do 3D levels project a straight line onto surfaces?
A: 3D levels project a straight line onto surfaces using calibrated laser beams to ensure alignment, which is essential for tasks requiring precision in construction and DIY settings.
Q: What are the common uses of cross-line models in construction?
A: Cross-line models are commonly used in construction for tasks like framing walls, tiling, and installing cabinets, where projecting straight lines is crucial for maintaining accuracy.
Q: Why is understanding laser levels necessary for modern construction and DIY precision?
A: Understanding laser levels is essential. They are the cornerstone of modern construction, allowing for high accuracy in measurements and enhancing the efficiency of various projects.
