Welding is one of the most important skills in the global economy, as it is used in construction, car manufacturing, and countless other industries. However, mastering welding tools is only part of the journey—understanding the distinct welding positions that dictate the quality of your work is equally crucial. Each position comes with new hurdles and requires different techniques to execute flawlessly. In this article, we will discuss the four primary welding positions and their features, uses, and application strategies. Whether you are sharpening your skills as a veteran or building them as a novice, this article aims to assist everyone in achieving weld position mastery.
What are the different welding positions?
- Flat Position (1G/1F) – The weld is applied to the upper side of the joint and the face of the weld is horizontal to the floor. This is the most straightforward position for welding and is, therefore, considered the most productive.
- Horizontal Position (2G/2F) – The weld is made on a joint which is standing vertically, but the welding is done along the horizontal axis. Compared to the flat position, this is a bit more challenging.
- Vertical Position (3G/3F) – The weld is executed on a vertical face with a greater molten metal control due to gravity.
- Overhead Position (4G/4F) – The weld is done on the underside of the joint where the metal is molten above. As a result, this is one of the most challenging positions to maintain clean welds without dropping excess weld metal.
Understanding the axis of the weld in different positions
| Position | Description | Key Challenges | Tips for Success |
|---|---|---|---|
| Flat (1G/1F) | Welding is done on the top of a horizontal surface. | Minimal gravity impact, but precise control is needed for even weld penetration. | Use consistent speed and maintain steady hand movement to ensure uniform results. |
| Horizontal (2G/2F) | Welding is performed across a vertical surface. | Gravity pulls the molten pool downwards, requiring proper angle and heat control. | Angle the electrode slightly upward and use a consistent weld pool size to combat gravity’s effects. |
| Vertical (3G/3F) | The weld runs up or down a vertical joint. | Gravity can cause the molten metal to sag or drip, particularly in upward welding. | For uphill welding, use a weaving technique; for downward welding, focus on speed and arc length control. |
| Overhead (4G/4F) | Welding is done underneath the joint, with molten metal above the welder. | High risk of drips, spatter, and incomplete fusion. | Work in short intervals to manage heat and utilize appropriate personal protective equipment (PPE) to safeguard against falling debris. |
Welding Industry Trends and Data
The global welding market is witnessing profound growth, with construction, automotive, aerospace, and energy industries perpetually driving the demand. Recent studies show the welding market is set to surpass $27 billion by 2028, with an annual growth rate of approximately 5.8%. It includes automation in welding via robotics and an increase in demand to fill the gaps for skilled workforce welders. Further, new welding materials like advanced filler metals and flux-cored have made welding more efficient and dependable, assisting professionals in completing complex tasks in every position across the welding spectrum.
The advancement of laser welding and hybrid welding processes are other examples of the industry’s movement towards more sustainable and precise technology.
How do welding positions affect welding operations?
The welding posture or positions taken have a bearing on the method and the manner the welding is done. Different positions require different approaches in molten metal control, penetration, and the quality concerning weld. Take the flat position (1G/1F), for instance. In the flat position, gravity performs a secondary function which makes it easy to control bead consistency and shape. In contrast, very difficult positions such as overhead (4G/4F) require greater skill and experience as the increased risk of dripping molten metal dialed up.
Research shows that welders struggle with vertical (3G/3F) and overhead positions because of their high rejection rates. Overhead welds, in particular, are defect prone, averaging 7% compared to flat welds with 3%. Industry research indicates that welds produced in industry are on average 7 percent flawed for overhead welding and 3 percent for flat positioning. To prevent defect issues, pulse welding and gas flow control have increased clamp and waddle times, resulting in more stable weld pools and less spatter.
In addition, productivity as well as welding positions determine efficiency. Research suggests flat position welding is faster by 20-30% than vertical welding because gravity helps the weld flow. Vertical positions require constant speed and frequent adjustments to prevent sagging which slows down the process. Grasping the nuances of every welding position ensures maximum structural integrity and provides durable long-lasting results in welded parts.

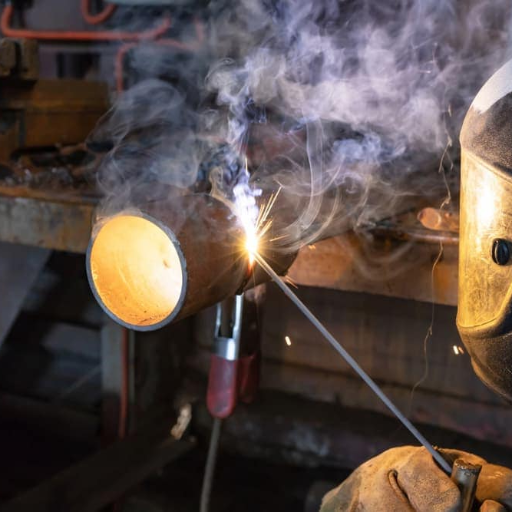

How to master 1g to 6g positions?
- Start from the Ground Up – Beginning with the 1G position, work on achieving consistent hand control and weld quality before moving onto more advanced positions.
- Make it a Point to Practice – Book time on your calendar to work on each position (2G, 3G, 4G, etc.) and increase the challenge as your skills improve.
- Learn the Techniques – Learn the procedures for each position and apply them, including weld puddle control, angles, and other specifics.
- Have the Right Gear – Achieve accurate, clean welds by ensuring the proper tools and settings are used for each position.
- Mentorship – Get taught by a practicing welder or go to a certified training session to get essentials tips and critique from a professional.
- Assess and adjust – Use welding simulations and practice plates to test your skills in each position to find weaknesses and fix them.
Understanding the 1G Weld Position
The 1G weld position is also referred to as the flat groove weld position, which is one of the most simple and frequently utilized positions in welding. In this position, the horizontal joint weld is placed on a flat surface, which allows gravity to help hold the weld pool in position. The welder works from above the workpiece, permitting extensive control and access to the work piece during the welding operation.
Beginners in this position experience a lot of ease as compared to vertical or overhead positions. Research indicates that the 1G position is more stable than other positions with regards to neutral balance which helps minimize error with weld quality and overall finish. A good example is neutral balance where uniform consistency in weld penetration helps increase the strength and integrity of the weld.
Furthermore, from industrial sources, it is noted that 1G weld position is common in manufacturing, infrastructure, pipelines, tanks, and constructions of huge metallic structures because of its notable efficiency. The position allows the welder to exert less effort while achieving cleaner and stronger welds, which makes it easier for learners and professionals to work with.
Understanding the 5G Welding Position and its Difficulties
In the 5G welding position, the pipe is fixed, and the welding is executed circumferentially around the pipe in a horizontal direction. It finds application in the oil and gas pipeline industries, shipbuilding, and construction because of its ease with which it accommodates cylindrical objects. This particular position also has its challenges which must be tackled with skill and precision.
One of the major problems on the 5G position is uniformity of weld quality consistency over the entire circumference of the weld over the pipe. Whilst horizontal welding is performed on the cylindrical object, one is confronted with the problem of gravity. In horizontal welds, there is the difficulty that molten metal, owing to gravity, tends to flow and lose shape. As industry studies suggest, control and uniform application of heat and the filler material during the work is very important. Moreover, it appears that rather a lot of preparatory training is needed before welders are put on the job for them to master this procedure. When welds are completed, they need to do much else besides just smooth and level surfaces, because each parts (top, sides, bottom) need different way to implement torch and hand movements, with a lot of rotation of the wrist, so the balance must be found in every angle.The other issue deals with visibility as well as ergonomics. A welder has to move his body repeatedly to look at the pipe from underneath, which increases the work required compared to other positions. Research suggests that ergonomic factors in 5G welding make it possible to reduce downtime and enhance productivity by up to 15% using appropriate workstations and rotators.
With automating welders and real-time monitoring devices, some of the difficulties in the 5G position have been mastered. These technologies, which had been claimed to improve productivity by as much as 30%, were primarily adopted by industries heavily working with welding of pipelines and cylindrical structures, as documented in more recent industry research. This is an example that although the 5G position is highly sophisticated, relentless advancement is assisting in making the role more productive and easier for all welders, regardless of experience.
Position 6G in Welding and Its Relevance
6G is regarded as one of the most difficult welding positions since it entails welding on a fixed pipe set at an angle of 45 degrees. A welder using this position must work on nearly every side of the pipe including vertical, horizontal, and overhead therefore requiring skillful craftsmanship and mastery accumulated over many years. Its critical application is at the oil and gas industry, shipbuilding and construction industries where precision, strength, and durability of welds is very important.
It has become common knowledge that there is a gap in the job market for welders with 6G capabilities and it has been researched that acquiring such skills presents a 20-30% income increase compared to other types of welding jobs. Industry research in 2023 shows that companies utilizing robotic arms for welding in combination with a human operator in the 6G position have achieved a 40% increase in performance productivity. These aids to manual tools take some of the physical work of the 6G position while ensuring consistent quality of the welds along intricate and complex pipelines and scaffolds.
Moreover, new developments in virtual reality (VR) systems for 6G welding training are shifting the learning curve for new welders. The ability for trainees to practice in a controlled VR environment that simulates a 6G setting allows extensive practice without risk or resource depletion. This method has skill retention rates increased by 25% compared to traditional methods. This illustrates the sophisticated problems associated with this position being handled by innovation and development of skills.

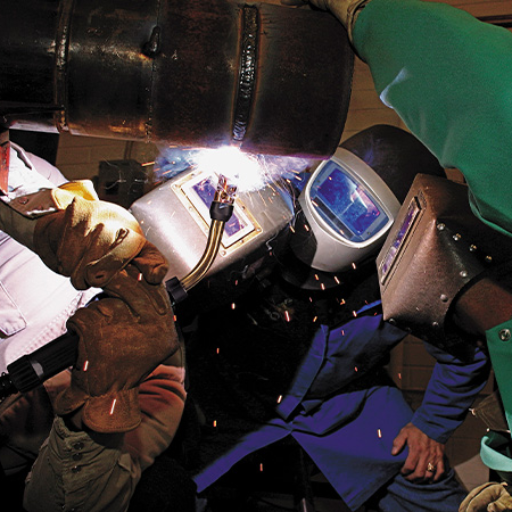

Why is overhead welding position considered challenging?
Overhead welding poses a special risk because welders must work against gravity, which can cause molten metal to drip. Upward welding must be done in the less-than-optimal body posture that slows the welders down, increasing metal burn risk and lower control over the welding machine. There is also the awkward uncomfortable seating as a result of needing to look at the machine and not the joint to their hands and the machine track enhancing tiredness of the muscles . All these factors combine demand control, experience and consummate craftsmanship.
Analyzing The Problems Associated With Overhead Welding
Overhead welding, as most welders know, is physically the most challenging, contains multiple technical issues, is too dangerous, and has too rigid internal requirements. Combustible flux needs to land on the weld joint smoothly rather than settle raggedly in it. The driving force makes sure Project Metal does not come into contact with his support immediately freeze, so in essence, there needs to be a steady supply of soldering iron glue. This raises the safety and productivity standard for this type of bridge construction. Flatter fills have been proven to hinder performance in overhead welding, adds time-consuming larger motion welding work, and make welding diatomite faster.
Managing the physical strain of working as a welder is another issue to tackle. Welders frequently work at high altitudes with tools that force them to hold their bodies and controls at difficult angles, which leads to chronic strain on the shoulders, arms, and neck. Recent surveys in the sector indicate that more than 60 percent of welders are suffering from some form of overheating fatigue during the welding operation. With this much effort being exerted, it becomes difficult to focus, thereby degrading the quality of welding and increasing the chances of making mistakes.
Safety hazards have always been of concern among welders. Overheating problems, dripping molten metal, and extreme temperatures are likely to cause burns. While PPE (Personal Protective Equipment) is crucial for protection, it is insufficient on its own. Research carried out by welding safety organizations show that overhead welding is one of the top five positions of workplace injury among professional welders.
Specific action needs to be taken to deal with these challenges. Suggested measures include the use of specialized apparatus such as flux cored arc welding (FCAW) to offer better control combined with ergonomic measures to reduce the possibility of physical impact.
Ways to increase skills for overhead welding
- Keep Your Body Still – Try to find a strong stance that will feel comfortable for the duration so as to improve control and minimize fatigue.
- Manage Temperature and Amperage– Maintain a steady amperage and practice control of the welding machine to keep speeds consistent in order to prevent metal drips and clean welds.
- Repetitive Drills on Different Joints – Regular drills with different joints sharpen the skills and help in gaining confidence and mastery.
- Use Correct Overhead Welding PPE – Put on gear specifically designed for overhead welding to ensure safety and proper focus on the job.
What are the common welding joints used in various positions?
- Butt Joint – Two pieces of metal are placed in the same plane and joined at their edges.
- Lap Joint – When one sheet of metal is put on top of another, it is typical for sheet metal work.
- T-Joint – Two sections of metal are at right angles to each other forming the letter “T”.
- Corner Joint – Two metal pieces are joined together at right angles to form a corner.
- Edge Joint – Two or more pieces of metal are lined up next to each other at the edges and welded.
Different Types of Weld Joint and Their Overview
Welding joints are divided into different types based on their assembly prior to the welding procedure, and each serves different applications. For example, the Butt Joint is one of the most popular types due to its convenience in aligning two pieces in one plane, useful when constructing pipelines and frames. The Lap Joint is best suited for thinner materials like sheet metal, as it allows one piece to be overlapped fully by another. T-Joints are common in structural work, where two elements are to be joined at a 90 degree angle for added stability. In addition to this, Corner Joints are used extensively when constructing frames, boxes or enclosures, as metals can be placed and joined at the edges to form a right angle. Edge Joints are simple yet effective in connecting thin metal sheets, especially those which require support around the edge. As with any weld joint, choice depend on scope of work, intended application, thickness of material used and the structural demands.
How does the weld joint affect the weld bead?
The weld joint dictates the weld bead’s contour, dimensions, and depth of penetration. From my experience, distinct joint configurations utilize particular methods to achieve a strong and polished weld. For instance, a butt joint may facilitate deeper penetration for a seamless bond whereas, a corner joint usually offers a distinct bead profile that reinforces the 90-degree connection. In the end, the design of the joint controls the aesthetic and functional characteristics of the weld bead.
How do welding parameters vary in vertical welding position?
For vertical position welding, parameters like heat input, travel speed, and even the electrode angle must be changed in order to work against gravity. Reducing the amperage also prevents considerable weld pool sagging. Controlled travel speed guarantees a steady bead, which enhances quality. Holding the electrode or torch at several degrees upwards also assists in controlling the weld pool. These critical measures allow for strong, quality welds despite challenging positions.
How do you adjust V-welds on UsM welding procedure specification?
For changing UwPs with the UsM specification for V-welds, I take the vertical position, reduce the amperage as this improves pool sag, keep travel speed consistent for better beads, and work the torch upwards to enhance pool control. These strategies deliver excellent quality and strength for the weld despite the challenging position.
Influence of vertical position welding on weld puddle behavior
Due to gravity, vertical position welding cases tend to sag, and the beads look uneven because of the uncontrolled forces acting on the weld puddle. Proper control can mitigate such difficulties. A precision control of parameters is required for overcoming these problems. Data also shows that in relation to flat position welding, vertical welding should apply a decrease of 5 – 10% of the amperage to increase molten pool control. Moreover, some other methods such as weaving can provide better heat distribution during welding and therefore minimizing excessive pooling and undercutting. Research also indicates that to achieve the consistent shape of the bead and minimize the number of defects, the travel speed should be maintained at about 4-6 inches per minute with a short arc length. All these adjustments maintain the essential considerations of vertical welds as the integrity and visual appeal.
Reference sources
- Influence of Thermal Flow and Predicting Phase Transformation on Various Welding Positions
- Authors: Jin-Hyeong Park et al.
- Journal: Heat and Mass Transfer
- Publication Date: October 4, 2023
- Citation: (Park et al., 2023, pp. 195–207)
- Summary: This study investigates how thermal flow and phase transformations are influenced by different welding positions. The authors conducted experiments to analyze the thermal behavior during welding and its impact on the microstructure and mechanical properties of the welds. The findings suggest that the welding position significantly affects the thermal distribution and phase transformation, which in turn influences the mechanical properties of the welded joints.
- Undermatched Welding of Ultra-High-Strength Steel S1100 with Metal-Cored Wire: Influence of Welding Positions on Mechanical Properties
- Authors: M. Tümer et al.
- Journal: Journal of Materials Engineering and Performance
- Publication Date: May 23, 2022
- Citation: (Tümer et al., 2022, pp. 7068–7079)
- Summary: This paper explores the mechanical properties of ultra-high-strength steel welded using metal-cored wire across different welding positions. The study employed tensile tests and microstructural analysis to evaluate the effects of welding positions on the mechanical performance of the welds. The results indicated that the welding position significantly influences the strength and ductility of the welds, with specific positions yielding better mechanical properties.
- Development of 16Cr8Ni Low Transformation Temperature Welding Material for Optimal Characteristics Under Various Dilutions Due to All Repair Welding Positions
- Authors: Zhongyuan Feng et al.
- Journal: Science and Technology of Welding and Joining
- Publication Date: December 20, 2022
- Citation: (Feng et al., 2022, pp. 305–313)
- Summary: This research focuses on a new low transformation temperature (LTT) welding material designed for optimal performance across various welding positions. The authors utilized synchrotron-based X-ray diffraction to observe phase evolution during solidification. The study found that the LTT material exhibited excellent weldability and mechanical properties across all positions, with significant compressive residual stresses contributing to improved fatigue life.
Frequently Asked Questions (FAQs)
Q: What are the four basic welding positions?
A: Basic welding positions include flat, horizontal, vertical and overhead. Each position has its own difficulties and challenges that must be managed with different welding methods.
Q: What is pipe welding , and why is it important?
A: A type of welding involved in connecting pipe pieces together is called pipe welding. It is prominent in oil and gas as well as construction and manufacturing, where efficient and secure welds are very important.
Q: Can you explain the 2g welding position?
A: 2g is a position of welding where you work with a horizontal pipe on a vertical surface. The weld’s axis is horizontal, and this position is frequently used for pipes and structures.
Q: What is meant by flat welding, and where is it commonly used?
A: Flat welding or welding in flat position is where the weld face is horizontally aligned. As used on the flat or horizontal surfaces, it is regarded as the simplest position and is often used for operations such as fillet welds.
Q: How does the 3g welding position differ from the 4g position?
A: The work done in the 3g position requires either upwards or downwards vertical welding with the slice being upward to the horizontal plane while in the 4g position, it is overhead welding. Both require expertise of weldings skill because of the effect of gravity to the molten welding substance.
Q: What protective gear should be used during various welding tasks?
A: Basic items needed are welding head shield, leather welding jacket, gloves, safity goggles which is able to shield a person from sparkles, ultraviolet light energy, and welding heat as well.
Q: What challenges are associated with vertical and overhead welding positions?
A: Vertical and overhead positions are problematic because spatial freedom is limited. weld pool Default should be in the vertical orientation. It requires utmost control. The training advancement in assertively supporting structure framework welding positions is marathon not sprint development effort.
Q: How does understanding welding positions enhance welding quality?
A: Knowing different welding positions, enables the welder to know the appropriate method and parameters to use for each task so as to attain solid and flawless joints for various jobs.
Q: What are the considerations when selecting filler metal for different welding positions?
A: The base metal make-up, the weld position, the joint configuration, controllable features, and needed mechanical traits all affect the choice of filler metal.
Q: What is the significance of the weld axis in welding positions?
A: A weld axis is the integral angle that divides the workpiece into the weld and non-weld sections. This axis determines the direction of the workpiece. Hence, its relevance in the work position is because the work method changes from one position to the other.
