The evolution of laser granted technologies with unmatched precision and adaptability has transformed several industries. One of the milestones achieved is the development of fiber lasers used for engraving. They provide effectiveness, long lasting use, unmatched precision, trustworthiness and economical maintainance which makes them the preferred type for engravers and professionals from other industries. The main purpose of this post is to discuss the distinctive aspects of fiber laser technology, its applications, and analyze its impact on engraving as well as contemplate if it truly is the one leading us into the future. If you own a business and are thinking of upgrading your tools and equipment or just want to get insights and an understanding of newer trends, this guide is fit for you as it embraces the mentioned technology through exposition.
What is a Fiber Laser and How Does it Work?
A fiber laser is a type of laser where high-intensity laser beams are generated using an optical fiber. The core of the fiber is doped with rare-earth elements like ytterbium that are capable of amplifying light. Triggering the laser beam starts with passing light through the optical fiber, and the doped material subsequently provides further amplification. In terms of reliability, precision, and beam strength, fiber lasers are undisputed champions. As such, they serve engraving, cutting, and marking superbly well.
Fundamentals of Fiber Laser Technology
As with other systems, fiber laser technology is based on the utilization of optical fibers as the medium to create the laser, which proves to be more beneficial than conventional systems. A vital part of a fiber laser is the doped fiber core which is alsways doped with rare-earth elements like ytterbium, erbium, or neodymium. Such materials have the capability of absorbing energy efficiently as well as granting high optical gain so light can be amplified.
The process starts with a pump light source, which is commonly a laser diode that injects energy into the fiber. This energy then excites the rare earth ions in the doped fiber, thus light passing through it gets amplified due to stimulated emission, resulting in the generation of a coherent and powerful laser beam. More sophisticated configurations use single-mode fibers for precision or multi-mode fibers for higher power outputs.
Like other lasers, fiber lasers provide impressive efficiency boasting a typical wall plug efficiency greater than 30% and surpassing CO2 lasers which average anywhere between 10-20%. They are also compact, requiring less maintenance and cooling while achieving power levels from several watts to kilowatts. Modern fiber lasers are capable of delivering over 20kW of cutting and welding power output, thus are essential in industries including automotive, aerospace and manufacturing.
The unique fiber design of fiber lasers prolongs their durability and flexibility as well as reduces optical misalignments,( which promotes) stable operation in harsh conditions. In addition, their application in fine material processing, medical devices, and telecommunications has been made possible by advanced beam quality and control, MOPA (Master Oscillator Power Amplifier) structures being one of them.
The technology of fiber lasers marks the union of advanced material science and optical engineering, and as global industries continue to evolve, fiber lasers are becoming increasingly efficient, powerful, and versatile.
How Does a Laser Beam Form in a Fiber Laser?
The fiber laser beam formation process starts with a seed laser—often a diode laser. The light emitted from the seed laser is then amplified in a doped fiber made from rare earth elements like erbium or ytterbium. These doping elements act as the gain medium, enabling the fiber to stimulate emission of light and amplify it. The optical cavity within the fiber, usually formed by highly reflective Bragg gratings at both ends, causes the light to bounce back and forth within the fiber, thus producing coherent and intense laser light.
Process workflows for modern industries have seen efficiency improvements with the use of modern optics. Modern fiber fuel lasers achieve wall-plug efficiencies up to 45\% while industrial fuel fiber lasers have also crossed the 100 kilowatt mark for continuous wave emission. Such power scale capabilities are coupled with precise cutting, welding, and 3D printing enabling diverse industrial applications.
Advanced manufacturing technologies are in high demand across industries such aerospace, automobile, and electronics. Real time market surveys show a promising projection of 5.5 billion dollars by the year 2028 for the global fiber laser industry. Cutting edge lasers are being developed to improve beam quality, reliability, and maintenance requirements.
The Role of Doped Fiber in Fiber Lasers
In regard to the particular functions and efficiencies of fiber lasers, doped fibers serve as the core component. These fibers are doped with rare elements like neodymium, erbium, or ytterbium, which function as gain mediums. When exposed to pump light, usually from a diode laser, the doped fiber can amplify light to yield a high-power laser beam of exceptional precision and unparalleled stability.
As indicated in current literature, the doped fibers of choice are those containing ytterbium due to their ability to efficiently convert energy and generate beams within the 1-micron wavelength. This is beneficial for purposes such as metal cutting, welding, or even additive manufacturing. As market research indicates, fiber laser market is largely dominated by butikker and ytterbium doped fiber lasers where about 40% of fiber laser applications are used in high industrial power.
In addition, these changes have been made to laser modules coupled with simpler structure of doped fiber leading to less energy usage. For instance, when using double clad structures, less pumping energy is required to increase power, strengthening overall efficiency. Moreover, newer methods of injecting fibers have reduced photodarkening effects which have helped increase the operational lifespan of these lasers.
These advancements underscore the continuous progression of the technology of doped fibers and its impact on the development of the fiber laser industry and how industries across the globe are receiving next-generation capabilities. Doped fibers continue to be vital in fostering the development of precision reliable and eco-friendly laser technology in the midst of surging demands for cleaner and efficient lasers.

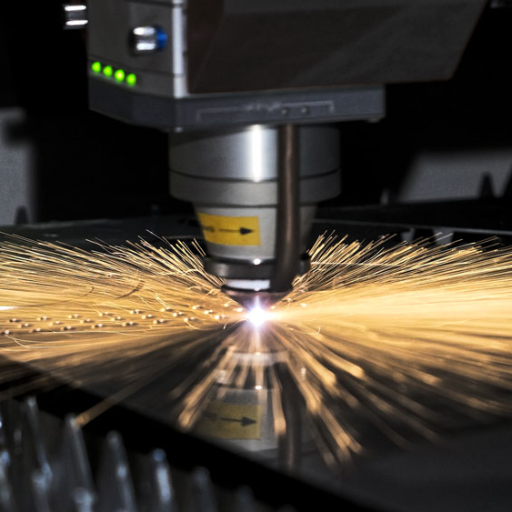

Why Choose a Fiber Laser Machine Over a CO2 Laser?
Unlike CO2 fiber laser machines, CO2 lasers need a higher input of energy and are not as precise. They require more maintenance than CO2 lasers which make them less appealing. Tough materials are optimized using fiber lasers because of their short wavelength which is better absorbed. When compared to CO2 lasers, fiber lasers are more reliable, and require fewer consumables. For this reason, fiber lasers are more effective in industrial applications. Overall, fiber laser machines are more appealing due to their versatility and cost effectiveness.
Comparing Laser Cutting Capabilities
The primary factors to compare in laser cutting capabilities are material type, thickness, precision, speed, cost, and maintenance.
| Key Point | Fiber Laser | CO2 Laser |
|---|---|---|
| Material | Metals, robust | Non-metals, soft |
| Thickness | Thick, ideal | Thin, better |
| Precision | High, superior | Moderate |
| Speed | Faster | Slower |
| Cost | High upfront | Low upfront |
| Maintenance | Low, easy | High, complex |
Efficiency and Maintenance: Fiber vs. CO2
The most recent development in laser technology clarifies some aspects concerning the efficiency and maintenance of Fiber lasers and CO2 lasers. Fiber lasers are perceived to have a higher energy efficiency, often achieving 35-40% conversion of electrical energy to laser energy as compared to CO2 who only achieves 10-15%. This difference is crucial especially for businesses that need continuous or high-volume cutting due to its impact on operational costs.
In comparison to CO2 lasers, fiber lasers require less maintenance due to their more durable and simpler design. The use of solid-state technology means that CO2’s need for gas refills and optical mirrors is eliminated, thus decreasing the need for downtime as well as servicing costs. CO2 lasers can incur costs of 5-7% of the machine’s purchase price for maintenance each year while with fiber lasers, the figure is below 3%.
Additionally, fiber lasers surpass CO2’s lifespan expectations, staying operational for over a diode for 100,000 hours and 50,000 hours for CO2’s. Because of these factors, fiber lasers are more appealing for businesses looking for cost-effective and dependable cnc fiber laser cutting machines.
Utilizing such statistics and data enables evaluation of workload expectations alongside budget limitations tailored to specific business needs when making decisions between CO2 and fiber laser technologies.
Applications: Fiber Laser Engraving
Engraving with fiber lasers. Strive laser systems have come into widespread use across divergent sectors because of their accuracy, sharp focus, and effectiveness coupled with multifunctionality. These laser systems have proven effective in performing engraving functions on metals, and even some plastics like stainless steel, aluminum, and brass. Fiber lasers can engrave at a remarkable maximum speed of seven thousand millimeters per second, enabling enhanced efficiency in mass production centers.
Based on recent information, the global market for fiber lasers is anticipated to grow at a compound annual growth rate of 11.2% from 2023 to 2030. This growth is reflective of their adoption in aerospace, automotive, electronics, and jewelry manufacturing. One driver of this growth is the unparalleled marking quality these machines provide including detailed permanent marks crucial for brand and item identification and covert marking for traceability.
Moreover, improvements in laser engraver technology can engrave with lower energy expenditure, thus lowering overhead costs. Fiber lasers are also known for their lower maintenance costs and greater longevity with most operating for greater than one hundred thousand hours. Such a long operational life not only reduces downtime, but results in significant cost savings over time, truly making fiber lasers a long-term investment for companies large and small.
What Are the Different Types of Fiber Lasers?
- Continuous Wave (CW) Fiber Lasers – This type of laser produces a constant beam of light which is used in applications such as welding, cutting, and marking.
- Pulsed Fiber Lasers – This type of laser generates energy in short, precise intervals or bursts which is best suited for engraving or micromachining.
- Quasi-Continuous Wave (QCW) Fiber Lasers – These lasers take the features of pulsed and continuous lasers, offering high peak power in pulsed mode while maintaining stability in continuous mode, thereby making them multifunctional across a number of industries.
Explaining the Functions of a Pulsed Fiber Laser
Pulsed fiber lasers are highly efficient tools with the ability to charge energy in short, effective bursts. . They are known for their flexibility and robust efficiency which makes them widely used in different industries. The ability to utilize pulse durations ranging from nanoseconds to even femto seconds enables use in areas that require almost no heat or distortion of materials.
Pulsed fiber lasers offer one of the highest peak power capabilities, reaching several kilowatts. This ability makes them effective for precision micro-engineering, like in the electronics sector where pulsed fiber lasers assist with drilling holes and cutting sub-millimeter complex patterns on printed circuit boards (PCBs).
In addition, these lasers are used in medical technology to finely engrave and etch micro-scale features on surgical tools and medical implants. The increasing demand on manufacturing and servicing healthcare has prompted new studies to predict Global Pulled Fiber Laser market to increase by 8.5\% CAGR from 2023 to 2030.
Their solid-state construction gives pulsed fiber lasers a unique lower maintenance, energy-efficient edge compared to other laser technologies, as well as a longer operational lifetime. Coupled with durability, reduced size, and reliability, these lasers make a cost effective choice for small and large scale manufactures.
As with any other kind of laser, pulsed fiber lasers offer unmatched accuracy and versatility in etching, engraving, or processing materials, as well as versatility and precision. Their increasing utilization across different sectors is a testimony of how they are paradigm-shifters when it comes to innovation and improving productivity.
High-Power Fiber Lasers for Industrial Applications
The remarkable effectiveness coupled with the flexibility they offer has made high-power fiber lasers indispensable in industrial applications. The most recently available information estimates that the global fiber laser market size was approximately 4.2 billion in 2022. Furthermore, it is expected that the market will grow at a compound annual growth rate (CAGR) of 11.2% between 2023 and 2030. Increased need for laser systems in specific industries like automotive, aerospace, electronics and medical has been identified as a major driver of this spike.
Among the many benefits of high-power fiber lasers, the capacity to cut and weld tough metals like steel, aluminum, and other non-ferrous metals is unrivaled. For instance, fiber lasers slice through thin stainless steel sheets at a staggering 50 meters per minute, which is a boon for mass production industries. Furthermore, modern industrial fiber lasers volumetrically outperform older models by powering over 10kW, giving them the ability to handle more demanding tasks.
Improving microfabrication and additive manufacturing procedures has been achieved through the recent enhancements in beam quality and control. High-powered fiber laser systems are now more conducive to industrial uses due to low maintenance needs, long operational lifespans, and reduced energy consumption, when compared to traditional laser systems.
Adoption of this technology further emphasizes the importance of fiber lasers for industrial manufacturers worldwide, showcasing their effectiveness in optimizing production, minimizing waste and providing exceptional results for diverse applications.
The Role of Mode-Locked Fiber Lasers in Scientific Research
Scientific research and technological innovation has greatly benefited from mode-locked fiber lasers due to the diverse applications they serve. Spectroscopy, material processing, and biomedical imaging all utilize the ultra-short pulses lasers produce, which greatly enhances performance. An example of this is the ultrafast spectroscopy where researchers study high-speed phenomena such as electron motion in a material with precision using mode-locked fiber lasers.
Perhaps one of the most sophisticated examples is the use of mode-locked fiber lasers in two-photon microscopy, which is particularly famous in the fields of neuroscience and cellular biology. This High-Resolution imaging method utilizes the peak power and pulse width of these lasers to efficiently generate intricate three-dimensional images of live tissues with minimal damage. Recent research reports the global market for ultrafast lasers is expected to increase at a CAGR of above 10% from 2023-2030, mainly due to improvements in mode-locking technology. This growth clearly illustrates the heightened laser system precision and trust in the advanced scientific systems laser tools refined and advanced in recent years.

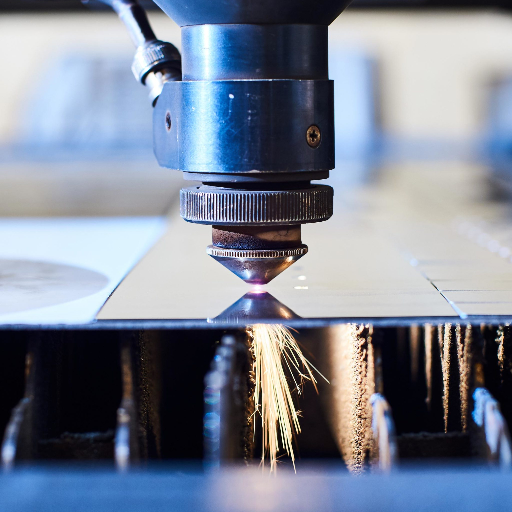

How Do Fiber Laser Systems Enhance Laser Marking?
Fiber laser systems improve laser marking by increasing accuracy, fast processing speeds, and reliability. Such effective marking requires focus and stability of the beam when marking metals and plastics. In industrial settings where safety, low maintenance, cost efficiency, and long lifespan is desired while needing repetitive marking, fiber lasers are the perfect fit.
The Advancement of Industries with Laser Marking Using Fiber Lasers
Industries have benefited from laser marking as it’s a fast and efficient method of engraving. Engraving with fiber lasers begins by generating a powerful beam which gets directed towards the surface of the specified material. Using different levels of power, speed, and focus, laser settings are adjustable to bring a range of custom engravings like serial numbers, barcodes, logos, or intricate designs.
With faster interactive markings of several meters per second, power settings combined with specific materials can yield different outcomes. As per current findings, anodized aluminum can be marked as fast as 5000mm/s and stainless steel at 2500 mm/s. Such results demonstrated sustainablity of laser usage while producing large quantities and repetitious items.
Moreover, fiber lasers provide unparalleled accuracy, with a beam diameter of 20 microns, allowing for detailed and clean markings on surfaces of any size. The engravings are exceptionally precise with the capability of long term reliability, given their lifespan of 100,000 hours. This is in sharp contrast to CO2 lasers, which only have a efficiency of 30% laser light production from electrical energy—fiber lasers surpass that benchmark by over 70%.
The needs and standards of these industries are met due to unmatched speed paired with low maintenance, precision energy consuming equipment—automotive, aerospace, electronics, and medical device manufacturing are some examples.
Benefits of Using Fiber For Laser Marking
As highlighted above, fiber lasers are indispensable marking tools that can be used in different industries. Their agility and unparalleled flexibility increases production efficiency because of marking speeds that reach seven meters per second. Marking accuracy is not limited to metals alone, fiber lasers can engrave plastics, ceramics, and even composite materials with ease due to their spot size of 20 micrometers.
The absence of power consumption with fiber lasers, as compared to CO2 lasers, enhances their long-term value. As a result of their maintenance-free design, downtime is practically non-existent. Some models boast an astounding mean time between failures (MTBF) of over 100,000 hours. This extends reliability and sustainability for businesses.
The MOPA (Master Oscillator Power Amplifier) technology employed by certain fiber lasers provides the ability to independently modulate pulse duration. This is especially important in engraving barcodes, QR codes, and logos—where contrast and resolution are critical. Such lasers can also mark metals; for instance, stainless steel can easily be marked to a depth of 1mm.
These factors reinforce their technological advantage alongside eco-friendliness, since they consume 50-80% of the energy used by more traditional laser systems. The growing acceptance of fiber lasers in electronics, aerospace and automotive industries, and even the medical domain, highlight their unmatched dependability and range.
Advances in Laser Applications and Laser Cutters
Processes associated with lasers continue to be cutting-edge with the development of fiber lasers, which are penetrating multiple sectors. Recent studies show that new developments increasing the power output and beam quality have made cutting and engraving much quicker and more precise than before. Market analysis shows that fiber lasers have an efficiency of upwards of 30-35%, which is a fraction of energy wasted when compared to CO2 laser systems. This also reduces operational costs for businesses, making this technology more appealing in light of rising industrial energy efficiency demands.
Additionally, research and analysis suggest that fiber laser systems are expected to experience an increase in market share, growing at a compound annual growth rate (CAGR) of 8.1% between 2021 and 2026, primarily influenced by the adoption of lasers in the aerospace and automotive industries. These sectors heavily rely on the capability of these machines to work on high strength materials such as titanium and aluminum alloys. Optimization of cutting and material waste reduction through AI systems integrated into fiber lasers is yet another game-changing development. All these innovations solidify the position of fiber lasers as vital equipment in the contemporary industry and technology innovation.
Exploring the Applications for Fiber Lasers
The greater accuracy, effectiveness, and versatility that fiber lasers offer makes them popular in a number of different industries. Their application in manufacturing allows businesses to employ advanced techniques for metal cutting, welding, and engraving, which aids in the crafting of sophisticated components and designs. Their applications are also found in medicine, where they are used for the manufacturing of accurate surgical tools, and in electronics, helping to produce micro-mechanical parts. Operational cost efficiency makes fiber lasers all the more important, as they offer a consistent and reliable standard during operations.
Their Use in Manufacturing Industries
In my opinion, my work in manufacturing has shifted dramatically for the better and advanced fiber laser technology helps accomplish that. It is easy for me to perform delicate metal cutting, welding, engraving, and other operations these days due to the reliability that fiber lasers have. Given how much operational cost savings fiber gird laser technologies offer, their consistent output quality has really aided my overall manufacturing process. Their importance cannot be overstated.
The Importance of Laser Welding in Automotive Industry
With an unmatched speed and precision, laser welding technology has become vital in the automotive industry. As per the recent statistics, laser welding systems are used for the assembly of components like car bodies, batteries for electric vehicles (EVs), and even sophisticated engine parts. The process provides stronger and lighter welds which are crucial for modern safety and efficiency standards.
Car manufacturers use these advanced welding systems to easily intermingle high-strength steels and alloys, which have become more common in modern vehicle designs. For example, research indicates that through laser welding, automotive manufacturers can reduce the overall weight of the vehicle by as much as 30 percent, aiding in decreasing fuel usage alongside carbon emissions.
Moreover, with the introduction of EVs, fokus has shifted towards their batteries as well. Laser welding is important to the constructions because it can accurately seal the different parts of a battery cell and modules ensuring the cell’s protection and increasing their life span. Studies suggest that the automotive market laser application is expected to witness substantial expansion, with a projected CAGR of 7.6% through 2030, owing to new laser technologies and increased adoption of EVs around the globe.
The unwavering significance of this technology in strategies focusing on new developments within the automotive industry is attributed to its economic benefits and the adaptability provided by solid-state laser welding.
Future Prospects: Developing Areas for Other Uses
Laser cleaning as an application of laser technology is making its way through different industrial sectors with its unparalleled efficiency. It employs the use of laser pulses to eliminate dirt, rust, and other coatings from different surfaces without harming the material beneath it. A recent analysis revealed that the global market for laser cleaning is expected to grow by 4.6 percent between the years 2023 – 2030 owing to the heightened demand coming from aerospace, automotive, and manufacturing industries.
The use of laser cleaning comes with several benefits such as being eco-friendly for the elimination of chemical solvents and abrasive materials. In addition, less operational processes translates to increased precision in completion of tasks at hand. Companies like Trumpf and Laserax have been instrumental in the development of systems for laser cleaning, offering solutions ranging from paint and mold removal to surface preparation. Due to the ever-increasing focus on sustainability and efficiency, this technique promises to change the face of industrial processes.
The advancement emphasizes newly available openings for the incorporation of more pioneering technologies like AI and robotics for the development of fully autonomous and laser systems which can be modified for specific industrial requirements.
Reference sources
- Fiber Laser Development Enabled by Machine Learning: Review and Prospect
- Authors: Min Jiang et al.
- Journal: PhotoniX
- Publication Date: July 13, 2022
- Citation Token: (Jiang et al., 2022)
- Summary: This review highlights the integration of machine learning techniques in the development of fiber lasers. It discusses various applications such as the design and manipulation of on-demand laser outputs, prediction and control of nonlinear effects, and the evaluation of laser properties. The paper emphasizes the potential of machine learning to enhance the performance and capabilities of fiber laser systems.
- Methodology: The authors conducted a comprehensive literature review, analyzing recent studies that applied machine learning in the fiber laser domain, focusing on advancements and challenges.
- The Modeless Raman Fiber Laser
- Authors: Yanxin Li et al.
- Journal: Optica
- Publication Date: July 3, 2023
- Citation Token: (Li et al., 2023)
- Summary: This paper presents a novel modeless Raman fiber laser, which offers continuous wave operation without the need for mode selection. The study discusses the advantages of this design in terms of stability and output quality.
- Methodology: The authors employed experimental techniques to demonstrate the performance of the modeless Raman fiber laser, analyzing its output characteristics and stability.
- Reaching Fiber-Laser Coherence in Integrated Photonics
- Authors: Bohan Li et al.
- Journal: Optics Letters
- Publication Date: October 15, 2021
- Citation Token: (Li et al., 2021, pp. 5201–5204)
- Summary: This research focuses on achieving coherence in fiber lasers integrated with photonic circuits. The study reports on a hybrid integrated laser that surpasses the frequency noise performance of traditional fiber lasers.
- Methodology: The authors utilized self-injection locking techniques to stabilize the laser output, measuring frequency noise and coherence properties through experimental setups.
Frequently Asked Questions (FAQs)
Q: What is a fiber laser?
A: A fiber laser is classified as solid-state in nature as its active gain medium is an optical fiber doped with rare elements such as erbium, ytterbium, or neodymium. Silica based fibers improve the efficiency of the laser and the quality of the beam output.
Q: How does a fiber laser work?
A: Fiber optic cables serve as the fiber resonators to a laser, thus forming a laser resonator through utilizing a fiber optic cable. The light supplied by the pump laser diode excites the rare-earth ions in the fiber causing them to undergo emission. This process allows the generation of focused laser beams that undergo amplification and then emission in the form of coherent light.
Q: What are the benefits of using a fiber laser engraver?
A: The use of industrial fiber laser engravers provides increased office productivity due to their precision, faster speeds and enhanced efficiency. Because of their solid state, compact structure, and increase in life span, fiber lasers can also provide exceptional beam qualities for detailed engravement functions.
Q: Why do fiber lasers stand out among other types of lasers?
A: Other types of lasers differ from fiber lasers because they rely on fiber optic technology, which offers improved efficiency and enhanced beam quality. Compared to traditional laser systems, as well as disk lasers, they are more compact and easier to maintain.
Q: What role do fiber Bragg gratings play in fiber lasers?
A: With respect to fiber lasers, fiber Bragg gratings perform the functions of reflecting designated wavelengths in order to create a laser cavity. This effectively stabilizes the output while enhancing the precision of the emitted beam.
Q: How do amplifiers and lasers work together in laser fiber systems?
A: In fiber laser systems, amplifiers are parts of the laser system whose function is to increase the power of the laser beam. They increase energy levels and, together with the lasers, perform actions on the fiber laser to improve its effectiveness and output, thereby expanding the areas of its application.
Q: Why are fiber lasers advantageous for specific applications as compared to other types?
A: Fiber lasers are advantageous for their application because of better beam quality, efficiency, and size compared to other lasers. They also have better thermal handling and greater reliability, which is particularly useful in industrial applications such as fire engraving machines and laser cutters.
Q: What materials are you capable of engraving or cutting with fiber lasers?
A: With fiber lasers, you can engrave and cut various materials, such as metals, plastics, and ceramics. They tend to have a high power output and thus, can generate a high-intensity fiber laser, enabling them to perform engravings on tough materials with great precision.
Q: In what ways does the range of fiber lasers affect their application?
A: The range of fiber lasers, which consists of their power and wavelength, determines their suitability for different activities. For instance, high power fiber lasers are best for cutting and welding while engraving and marking can be done with the lower powered versions .
Q: In terms of performance, how do disk lasers and fiber lasers compare?
A: Generally speaking, fiber lasers outperform disk lasers in terms of efficiency and beam quality. In addition to being more powerful, fiber lasers are also more compact. Their lower cooling requirements make them easier to integrate into various industrial systems, providing a more economical choice for a wide variety of applications.
