SMAW Welders: Stick Welding Machines and SMAW Welding

Versatility and reliability are essential to welding; hence, it’s possible to say there are few welding techniques as versatile or reliable as Shielded Metal Arc Welding (SMAW), popularly called stick welding. Knowing the basics of SMAW welding machines, along with their advantages, is therefore essential to a trained welder or an aspiring welder. This blog traverses the field of SMAW welders, explaining how they work, their defining features, and the points for which they are considered better alternatives. After a brief reference to the reasons why SMAW welding is still relied upon in industry, you will be trained in the use of this robust style of welding.

Introduction of SMAW Machines

An SMAW welding equipment uses an electric current in the arc formed between the electrode and base metal of the workpiece. This arc melts the electrode and the base metal, producing a weld of very good quality. Its simplicity and form of being lightweight made the machine usable in scattered environments ranging from construction, repairs, and industrial usages.

What is Shielded Metal Arc Welding?

Shielded Metal Arc Welding (SMAW), commonly referred to as stick welding, is among the most commonly applied and one of the most versatile processes of welding. It uses a consumable electrode coated with flux as the weld deposition material and shields the molten weld pool from atmospheric contamination. Its use is attributed to the presence of contaminants and the flexibility of use on several metals, such as steel, stainless steel, cast iron, or even ductile iron.

Such technological advances increased the level of performance of SMAW welding machines, rendering them more efficient. Most modern SMAW welding machines are equipped with features such as adjustable amperage controls to allow a precise weld and operational flexibility. Recent market data show that approximately 40% of all welding activity in the world is still performed using SMAW processes because of their ruggedness and flexibility in jobs across industries.

Also, SMAW can work in numerous environments, including outdoor construction sites and confining industrial plants. One good thing about it is the ability to weld even under harsh conditions such as during windy or wet conditions, where other welding processes do not fare well. This is because of the slag that is protective which is created by the flux coating during welding.

A typical set of specifications for a modern SMAW machine would include operations in the amperage range of from 20A to 500A, for materials of varying thickness. It is regarded as the flexibility it offers, which is portable and easy to set up, hence making it the first choice in applications like pipe welding, structural jobs, and shipbuilding.

History and Evolution of SMAW Welders

The history of Shielded Metal Arc Welding (SMAW) began in the late nineteenth century when foundations for manual arc welding were established. Nikolay Slavyanov and Charles L. Coffin were the faces behind initial inventions in electric arc welding; their patented designs laid the groundwork for the present-day SMAW process. Through further developments in electrode coating and power sources early in the twentieth century, SMAW gained more industrial applications, thereby stretching the scope of the welding industry.

Modern SMAW machines have evolved over time to be more advanced, offering superior performance and versatility. For instance, digital controls now allow for precision amperage adjustments, resulting in better weld quality. According to the data from the industry, the global welding market was valued at over USD 20 billion in 2022 and is predicted to witness a CAGR of 6 to 7% from 2023 to 2030, and SMAW equipment is set to play a key role in this growth.

The latest machines now cater to a broad range of materials, including steel, cast iron, stainless alloys, and even non-ferrous metals, depending on the electrode type employed. Reports indicate that electrodes such as E6010 and E7018 continue to be popular because of their capacity to withstand high heat input, resulting in strong and hard welds. The introduction of inverter SMAW machines has further enhanced energy efficiency and portability, with many weighing as little as 10-15 lbs, allowing easy transport and use even on-site to carry out jobs under adverse conditions.

The longevity that SMAW continues to enjoy is proof of its versatility and cost-effectiveness, and thus, ensuring that it retains relevance in industries such as construction, oil and gas, automotive repair, and shipbuilding for years to come.

Essential Parts of Stick Welding Machines

Stick welding machines or SMAW (Shielded Metal Arc Welding) devices consist of a few essential component parts that work together to run properly. The important parts are described in detail below.

Power Source

The power source lies at the heart of a stick welding machine. It provides the current necessary to keep the arc alive. Nowadays, efficient inverter-based welders use less power and come in both AC and DC forms. Research has shown that the inverter technology accounts for nearly 30% savings in energy compared to a transformer-type machine.

Electrode Holder

Holding an electrode is the job of an electrode holder. The holder is manufactured in such a way that insulates the user for safety during the welding operation. The better qualities of electrode holders come with flexible cables, making handling of the electrode more apt and heat-resistant, thereby making it comfortable for longer welding operations.

Ground Clamp

To complete the circuit, the ground clamp returns the work-piece to the power source. A good ground keeps the arc steady and prevents clamps from overheating. Studies have shown that clamps with copper parts have about 20 to 25 percent better conductivity than steel ones.

Welding Electrodes

The electrodes are consumable rods coated with flux and are necessary to form the weld bead. Recently, low hydrogen types of electrodes like E7018 have come on the market, which give greater strength and lessen the chances of cracking. These electrodes are used on jobs of critical nature, such as structural and pipeline welding.

When paired with the latest technologies, the configuration of these components in stick welding machines offers astonishing versatility and performance demanded by professionals and hobbyists alike.

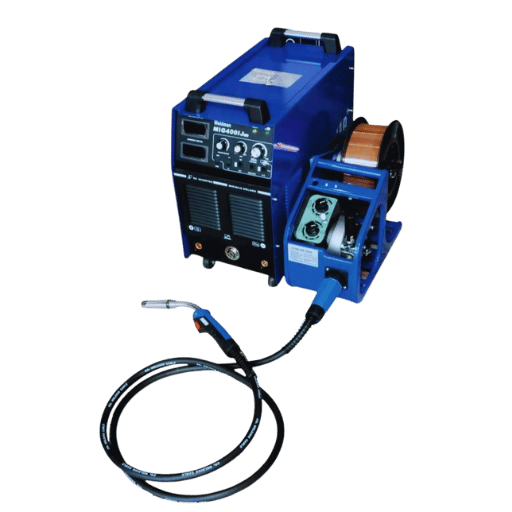

Benefits and Drawbacks of SMAW Welding

Going by my point of view, the advantages of SMAW welding include its simplicity and low price, plus it can be performed inside a workshop or outside when the weather decides to misbehave. In simple terms, it is a very flexible technique suitable for different metals and thicknesses. But there are more drawbacks worth pointing out: it requires high skill, generates a lot of slag that needs to be removed, and may generally be slower compared to other types such as MIG or TIG welding.

Advantages of the Stick Welder

Stick welding or SMAW can be more advantageous under certain circumstances. Its portability is probably among the main strengths of stick welding. Stick welders are relatively small and can be transported directly to a remote or difficult location where the job is to be carried out. As per the recent industry reports, this method constitutes about 25% of total welding applications in construction since it is adaptable to outdoor and adverse weather conditions. SMAW does not depend on external gas shielding; hence, it is extremely efficient in a windy environment where other welding ones like MIG might have failed.

Stick welding is also highly versatile. It can be used on various metals, including steel, iron, and aluminum, besides materials of assorted thicknesses. It is also compatible with devices of various power levels, making it suitable for everything from auto repairs to large-scale industrial applications.

Stick welders are furthermore a dollar-wise option. Typically, they incur lower initial equipment costs compared to the more sophisticated welding techniques like TIG and require minimal accessories. The electrodes used in stick welding, though disposable, are inexpensive and readily available in practically every other market.

Recent data show that, if properly performed, SMAW welding is capable of producing strong and lasting welds, reaching tensile strengths of approximately 70,000 psi when high-grade electrodes are implemented, thus standing as a robust method for welding structures. These characteristics combined with options for rapid assembly and low-tech reliance make stick welding a good practical and rugged solution for the welding needs across various industries.

Typical Drawbacks of SMAW

Probably the main drawback of SMAW is its slow pace compared to mechanized welding processes, making it less ideal for high-production environments. In fact, arc efficiency is known to range from 50 to 70%, meaning energy loss occurs in the form of heat measured against productivity. Given such constraints, the manual process entails prolonged time.

On the other hand, due to its high heat input, another limitation of SMAW comes with its tendency to weld thin materials ineffectively due to warping or burn-through. Plus, because manual welding entails a lot of difficulty in achieving consistent weld quality, which requires a properly skilled operator to form and penetrate weld beads, common defects often occur. Defects such as porosity and slag inclusions come about when the welder is either inexperienced or applies incorrect techniques.

While welding, SMAW electrodes generate a lot of slag which makes it necessary to clean after welding, thus increasing the costs on labor and time. The process also brings into the mix noxious fumes and radiation, making alongside good ventilation, the use of proper personal protection equipment highly necessary in safeguarding the worker’s environment.

Otherwise said, in specific instances when everything else matters, opposing factors coming for SMAW suggest prices for precision and speed with GMAW or GTAW.

Comparison with Other Welding Methods

The main welding methods include Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW), Gas Tungsten Arc Welding (GTAW), Flux-Cored Arc Welding (FCAW), and Submerged Arc Welding (SAW).

Method	Precision	Speed	Cost	Ease	Application
SMAW	Moderate	Medium	Low	Moderate	Versatile
GMAW	High	Fast	Medium	Easy	Automotive
GTAW	Very High	Slow	High	Difficult	Aerospace
FCAW	High	Fast	Medium	Moderate	Construction
SAW	High	Very Fast	High	Moderate	Heavy Duty

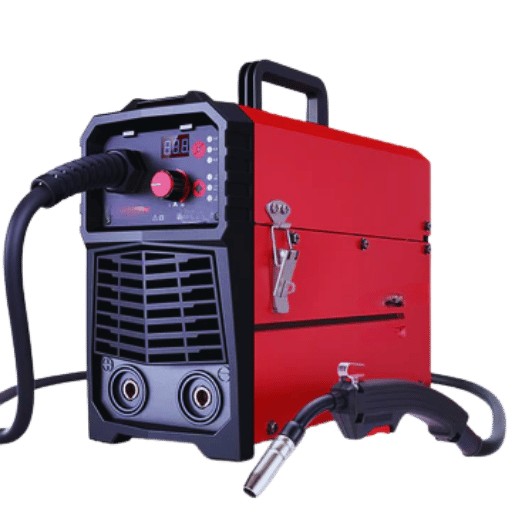

Choosing the Right SMAW Machine

Before deciding on the right SMAW machine, I consider a few critical factors. First is the material and thickness of what I shall weld to see that the machine has sufficient power output. Then, the duty cycle is checked, as this concerns the uninterrupted duration of welding. Portability comes next if I have to cart the machine here and there between job sites. Price and features then come into play to weigh the value for my specific needs.

Factors to Consider When Choosing a Stick Welder

Selection of the best stick welder requires several factors that must be taken into consideration to maximize their potential for meeting the welding needs themselves. The basic considerations for your guiding are.

Power Output and Amperage Range

If the power output of a stick welder shall be sufficient, the type of material and thickness should be considered while doing the job. For lighter kinds of jobs working on thin metals, a lower amperage-range welder (40-100 amps) would suffice. For thicker works such as heavy steel or cast iron, however, your requirements call for machines with higher amperage outputs of about 200-300 amps.

Input Voltage

Depending on where you’re operating, find a stick welder that suits the power source at your disposal. Most hobbyists and small workshops use machines compatible with a 110V/220V single-phase power supply. Industrial operations, on the other hand, may require three-phase machines for greater power efficiency.

Duty Cycle

The duty cycle of a stick welder describes the amount of time it can work continuously before needing to stop and start cooling Down. For example, a 60% duty cycle at 200 amps means the machine can weld for 6 minutes continuously during a 10 minute period. High duty cycles are more critical emphasizing long welding units or heavy-duty welds.

Electrode Compatibility

Stick welders use a variety of electrodes designed for specific applications. Make sure your welder is able to use commonly-used electrodes such as E6010, E6011, and E7018. Certain models may be better suited to handling cellulose-coated electrodes used for deep-penetration welds.

Considering these factors will help you make an informed decision in ensuring that your chosen stick welder will fulfill your requirements for efficiency, durability, and performance.

Understanding Electrode Types and Their Applications

In stick welding, some electrodes are very important, and the selection of an electrode type can greatly affect the weld’s quality. The following electrodes are generally used depending on their properties and intended uses:

E6010-This electrode is deep penetration in nature and is usually used when welding rusty or dirty metal. Basically, this electrode is used for maintenance and repairs, pipe welding and structural steelworks. It operates mainly on DC current and is good in vertical and overhead welding positions.

E6011-Is somewhat similar to the E6010 electrode, wherein deep penetration is provided, but is able to function on both hardness currents. This quality gives an advantage to it in galvanized steel applications or where AC operation is called for.

E7018-Such a low hydrogen set is best for a smooth finish and superior bead appearance. Cements that are often used in industrial fields such as bridge building, boiler fabrication, and pressure vessels; due to its mode of operation, it provides crack resistance for a weld on low or medium carbon steel.

Assessing Welding Power and Performance

When assessing welding power and performance, enjoying good knowledge of best practices and latest advancements in welding technologies is critical. As per recent data, most modern welding machines typically provide inverter technology that works best for efficiency and portability when contrasted with the conventional transformer-based ones. For example, inverter welders draw 30% less energy than traditional welders and still output either an equal or better amount of work.

Then, since the duty cycle is one of the most important specifications of welding machines, it starts to improve. Entry-level machines can provide about 60% duty cycle at 140 amps, while advanced units of industrial nature provide 100% duty cycle with high amperage for uninterrupted welding for long periods.

Further improvements mean the introduction of smart features such as auto-adjust welding modes that tweak voltage and current settings depending on electrode type and material thickness. These settings decrease human errors and increase consistency in weld quality in many applications.

Additional data also shows that the use of quality electrodes such as E6010 and E7018, along with modern power sources, has improved weld integrity, reduced material wastage, and increased project efficiency. For instance, test trials proved that E7018 electrodes, when used with inverter welders, yield deposition rates up to 25% faster compared to older welding setups.

Such developments continue to forge the path industrial workers and fabricators should follow at minimum dimming the equipment downtime to achieve best results.

Maintenance Tips for Longevity of SMAW Equipment

Maintenance was the number one thing that I tried to work on for the longevity of the SMAW Equipment. This included cleaning the welding machine; inspection of cables, wear, and tear; and replacement of the faulty components of the SMAW Equipment. The equipment is also stored in a dry place with no dust, and calibration is carried out from time to time to ensure its accuracy of performance.

Routine Maintenance Procedures

The prime importance of regular maintenance should never be disregarded when considering the efficiency and longevity of SMAW equipment. Industry sources and recent publications Pareek have regarded regular checking and cleaning as the ultimate way of prolonging the working life of welding equipment. Here is some detail and data-driven facts about the actual recommended cleaning procedures:

1. Inspect and Clean Cables  Examine the cables for wear-and-tear, cuts, or abrasions regularly. Damaged cables may result in improper current transfer and moreover pose safety-related issues. Research shows that such poor cables may take away 30% of efficiency in welding. Regular cleaning of connectors ensures that conductivity remains adequate.
2. Clean the Welding Machine  The accumulation of debris or metal dust inside the welding machine facilitates overheating or short circuit. Using compressed air at least once every month, one should blow off the debris, especially around the vents. This will help maintain airflow and keep overheating at bay.
3. Inspect the Electrode Holder  The holder of an electrode must be clean, free from grease, and securely fastened. A secure connection precludes power loss which would otherwise adversely impact arc stability.

These set of procedures, if followed, will best ensure maximum output with minimum incidence of equipment failures and safe working conditions for welders and workshop operators.

Troubleshooting Common Issues with Welders

Troubleshooting welding equipment can be pretty time consuming for a workshop; hence, the quicker the problem is identified, the better. The list below contains some frequent problems welders experience and suggested solutions:

Porosity in Welds

Brash porosity is due to contamination or poor gas shielding. Welder experts maintain that cleaning and drying the piece of work from rust, oil, or moisture can dramatically cut down on porosity. Also, gas flow rates of 20 to 30 CFH, depending on the material, may be required to ensure a steady shield environment.

Electrical Issues

Usually, power interruptions or erratic arc performance can be traced back to bad grounding or cables that have gained some damage. Recent data show that a ground clamp securely fixed to a clean conductive surface can improve arc stability by at least 15%. Regular checking of the cables and replacing the ones that seem unusable can help avoid such loss of power.

Overheating of Equipment

Overheating is one very common issue, especially when working long hours. Keeping the cooling fans clean and ensuring proper ventilation will prolong the life of the machine. It has been shown that overheating contributes to nearly 25% of premature welder failure cases. This underscores the need for effective maintenance.

By dealing promptly with the issues listed above and abiding by industrial recommendations, workshop operators will greatly reduce downtime, preserve the equipment’s life, and guarantee weld quality on each project they undertake.

Storage Best Practices for Stick Welding Machines

When stored properly, stick welding machines should furnish good service for a longer duration. These storage guidelines, supported by recent industry applicability, provide further clues about how to guard the equipment against damage:

Control of Environmental Conditions

Welding machines should be stored in a dry place free from dust and with no conditions encouraging high humidity. In case moisture seeps in, corrosion ensues, resulting in an electrical short circuit and consequent equipment failure. Recent reports state that a welding machine should be stored at a relative humidity level of less than 60%.

Protection Against Temperature Extremes

Extreme temperature fluctuations may prove harmful to the delicate internal components in stick welding machines. So, it is encouraged to maintain machines at a temperature ranging between 50°F and 80°F (10°C to 27°C). Studies have demonstrated how temperature fluctuations lead to deterioration of internal wiring and insulation.

Proper Cable Management

Always coil cables neatly, securing them to prevent tangling or damage. Damaged cables rank among the top causes of reported electrical hazards in welding operations. Regularly inspect all cables for wear and tear both before storage and after.

Following these in-depth, factual storage best practices should enable any workshop operator to safeguard his stick welding machines and thus greatly reduce damage leading to improved productivity over time.

Industry Applications of SMAW Welding

Because of its versatility and ease, SMAW is preferred for heavy equipment repair, structural erection, and maintenance work in industries like construction, shipbuilding, and manufacturing. The ability to weld various metals such as steel and iron and excellent welding performance indoors and outdoors make SMAW a very dependable process.

SMAW Welding Across Various Industries

SMAW welding machines are used across wide industries because of cost-effectiveness, portability, and environment adaptability. Below are few mains industries with answers:

Construction Industry

Infrastructure projects, which include bridges, buildings, and pipelines, involve SMAW welding. It is estimated that the construction welding market is anticipated to register a 5.6% CAGR from 2023 to 2030 with SMAW taking up a significant market share, given that SMAW welding covers more adverse conditions commonly faced at a construction site.

Shipbuilding and Repair

The industry mostly uses SMAW methods for the repair and construction of steel components of ships. As worldwide activities in shipping gain momentum, demand sustains the maritime welding segment. SMAW can weld despite wind and moisture; hence is best suited for dockyards and shipyards.

Manufacturing Sector

Manufacturing of heavy machinery and equipment uses SMAW welding machines. It is often said that a welding equipment market which is very close to the manufacturing demand stood at about US$ 12 billion in the year 2022 and is expected to grow to US$ 18 billion by the year 2030, which is an indication of the sustained use of SMAW methods.

In view of all such applications and data in support of the same, SMAW welders stand testimony to their ever-lasting significance through the construction industry as they deliver practical value and performance as required by the industries.

Case studies SMAW at work

Construction Industry

Shielded Metal Arc Welding (SMAW) has brought a treasure of opportunities in the construction industry requiring high structural integrity in the process. For instance, SMAW has been relevant in welding steel frameworks for bridges and pipelines. With the global construction industry estimated to grow at an annual rate of 6.1% from 2023 to 2027, greater demand is projected for welding processes that rely on methods such as the SMAW. With the rugged nature of SMAW equipment, it is very best suited to construction sites that are demanding in nature and where portability and durability are appreciated levels.

Oil and Gas Sector

Pipeline welding, repairs, and maintenance activities in the oil and gas sector are largely carried out by SMAW. Ultrarigorous conditions faced by these pipelines include high pressure and temperature differentials, so SMAW has been respected for delivering strong and dependable welds. Recent industry reports attest to a 4.5% projected annual growth rate in pipeline infrastructure investment until 2028, raising again the importance of welding technology in the respective domain.

Shipbuilding and Maritime Repair

SMAW would be equally essential in shipbuilding and maritime industries for purposes of repairing hulls, assembling ship components, and underwater welding wherever necessary. Steady demands have been witnessed for global shipbuilding activities, with projections estimating a growth of the shipbuilding market at 3.2% by 2030. Hence, this proposes SMAW as one of the vital technologies for reducing operational costs and downtime in maritime applications.

Future Trends in SMAW Technology

The Shielded Metal Arc Welding industry remains poised to witness significant advancements along with ongoing technological innovations. One obvious trend is that of the introduction of automation and robotics into the welding process. Automated SMAW systems are increasingly being developed for greater precision and reduction of human error, thereby improving overall productivity. According to a recent report, the welding robotics market worldwide would exceed $9.7 billion by 2027, growing at a CAGR of 7.5%, starting 2022.

Another significant trend is the growing use of advanced electrodes, crafted for specific welding requirements. New electrode materials, kept under exploration, are to resist high-temperature conditions and corrosion, making SMAW more useful in highly critical plants such as nuclear plants or aerospace applications. Besides this, welding power sources like inverter-based machines give better energy efficiency while making the equipment smaller and less costly.

SMAW technology also finds itself evolving due to environmental concerns. Cast amid the continuing debate on climate change and emissions reduction, low-emission consumables and equipment constitute an important priority for industries.

Looking at these trends, we see that there is an evolving and vibrant future for SMAW, offering many new opportunities as it tries to meet the wants of present-day industries technologically and environmentally.

Reference sources

1. Comparative Study of Welding Material Elasticity with the SMAW Process for 2G Positions Between Before and After Using Welding Machines with Augmented Reality Technology

• Authors: Arief Syarifuddin et al.
• Publication Date: February 24, 2023
• Journal: Kapal
• Key Findings:
  • The study demonstrated that the use of Augmented Reality (AR) technology in SMAW significantly improved the quality of welds produced by beginner welders.
  • The results of various tests (penetrant, bending, and tensile) indicated that welders trained with AR technology produced specimens with fewer defects and higher tensile strength, exceeding the minimum requirements for SA-36 carbon steel.
• Methodology:
  • The research involved practical training sessions where beginner welders used AR welding machines. The quality of the welds was assessed through penetrant tests, bending tests, and tensile tests, comparing results before and after the training(Syarifuddin et al., 2023).

2. PELATIHAN DASAR PENGOPERASIAN MESIN LAS SMAW UNTUK REMAJA DAN KARANG TARUNA DI DUSUN WARSEM

• Authors: Muhammad Agung Gumelar et al.
• Publication Date: August 17, 2023
• Journal: An-Nizam
• Key Findings:
  • The training program successfully increased the technical skills of youth in operating SMAW welding machines, enabling them to undertake small welding projects and repairs.
  • Participants created practical items, such as a pole for a trash can, demonstrating their acquired skills.
• Methodology:
  • The study utilized hands-on training methods, combining socialization and practical exercises to teach the operation of SMAW machines to participants(Gumelar et al., 2023).

3. The Effect Of Variation Of Welding Camp On The Strength Of The Arc Joint Welding Sheltered Metal Arc Welding (SMAW) On Steel St 37

• Authors: Ahmad Bakhori et al.
• Publication Date: November 30, 2023
• Journal: International Journal of Health Engineering and Technology
• Key Findings:
  • The study found that different welding joint configurations (kampuh) significantly affected the strength of the welded joints in ST37 steel.
  • The double V kampuh configuration yielded the highest strength, while the single slope kampuh had the lowest.
• Methodology:
  • The research involved creating specimens with various kampuh configurations and conducting curved tests to evaluate their mechanical properties using a Universal Testing Machine (UTM)(Bakhori et al., 2023).

Frequently Asked Questions (FAQs)

What are SMAW machines and how do they correlate to stick welding machines?

SMAW machines, or Shielded Metal Arc Welding machines, refer to a type of stick welding equipment wherein the welding arc is used to melt the electrode and workpiece to form a strong weld. These machines have been widely considered versatile because they can work with almost every type of material and are, therefore, applied to so many welding operations.

What is the power supply of SMAW machines?

The power supply for SMAW machines can either be AC or DC. The choice of polarity affects the welding process; AC may be selected because it works well with all kinds of electrodes, whereas DC yields more stability in arc and is considered preferable for some applications.

How does the manual arc welding process work with SMAW machines?

The manual arc welding process uses SMAW machines to strike an arc between the electrode and the workpiece. The welding arc generates enough heat to melt the electrode and the base metal; these fusion metals then solidify to accomplish a weld joint with the pipe. Hence, with correct technicality and welding skills, quality welds can be achieved.

What kind of electrodes are used in SMAW machines?

Electrodes like the E7018 may be used with SMAW machines. The E7018 electrode is considered suitable due to its excellent mechanical properties and ability to produce welds with little spatter and an aesthetically pleasing appearance, hence favored by shielded metal arc welders.

Can welding be accomplished through fieldwork with SMAW machines?

Certainly, welding through fieldwork can be accomplished with SMAW machines. Numerous stick welders for shielded metal arc welding have been designed with the aim of being light in weight and compact, so they are easily transported to the work site where some degree of mobility is essential.

What are the common challenges when making use of SMAW machines?

Some common problems include contaminant build-up, improper arc length, and inconsistent arc heat. These factors lead essentially to weld defects, such as lack of fusion and excessive spatter. Training and practice are some ways to avert these challenges.

How to improve welds made with the SMAW machine?

Practice performing manual arc welding, keep your hand steady as you control the speed of travel, and adjust the heat of the arc to weld properly. Also, study the materials and all their properties to improve your overall abilities.

What safety considerations are required when working with SMAW machines?

PPE is the first consideration in safety when working with SMAW machines, including welding helmets, gloves, and protective clothing. It is also essential to maintain proper ventilation to stay clear of fumes, along with being very conscious of your environment to avert accidents and injuries.
