The development of laser cutting technologies has transformed the world of manufacturing industries. Their advanced metal plate laser cutting machines epitomize this form of innovation. Such machines drive efficiency, accuracy, and adaptability in all business processes, offering emerging and established enterprises the ability to fabricate intricate designs and parts with unparalleled ease. Be it your first time learning about technology that drives contemporary production or you are a veteran in the field of metalwork, this guide aims to introduce you to the fundamentals of metal plate laser cutting machines. Throughout this post, we explain how these universal machines operate, detailing their immense advantages and range of uses across numerous fields. With this information, readers will better understand why such machines are considered an industry revolution. Prepare yourself to understand the value of precision and its immense capabilities in transforming operations.
What is a Metal Laser Cutting Machine?
A laser cutting machine for metal is one of the tools which helps cut, carve, or engrave onto metal sheets using a laser beam with pinpoint accuracy. Its operation involves aiming the laser to melt the material in the designated region with clean and precise cuts. These types of machines are frequent in automotive, aerospace, and construction industries due to their speed and ability to work with even the most intricate designs on different types of metals.
Understanding the Basics of Laser Technology
Laser is an acronym that stands for “Light Amplification by Stimulated Emission of Radiation.” This is the basis of the precision and effectiveness of metal laser cutting machines. The technology functions by using a broad medium such as gas, liquid, or solid-state crystals, and stimulating the atoms within to emit photons in a focused coherent beam. Coherent light is essential in industrial works due to its intensity, focus width, and its ability to move over a long distance without losing its shape.
Laser cutting machines use three types of lasers, which include CO2 lasers, fiber lasers, and Nd:YAG (neodymium-doped yttrium aluminum garnet) lasers. Among them, fiber lasers are favored more as they are more cost effective, last longer, and can be used with various types of metals. More recent studies show that fiber lasers have power output capabilities between 500 watts, to more than 20,000 watts, allowing for extremely fast and precise cutting of stainless steel, aluminum, and brass.
Industrial sources also suggest that fiber laser equipment can achieve laser cutting speeds up to 20 meters per minute, based on the material type and thickness. The materials thickness that can be processed range from 0.5 mm to more than 50 mm in some instances, again, relating to the power of the laser. Also, the newly developed control software for the lasers have reduced the amount of unused material cut, improved accuracy to a fraction of a millimeter, and overall productivity boosted. Some systems utilize over 85% unclaimed resources during production.
Industries that understand the principles and recent changes to the laser technologies can make more economically sound decisions when deploying these systems, trying to maintain guarantee on cost and dependability for the manufacturing operations.
How Are Laser Cutting Machines Operated?
All laser cutting machines share the same operational technique – a high-power laser cutter that could either engrave or cut through the material placed on the machine. The primary difference in all systems is the type of laser used – other systems use powerful CO2, fiber, and even Nd:YAG lasers which are especially designed to work with particular materials. Fiber laser cutting machines are specialized for working with metals, whilst CO2 cutting lasers are more adept at handling nonmetals such as wood and acrylics. The method of cutting an item using a cutting machine involves the use of lasers that are so focused that they can cut through powerful metals so they are particularly useful while cutting non-essentials like wood and acrylics.
Other modern features in contemporary systems include driving speed, low energy use and automated multi-wavelength cutting which are all further developed in cooperating companies. Besides those few extras, the higher speed of cutting up to 1,000 inches in a minute depending on the thickness and material at hand is really efficient for thin stainless steel and aluminum sheets. The implementation of modern automation features is not useful if the material placed in the machine is thick or requires manual adjustment as the advanced auto focusing system fails to work, meaning enhanced productivity where items change seamlessly is not available.
Also, as laser cutting technology advances, industries like aerospace and medical manufacturing that require extreme precision can benefit from tolerances of around +/- 0.001 inches. Integration with Industry 4.0 technologies permits real-time monitoring and optimization, assuring low downtime and material spend. Recent research shows modern laser cutting systems to be 30% more efficient in material utilization than older models. This translates to less waste and lower operating costs for production lines.
Key Components of a Laser Metal Cutter
| Description | |
|---|---|
| Laser Source | The core of the cutter, which generates the laser beam, typically powered by CO2, fiber, or diode technology. Fiber lasers, for instance, showcase higher energy efficiency and can cut reflective metals like aluminum and copper with superior precision. |
| Cutting Head | Houses the lens and nozzle to focus the laser beam on the material. Modern cutting heads are equipped with auto-focus technology, which improves processing speeds and ensures high-quality cuts on materials of varying thicknesses. |
| CNC Controller | Provides precision control for movement and cutting operations. Advanced CNC controllers integrate with smart interfaces for user-friendly operation and automated adjustments, maximizing productivity. |
| Motion System | Includes motors and guidance systems that ensure accurate movement of the cutting head. High-performance linear drives can achieve accelerations exceeding 3G, improving cutting speeds and accuracy. |
| Assist Gas System | Supplies gases like oxygen, nitrogen, or compressed air for cutting and cooling. Nitrogen, in particular, is used for stainless steel to achieve oxide-free edges. Recent advancements in gas control systems reduce consumption by up to 20%, leading to cost savings. |
| Software Interface | Facilitates design uploading, real-time adjustments, and monitoring. Some systems now feature AI-based software that optimizes cutting paths and predicts maintenance requirements, enhancing machine uptime. |
How to Choose the Right Laser Cutter for Your Needs?
The choice of a laser cutter must align with your individual needs. First, determine the type of materials you work with as well as the thickness you intend to cut or engrave. After that, think about the laser’s power. A higher wattage is better for quicker cuts or thicker materials. If accuracy and precision matter in your designs, check the machine’s details very carefully. Make sure the cutting space can accommodate the dimensions of your materials, and verify that it works with the design software you plan to use. Finally, set your budget, and search for the machines that reliably work well for their price.
Comparing Fiber Laser and CO2 Machines
Fiber laser and CO2 machines differ greatly in operations, strengths, and areas of application. Fiber lasers have a wavelength of roughly 1.064 microns, making them optimal for marking and even cutting metals like stainless steel, aluminum, and brass. Their efficiency and minimal maintenance make them ideal for industrial settings. Moreover, fiber lasers have a long lifespan, often exceeding 100,000 hours, and mark complex details with greater precision compared to CO2 lasers.
In contrast, CO2 lasers excel in cutting and engraving non-metal materials, such as wood, acrylic, glass, and fabric, with a longer wavelength of 10.6 microns. These lasers typically offer a larger working area which can be utilized in the sign making, art, and craft industries. However, as with any technology, there are tradeoffs; CO2 lasers require more upkeep since the mirrors and tubes tend to degrade over time.
Considering cost, Fiber lasers have a higher initial price, but their energy efficiency and low maintenance needs significantly reduce operating expenses. In contrast, CO2 lasers are initially cheaper, but the operational costs for gas and frequent maintenance needs quickly adds up.
In terms of speed and penetration, both types of lasers differ greatly. Fiber lasers are preferred for marking metals since those need more metal work done per hour; CO2 lasers are better for deep engraving or cutting thicker materials other than metals, giving them versatility.
A laser machine’s capabilities, including its precision, material, and production capacity, alongside your business needs strongly dictate the type of investment you are likely to make. The gap of difference explains the acceptance of fiber lasers in industrial manufacturing solutions, while CO2 lasers are more common in creative and crafting fields.
Choosing the right CO2 laser or fiber laser power for a project can prove to be particularly difficult. The need to balance precision and speed, whilst using the correct material is vital in this scenario laser.
Appropriate Laser Power to Opt for Your Ventures
Depending on the project at hand, different level of speeds, aggressiveness, and material selection are required to suggest the appropriate laser power. Using higher level laser powers for fast and deep cuts is efficient, however when delicate materials are involved there are dangerous sides such burning and distortion. For example, fiber lasers with 1kW to 3kW power cut metals like stainless steel and aluminum with exceptional speed and precision. CO2 lasers with 30W to 150W power also have great precision, however, they engrave and cut wood, fabric and acrylic.
Industry data suggests that a 500W to 1000W fiber laser can efficiently cut mild steel up to 12mm thick and stainless steel up to 6mm thick. Additionally, for non-metal materials, CO2 lasers between 60W and 130W can precisely engrave and perform clean cuts on 20mm thick materials contingent on its texture and density. As such, selecting the focus power level entails careful analysis of the material type, application purpose, and cost to maximize the overall efficiency and quality of the performance.
Evaluating the Laser System and Software
It is imperative to evaluate the accompanied software while picking an individual laser system as modern devices are engineered to work alongside advanced systems that improve precision and efficiency. With the growing technological needs, modern laser systems integrate with specialized CAD or CAM tools that assist in automating the workflow. For example, systems equipped with auto-focus, gaze tracking, and customizable features often reduce error margins significantly while increasing the speed of marking. The integration of AI-imbued software into laser systems is reported to enhance operational effectiveness by 35%, improving processing speed and reliability of the outcomes.
The data further emphasizes how effortless interfaces play a role in laser engraving and cutting tools. Tools with easy to use software allow users to modify parameters such as speed, power, and frequency for different materials and designs with ease. This Report indicates that software with embedded material databases can improve productivity levels by 25% because they eliminate setup adjustments by configuring settings for specific materials, also known as “smart” presetting. This shows the importance and impact modern laser applications rely on with advanced laser software for control, speed, accuracy, and cost efficiency.
What Materials Can Be Cut with a Metal Laser Cutting Machine?
Laser cutting machines which utilize metal cutters are efficient and flexible. They cut a number of common materials which include stainless and carbon steel, aluminum, brass, and copper. More specialized materials like titanium and alloys used in the aerospace or medical industries can also be cut with these machines. Because of the accuracy of cuts provided by metal laser cutters, they are more reliable in factories, automobile industries, and construction sites. It is worth noting, however, that the type of materials able to be cut depend on the machine’s laser power and settings, as these variables need to match the intended use.
The Flexibility of Steel and Aluminum
The construction, automotive, and aerospace industries also commonly use steel and aluminum due to their good strength-to-weight ratio and overall durability.. The growing technology for laser cutting metals, especially steel and aluminum, has increased the precision and efficiency of metal processing. For example, fiber laser cutters work particularly well with thin aluminum and mild steel sheets because they are able to cut at super fast speeds with very little distortion of the material. There are claims that laser cutting systems with sufficient power and proper configuration can accurately cut aluminum and steel sheets up to one inch thick.
Reports from the industry show that modern laser cutters utilizing multi-kilowatt lasers can exceed speeds of 1,000 inches per minute (IPM) for thinner sheets. As an example, fiber lasers surpassing 600 IPM cutting speed outperform conventional methods while cutting 4mm thick carbon steel plates. These machines also cater to complex designs, cutting clean edges without burrs that reduce secondary finishing operations. Furthermore, the efficiency of laser cutters helps reduce material waste and lower costs which fosters eco-friendliness in today’s manufacturing processes.
Exploring the Capabilities with Stainless Steel and Carbon Steel
In my experience, fiber laser cutting machines have been highly adaptable and effective when working with stainless steel and carbon steel. In stainless steel, they provide accurate cuts with minimal thermal distortion, ensuring a smooth finish. In addition, these machines provide great cutting speeds and accuracy with carbon steel, allowing for intricate designs and waste reduction. Their effectiveness on both materials has improved the productivity to quality ratio in manufacturing processes.
Cutting Brass and Copper With Care
Laser machines have lasers that are capable of processing brass and copper with astoundingly high efficiency. These two metals are highly conductive and reflective. With new advancements in fiber laser technologies, cutting reflective materials with precision and maximum speed has become more possible than ever. Modern laser cutters can now offer quality without risking damage to their machines caused by beam reflection due to advanced wavelength calibration and cutting nozzle design.
An example would be fiber lasers that use fire around the 1µm mark which do a brilliant job of cutting thin sheets of copper and brass. Recent information shows that high fiber lasers with a power of 1kW and above are able to cut accurately to 6mm thick brass and 8mm copper depending on material quality and used cutting parameters.
Brass is one of the two materials that lasers work well with. Advanced cooling systems alongside dynamic power adjusting further increase the capability of these machines with tough metals. These new types of lasers that are able to minimize waste are able to penetrate tough materials like copper while nominally increasing efficiency. This shift in production enables laser cutting to be more commonly used in electronics, automotive, and architecture.
What are the Benefits of Using Fiber Laser Cutters?
- High Precision: These lasers yield sharp and repeatable cuts, which is perfect for detailed designs and complicated cuts.
- Efficiency: Quick operation of Fiber lasers increases the speed of production without compromising quality.
- Versatility: Capable of cutting numerous materials such as metals, plastics, and even glass with ease.
- Cost-Effectiveness: Operating costs in the long-term are reduced by the energy efficiency and lesser maintenance needs of the system.
- Durability: Reliability of the fiber laser system is guaranteed over long periods of use due to its long lifespan.
Enhancing Efficiency in Industrial Applications
The implementation of fiber lasers into industrial workflows has transformed the manufacturing and production paradigms. There are new advancements every other second, but the addition of these laser fiber tools combines perfection and pace. This operational effectiveness has improved in all sectors. As per the latest data, fiber lasers are up to 20 times more efficient than CO2 lasers with electric efficiency of 30-40% versus the 10% CO2 systems offer. There is lower energy consumption which reduces costs, making these lasers a favorable substitution for other co2 systems.
Also, new features of the fiber laser technology have added sophisticated automation functions that can be incorporated into smart factory systems. As an example, the industries that make use of fiber lasers experience up to 40% decrease in production time when automated robotic arms or conveyor systems are implemented. This makes fiber lasers most suitable for mass production such as in the automobile industry, aerospace industry, and electronics manufacturing.
Another pivotal element to the efficiency of fiber lasers is their versatility. The range of materials that these lasers can be applied to is continuously expanding, as it includes stainless steel, aluminum, and titanium. Also, because there is no need for maintenance, and their life span is very long, production can be sustained without interruptions. Because of these aspects, fiber lasers will be a key part of the industry in the coming years as they will improve industrial productivity and diversification.
Cost-Effectiveness and Long-Term Savings
Fiber lasers are economically friendly in the short and long term, due to having low maintenance requirements and being energy efficient. New research and industrial data indicate that fiber lasers use about 50% less energy than the traditional CO2 lasers, which lowers electricity expenses significantly. In addition, operational costs are reduced because the solid-state design of fiber lasers does not require the purchase of costly expendables, including gases or fragile optics.
At a fiber laser’s peak, operating hours can exceed 100,000. With such a high burn hour, service interruptions are at a minimum. These lasers drastically reduce the frequency in replacements required, while increasing overall productivity. Once these are integrated into high demand industries such as automotive or aerospace, they demonstrate pronounced results. The effectiveness precipitated from these savings allows companies to utilize their resources in more efficient ways. Fiber lasers can be tailored towards specific industry requirements, and as such, their cost-efficiency is unparalleled in industrial applications.
Environmental Impact and Energy Consumption
Operational consumption of fiber lasers greatly surpasses any traditional laser technology. With newer advancements, electric energy is being transformed into laser light at 30-40% efficiency rates. Lower operational energy consumption directly results in reduced costs and a lower carbon footprint. The minimal waste heat generated reduces the need for additional cooling systems, which in turn lowers the total energy consumption required.
One of the most important considerations for the environmental impact of fiber lasers is their lifespan. With some lasers exceeding 100,000 hours of use, they reduce the need for replacements, lowering electronic waste. Added durability with lower power settings, enhances sustainable manufacturing which focuses on reducing eco-impact.
With no requirement for gas or dyes, fiber lasers eliminate the dependability on other types of consumables. This greatly improves the cost as well as safety and cleanliness of the workspace. In general, fiber lasers are an environmentally conscious option for industries that are trying to optimize productivity and efficiency. This technology is consistent with furthering energy conservation and in addition lowers the overall ecological impact which is essential for modern green industrial practices.

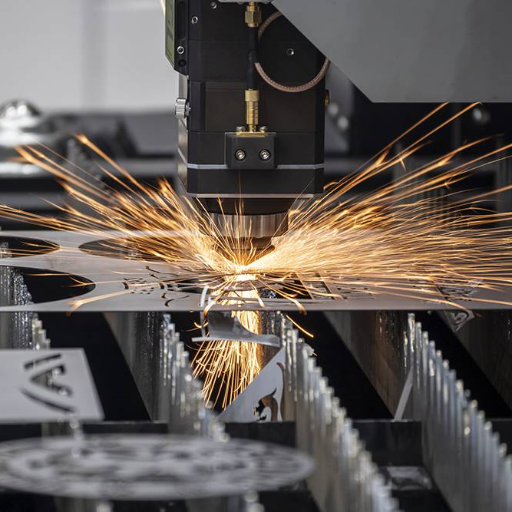

How to Maintain and Troubleshoot Your Metal Laser Cutting Machines?
- Routine Cleaning: Make sure you clean the machine’s lenses, mirrors, and nozzles regularly to avoid performance-related issues. Cutting accuracy may be impacted by dust and other particles.
- Check and Replace Consumables: Pay attention to the nozzles and filters, as they may be subject to wear. To avoid inefficiency and damage, replace worn parts promptly.
- Lubricate: Smooth operations and reduced wear are ensured when all moving parts are properly lubricated.
- Cooling System Inspections: Evaluate the cooling system for any possible leaks or blockages which may lead to overheating. This guarantees reliable functions.
- Calibrate the Machine: Regular checks of the laser beam alignment are required for accurate cutting.
Routine Maintenance Tips for Optimal Performance
| Task | Frequency | Details |
|---|---|---|
| Clean Optics | Weekly or as needed | Ensure all mirrors and lenses are free of dirt and debris. A clean optical system improves cutting precision and reduces the risk of damage. |
| Replace Laser Tube | Every 8,000 to 10,000 hours | Based on typical CO2 laser usage, replace the laser tube depending on operational hours to maintain full power output. |
| Inspect Exhaust System | Monthly | Check fans and ducts to ensure airflow is unblocked. Proper exhaust prevents smoke accumulation which could reduce cutting efficiency and visibility. |
| Align Laser Mirrors | Bi-weekly or after moving | Misaligned mirrors can scatter the beam, reducing cutting power. Regularly test and align them for optimal focus. |
| Check Software Updates | Monthly or as updates release | Regularly check for firmware/software updates from the manufacturer, ensuring your machine benefits from the latest features and improvements. |
Common Issues and How to Resolve Them
| Issue | Solution |
|---|---|
| Machine overheating | Ensure proper ventilation, clean dust buildup, and check cooling mechanisms regularly. |
| Unresponsive controls | Inspect connections and wiring, and consider resetting the system if applicable. |
| Irregular performance | Perform a diagnostic check, update software, and verify calibration settings. |
| Frequent shutdowns | Check power supply stability and inspect for possible mechanical wear or faults. |
Increasing the Lifespan of Your Laser Cutting Machine
Taking care of your laser cutting machine is very important if you wish to get the most value out of it. Cleaning is a vital part of maintenance which involves the cleaning of the lenses, mirrors, and filters as residue can impair performance. Furthermore, the machine should have its parts replaced if they show signs of aging to avoid unnecessary strain on the device. Following the manufacturer’s instructions for use, such as the power usage and machine load, helps the overall performance, too. Inspections and routine maintenance helps catch problems before they become expensive repairs. Your machine is likely to perform consistently if you refrain from damaging using quality materials instead.
Reference sources
-
Laser Cutting Technique: A Literature Review (2022)1:
- Key Findings: This study evaluates the optimization of laser cutting parameters like scanning speed, laser power, and gas pressure for various materials, including metals and thermoplastics. It emphasizes the importance of minimizing defects such as dross formation and kerf width while maximizing efficiency.
- Methodology: The research critically examines experimental and theoretical studies, employing optimization models and software tools like FEA for process improvement.
-
Laser Cutting Technologies and Pollution Control (2022)2:
- Key Findings: This paper explores advancements in laser cutting technologies, including CO2 and fiber lasers, and their environmental impacts. It proposes pollution control strategies like multi-stage filtration to mitigate emissions during cutting.
- Methodology: The study integrates experimental data with pollution control designs, focusing on the efficiency of filtration systems and the environmental footprint of laser cutting.
-
Optimal Laser Beam Configurations for Metal Sheets (2018)3:
- Key Findings: The research investigates how laser beam parameters (e.g., wavelength, polarization, beam shape) can be optimized for different materials and thicknesses to enhance cutting efficiency and quality.
- Methodology: It combines theoretical analysis with practical experiments to evaluate the impact of beam configurations on cutting performance.
- Top CNC Fiber Laser Cutting Machine Manufacturer and Supplier in China
Frequently Asked Questions (FAQs)
Q: What is a metal plate laser cutting machine?
A: A metal in industrial laser cutting machine is referred to as a metal plate or sheet cutting laser machining. This type of laser machining employs a fiber laser which is much quicker and more precise than the old CO2 laser.
Q: How does metal laser cutting work?
A: Metal laser cutting machines function by concentrating a laser beam on the piece of metal to be worked on. It either vaporizes, burns, or melts the material ahead of it and the machine is able to move with high speeds when cutting.
Q: What are the advantages of using fiber laser metal cutting machines?
A: Fiber laser metal cutting machines have variety of benefits such as, thin and thick precise cutting, faster running rates and lower repair cost than other metal cutters. Also, Fiber laser metal cutting pieces have exceptionally efficient precision when cutting metal due to their shorter wavelength which is easily absorbed by metals.
Q: Can different types of metals be used on a metal laser cutter?
A: Indeed, metal laser cutters work on a range of metals like steel, aluminum, copper, and brass. The cutter’s processes can be tailored to each metal’s composition and thickness to achieve the best results.
Q: What is the CO2 and fiber difference in metal cutting?
A: Fiber laser are more effective than CO2 for cutting metals because the latter has a longer wavelength which isn’t absorbed as readily. Even though CO2’s lack of ability to effectively cut metals means it needs a wider variety of materials, it does mean fiber lasers have a greater effectivity range when the material is metal.
Q: How does the thickness of the metal sheet change the cutting process?
A: The thickness of the metal sheet can significantly impact the cutting process. A thicker sheet means more powerful lasers or a slower cut speed, while a thinner sheet can be cleaned faster and with less power. The machine’s spec needs to be evaluated against the gauge of the metal being cut.
Q: What kerf in laser metal giving cuts?
A: That is kerf is the width of the cutting made by the laser beam in the process of the metal cutting. It is one of the most important factors to think about because it affects the laser cutting technology accuracy and precision of the operations. The smaller the kerf, the easier to control wastage material and the more precise the cuts will be.
Q: How important is the installation and enclosure of a metal-cutting machine?
A: Correct installation and suitable enclosure of a specific cutting machine is an essential factor impacting the integrity and efficiency of its operation. The enclosure also safeguards operators from laser exposure and from the generated debris during the cutting cycle. It is recommended that an expert carry out the assembly so that the machine achieves the best possible results.
Q: What optional features can enhance the performance of a sheet metal laser machine?
A: Optional features that could improve better productivity of the equipment and versatility. They could be automated loading and unloading equipment, 3D cutting software, and specific lenses which are applicable to various materials. These features improve work efficiency and reducing manual work is a positive.
