Nickel sits at the heart of modern manufacturing, earning a role in aerospace turbines, mobile-phone circuitry, and countless other domains. Its temperature threshold for liquefaction-the melting point-often determines when metallurgists can wield it most effectively. Plenty of chemistries, bond strengths, and microstructural quirks conspire to define that threshold, and each one leaves an imprint on how nickel behaves once it is actually installed in a gadget or engine. Far from a trivial detail, the figure later resets project schedules, salvage budgets, and safety margins. Penetrating that single number therefore unlocks insight into polishing dies, powder-spray lines, or superalloy research benches alike.
What is the Melting Point of Nickel?
Nickel reaches a liquid state at 1,455 C (2,651 F), a threshold that few metals breach. That degree of thermal endurance is why engineers routinely specify nickel in heat-hungry environments.
Understanding the Melting Point Chart
A melting-point grid allows rapid side-by-side comparisons of solid-to-liquid transitions. One glance at the plotted line for nickel reveals its unusually elevated position among elemental symbols. Because nickel stays solid so long, parts in aircraft engines and power tur-bine disks can survive minutes of open flame without failing. Electronics that encounter brief but blistering surges also rely on the same unflinching characteristic.
Comparing Nickel with Other Common Metals
Nickel can be compared with common metals like iron, copper, aluminum, zinc, and titanium.
| Metal | Melting Point (°C) | Density (g/cm³) | Common Uses | Key Traits |
|---|---|---|---|---|
| Nickel | 1,455 | 8.91 | Aerospace, Tools | Heat-resistant |
| Iron | 1,538 | 7.87 | Construction, Auto | Strong, Durable |
| Copper | 1,085 | 8.96 | Wiring, Plumbing | Conductive |
| Aluminum | 660 | 2.70 | Packaging, Auto | Lightweight |
| Zinc | 420 | 7.14 | Coatings, Alloys | Anti-corrosive |
| Titanium | 1,668 | 4.51 | Medical, Aerospace | Strong, Light |
Factors Affecting Nickel’s Melting Temperatures
Nickels melting point, officially cited at 1,455C, is not a fixed number; it bends in response to impurities and alloying partners that enter the metal. When nickel combines with, say, sulfur, chromium, or copper, the new chemical bonds can either lift the melting temperature or pull it down. Take a nickel-iron alloy, for instance; industry engineers deliberately tweak that blend to furnish a melting range that suits high-temperature turbine rotors. Such cases underscore that the headline number for pure nickel is more of a benchmark than an absolute limit.

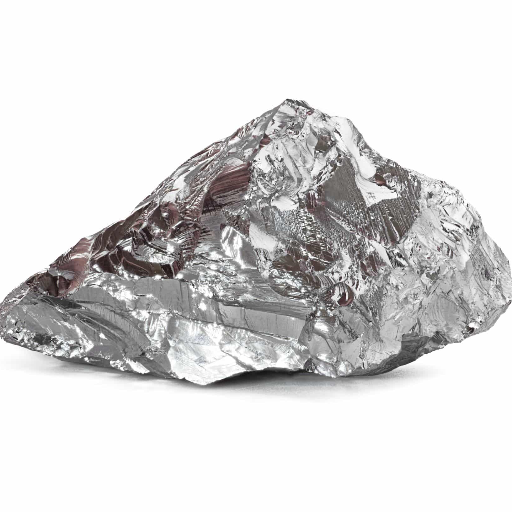

How Does Nickel Compare in Melting Points of Metal?
Nickel melts at 1,455 C, a threshold that comfortably surpasses aluminum at 660 C and zinc at 419 C yet remains well below tungsten’s 3,422 C and platinum’s 1,769 C. Consequently, nickel earns its keep in high-performance alloys and heat-resistant linings that routinely face severe thermal stress.
Nickel vs. Steel and Stainless Steel
In conversations about nickel, steel, and stainless steel, compositional subtleties drive much of the story. Plain carbon steel-an iron-carbon mixture budgeted for everyday use-usually liquefies between 1,370 C and 1,510 C, a span that contracts or expands with the carbon level. Stainless steel, which blends chromium and sometimes extra nickel, melts roughly between 1,370 C and 1,530 C; that band shifts according to brand name and proprietary recipe.
Nickels melting point, a precise 1,455 C, comfortably surpasses that of most common steels. Placed in a furnace or a jet-engine exhaust, it remains solid when cheaper metals have already begun to sag. This thermal endurance is paired with remarkable oxidation resistance, qualities that lead metallurgists to use nickel as the principal alloying agent in many stainless steels.
Austenitic grades 304 and 316, for example, carry 8 to 10.5 percent nickel; that addition lets them shrug off the punishing acidity found in chemical tanks and coastal marine habitats. In the shop floor ledger, plain carbon steel wins on price and arrives with good structural strength, while the chromium in stainless steel grants a measure of corrosion resistance absent in mild steel. Neither, however, matches nickels endurance at soaring temperatures or its steadfastness in strongly oxidizing gasses; that advantage locks the metal into aerospace turbine rings, refinery reactors, and high-output power-plant piping.
Exploring Nickel Alloy Melting
Nickel-alloy melting isn-t a casual affair; it-s the gateway to the kind of metal that gets called on when everything else has already bent. Purity and repeatability aren-t optional. They-re baked into every facet of the work, from furnace set-up to final ladle pours. The liquids-s boiling point, rough averages sit around 2,550F-1,400C-but even that sways based on the recipe writ in the chemistry log book. Inconel 718 for instance melts somewhere between 2,350F and 2,460F-1,288C to 1,349C-and those dozen or so degrees matter when you-re trying to avoid a slag inclusions.
Two modern tricks rule the shop floor: vacuum induction melting and vacuum arc remelting. Both processes insist on work being done under a belly-full of low-pressure inert gas so airborne crumbs never visit the bath. VIM catches volatiles before they escape, locking in the fine-grained microstructure that turbine makers and space travelers count on. A different crowd leans toward powder metallurgy because the atomized dust lets them tinker with bend proof-ness-and survive temps that would turn most steels into wet cardboard.
How nickel alloys are melted carries significant weight in sustainability discussions. Scrap from production floors and end-of-life products can be re-melted with astonishing efficiency and turned into new high-performance products that use little extra energy. That versatility, paired with the metals well-documented strength and resistance to corrosion, helps explain why the alloying and casting steps matter so much to industries ranging from aerospace to chemical processing.
Why Nickel is Considered a High-Temperature Metal
Nickel is often singled out among the elemental metals for its stubborn refusal to wilt under heat. With a melting point hovering around 1,455 C, the metal simply refuses to slump, crack, or evaporate when manufacturing presses push toward the red end of the scale.
Engineers blending nickel with chromium, cobalt, and molybdenum create what are loosely labeled superalloys, a term that barely does the chemistry justice. These formulations continue to stand tall long after the thermometer inside a jet engine has sailed past 1,000 C.
Creep-resistance, the slow creeping deformation that haunts lesser materials, remains a hallmark of the nickel families because their microstructure stays locked in even under sustained stress. Aerospace turbine blades and power-plant gas turbines lean on this quality every hour they spend in rotation.
Recent metallurgical surveys still report that nickel-rich steels and superalloys retain over 80 percent of their yield strength at temperatures that flirt with the alloys upper limit; few rivals can even approach that statistic. A dense, self-repairing oxide film bolsters the corrosion defense whenever oxygen is present, which it almost always is at altitude or inside combustion chambers. Those twin virtues-hot strength and oxidative armor-are why nickel and its hybrids keep landing on specification sheets for the worlds toughest jobs.
Nickels resilience at elevated temperatures serves both engineering priorities and sustainability goals. When a component is retired, the metal can be reclaimed, remelted, and reused without losing properties, so the resource footprint remains modest even in punishing service environments.

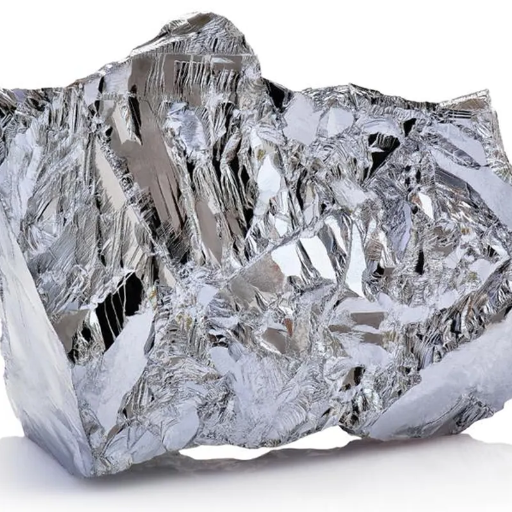

Exploring the Properties of Nickel
Nickels chemistry is marked by a rare blend of toughness and ductility that engineers rely on at almost every temperature. The metal resists oxidation under flame and saltwater alike, traits that gardeners call stubborn but plant managers praise as reliable. Superalloys for jet engines, stainless-studded pipe, and bright electroplating all draw on that innate endurance. Its recyclability matches the durability, letting manufacturers remake scrap into virgin-grade stock without losing performance.
Is Nickel a Ferromagnetic Metal?
Nickel qualifies as a ferromagnetic metal, able to acquire measurable magnetism and hold that charge under the right circumstances. The phenomenon originates in the arrangement of electrons clustered around the nucleus, which allows a sizable fraction of their tiny magnetic moments to point the same way and thus generate an unmistakable overall field. Only a handful of elements, notably iron and cobalt, exhibit this kind of ordered intrinsic magnetism.
Researchers mark the transition temperature, or Curie point, for nickel at roughly 627 K (354 C, 669 F); crossing that thermal threshold reduces the orderly hourly disposition of magnetic moments to a more random scattering and so strips the metal of its permanent attraction. Because that cutoff sits well above room temperature, nickel retains its magnetic character for most routine industrial and laboratory settings.
The alloys magnetic signature proves indispensable in countless modern technologies. Engineers rely on it when shaping sturdy permanent magnets for motors or assembling delicate magnetic sensors found in smartphones. Power-conversion devices-lik transformers and inductors-harvest nickel to furnish cores that channel magnetic field lines with minimal energy waste.
New studies confirm that nickel-based alloys fused with select ferromagnetic elements exhibit substantially improved magnetism. Engineers are increasingly turning to these mixtures for components in wind turbines, lithium-ion batteries, and other fast-evolving technologies. The trend reaffirms nickels standing as a cornerstone material in twenty-first-century magnetic design.
The Corrosion Resistance of Nickel
Nickel has long been celebrated for its stubborn refusal to rust or pit, and that reputation is more than commercial hype. The reason is straightforward enough: the metal sprouts a thin, tough oxide film the moment it meets oxygen, and that skin keeps nasty chemicals from doing their worst. Engineers therefore reach for it whenever humidity, salt spray, or wild temperature swings threaten to chew through ordinary steel.
Field trials back the theory. In shipyards and chemical bays alike, nickel-steel blends hold up under punishment that would smear most alloys. Grab a nickel-chromium grade, for instance, and the thing laughs in the face of heat; lab thermocouples push the threshold past 1,000 F and the material simply refuses to scale.
Maintenance crews notice the difference as well. Components that wear nickel tend to outlive their rivals by years, trimming wrench time in petroleum and refinery service.
More recent probes dig into subtler forms of attack, from pitting holes to the micro-cracks seeded by chloride. Monel 400, a nickel-copper staple, takes seawater on the chin and keeps on ticking; long-term tests say it survives decade after decade without flaking.
Nickel and its alloys appear in places as diverse as power stations, seawater-desalination plants, commercial airframes, and implanted surgical devices. Researchers are now fine-tuning new nickel compounds in the lab, hoping to lift corrosion resistance still further and satisfy tomorrows stricter engineering and environmental standards.
Nickel’s Role in the Periodic Table as a Transition Metal
Nickel, with the chemical symbol Ni and atomic number 28, presents as a silvery white metal nestled within the transition-block of the periodic table. It sits in group 10, period 4, and its character pivots on a variable set of oxidation states-most often +2-that spring from d-orbitals only half-full. That flexibility invites nickel into catalytic roles as well as everyday bond-making, a reason industries lean on it so heavily.
Weighing it more precisely, the atomic mass hovers near 58.69 u and the density registers around 8.9 g/cm³, numbers that speak to toughness in harried environments. Nickel melts at 1455°C (2651°F) and boils off near 2913°C (5275°F), figures proving the metal remains steadfast even when heat levels push most things past their limits. Turbines and power-plant piping, always flirting with extreme temperatures, routinely count on that steady grip.
Electrons stack in the pattern [Ar] 3d⁸ 4s², a setup that welcomes partner elements to form sturdy alloys. Steeling partners such as chromium, nickel helps craft stainless formulations central to skyscraper cladding and kitchen cutlery alike; the mixtures stand up to rust while holding their edge. In short, the metals ability to bond and remain resilient has earned it a near-permanent seat in modern engineering.
Nickel wears many hats inside the laboratory. Chemists rely on it as a workhorse catalyst, especially during hydrogenation runs where double bonds need to be drummed out. Because the metal does not wear down permanently in those feats, it illustrates how transition elements confound simple notions of durability. Manufacturers seize the same trait when they churn out margarine, synthesize low-sulfur fuels, or dial in minute batches of specialty chemicals.
Lately the spotlight has shifted toward batteries. Roughly seven of every ten pounds of newly mined nickel now head for lithium-ion cells that power everything from commuter scooters to cross-country EVs. The stainless-steel industry still commands the bulk of output, yet electroplating firms, medical-device makers, and rooftop-solar converters all line up behind energy storage for whatever tonnage remains.
Positioned squarely in the D-block of the periodic table, nickel sits at a crossroads between sturdiness and finesse. That placement endows the metal with distinctive valence characteristics that chemists exploit for both high-heat turbines and low-carbon grids. In short, its flexibility keeps it relevant to anyone chasing progress in materials science, no matter the discipline.
What are the Uses of Nickel in Industry?
- Nickel in Stainless Steel: Nickel does far more than complete the alloy; it stiffens stainless steel and makes it reluctant to rust away. The two metals bond so thoroughly that few acids can pry them apart.
- Nickel in Battery Chemistry: Nickel lingers wherever rechargeable cells are found and appears most often in lithium-ion and nickel-metal-hydride formulas. In those labyrinthine cathodes the metal keeps energy compact.
- Nickel in Electroplating: To polish an edge or tame early corrosion, manufacturers bath parts in electrolytic nickel. The thin veneer smooths visions of wear and leaves a mirror luster, even when the metal hides beneath the surface.
- Nickel in Aerospace Alloys: Jet turbines and rocket chambers lean on nickel-rich superalloys the way heat shields lean on ceramics. The metal resists softening long after other elements stumble.
- Nickel in Renewable Energy Hardware: Generators spun by wind and transparently glazed photovoltaic modules both depend on steel or copper that carries nickel. In those niches the element preserves strength while resisting degredation.
Applications in Stainless Steel Production
Nickel is more than just another metal in the alloy bin; it sits at the heart of stainless steel manufacture, soaking up roughly two-thirds of the worlds annual output. The element finds its most celebrated role in austenitic grades, where an 8-to-10-percent dosage bumps up resistance to both rust and thermal shock while lending the steel an unmistakable toughness. Builders, hospitals, restaurant kitchens, and chemical plants rely on the grade because it stays strong under stress and wipes clean without complaint.
Market analysts put the 2022 valuation of global stainless steel sales near 112 billion dollars, and they pencil in a 5.7-percent compound annual growth rate through 2030. Rising city skylines, a drive for longer-lasting building materials, and manufacturers appetite for recyclable alloys keep that momentum alive. For such reasons, nickel qualifies as a linchpin resource in tomorrows steel-dependent projects.
The Role of Nickel in Nickel Alloy Manufacturing
Nickel is indispensable when producers set out to forge nickel alloys for aerospace, energy, and marine work. Engineers prize the metal for its durability, innate rust resistance, and steadiness under wild heat. Its atomic contribution sits at the heart of most recipes, though chromium, molybdenum, and iron arrive on stage to fine-tune strength, flexibility, or oxidation control as the job dictates.
Turbine engines in commercial jets illustrate the story well: a single low-pressure or high-pressure rotor can swallow several tons of nickel-chromium-molybdenum steel yet emerge unbent after five thousand fiery flight hours. Market watches expect that same chemistry to drive sales toward an $18.2 billion pool by 2032-the lineup growing around 4.7 percent each year. The forecast signals how quickly planners reach for heat-resistant alloys the moment pipelines, reactors, and jet bells demand brief, blistering punishment that ordinary steels cannot survive.
Nickel alloys play an indispensable role in the renewable-energy landscape. Geothermal plants, hydroelectric stations, and other systems rely on these materials because they withstand extreme temperatures, corrosive fluids, and abrasive sediments. The intrinsic toughness of nickel fortifies the metal against fatigue and pitting, prolonging component life and ultimately lowering maintenance expense. Current policy frameworks, from national green-energy targets to regional emissions pledges, are driving an upward curve in renewable-capacity investment. As those commitments unfold, the appetite for nickel-base materials will grow, reaffirming the metal’s status as a cornerstone of contemporary engineering.
Nickel’s Contribution to Corrosion Resistance Solutions
Researchers routinely find that nickel does more than resist rust; it bolsters bond strength in steel and other metals too. When alloy makers introduce nickel, the finished product keeps its shape and luster, even alongside salt water or acidic vapours. For ship hulls, refinery pipes, and the fasteners inside wind turbines, that extra durability translates directly into lower repair bills. In short, nickel quietedly stands guard against the slow march of corrosion.
Interesting Facts About Nickel
- Nickel ranks fifth in abundance among Earths natural elements and is believed to reside largely in the planet’s molten interior.
- Industry relies on the metal’s adaptability; nickel appears in more than three hundred thousand consumer and industrial items, from corrosion-resistant stainless steel to rechargeable batteries.
- Within lithium-ion cells, nickel helps boost energy density, a feature that underpins both electric cars and utility-scale storage for wind and solar power.
- Swedish chemist Axel Fredrik Cronstedt isolated the metal in 1751, recognizing it as a distinct substance after grinding the ore and noting the lingering green residue.
- Blended with chromium and iron, nickel forms superalloys that maintain strength at temperatures far above the melting point of iron, a quality vital to jet engines and gas turbines.
The Story of Nickel: From Discovery to Modern Use
The story of nickel started in 1751 when Axel Fredrik Cronstedt, a Swedish chemist, isolated it as a unique metal while studying a mineral called niccolite that was originally believed to be copper. Since then, nickel has become one of the most important metals for many industries and sciences. Over the years, nickel has evolved from an unfamiliar element into one of the most versatile and essential metals used in many modern technologies.
Today over 2.7 million metric tons of nickel are produced per year with Indonesia, Philippines and Russia being the leaders in global mining output. Demand for Nickel is projected to grow considerably driven by the rise in electric vehicles (EVs) and renewable energy systems where lithium-ion battery production heavily relies on nickel. This would mean that by 2030 demand for nickel just for EV batteries will have grown by at least 65-70%, laying bare its vital role in shifting to sustainable energy solutions.
Notably, alloys with nickel have completely changed industries due to their ability to hold up so well under conditions such as corrosion and high temperatures or even wear. There is hardly any industry from which it has been excluded; examples include parts of jet engines or tools utilized during surgery that could not be made without this metal’s versatility. Apart from its industrial significance, another reason why nickel is an environmentally friendly option is because it can be recycled indefinitely without loss of quality since recycling efforts are becoming more popular nowadays both globally and locally.
Nickel is a very versatile metal. Its uses have evolved from the ancient times when it was used to make coins into a metal that facilitates and supports some of the most complex technological projects undertaken by humanity. Its characteristics ensure that it remains critical to sustainable development and future innovations.
Nickel’s Silvery-White Appearance and Aesthetic Uses
Nickels bright metallic sheen catches the eye long before anyone lists its engineering credentials. People value that color in factories and living rooms alike; a workshop might order sheet stock while a designer dreams up pendant lamp shades. One familiar industrial trick is electroplating: thin nickel coats transform plumbers faucets and vintage car trim into surfaces that shrug off fingerprints and humidity.
In jewelry, wristwatch guts, and collectible coins, nickel alloys step in where sterling silver and pure copper might show wear. The lighter price tag matters, yet so does the alloys stubborn refusal to dull in everyday use. Roughly 9 percent of the worlds annual nickel haul-late-2023 estimates still hold-finds its way to plating tanks or finishing shops rather than to steel mills.
Modern producers keep refining the metal with laser beams and precision rollers, chasing both lifetime performance and an upscale look. That dual promise-pragmatic strength plus visual polish-keeps nickel at the center of design work that spans appliances, architecture, and artisanal craft.
Understanding Nickel’s Atomic Number and Nickel in the Periodic Table
Nickel sits comfortably at atomic number 28, a label that confirms every single atom carries exactly 28 protons. The element is denoted on the periodic table by the symbol Ni and falls neatly into the transition metals cluster known as group 10, period 4. We usually quote its standard atomic weight as about 58.69 atomic mass units; that number classifies nickel among the lighter transition metals we rely on every day.
The light metal claims a distinctive electron footprint, expressed as [Ar] 3d⁸ 4s². That arrangement hints at the element’s frequent willingness to bond and to slot into intricate chemical architectures. Because of this behavioral flexibility, nickel keeps turning up in durable stainless-steel alloys and in catalytic devices that speed up various chemical reactions.
Geologists note that nickel ranks as the fifth-most-abundant crustal element, which certainly works in industrys favor. Miners track it chiefly in dense sulfide nodules like pentlandite or in lateritic deposits such as garnierite. Rich supplies, coupled with the metals stubborn resistance to rust, explain why nickel is a go-to ingredient in electric-vehicle batteries, resilient pipes, fine electronics, and the skeletal frameworks that support modern buildings.
Reference sources
- Rapid and Accurate Prediction of the Melting Point for Imidazolium-Based Ionic Liquids by Artificial Neural Network (Liu et al., 2024)
- Key Findings:
- This study strategically selected only 12 kinds of quantum chemical descriptors by employing a much more efficient semi-empirical method (PM7) to reduce computational costs.
- The R2 value of the current model reached 0.75, and the mean absolute error reached 25.03 K, indicating high accuracy with very little computational cost.
- The study reveals a strong correlation between descriptors and melting points and accurately predicts unknown melting points of imidazolium-based ionic liquids.
- Methodology:
- A multi-layer perceptron neural network model was constructed based on 12 quantum chemical descriptors obtained using the PM7 semi-empirical method.
- Four principles of data pre-processing were proposed, and a simulated annealing algorithm was used to search for the lowest energy molecular conformation.
- Key Findings:
- Effect of carbon impurity on the temperatures of melting and crystallization of nickel nanoparticles: molecular dynamic simulation (Poletaev et al., 2024)
- Key Findings:
- The melting and crystallization temperatures are inversely proportional to the particle diameter: as the particle size decreases, the temperatures of melting and crystallization decrease.
- The presence of an impurity of carbon atoms reduces both the melting point and the crystallization temperature by approximately 150 K in the presence of 10 at.% carbon.
- Carbon atoms often formed clusters, which distorted the nickel crystal lattice around them, leading to earlier melting of the metal near the carbon clusters.
- Methodology:
- Molecular dynamics simulations were used to study the processes of melting and crystallization of nickel nanoparticles and the influence of carbon impurities.
- The particle diameter was varied from 1.5 to 12 nm, and the concentration of carbon atoms was varied from 0 to 10 at.%.
- Key Findings:
- Surface Free Energy of Nickel and Stainless Steel at Temperatures Above the Melting Point – Examines the surface free energy of nickel in a temperature range above its melting point.
Frequently Asked Questions (FAQs)
Q: What temperature does pure nickel melt at?
A: Solid nickel shifts to liquid around 2,651 F, or roughly 1,455 C. That number marks the point at which the metal no longer holds its crystalline shape.
Q: How does nickel’s melting point stack up against other common metals?
A: Nickel sits near the top of the melting-point hierarchy; only tungsten and a few lanthanides approach its heat tolerance. By contrast, the boiling points of copper and lead fall well short of that benchmark.
Q: What can change the melting point of nickel when it is mixed with other elements?
A: Blend nickel with chromium, cobalt, or any lighter metal and the melting temperature will shift, sometimes upward but often downward. Copper-nickel bronze, for example, melts noticeably lower than its parent nickel.
Q: What makes nickel the go-to choice for components that face intense heat?
A: The metal not only resists melting at elevated temperatures, it also stands up to oxidation and keeps its mechanical strength where many alloys would fail. Aerospace engines and power turbines rely on that combination for safe, reliable performance.
Q: What effect do impurities have on the melting point of nickel?
A: Foreign elements usually depress nickel’s melting point. Sulfur, for instance, reacts to make nickel sulfide, and that compound melts well below the temperature of pure metal, shifting the alloy’s thermal profile downward.
Q: Why is nickel significant in the study of meteorites?
A: Nickel commonly appears in meteoritic metal as part of iron-nickel intermetallic grains. These natural alloys provide astronomers with clues about the early solar nebula and help calibrate isotopic chronometers.
Q: What makes the Mond Process a milestone in nickel metallurgy?
A: By transforming solid nickel into gaseous nickel carbonyl, the Mond Process achieves remarkable separation and purification. The gas decomposes on heated surfaces, yielding nearly flawless metal needed for precision electronics.
Q: Why does nickel’s melting point matter during pyrometallurgy?
A: Nickel’s relatively high melting point requires sustained, intense heat to free the metal from sulfide or arsenide ores. Refiners design furnaces around that temperature so extraction remains economical and sludge formation is minimized.
