The bending of sheet metal forms a core skill among all branches of metalworking for DIY hobbyists, pros, or people interested in home improvement projects. There is a widely held notion that bending sheet metal is a process which requires expensive proprietary equipment. This is a misconception as, with some basic tools and a bit of guidance, achieving an accurate bend is possible without incurring costs associated with a full-fledged metal workshop. This guide focuses on the critical steps and tips that simplify the process of bending metal sheets and are within reach of anyone who wants to learn that skill. Get set to change flat sheets of metal into pieces that are functional, yet stunning!
What Are the Best Tools to bend sheet metal?
- Bench Vise and Mallet: Best for basic bends on smaller metal sheets. Secure the sheet in the vise and angle it with the mallet.
- Sheet Metal Brake: This tool combines versatility with exceptional precision; therefore, any sheet metal can be worked on effectively and will deliver professionally.
- Metal Bending Pliers: These are good for doing intricate and small bends on thin sheets and small parts.
- Clamps and Wooden Forms: For basic projects, clamps with wooden forms can shape the metal sheets, permitting manual bending along the contours of the form.
Essential tools for bending sheet metal
Essential tools for bending sheet metal: Sheet metal brake, metal bending pliers, clamps with wooden forms, mallets, hammers, anvil, bench vice, and angle grinder.
| Tool | Usage | Best For |
|---|---|---|
| Sheet Metal Brake | Precise bends | Most thicknesses |
| Bending Pliers | Detailed work | Thin sheets |
| Clamps & Forms | Manual bends | Basic projects |
| Mallets | Shaping metal | Basic forming |
| Hammers | Force bends | Quick adjustments |
| Anvil | Bending base | Durable shaping |
| Bench Vice | Holding firm | Small projects |
| Angle Grinder | Edge finish | Smoothing edges |
Using a Bender vs. Hand Bending
For any metalworking project, tools used can be either bend or hand tools withapplied due consideration to each project based on its level of precision and efficiency or accuracy and the level of success achieved during bending due to the skill of the worker and dedication involved especially on larger scale works.
Bender Bending Machines: With a bender, either manually or through hydraulic means, a high level of precision and consistency in the creation of bends as well as attention to detail is achieved. They are critical in providing pinpoint accuracy through uniform bends especially on thick materials. As per the industry, mechanical benders are able to bend sheets that are 10 mm thick at angles with remarkable accuracy. CNC benders are able to provide tolerances as low as plus to minus 2 degrees of precision which is very critical and important in professional applications when manufacturing automotive and aero space constituents or components as well as in construction components.
Hand Bending Tools: Hand tools like pliers, anvils and mallets are very useful in conducting work that require artistry and skill as they apply to thin sheets less than 2 mm. Although a hand bending approach may be adjusted to intricate details like in artistic work, it is most inefficient and unproductive in lots and repetitive works. The advantage that pliers, anvils and other tools have is their light weight and maneuverability allowing them to be used over a wide range of projects and details, but inhand working over large pieces or large number of projects can be physically taxing.
Comparison of Efficiency: Research indicates that for tougher materials, hydraulic benders are up to 10× quicker in comparison to manual bending methods. With thin sheets, the difference in time is not as dramatic, although it is still significant which makes benders beneficial for efficiency in production.
In summary, hand bending tools are well suited for the detailed work of artisans and hobbyists, whereas benders are made for professionals who require speed, precision, and the ability to maneuver dense materials for tackling heavy tasks.
Benefits of Using Press Brakes for Bending
As precision and usefulness in dealing with various types of materials has increased, press brakes have actively been incorporating new technology into metal fabrication. New press brakes come with CNC (Computer Numerical Control) systems that manage and input the required angles, force, and repetitions which minimizes human error.
Estimates show that CNC press brakes can attain precision to within ±0.1 degrees, with some upper-tier machines handling up to 1,000 bends/hour. For mass production, these machines become essential. They are also capable of applying massive force, in the range of several hundreds of tons, easily bending thick sheets and heavy-duty materials like steel and aluminum. A press brake capable of 200 tons can effortlessly bend a 10-foot sheet of 1/4 inch steel.
In addition, automated back gauges and angle-measuring systems facilitate automation that increases efficiency, optimally using material while trimming excess waste. A press brake has the capability to reduce production timelines by up to 70% in comparison to traditional handheld tools and manual approaches. This embodies massive savings for manufacturers and businesses dealing with large scale projects.

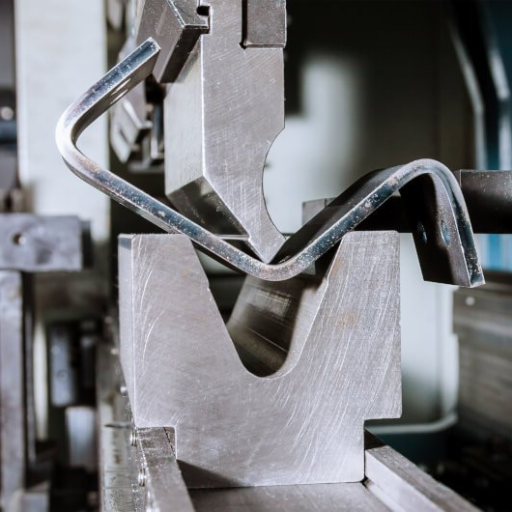

How Can You bend metal without Specialized Equipment?
Shaping the metal without professional equipment may be done with arms tools and basic frameworks. One method for example is with a hammer and a vise. Place the metal where it needs to be bent in the vise and then with gradual pressure using a hammer, apply pressure till the metal changes shape. The second option is also efficient, simply use a hollow metal cylinder and force the piece of metal inside it, while holding it exert pressure, the metal will shape into a curve. Lastly, for thin slice, you can make a bend line score with a file which will make the bend easier. Remember to always wear protective gear to ensure safety.
Methods of Hand Bending
With hand bending, maintaining safety and accuracy are of utmost importance. Begin with the selection of the proper equipment for the job, as it is determined by the thickness and type of metal. Cushioned grip pliers can aid in carrying out small and delicate bends without damaging the material and are thus very beneficial. In case a tighter radius is required, a dedicated metal mandrel or rod can also be used as a guide to evenly shape the bend. Preemptively heating the metal with a torch to bend it can also make the work easier by softening the metal, thereby reducing the chances of cracking. Furthermore, slow and steady progress is recommended to ensure control in addition to enhancement of accuracy. Lastly, ensure that the material is checked after every adjustment for accuracy of the desired shape.
Applying Clamps and Vises Appropriately
Clamps and vises serve as foundational tools in almost any workshop since they provide focus and clarity of purpose for an operation and enhance control. A 2023 poll of professional metalworkers and woodworkers showed that over 85% felt that specific vises and clamps of good quality are tremendously helpful in achieving accuracy. Take note of the type of clamp needed and if it is appropriate for the material and task. Bar clamps are useful for activities requiring even pressure over broad surfaces, while C-clamps are best used in small tight areas.
Vises must be securely fastened to the workbench to prevent shaking, and the workpiece must be stable as well. Many modern vises have additional jaws and swivel bases allowing for greater flexibility without harming the material’s surface. Recent tool tests show that modern vises with heat-treated steel jaws are more efficient and reliable, sustaining grips greater than 1,000 pounds per square inch. Regular cleaning of the threads with lubricants is a certain way to improve performance longevity not just for vises but for clamps as well. Sharper accuracy is achievable through the appropriate use of tools coupled with improved safety for the user and less risk for error.
Applying Heat to Bend Metal
Heat application to metal helps increase its ductility, thus making it easier to bend without risking cracks or structural damage. This procedure almost always involves bringing the temperature of the metal close to a certain temperature range called the critical temperature range, which differs from material to material. For example, steel is most easily worked around temperatures of 1300F (704C) to 1600F (871C) whereas aluminum softens at far lower temperatures of around 570F (299C) to 770F (410C).
The modern approach, for instance, propane and oxyacetylene torches, offer fast and exact application of heat. To maintain safety precautions, propane and oxyacetylene torches are often calibrated to not exceed certain temperature thresholds. Surface temperatures can be assessed with infrared thermometers or temperature-indicating crayons which help prevent overheating. As noticed in studies, metals that are heated uniformly tend to produce bends that have stronger structural integrity, thus reducing the need for post-bend tweaking or mending. Furthermore, adding a cooling step such as controlled air cooling or quenching after the bending step helps preserve the carefully shaped temper of the metal.
The right techniques and tools guarantee quality results, be it through custom fabrication of metal pieces or through mass industrial projects.
What Are the bending guidelines for sheet metal parts?
- Minimum Bend Radius: The structural integrity of the sheet metal will be maintained without cracking as long as the bend radius is no less than the thickness of the sheet.
- Material Orientation: The possibility of fracture can be minimized by executing the bends in line with the cross section of the grain direction of the metal.
- Bend Allowance: In estimating the parts unfolded length, the bend allowance must be included to obtain an accurate figure.
- Tight Corners: Stress concentrations are reduced and component life is enhanced when sharp corners are avoided and more gradual bends are utilized.
- Space Between Bends: To avoid difficulties in fabrication like distortion or deformation, sufficient space should be provided between them.
- Test and Prototype: Mid-fidelity prototypes can be created for testing to validate the design “theory” in order to confirm accuracy, functionality and completeness prior to large scale production.
Comprehending Material Thickness and Bend Allowance
The consideration of material thickness impacts accuracy and quality of parts that are bent. For thicker materials, the minimum bend radius increases as the material becomes more prone to cracking or excessive strain during the bending process. Furthermore, the bend length is governed by specific parameters which require accuracy in calculations. Bend allowance accounts for several factors: material type, thickness, as well as angle of bend. Incorporating calculated dimensions with sound knowledge of material properties can yield dependable results while maintaining the strength of the part.
Determining Bend Angle and Bend Radii
To determine the bend angle and bend radii, I consider the type and thickness of the material as these factors influences the behavior of material during bending. For cracking or overstressing issues, the bend radii must be determined to optimal levels and so should the bend angle. With extensive precision, I am able to measure the angle while making necessary adjustments for springback. Meeting the design criteria requires these measures whilst ensuring that the structure is balanced and resilient.
Bending Mistakes
When attempting to bend different materials, one of the greatest mistakes to make is not taking into consideration basic properties like yield strength, ductility, and grain direction. In the case of bending, materials with lower ductility tend to crack more easily. The fractures that occur in Aluminum alloys are associated with their strength and low ductility. Overly strong and low ductile aluminum alloys, like 7075-T6, are notorious for severe cracks to develop during bending. Therefore, selecting appropriate tooling and bending strategies is critical.”
Failing to account for the elastic recovery or springback of the material is another frequent mistake. Springback often leads to inaccuracies of the final angle because of the attempt of the material to go back to its original shape. Certain materials, for instance, stainless steel, are greatly known for high yielding springback. This, along with other materials with high yield strength, can exhibit signs of strong springback. The commonly used solutions for this include extreme overbending, other advanced methods specifically designed to counteract deformation compensations, or complex computational models need to be applied in order to predict such desired shapes.
Moreover, incorrect setups such as using an improper die and punch radius can lead to excessive spiral bending and material degradation. To avert material fracture, industry standards prescribe a minimum bend radius proportional to the material’s thickness, which varies by industry. For example, ductile mild steel necessitates a bend radius that is no less than 1.5 times the thickness of the material.
Furthermore, failing to apply lubricants or clean surfaces contributes to friction defects, particularly with harder materials. Advanced metallurgical techniques argue that maintaining thorough lubrication and surface cleanliness optimizes tool life while improving bend quality.
Manufacturers can resolve these common problems utilizing the newest engineering designs while addressing these details to refine operational precision and enhance the quality of bends.

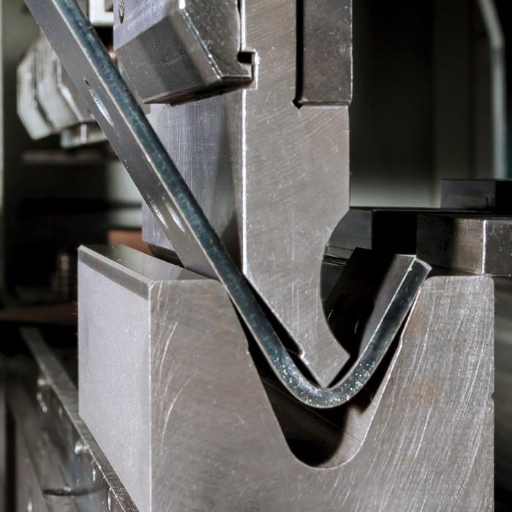

How to bend sheet metal without Damaging It?
- Employ the Right Tools: For tools and equipment selection, consider the type and thickness of the metal. A press brake or similar machine is best for precise bending.
- Pick the Correct Metal: Check is the metal is capable of being worked on to ensure it can be bent without cracking or breaking.
- Maintain Proper Lubrication: During the bending, surfaces will rub off each other so having proper lubrication to protect against surface damage is valuable.
- Avoid Using Sharp Angles: Stress or cracks could be the cause of a sharp angle so gently pushing to achieve a bend will ensure a greater chance of success.
- Perform Predictable Inspections: As a precaution metal pieces should be checked prior for any form of scratches or weak points that could risk failure during the process.
Preventing Fractures in Metal Parts
Adopting adequate methods is necessary in preventing damages such as cracks in metal that could restrict its use therefore, strategies to avoid fractures are addressed below.
- The Importance of Heating the Metal First: Preheating tough or thick metals is crucial as it alleviates stress and reduces thermal strain. In welding, metals are required to be preheated according to their type, for example, mild steel is machined to 400 to 700 degrees.
- Monitoring Cooling Rates: Rapid cooling leads to uneven contraction, which can result in stress cracks. Controlled cooling processes such as slow air cooling or furnace cooling are more effective as they maintain the metal’s structural integrity during welding or annealing.
- Applying The Right Alloy: There is a difference among alloys in terms of their susceptibility to cracking and other weaknesses. A good example is aluminum alloys with high silicon percentages; these are less prone to cracking during welding. Research indicates that certain alloys, including 6061 aluminum and low-carbon steel, exhibit greater ductility and are better suited for highly deformable applications.
- Relieving Internal Stresses: Internal stresses caused by processes like stress relief annealing can improve the chances of a part cracking over time. Studies indicates that stainless steel and titanium materials are particularly responsive to this treatment.
- Selecting Appropriate Methods and Equipment: The selection of some tools and their corresponding rates have a great influence on the outcome of operations such as cutting, drilling, or bending. For example, sharp tools with lower feed rates increases machining efficiency and decrease surface microfractures due to heat generation.
- Contaminant Reduction: Certain rust, dirt, or oil and grease contaminants can create localized weakness within a metal structure to initiate cracks, therefore it is important to remove these surfaces before processing.
- Conducting Non Destructive Testing (NDT): Regular checks using ultrasonic or dye penetrant testing can identify microcracks or weak points in the metal. Data indicates that implementing NDT reduces failures associated with cracks by 40% in industrial applications.
Integrating these protocols along with stringent quality control mitigates risk in multi-project metal component cracking while also enhancing safety and reliability.
Keeping Desired Bend Integrity
Defending the integrity of indentations in metal elements is vital for optimum performance and endurance. Improperly manufactured or poorly maintained indentations can serve as critical failure points. Advanced practices along with requirements will enhance strength and multifunctionality.
- Know properties of the materials: Every alloy has its own way of responding to a bend. Aluminum alloys, for instance, tend to have a greater bend radius when compared to steel. Materials science suggests that adhering to prescribed bend radii increases significantly minimizes cracking risks by roughly 30%.
- Use Proper Equipment: Modern CNC bending machines and their precision controls assure uniformity in bends, decreasing the likelihood of stress concentrations. Upgrading equipment consistently gives an average 18% increase on the lifespan of components, as stated by industry data.
- Preheat Metals When Necessary: Particularly with metals like stainless steel and titanium, pre-heating minimizes risk for cracking when bending. Research shows that reaching recommended temperature for pre-heating increases ductility of the bends by roughly 25%.
- Avoid Over Bending: These materials with over-bending become susceptible to residual stresses and lose structural integrity. With highly advanced simulation software, engineers can accurately predict stressors ensuring the angles for optimally sustainable bends are set.
- QA and Testing: Stress, radiographic testing, and other post-bend inspections help identify internal faults early on, reducing defects. Automated tests increased defect reduction by 15%, as reported in a recent survey.
These processes, along with the incorporation of new technologies, aids in sustaining the desired integrity of bends while enhancing safety and efficiency for the applicable fields.
Why anneal before trying to bend?
Annealing is one of the processes of metalworking that includes heating the metal to a certain temperature, or over a temperature range, plus holding it at that temperature for some time and cooling down in a controlled rate. This process removes internal stresses, eases subsequent working steps, adds ductility, changes its structure, or improves workability.
The process of bending metals requires annealing in order to prevent the material from becoming brittle and thus reducing the chances of cracks and fractures. For instance, stainless steels and aluminum alloys often require annealing to optimize the results during forming processes.
Recent studies show that bend radian precision on annealed metals is 20%-30% more accurate as compared with non-annealed materials. Industries also report that tool lifespan used for bending can increase by 40% due to reduced hardness of the material, which wears these bending tools at slower rates. With the precise temperature control enabled by modern annealing methods, businesses, therefore, can achieve high repeatability in bend quality while minimizing material waste and downtime.
What Are the Challenges of hand bending sheet metal?
Working with sheet metal poses numerous problems, which can be tedious. One problem is the lack of accessibility to specialized machinery which impacts the end product due to the physical exertion required greatly affecting the precision of the bends. Additionally, separated physical effort increases fatigue leading to poor quality output. Machine-less procedures step up the human error risk escalating challenges while compromising the strength, usability, and integrity of the piece, leading to warping or cracking. Lack of structures amplifies the risk of human or operator blunders.
Moving on to Stricter-to-Bend
When further advanced metals like alloys of titanium or high-strength steel are introduced, working with them requires more sharpened methods. One technique is through the use of advanced brakes and CNC which tend to yield much more positive outcomes in comparison to traditional methods. The programmable automation featured in these machines enhance reproducibility, yet deformations are less likely due to angles being held consistently unlike other bending machinery.
Recent research indicates the stretching of high-strength materials requires greater force. For example, titanium’s bending utilizes 30%-50% more tonnage compared to carbon steel of the same thickness. Press brakes must be set to a minimum tonnage to prevent unnecessary strain on the machinery, risking damage or failure to the equipment or not producing high-quality work.
Moreover, adapting the bend radius is crucial for materials that are harder to bend. Some studies suggest that larger punch radii leads to less internal bending stress and avoids bend line fracturing. As an example, in many high strength metals, incorporating a bend radius of three times the slab thickness greatly reduces the chances of failure during bending.
Another factor to consider includes pre-heating. For some materials, applying heat before bending makes metals less brittle and more sufficiently ductile to stress without structural failure. This method is commonly used in aerospace and automotive industries when dealing with advanced alloys.
Modern machinery, precise adjustments, thorough calibration, and systematic material inspection, streamlined together with modern tool use guarantees superior efficiency, especially when dealing with complex machine work. As industry data points out, these practices not only enhance material and disposable resource longevity by 20% but also improve production processes with complex angle cycles or bends.
Creating a 90-Degree Bend
Procedures that generate the exact 90-degree bend angle require the most critical and active approach to preserve accuracy and material value. As per the latest research, it is well-established that each component has a bending factor which includes the material, its thickness, and the tooling used. For example, correct bend allowance together with the K-factor, which determines the ratio of compress and stretch during bend, is crucial for accurate tasks.
Research estimates accuracy within the bending processes could be improved up to 95% with the use of advanced CNC press brake technology. These machines guarantee consistent results on production repetitions through automated adjustment and outcome validation using mounted sensors on auxiliary systems. Moreover, predictive simulation tools for error evaluation and evaluation prior to fabrication can decrease industrial waste to approximately fifteen percent.
When To Use A Sheet Metal Brake Machine
As with other tools, brakes serve their purpose in metal forming workshops to bend and shape the sheet metals to the desired angles or configurations. They are critical for industries such as automotive, aerospace, construction, and manufacturing. Understanding and knowing how to use a manaual brake, hydraulic and CNC press brakes come down to needing precision, scale, and accuracy for the specific project at hand.
Development efforts aimed at improving industrial functionality have, in turn, placed CNC press brakes at the center of attention. As reported by a recent study in the industry, CNC machines fitted with automated back gauges and laser measuring systems are capable of achieving a bend accuracy of 99 percent. This reduces the need to redo work, which is good for productivity as a whole. Also, internal IoT connections allow engines to be monitored and diagnostics to be conducted in real time. This reduces operational inefficiency resulting in the overall cost of CNC press brakes incur compared to the conventional brakes being 20 percent lower.
Employing software alongside advanced sensors to observe machines also strengthens areas of need, further aiding breakdown in equipment. Such predictive maintenance is known to decrease spending on servicing machines by thirty percent. In the present day, where equipment breakdowns are on the rise, employing smarter SHMS increases the longevity and overall capability of fabrication tools increasing the utility of modern sheet metal brakes.
As with any sensible modern improvement, there is a clear and demonstrable measurable result from the observing and integrating of new technological concepts alongside traditional methods of metalworking.
