In portable metal marking, precision, efficiency, and versatility rests upon the correct choice of a handheld laser marking machine. From small business owners and manufacturers to hobbyists, the right tool can greatly enhance operational efficiency, both in quality and speed. Each tool available on the market comes with unique features, which makes the selection process very challenging. In this guide, we will try to help you choose a good investment by walking you through all the key considerations you need to check from power output to software integration. After reading this article, you will know what to seek out in laser marking machines as well as the identify model specifically suited for your use cases.

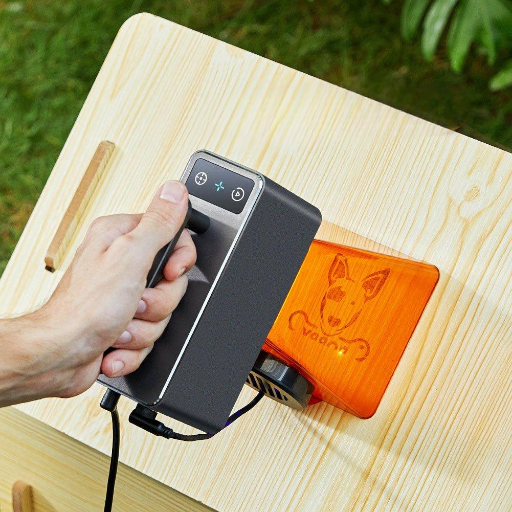

What is a Portable Handheld Laser Marking Machine?
A portable handheld laser marking machine refers to the equipment that can easily be transported and graven or engraved with graphics or text, such as names, logos, serial numbers, and barcodes, to make it permanent. It can engrave on many materials like metals, plastics, and ceramics. These machines are light in weight which enhances easy operation, thus, they can be used in different locations or remote applications with ease.
What Components Make Up a Laser Marker?
Laser marking is done with focus beams and can create deep markings a cutting can give on the surface of a material. It burns parts of material under the beam of a high range laser to change it permanently. There are many ways this can be achieved, such as: engraving, annealing, etching, discoloration, and foaming all depend on the desired mark along with material used.
Laser marking system requires energy, thus, needs power sources like fiber lasers, CO2, UV lasers. Fiber lasers are the most preferred everywhere due to being efficient and adaptable.When the focused beam is brought near the material, it has to be given energy in a controlled manner to induce melting and chemical change, each method providing a different result based on the technique used. For example, to change color by oxide, annealing is performed whereas engraving tarjets the the surface material for removal leading to indentations.
A laser marker can be used in a variety of medical and electronic equipment since it’s extremely precise and can create markings as small as 0.1 mm. In addition to this precision, laser marking is the fastest form of marking which means production lines are able to mark thousands of items in one hour. Modern machines boast around ~100,000 hours worth of laser source lifespan which contributes to low maintenance costs.
Recent findings indicate the global laser marking industry is projected to undergo a 7.1% increase per year from 2023 to 2030 due to higher demand in the automotive, aerospace, electronics, and even medical industries. The rise of personalization and counterfeiting has also encouraged the use of laser marking technology, driving the adoption marking.
Applications of Handheld Laser Technology in Metal Marking
Handheld lasers have proven to be an excellent device for metal marking in different industries. The main advantage of these portable tools is their ability to work anywhere and mark different types of metal, small or large, with utter precision. Manufacturers can use fiber laser systems integrated to handheld devices to create clear, permanent markings that do not get damaged or fade due to wear and tear, corrosion, or other environmental factors.
Probably the best advantage of the handheld laser markers in metal applications is the astonishing detail and exact repeatability that they produce. These devices are extremely effective for marking barcodes, QR codes, serial numbers and even logos marking a business, making sure traceability and compliance is done with industry standards. Moreover, the compact design of the devices makes them extremely portable and versatile for large unmoving parts like those in aerospace and automotive manufacturing.
Data from recent market studies show a marked increase in the use of handheld laser systems. An industry report from 2023 estimates that the global market for handheld laser marking will increase due technology advancements and precision identification needs to approximately 8.2% ACG by 2030. The medical devices and engineering sectors are leading the demand growth due to the need for rapid, high-quality marking.
In addition, these devices contribute to the growing needs for eco-friendly marking products and sustainable manufacturing. Handheld laser marking systems use no ink, chemicals, or stencils, which minimizes waste and operating costs. This environmentally friendly feature corresponds with the industrial shift towards eco friendly manufacturing.
Marking consistency, productivity, and operational efficiency in metal laser marking systems are improved through ergonomic handheld designs, which integrates the latest laser systems technology. This enables the continued development of handheld laser technology that strengthens its use worldwide.
Benefits of Using Portable Handheld Devices for Marking
In my view, handheld portable devices for marking provide unparalleled flexibility and ease of use. For example, on-site marking can be done without having to carry large materials to a marking center which is time-efficient and less cumbersome. The portable devices function very easily and can be used effectively in intricate and hard-to-reach places where precision is critical. Moreover, the small and light weight construction makes handheld marking devices easy to manage and carry making them well-suited for versatile and agile industrial tasks.

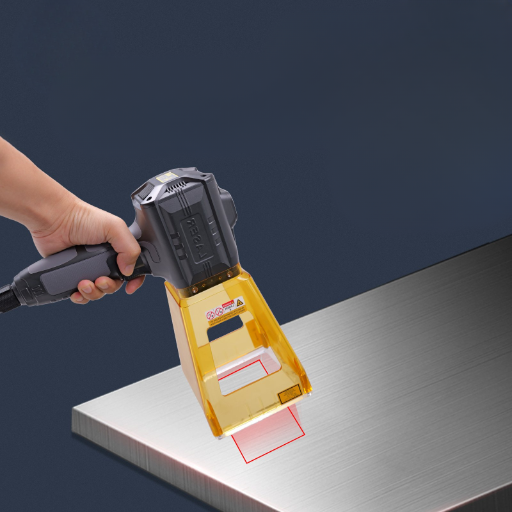

How Does a Handheld Laser Engraver Work?
A handheld laser engraver’s operations entails focusing a beam of light onto a material’s surface. The resultant light produces intense heat which either removes layers of the material or changes its color, creating the desired mark. Precise patterns, text, or designs can be created by controlling the movement of the engraver. Most handheld engravers can easily work on wood, metal and plastics which makes them highly versatile tools.
The Process of Laser Engraving
Alaser engraver works by using a focused beam of high intensity light to either cut away or alter the surface of a material. Text, patterns and designs can then be added as they are engraved on the material with the use of extreme precision so that it does not become a repetitive process. Accuracy makes this technique very popular especially when dealing with metals, woods as well as plastics.
Key Components of a Laser Marking Machine
| Component | Description |
|---|---|
| Laser Source | The laser source generates the high-intensity beam required for engraving. Common types include fiber lasers, CO2 lasers, and UV lasers. Fiber lasers, for instance, are best suited for marking metals and plastics, while CO2 lasers excel in engraving wood, glass, and leather. |
| Controller | The controller is responsible for managing the laser’s movement and intensity. With modern software integration, these controllers can achieve remarkable precision, allowing for highly intricate designs and text. The use of advanced AI has further enhanced the efficiency of modern controllers. |
| Work Surface | The work surface serves as the base where the material to be engraved is placed. It is often equipped with adjustable fixtures to hold items of varying sizes. Larger work surfaces allow for bulk engraving, making them indispensable for industrial applications. |
| Cooling System | Most laser engraving machines include a cooling system to manage heat generated during the process. Proper cooling ensures consistent performance, reduces wear and tear, and prolongs the lifespan of the machine. |
| Fume Extractor | Laser engraving on materials like plastics can produce harmful fumes. Fume extractors are essential for maintaining a safe working environment by filtering out toxins and particulates. |
Controlling the Laser Marker Settings for Metal
Optimal results on metals are determined by laser marker settings which include the type of metal being marked. In order to achieve these results, parameters such as laser power, speed, focus, and frequency need to be meticulously set. Unlike metals like stainless steel and titanium, softer metals like aluminum require a lower power setting, demanding a delicate balance between power and speed to mitigate overheating which can warp the material.
A recent industry analysis suggests that fiber lasers are among the most accurate and efficient laser markers for metal due to the high power they operate under. Their great degree of precision is attributed to their high frequency, shortened wavelength, and use of non-damaging base materials. The US marking laser market is poised to hit USD 5.4 billion by 2027, solidifying its dominant status as the global leader of marking fiber laser systems.
For starting users, it is suggested to use low power settings with steel engraved and pulse frequencies between 20-30 kHz. Marking metals without engraving using techniques like annealing to retain material integrity can also be done. As with any other laser machining process, proper ventilation systems and safety protocols should be in place as working with coated or treated metals can produce hazardous fumes.

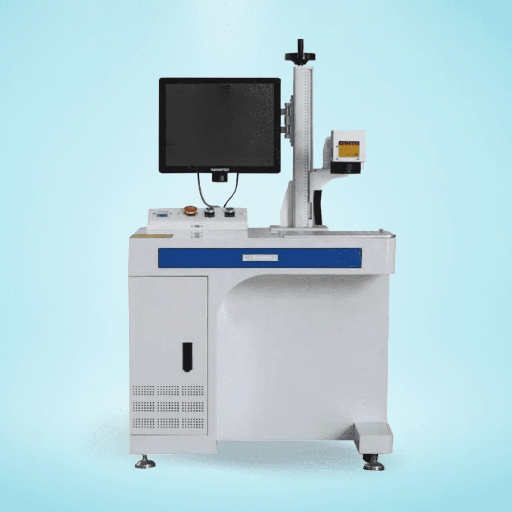

What are the Key Features of a Fiber Laser Marking Machine?
- High Precision: Fiber laser marking machines can perform intricate and detailed markings with great accuracy, even on complex surfaces or small features.
- Durability: The results achieved from the laser striking are permanent and withstand damage, heat, and chemicals, making it durable and useful over time.
- Versatility: They can mark a variety of materials such as metals, plastics, and even ceramics.
- Efficiency: The machines have low idle times and operate quickly which is ideal for production lines.
- Low Maintenance: Marking with Fiber lasers does not require frequent servicing unlike other systems while providing a long duration of uninterrupted operation.
Exploring Fiber Laser Technology
A specialized optical fiber is used as a gain medium to amplify light, which produces a powerful laser beam, referred to as fiber laser technology. That laser beam is shot at the surface of a material and precise, clean, and permanent markings can be imprinted. It is beneficial to numerous industries because of the high speeds, accuracy and low maintenance required.
Advantages of Handheld Laser Fiber Devices
The handheld fiber laser devices have enhanced industrial marking with their portability, efficiency, and versatility. They also have the possibiloty to deliver laser powers from 20W to over 100W making them suitable for usage in metals, plastics and even ceramics. The precision and speed of Industrial grade setups allows for marking speeds of up to 7000mm/s, which reduces overall production time.
Handheld devices offer longevity with minimal maintenance as fiber lasers can outlast 100,000 hours, and with solid state construction this number soars. These devices also yield a reduction in operational costs, which means nincreased productivity. Many of the systems also boast easy to use software controls that enables monitoring in real time, allowing for precision and productivity.
Those in the aerospace, automotive and electronic industry have reported using these devices experiencing nearly 40% boost in productivity compared to other methods. With the ability to put permanent high contrast markings like barcodes, QR codes and serial numbers, traceability and compliance global standards are easily maintaned making handheld fiber lasers all the more crucial.
Comparing 20W and 30W Options for Efficiency
| Feature | 20W Handheld Fiber Laser | 30W Handheld Fiber Laser |
|---|---|---|
| Power Output | 20 Watts | 30 Watts |
| Marking Speed | Up to 7000mm/s | Up to 9000mm/s |
| Depth of Marking | 0.1mm – 0.2mm (varies by material) | 0.2mm – 0.4mm (varies by material) |
| Suitable Materials | Metals, Plastics, Coated Materials | Wider variety, including harder metals |
| Units Processed Per Hour | Average of 50-70 units | Average of 80-100 units |
| Energy Consumption | Lower than 30W model | Higher power consumption |
| Application Suitability | Best for light marking, small-scale jobs | Ideal for industrial marking and deep engraving |

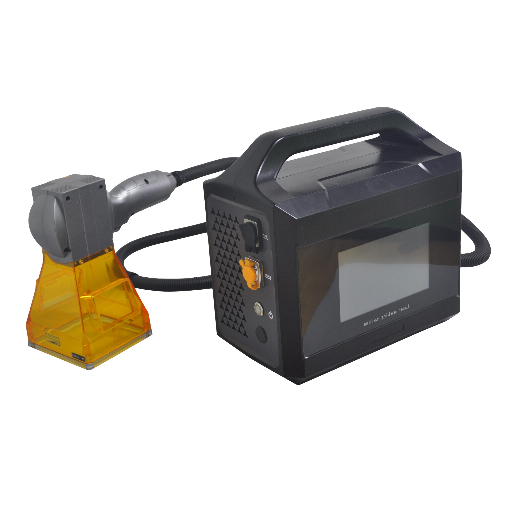

Why Choose a Portable Handheld Laser Engraver for Metal?
The convenience and versatility of a handheld laser engraver for metals is like no other. It enables users to engrave pieces of metal with great precision while working in a free space—not limited to a desk or a workspace. These lightweight, portable tools are perfect for customization, small production, or onsite work. Moreover, they offer professional and durable results, making them an economical tool for both individuals and businesses.
Benefits of a Handheld Device: Portability and Convenience
The design portability of handheld laser cutters is a revolution in the field for both professionals and hobbyists. They weigh around 2 to 5 pounds depending on the model, which makes it easier work with for longer periods. As per recent reports from industry reviews, many models now sport a compact design under a foot long, which allows users to easily store and transport the device.
Handheld engravers features battery or wireless options, making them ideal for use in the field or places where power outlets are not easily accessible. For example, modern models can now last between 4 to 6 hours on a single charge, making them suitable for extended use in the field. Moreover, some devices have Bluetooth or Wi-Fi capabilities, allowing for designs to be uploaded to the engraver wirelessly without having to deal with cumbersome cables.
Most engraving manufacturers now report that users can engrave at speeds of as much as 10,000 millimeters per second and maintain high precision at the same time. Precision as well as advanced software integrations allows for customization of specific material settings including aluminum, stainless steel, and titanium which improves user experience across multiple projects. The combination of these attributes makes handheld laser engravers optimal for modern engraving requirements.
Durability and Precision In Metal Engraving
The most modern Hand-held laser engravers apply the latest technology, giving the highest level of precision and enabling the best results in metal engraving. One of the most critical aspects affecting performance is the marking speed, type of material, or engraving depth. For example, engraving 0.5 mm deep into a stainless steel surface often requires higher laser power and is best done at reduced speeds to keep precision and finish accuracy. Research shows that laser engravers with 50W power out-put can mark aluminum at speeds of up to 6000 millimeters per second while higher powered devices like 100W lasers can mark the same material at speeds over 10 000 millimeters per second, depending on the material density and thickness.
Pulse frequency is another important factor affecting engraving quality especially clarity and definition. Lower frequencies yield clearer and more defined marks while higher frequencies are better at smoothing the surface mark. Advanced fiber laser technology is also known for its precision and better durability with a greater life span exceeding over 100,000 hours, reducing maintenance cost considerably. These developments ensure that functionality and precision are maintained while broadening the user scope and making laser engraving a fundamental tool in manufacturing, automotive, and jewelry industries. These capabilities help professionals surpass tough production goals without worrying about unnecessary costs.
Cost-Effectiveness of Portable Laser Engraving Machines
As a result of reduced energy use and minimal maintenance needs, the portable laser engraving machines provide remarkable cost efficiency. Research shows that the laser engravers often include a fiber laser system and its electro-optical conversion efficiency is between 30-50%. That efficiency drastically reduces operating costs in comparison to other engraving methods. Furthermore, these systems do not consume peripherals like ink or chemical solutions, meaning they do not have repeatable costs.
Portable laser engravers have proven to yield strong productivity returns for their users according to industry research. For instance, fiber lasers can engrave at a speed of 7,000 mm/s, significantly cutting down production time. This speed means that extensive marking projects are done in no time while still maintaining quality. In addition, the tough components of lasers reduce the downtime due to system failure or repair. Most systems are capable of using them for over 100,000 hours of dependable operation.
In summary, portable laser engraving machines are easy to maintain, energy-efficient and cost-friendly. That makes them a go-to for most small businesses or large industries looking to lower their operational costs and improve output.

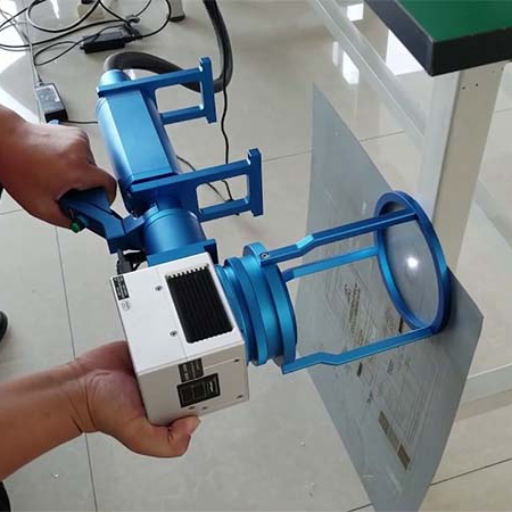

How to Maintain Your Portable Laser Marking Machine?
- Scheduled Cleaning: Clean the machine’s optics, mirrors, and lenses on a routine basis to maintain the equipment’s defined standards and clear any dust residue.
- Inspect Heat Dissipation Unit: If needed, guarantee that thermal control systems are operational and that there is no overheating while using the equipment.
- Update Software: Ensure software is updated on the unit from time to time to improve qualitative performance and utilize enhanced options.
- Check Connections: Look at the wires connected and other parts regularly to maintain an influence on the distributed psi modular power supply units.
- Follow Routine Preventive Maintenance: According to the eye-safe class II adjustable focusing laser tube, replace serviced parts in discretion, observing microns on the air-tool end filters of the precision laser jet, and ic bus.
Troubleshooting Common Handheld Laser Issues
| Issue | Possible Cause | Solution |
|---|---|---|
| Laser not cutting through material | Incorrect power settings or focus alignment | Ensure the laser power settings are appropriate for the material. Adjust the focal length to achieve proper focus. |
| Irregular engraving lines | Machine vibration or loose components | Check if all screws and bolts are tightened. Inspect the machine’s base for stability and reduce vibration. |
| Burn marks on material edges | Excessive power or low-speed settings | Decrease laser power or increase the engraving/cutting speed to minimize burn marks on the material. |
| Laser won’t fire | Faulty wiring or blocked laser path | Examine wiring connections for loose or damaged cables. Check for any obstructions in the laser path. |
| Cooling system overheating | Low coolant levels or clogged water circulation | Refill coolant and clean the cooling system thoroughly to ensure proper water flow. |
Maintaining Your Handheld Fiber Laser’s Handheld Fiber Laser’s Longevity
When using and optimizing your handheld fiber laser, you need to consider both marking speed and accuracy. Beam quality, focal spot size, and material provide significant influence on the power and marking efficiency of the laser. For example, MOPA (Master Oscillator Power Amplifier) fiber laser systems offers greater marking flexibility by permitting greater contrast marks on anodized/stainless steel and other materials.
Some recent research suggests scan head speeds as well as pulse repetition frequencies have a direct relationship with the clarity of markings made, especially on shiny or heat-sensitive surfaces. It has been shown that operational speeds can achieve upwards of 30% improvement while still maintaining complex features when these parameters are optimized. In addition, consistent results over time is achieved by employing high quality optics and periodic calibration which does not diminish marking accuracy. These improvements, combined with the reduction in maintenance costs, increases productive efficiency while maximizing profitability for the manufacturers.
Reference sources
- Automated Laser Marking Machine (2018)1:
- Key Findings: This study focused on creating a modular and adaptable laser marking system for trade shows. It integrated a Universal Robots UR3 collaborative robot and a Datalogic AREX optical fiber laser. The system emphasized modularity, allowing components to be used independently for other tasks. It also highlighted the importance of user-friendly design for non-technical operators.
- Methodology: The project involved designing and assembling a robotic cell with a motorized turntable, programming using Siemens TIA Portal software, and testing the system’s functionality. The design prioritized cost-effectiveness, mobility, and ease of setup.
- Rapid and Flexible Laser Marking and Engraving of Tilted and Curved Surfaces (2011)2:
- Key Findings: This research introduced a novel method for laser marking and engraving on complex surfaces, such as tilted and curved workpieces. The system used a 3D laser measurement integrated with a 3D laser marking system, eliminating the need for precise pre-positioning of workpieces.
- Methodology: A pulsed Nd:YVO4 laser was used, with a dual-axis scanner head and dynamic focusing system. The system measured the 3D shape of the surface before processing, enabling rapid and flexible marking without prior knowledge of the workpiece’s geometry.
- Innovations in Laser Engraving Technology Market Trends, Affordability, and Ethical Implications (2025)3:
- Key Findings: This paper explored advancements in laser engraving technology, emphasizing affordability, compact designs for home use, and ethical considerations like material sustainability. It highlighted the growing demand for accessible and cost-effective laser engravers.
- Methodology: The study combined market analysis, technical evaluations of 15 laser systems, and case studies from various industries, including small businesses and healthcare.
- Top Handheld Laser Marking Machine Manufacturer and Supplier in China
Frequently Asked Questions (FAQs)
Q: What is a portable handheld fiber laser marking machine?
A: A portable handheld fiber laser marking machine is a compact and versatile device that performs laser marking and engraving, especially on metals. It is highly precise and best suited for intricate designs, detailed texts, and QR code engravings.
Q: How does a fiber laser engraver differ from a traditional laser engraver machine?
A: A fiber laser engraver is equipped with a fiber optic cable which amplifies the laser beam, increasing efficiency when engraving metals and non-metals. In comparison, traditional laser engraver machines use CO2 or other non-fiber lasers which are ineffective on metals.
Q: Can a handheld fiber laser marking machine be used for etching?
A: Yes, a fiber laser marking machine can perform laser etching, allowing the creation of fine permanent marks and designs on different materials including metal and plastic.
Q: What are the advantages of using a 30w portable handheld laser?
A: The 30w portable handheld laser marks and engraves faster due to its higher power output which results in deeper engravings. This is a great asset for industrial sectors where speed and high productivity are essential.
Q: Is a mopa fiber laser suitable for color marking?
A: Yes, a mopa fiber laser is perfect for color marking metals such as stainless steel and titanium. It is capable of different effects due to the flexibility in pulse duration, enabling multiple color markings.
Q: In what way does a pneumatic dot peen marking machine differ from a laser engraver machine?
A: A mechanical pin is used by a pneumatic dot peen marking machine to indent the surface of a given material, while an engraving laser machine marks using laser beams. Dot peen marking withstands rough surfaces better than laser marking, which is more versatile and precise.
Q: What function does the lithium battery serve in a portable laser marker?
A: A lithium battery serves as a rechargeable power supply for portable laser markers, allowing greater mobility as they can be used without a power source, unlike other powered tools which require direct outlets.
Q: Is it possible to use a portable handheld fiber laser engraver onto non metal materials?
A: Yes, a portable handheld fiber laser engraver can work on some non-metal materials such as plastics, although its main use is high precision laser marking on metals.
Q: In what ways does the handheld laser engraving device achieve high precision?
A: Such a device achieves high precision via the intricate control mechanisms in the laser beam and its output, allowing for detailed impressions which result in minimal distortion.
Q: Is there a touchscreen on the portable marking device?
A: Most touchscreen portable marking devices in modern times are accompanied with a touchscreen as it allows for easy operations through setting adjustment and design entry on the device.
