Concrete has been globally the most extensively utilized material since its strength, durability, and versatility were highly regarded. While the use of concrete differs from one other, it is density that plays a very vital role in this matter. Density, which varies concurrently with properties, dictates the architecture of buildings in its physical aspect and gives thermal characteristics and is thus a very basic knowledge for every engineer, architect, or builder. In this blog, the properties of concrete density, how it is measured, and why it is important will be discussed. Whether designing a skyscraper, a bridge, or just a plain patio, knowledge of working with concrete density will guarantee the best outcomes in any project.

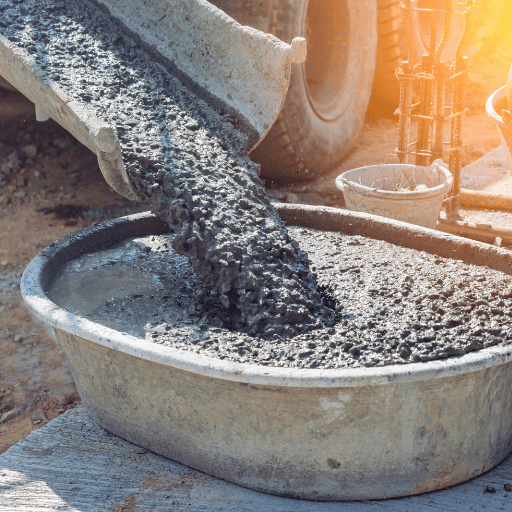

Understanding the Density of Concrete
Concrete density refers to the mass of concrete per unit volume, measured in pound-force per cubic foot (pcf) or kilogram per cubic meter (kg/m³). Depending on the materials used in the mix, the variations in concrete densities depend on the type of aggregate, cement, or water. It is usually classified into three categories: normal-weight-approximately 140-155 pcf-, lightweight-under 120 pcf-, or heavyweight-above 200 pcf. It is of prime importance to be familiar with the density to ensure that the structure should carry its loads as intended, in line with the specifications, and should perform well in the environment to which it is exposed.
Role in Construction and Engineering
The density of concrete is considered to have value in engineering as well as construction. It decides the strength, durability, and performance of a structure. For example, normal concrete with a density of about 145 pcf (2,400 kg/m³) is excellently used where high compressive strength is required, such as foundations, floors, and columns. Have Lightweight concrete, having less density of 120 pcf (1,920 kg/m³), is used in situations where the weight consideration is paramount: for example, bridge decks or in high-rise buildings, thus speeding up the construction process while saving costs. At the other end, very heavy concrete, being of 200 pcf (3,200 kg/m³) and beyond, is the heavy shielding concrete required for nuclear plants and radiological rooms.
In recent years it has seen the development of ultra-high performance concrete, with densities crowded between 120 and 155 pcf (1,920 and 2,480 kg/m³) and which can reach the level of strength and durability never before over 21,000 psi (150 MPa). Eventually, these advancements permit infrastructure that lasts longer with fewer maintenance needs. A parallel concern recently is sustainability, which led to the formation of novel light concrete mixes using recycled aggregates or aerated elements to lessen environmental impact without sacrificing structural integrity. Hence, the density chosen is not only to provide structural safety but also to address particular engineering considerations economically.
Concrete Properties Related to Density
Concrete density is particular for its effect on performance and durability, suitability for different applications, and structural safety, never to be insulated from it. The density of concrete usually varies between 2,200 and 2,500 kg/m³ for normal-weight concrete, while for lightweight concrete, it can be as low as 1,400 to 1,900 kg/m³. On the other hand, heavyweight concrete, used for radiation shielding or high-strength applications, attains densities of above 3,800 kg/m³ using materials such as barite or magnetite to get heavy.
Much research has established that concrete density deeply affects thermal conductivity, acoustic insulation, bearing capacity, etc. An example would be lightweight concrete that offers better thermal insulation compared to normal concrete due to its lower density and higher air-void content, thereby making it appropriate for energy-efficient building applications where cutting down the demand for heating and cooling is paramount.
In contrast, recent technology advancement has also supported the application of ultra-high-performance concrete (UHPC), which reports densities well above traditional ones. With compressive strengths of more than 150 MPa and precisely formulated mixes, UHPC has set new bars in resisting deterioration induced by environmental and mechanical work. These advancements are now strongly applied in building bridges, high-rise structures, and other hard infrastructure.
In recent studies, evidence has been offered that the use of recycled aggregates in lightweight concrete mixes will reduce impacts on the environment. For instance, recycled materials reduce embodied carbon by almost 30% while meeting all strength and durability requirements.
Ultimately, understanding the way concrete density interacts with other properties of concrete allows engineers to select materials based on projects’ unique requirements to ensure safety, sustainability, and longevity.

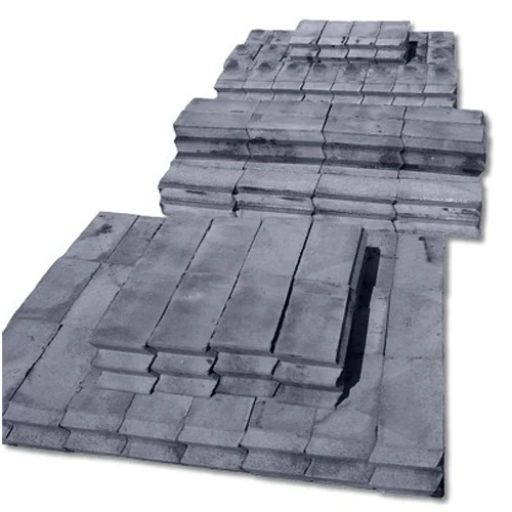

Factors Affecting Concrete Density
My take regarding the concrete density suggests a few major influencing factors. The type and proportion of aggregate employed may be one such factor. Consequently, water/cement content and possibly admixtures or entrained air can influence density. The method of curing and level of compaction can also affect how much density a concrete achieves eventually.
Material Composition: Cement and Aggregates
The proportion of cement and aggregates plays an important role in concrete density. Cement acts as a binder that makes concrete strong and able to bear loads for a longer time. Each kind of cement would have a different density; ideally, for OPC, this is about 3.15 g/cm³. However, aggregates carry on being the bulk of concrete; densities and mechanical properties of concrete depend on them. Natural aggregates tend to fall anywhere from 2.4 to 2.9 g/cm³.
Hence, a proper balance between the amount of cement and that of the aggregates needs to be reached so as to customize the density. Supplementary materials are incorporated in high-performance concrete types, including fly ash, ground granulated blast-furnace slag (GGBS), or silica fume. They not only modify the microstructure but also improve their properties. For instance, it has been found from research that the replacement of 30% cement with fly ash improves the workability of concrete without compromising density.
Environmental Factors Impacting Density
An aggressive chemical environment, temperature, and humidity exert a direct impact on the density of concrete. Higher temperatures may exsiccate moisture, causing the concrete to fail in developing adequate strength eventually. The reported results show that the cure at elevated temperatures is detrimental to the long-term strength and causes a 10 to 20% reduction in strength owing to the domination of the weaker microstructure.
Likewise, humidity plays the role of the media of curing; low humidity may bring a positive contribution to rapid water loss but shrinkage with low density. Keeping an elevated humidity level of about 80% is favorable to ensuring the adequate formation of the cement matrix and producing a concrete of high density.
Aggressive solutions such as sulfates and chlorides will progressively degrade concrete during the time at sufficiently high concentrations. The sulfate-containing solution promotes the formation of an expansive compound called ettringite that cracks single cement paste from within, thus reducing the density and durability. The studies also lend support to the notion that chloride exposure in marine environments declines effective density of the concrete due to leverage corrosion by-reinforcement degradation, and material degradation over time.
The use of some supplementary cementitious materials (SCMs), such as silica fume and fly ash, could reduce some negative effects of aggressive environments. For example, the benefit of silica fume is to improve chemical resistance and partly reduce concrete porosity, which resists chemical ingress and helps maintain density through aging.
Air Content and Its Effect on Density
Generally, the presence of air has some implications regarding concrete density and performance. Air voids may be introduced inadvertently or intentionally through air-entraining admixtures, which increase freeze-thaw resistance of concrete. As a rule of thumb, the density of concrete reduces by about 2% with every 1% increase in air content. So, if a purely dense concrete specimen with no air content is around 2400 kg/m³ in density, this value tends to drastically drop once air voids increase.
Controlled air entrainment is purposely introduced in cold environments to provide small air bubbles equally distributed in concrete mixtures. These tiny microscopic air bubbles inside the concrete act as releasing chambers that can relieve pressure build-up within concrete when water pressure builds up during freezing. However, as the air content is increased beyond a threshold, the concrete strength is compromised. For instance, studies indicate that an increase in air content by 1% will reduce compressive strength by 5%. This in itself makes a strong case for properly balancing air content in the concrete mix design.
With contributions from modern technologies, such as SCMs and water-reducing agents, concrete density and air content can now be optimized simultaneously to secure workability and durability needed yet without sacrifices in strength and performance over time. Careful in-situ monitoring involving some field tests, such as pressure air meters, should be enforced to maintain air content to 4%-8%, depending on use and environment.
Density Measurement of Concrete
Generally, the density of concrete is computed by dividing the mass of the concrete specimen by its volume. Such a procedure involves weighing the specimen and determining the volume: measuring by geometric means for regular shapes and via water displacement for irregular shapes. The final reading is given in units such as pounds per cubic foot (lb/ft³) or kilograms per cubic meter (kg/m³). This testing ensures the uniformity and quality of concrete.
Methods for Measurement of Density
With time and advancement of technologies and equipments at their disposal, the means of accurate measurements of the density of concrete have been polished. Among the popular methods is the use of a density meter or nuclear densitometer, which allows for non-destructive and instant results. The working principle of such instruments involves the use of radiation to ascertain how much material mass is present in a given volume, thereby offering more precision in on-site applications.
Such dataset also reveals that the normal density of concrete lies between 2,300 kg/m³ (143 lb/ft³) and 2,500 kg/m³ (156 lb/ft³) in the case of normal-weight concrete. The densities of special concretes vary; for example, densities of lightweight concretes may be as low as 1,400 kg/m³ (87 lb/ft³), and densities of heavyweight or high-density concretes exceed 3,800 kg/m³ (237 lb/ft³) when aggregates such as barite or magnetite are used.
In addition to such developments increasing density measurement accuracy, they also enable changes to concrete mix design to fulfill particular structural and engineering requirements.
Standards: ASTM C138 and Other Guidelines
Several standards and guidelines dealing with concrete density specify methods and accuracies to which the measurement should be determined. ASTM C138, with the full title “Standard Test Method for Density (Unit Weight), Yield, and Air Content (Gravimetric) of Concrete,” is one of the most highly recognized and referred to standards in the field. This method uses a standardized container filled with fresh concrete, weighs the concrete and container, and calculates density from the known volume of the container.
As per ASTM C138, the density of fresh concrete is calculated by dividing the mass by the volume:
Density = Mass/Volume
The standard is very specific about the tools, techniques, and procedures for obtaining an accurate and quite repeatable measure. It includes tolerance specifications for container calibrations, corrections for air content, and common problems encountered in the field.
Moreover, the EN 12350-6, as an example, shall represent some of the European counterpart norms for the testing of fresh concrete, and similar protocols are followed worldwide. The standards are to ensure that the concrete placed in various applications will meet the structural and design criteria, considering applicable factors such as slump, water-to-cement ratio, and air content.
For example, worldwide records tell that lightweight concrete properly measured will have a density of between 1,400 and 1,800 kg/m³ (87 and 112 lb/ft³), and that high-density mixtures with magnetite aggregate exceed 3,800 kg/m³ (237 lb/ft³). It is paramount to quality assurance that ASTM or EN standards are adhered to, and any deviations that are not within standard tolerances should be investigated and rectified forthwith. By remaining within these standards, the industry also secures consistency, safety, and reliability across the construction and engineering interaction sphere.
Gravimetric Analysis in Perspective
Gravimetric analysis is a process of registering or identifying substances in the field of material testing and quality control relevant to the properties of concrete. It measures the mass of a substance to determine the concentration or components in a sample. It is generally used in conjunction with ASTM and ACI guidelines for concrete testing to maintain reliability and precision in construction applications.
Basic Gravimetric Analysis in Concrete Testing
From the point of view of gravimetry, parameters such as density, moisture content, and water absorption are tested. For instance,ASTM C642 provides a way to determine water absorption and permeability, parameters considered vital for imparting to a concrete its expected durability. The specimen is dried, put in water, and weighed in these tests for water absorption determination.
| Parameter | Observed Data | Testing Standard |
|---|---|---|
| Density | 2200-2500 kg/m³ | ASTM C138, C567 |
| Lightweight Density | ≤1850 kg/m³ | ASTM C567 |
| Water Absorption | ≤6% (typical) | ASTM C642 |
| Moisture Content | Varies by mix | ACI Mix Guidelines |
It is useful in gravimetric techniques to measure yield, efficiency, and proportions of materials in concrete mix design. For lightweight concrete as per ASTM C567, a gravimetric technique enables accurate density measurements, a crucial aspect of projects such as high-rise buildings with a stringent need for weight reduction.

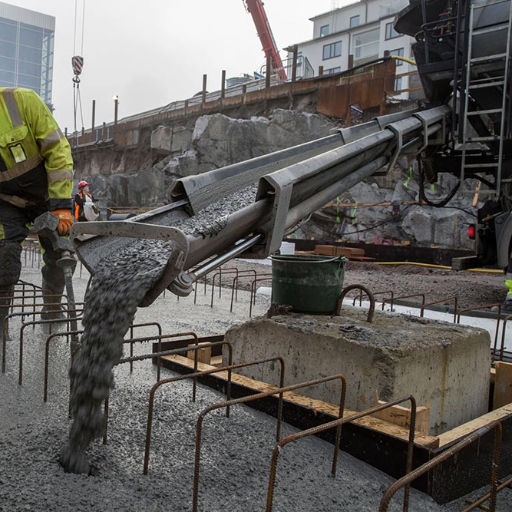

Typical Ranges of Concrete Density
The density of conventional concrete ranges between 2,200 kg/m³ and 2,500 kg/m³. A lightweight concrete would fall in the range of 1,400 kg/m³ and 2,000 kg/m³, while heavyweight concrete can cross 3,200 kg/m³. This difference mainly depends upon the nature of aggregates and materials used in the mix.
Standard Density Values for Different Types of Concrete
The density of concrete largely varies with the materials used and the nature of the intended application for the concrete. Here are some standard density values for different types, as found in recent sources:
Normal-weight Concrete
Density Range: 2,200 to 2,500 kg/m³
This mostly contains crushed stone or gravel as aggregates and is used for most building works, be it residential, commercial, or industrial.
Lightweight Concrete
Density Range: 1,400 to 2,000 kg/m³
It uses lightweight materials such as expanded clay, shale, or pumice. Lightweight concrete finds applications in thermal insulation, reduction of load on bridges, and as components for prefabricated houses.
Heavyweight Concrete
Density Range: Greater than 3,200 kg/m³
It derives its properties from heavy aggregates like barite or magnetite; used in specialized applications such as radiation shielding in nuclear facilities or ballast construction.
Foamed or Cellular Concrete
Density Range: 300 to 1,800 kg/m³
Produced by introducing air or gases to the mixture, it is usually used for insulation or lightweight structural components in low-load applications.
These ranges vary according to the moisture content, admixtures, and curing conditions. Modern concrete applications are more about the accuracy and performance, which have been made possible with the advancement of online tools, testing methodologies, and standards.
Factors Influencing Variations in Density
The density of concrete may be varied due to many factors, so that its properties are more adaptable to various applications. Here are detailed factors and some recent statistics from reliable sources:
Aggregate Type and Proportion:
Aggregate type and proportion are crucial variables influencing the concrete density. Heavy-weight aggregates such as basalt or granite tend to increase density, while lightweight aggregates such as expanded clay or pumice decrease it. A recent investigation found out that the density difference caused by the aggregate type may go from 2,000 to 6,000 kg/m³, depending on the material.
Water-to-Cement Ratio (W/C):
Water-to-cement ratio influences mostly the concrete density and strength. Higher water-to-cement ratios, due to heightened porosity, will cause lower densities. According to studies, a water-to-cement ratio of 0.4 usually produces density and compressive strength that is advantageous for common purposes.
Air Content:
Air-entrained concrete has tiny air bubbles for better durability against freeze-thaw cycles, also lowering-density effects. The air content is generally in the range of 4-8%, and a 1% rise corresponds to a decrease by roughly 40 kg/m³ in density.
Moisture Content:
Wet concrete is denser than dry concrete due to its absorption of water. The difference between saturated and oven-dry densities is approximately 50-100 kg/m³ for most typical concrete mixes.
Implications for Compressive Strength of Concrete
The compressive strength of concrete is directly influenced by air content, moisture content, mix proportions, and curing conditions. Higher air content improves resistance to freeze-thaw but seriously diminishes compressive strength. It has been reported that for a rise in air content by 1%, the compressive strength may decrease by around 5-6%, e.g., a concrete design for 40 MPa may lose up to 2.4 MPa in strength if an increase in air content of 1% occurs.
Moisture content is very important as wet curing tends to increase compressive strength due to promoting the hydration of cementitious materials. At the same time, excess moisture in a mix during placement would increase concrete porosity and strength reduction. Improper water-cement ratios outside the recommended 0.4-0.6 range may lead to as much as a 20% decrease in strength, according to laboratory studies.
Further, compressive strength depends largely on material quality and mix design. Under ideal conditions, high-performance concrete with supplementary cementitious materials, such as fly ash or silica fume, may produce strengths of more than 100 MPa. These materials enhance strength by refining the microstructure and filling voids, thereby reducing porosity.
Optimization of concrete for specific applications needs an understanding and control of these factors from its performance basis to durability and structural requirements.
Recent Advancements in Concrete Technology
Recent developments in concrete technology have focused on sustainability. By including alternate binders such as geopolymers and alkali-activated systems, conventional Portland cement usage is reduced, thereby cutting carbon emissions. Aggregates manufactured from recycled materials and industrial byproducts such as slag and fly ash are increasingly being used to conserve the environment. These developments not only improve the concrete’s ecological footprint but also keep its performance integrity intact during construction usage.
Recent Developments Affecting Concrete Density
Since concrete density basically affects the performance and service life of structures, recent developments pertaining to its design and manufacture have sought to optimize lightweight and high-density concretes for their complementary construction uses. Being lightweight with a density of about 90 to 120 pounds per cubic feet, it is made by incorporating lightweight aggregates like expanded clay, shale, or pumice, with the goal to reduce structural load yet retaining strength. High-density concrete, with a density of about 250 to 400 pounds per cubic feet, will include the heaviest aggregates like barite or magnetite and can be used in radiation shielding or soundproofing applications.
Recent advances, especially in 2023, emphasize the use of aerogels and nano-silica particles to alter concrete density at the microstructural level. According to experimental tests, aerogels can provide a density reduction of as much as 20% without compromising compressive strength. This is extremely helpful for the application of such materials in high-performance buildings and energy-efficient structures. These data-driven advances are ushering in a new era in concrete construction by giving engineers the freedom to pursue density and energy efficiency paired with strength better than ever before.
Future Trends in Concrete Production and Mix Design
Perhaps one of the most promising areas within concrete production is the development of carbon capture technologies for application in the mix design. Carbon Cure, for example, is an evolving technology where captured carbon dioxide is injected into concrete during mixing, and the gas chemically reacts with calcium ions to form calcium carbonate. That process lowers the carbon footprint of concrete production by up to 20%, unlike conventional concrete that does not gain much strength until much later after setting. Furthermore, based on requests of research, it is anticipated that carbon-injected concrete will experience an annual growth rate of 9% in the next 10 years owing to an increased focus by industry and the governments on sustainability.
Alongside that comes the use of supplementary cementitious materials (SCM), which continues to improve mix designs in pursuit of a low-emission concrete, including fly ash, slag, and silica fume. As an example, fly ash can replace up to 50% of portland cement in some applications, thus significantly reducing CO2 emissions from production. Industry reports suggest a 30% increase in SCM applications for concrete projects between 2018 and 2023, incentivized by regulatory measures and developments in material science.
Another next-generation innovation is self-healing concrete which incorporates materials such as bacteria or polymer microcapsules that can autonomously heal cracks. Initial trials conducted in Europe have revealed indications that self-healing concrete can increase the lifespan of infrastructure by between 20 and 40 years, cutting down on maintenance costs and material waste. These evolutions represent the forefront of a change toward sustainable and durable construction solutions.
Combined with advanced data analytics and machine-learning suites to optimize mix designs based on project-specific needs, environmental parameters, and performance metrics, these technologies are firmly on their way to addressing the current challenges facing the construction industry and simultaneously position the industry in alignment with global sustainability goals.
Reference sources
1. Shrinkage, cementitious paste volume, and wet packing density of concrete
- Authors: M. Lai et al.
- Journal: Structural Concrete
- Publication Date: December 2, 2020
- Citation: (Lai et al., 2020, pp. 488–504)
- Summary: This study investigates the relationship between concrete shrinkage, cementitious paste volume (CPV), and wet packing density (WPD). It emphasizes that concrete shrinkage is influenced by factors such as the water-to-cementitious material (W/CM) ratio and the dosage of superplasticizer. The authors propose that a negative correlation exists between shrinkage and WPD when considering CPV, providing new insights into concrete mix design.
- Methodology: The research involved experimental analysis to correlate shrinkage with WPD, focusing on the moisture movement in capillary pores and the void ratio in fresh concrete.
2. Interdependence of passing ability, dilatancy and wet packing density of concrete
- Authors: M. Lai et al.
- Journal: Construction and Building Materials
- Publication Date: November 18, 2020
- Citation: (Lai et al., 2020, p. 121440)
- Summary: This paper explores the interdependence between the passing ability of concrete, its dilatancy, and WPD. The findings suggest that WPD significantly affects the flow characteristics of concrete, which is crucial for ensuring proper placement and performance in construction.
- Methodology: The study utilized experimental methods to assess the flow properties of concrete mixtures with varying WPD and analyzed the results to establish correlations with passing ability and dilatancy.
3. Effect of concrete wet packing density on the uni-axial strength of manufactured sand CFST columns
- Authors: M. Lai et al.
- Journal: Structural Concrete
- Publication Date: January 10, 2022
- Citation: (Lai et al., 2022, pp. 2615–2629)
- Summary: This research examines how WPD influences the uni-axial strength of concrete-filled steel tube (CFST) columns made with manufactured sand. The study found that higher WPD correlates positively with increased strength, suggesting that optimizing WPD can enhance the mechanical performance of CFST columns.
- Methodology: The authors prepared and tested multiple CFST column specimens under uni-axial compression, analyzing the relationship between WPD and strength through experimental data.
Frequently Asked Questions (FAQs)
Variations in Density of Concrete: Types and Causes?
Concrete densification varies according to its composition and the types of materials used in its manufacture. Generally, normal weight concrete has a density of about 2,400 kg/m³, and high density concrete can reach 3,600 kg/m³. The type of coarse aggregate and fine aggregate alongside the proportioning in the mix all play crucial roles in the density of concrete.
How does concrete mix ratio affect density?
The concrete mix directly influences the concrete density. The higher the proportion of cement in a concrete mix, the greater will be its density, while the greater the aggregate in any mix, especially lightweight aggregate, would mean a decrease in density. Since different densities are required for different applications (normal density for concrete structures, low density for foamed concrete), the mix is adjusted accordingly.
What is the function of coarse aggregate vis-à-vis concrete density?
Large aggregates are the principal agents in determining concrete density. The choice of different types of coarse aggregate and their gradation will impact the unit weight of concrete. Heavy aggregates lead to an increase in mass per unit volume, thus creating a higher density concrete, while lightweight aggregates reduce the density and provide an option for particular applications such as precasting.
How does the thermal conductivity of concrete vary with its density?
The thermal conductivity of concrete is mostly determined by its density. Therefore, higher density concrete, such as high density concrete, offers lower thermal conductivity, thereby providing better insulation. This property will be of most importance for applications where energy conservation and temperature control are involved.
What effect does béton armé have on density?
Normally, the reinforced concrete will have a similar density to that of normal weight concrete, but it may vary according to the nature or amount of reinforcement used. The concrete mass is increased when steel fibers or any other additional material is used in the concrete mixture. This understanding of mass-density relationships is crucial to engineers while designing concrete structures.
How can in-place concrete density be tested?
Density in place can be measured by various techniques like using a density gauge, or by determining the concrete’s volume and measuring the mass. For example, weigh an accurately dimensioned block of concrete and divide by volume to obtain the density in the most accurate way. This measurement becomes necessary in checking for the strength quality of the concrete elements.
The uses of high-density concrete?
It finds use in specialized fields such as radiation shielding, ballast for ships, and counterweights. Increased density means enhanced strength and durability, beneficial for areas that demand heavy-duty application or radiation shielding. Producing concrete with high density is done in accordance with these requirements.
What are the influencing factors in concrete density production?
Few factors influence concrete density production, starting with selection of materials, mix design, and curing methods. This choice includes type of cement, proportions of coarse and fine aggregates, and water-cement ratio, to name a few, all aiming to achieve the desired density. Also, factors like moisture content in aggregates and any possible additives induce further changes to concrete density.
