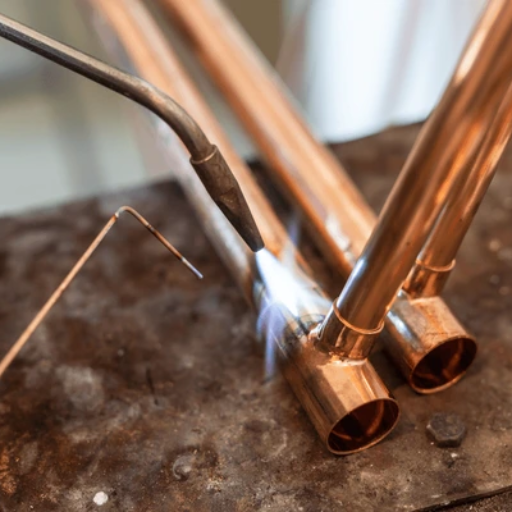

Copper Welding Introduction
Copper welding is a method in which heat and, sometimes, filler metal are used to join copper materials with a firm bond. Due to the symbol of conduction, durability, and corrosion resistance offered by copper, it is used largely in plumbing, electronics, and construction. Relying on heat control, with the cleaning of surface, may quality to the weld. TIG welding equipment or apparatuses are more frequently employed to achieve precision and results.
Why Is Copper So Important in Welding?
Copper is a material of high importance in a great number of industries because of its high-end qualities. For instance, copper has thermal conductivity and electrical conductivity at maximum levels. Thus it is the first choice in electrical wiring and heat exchanger applications. According to research, copper has thermal conductivities around 398 W/m·K, way above most metals used in welding processes. Such high conductivity definitely calls for tremendous heat control during welding else it would burn through or give in to some other form of defects.
It also has a high resistance to corrosion, enhancing its life and reliability in harsh environments where it can be in constant contact with moisture or temperature-elevated weather. Reports from a Copper Development Association close to 75% of copper produced globally is used for electrical and thermal purposes, testifying to its critical role in building modern-day infrastructure.
The development of special alloys such as copper-nickel has enabled copper applications in marine systems and desalination plants on account of their high resistance to seawater corrosion. Thus, copper thrives where welding calls for strength and resistance. To exploit this particular benefit, proper preparation including cleaning the surface with abrasive pads and selecting appropriate filler metals is essential.
Welding Techniques: A Bonus Overview
New welding techniques constitute a wide array of methods to join metals effectively, depending on the particular properties of material types such as copper and its alloys. The most commonly used methods include TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and resistance welding, whereby the choice among them is dependent on application and precision required.
TIG Welding is, by far, the most suitable method for copper welding as it enables fine control of the welding arc. This technique finds application where clean and high-quality welds are enforced, such as aerospace or medical device manufacturing. Recent surveys within the industry illustrate TIG welding yields better weld quality with copper alloys, minimizing porosity and optimizing joint strength.
MIG Welding is another excellent method: fast and easily automated. It is used in production methods that require higher productivity. Welders, however, must ascertain that they employ rare shielding gases such as argon or helium to prevent oxidation for the best possible weld with copper. It has been proven that employing a helium-rich gas blend increases weld penetration; thus, it is an ideal way to weld thick copper sections using MIG. Application of resistance welding techniques, including spot welding and seam welding, is advantageous for joining thin copper sheets used extensively in electronics. It exploits the high electrical and thermal conductivity of copper to produce fast and inexpensive welds. Engineering research highlights that resistance welding, with appropriate cooling systems, can reduce heat distortion of sensitive copper components.
At the same time, hybrid processes based on laser technology are emerging, which combine the advantages of laser with conventional welding to increase the overall efficiency. For instance, it has been proved that laser-TIG hybrid welding can save 30% of energy and enhance joint properties in stressing conditions.
A sound knowledge of these methods, along with their appropriate applications in copper, will ensure their exploitation to the maximum in the construction, transport, and electronic manufacturing fields. Data-driven selection and optimization of processes are the two secrets to success.
Applications of Weld Copper
Copper welding thus serves as a backbone of several industries attributed to the metal’s excellent thermal and electrical conductivity, corrosion resistance, and malleability. The most popular applications lie in electronics, where copper properties make it a panacea in providing reliable electrical circuits and components. For example, copper welding finds its use in the fabrication of printed circuit boards (PCBs), wherein a good joinery ensures durability and conductivity.
Besides, welded copper, with its low electrical resistance and thermal conductivity, is utilized heavily in the transportation sector in the fabrication of electric vehicle battery components. Copper consumption in EV batteries is anticipated to rise in the ensuing times, given that a single EV requires about 83 kilograms (183 lbs) of copper on average, thereby emphasizing the need for efficient welding techniques to cater to the growing EV production worldwide.
In the construction industry, copper welding comes into use in HVAC systems, plumbing, and roofing. The anticorrosion property of copper enhances pipeline longevity, while its appearance is favored for architectural structures. For instance, the global market for copper-based HVAC systems is expected to demonstrate a moderate CAGR of over 5% by 2028, thereby reinforcing the demand for welded copper structures.
With the emergence of advanced welding techniques such as laser-TIG hybrid welding and friction stir welding, better enhancements shall come in application of copper. These welding technologies will carry on to higher welded structures with the least weld defects, thus eventually maximizing the product life and performance attributes in various sectors. Hence, demonstrating how crucial it is to merge these advanced welding techniques to maximize potential of copper in present industrial applications.

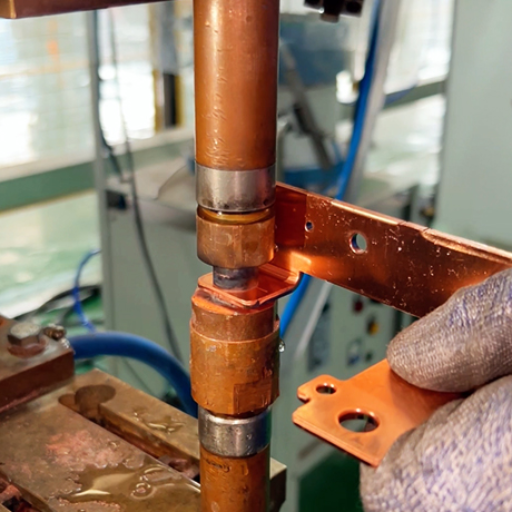

Benefits of Using Copper in Welding
Copper is notorious for its excellent thermal and electrical conductivity, a prerequisite for the transfer of heat and electricity. The corrosion resistance of copper is unmatched; it stands impervious in extremely corrosive environments. Furthermore, the metal’s malleability allows the weld to be formed accurately and strongly. It is for this reason that copper is invaluable in some durable and high-performance welded components.
Conductivity and Thermal Properties
Copper is known for excellent electrical and thermal conductivity, the highest among metals. It has an electrical conductivity rating of 100% IACS (International Annealed Copper Standard), much more than most other metals used in industrial applications-an attribute that supports energy transmission with minimal losses. It makes copper a choice material in industry, including electronics and power transmission.
Also, with nearly the best thermal conductivity of around 401 W/(m·K) at room temperature, copper brings in rapid heat dissipation where control of heat in welding is critical to save the integrity of the material. The aerospace and automotive industries are among those that benefit from copper’s heat conduction ability to prevent overheating of critical components and hamper overall performance and durability.
New advances in welding methods, such as laser and friction stir welding, more and more take advantage of copper’s unmatched conductivity to bring together precision and efficiency in manufacturing processes, further testifying to copper being at the forefront of critical materials for the growing demands of high-performance industrial applications.
Durability and Corrosion Resistance
Copper has an extremely long-lasting reputation for corrosion resistance and hence is liked by many industries, ranging from architecture to electrical engineering. Naturally, all the corrosion resistance of copper is set to ensure a long service life even when put in tough environments. For instance, in marine usages, copper alloys such as bronze and brass present better resistance to seawater corrosion, which in effect greatly reduces maintenance and repair works.
The latest reports show that corrosion resistance of copper can increase component lifespan by about 50%, especially in such an environment where there exists moisture, chemicals, or varying temperature. Moreover, its anti-corrosive oxide layer grows up with the passage of time as it comes in contact with air and protects the structure from corrosion, thereby maintaining its strength. Due to these qualities, copper has remained the best option for sustainable long-lasting materials.
Cost-Effectiveness in Long-Term Projects
More than just being tough, copper ensures cost-effectiveness in long-term projects. Current industry reports reveal that the incorporation of copper in construction and infrastructure projects can reduce maintenance costs by up to 25% as compared with other materials such as steel or aluminium. This is mainly because copper withstands all forms of degradation such as rust and corrosion that are the most common reasons for frequent repairs or replacements in other materials.
Even more on its cost-effectiveness is the reusability of copper. As reports state, nearly forty percent of copper demand worldwide is satisfied by recycled materials, considerably reducing both the costs of material and the impact on the environment. In such a way, copper becomes highly sustainable and goes hand in hand with the growing pursuits worldwide for green building. Thus, low maintenance requirements and high recyclability add value to copper over time, making it a dependable material as well as a wise investment for developers and end-users alike.
Types of Copper Alloys for Welding
Depending on the application, welding discover selection of copper alloy. For general welding, deoxidized copper is suitable because of its weldability. Copper-nickel alloys are heavily used in marine applications because of their corrosion resistance, whereas bronze alloys-silicon bronze for instance-are good for welding dissimilar metals or for decorative work.
Common Copper Alloys Used in Welding
Common copper alloys used in welding include deoxidized copper, copper-nickel alloys, silicon bronze, aluminum bronze, and phosphor bronze.
| Alloy | Key Feature | Application |
|---|---|---|
| Deox. Copper | Weldable | General Use |
| Cu-Ni Alloy | Corrosion Res | Marine Use |
| Silicon Bronze | Decorative | Dissimilar Mat |
| Alu. Bronze | Strong | Structural |
| Phos. Bronze | Durable | Precision |
Choosing the Right Alloy for Your Projects
Selecting the correct copper alloy for your welding project is dependent upon the exact requirements and operational conditions of the application. Here is an elaboration of considerations and data regarding each type of copper alloy:
Deoxidized Copper
Key Characteristics: This type of copper is weldable enough since oxygen is removed in the manufacture, thus preventing porosities during welding.
Use Cases: This alloy finds use in plumbing, electrical engineering, and general industrial projects that require conjugate electrical conductivity.
Data: A conductivity of about 100% IACS is accredited to it, placing it among the top materials for applications demanding efficient energy transfer.
Copper-Nickel Alloys
Key Characteristics: These provide superior corrosion resistance, particularly when wet with seawater. They are also strong and durable.
Use Cases: Usually, this is for marine-related works such as ship hulls, seawater desalination plants, and offshore piping systems.
Data: Typical copper-nickel (70/30) yields tensile strength in the range 485-655 MPa with melting temperature about 1170°C, suitable for high-stress environments.
Silicon Bronze
Key Characteristics: This is a lightweight alloy with corrosion resistance ability and has been more useful in projects where aesthetics are of consideration.
Use Cases: Commonly employed in the welding of dissimilar metals, artistic sculptures, and architectural applications because of its golden color.
Data: Usually, silicon bronze has tensile strength of 370MPa with an elongation of up to 30%, equating strength and flexibility.
Aluminum Bronze
Key Characteristics: It is characterized by high strength and good resistance to wear and corrosion.
Use Cases: Suitable for heavily stressed components like bearings, gears, and marine hardware.
Data: Depending on composition, aluminum bronze has tensile strengths between 485-750 MPa and can be exposed to temperatures up to 600°C (1112°F).
Phosphor Bronze
Key Characteristics: This is durable and fatigue-resistant, a quality for which it is prized in precise instrumentation.
Use Cases: Employed wherever springs, electrical contacts, and precision tools are involved because of its ability to retain shape under stress conditions.
Data: It combines wear resistance with tensile strength generally around 345-450 MPa, which enables it to stay for long in the rigorous applications.
Comparative Analysis of Copper Alloys
Copper alloys include brass, bronze, phosphor bronze, beryllium copper, and cupronickel. Below is a summarized comparative analysis of these alloys in tabular form:
| Alloy | Strength | Corrosion | Conduct. | Use Cases | Temp. Res. |
|---|---|---|---|---|---|
| Brass | Moderate | Good | Good | Plumbing, Décor | 400-460°C |
| Bronze | High | Excellent | Moderate | Bearings, Statues | ~315°C |
| Phosphor Brz. | High | Excellent | Moderate | Springs, Contacts | 345-450°C |
| Beryllium Cu | Very High | Excellent | High | Tools, Aerospace | ~320°C |
| Cupronickel | Moderate | Excellent | Moderate | Marine, Coins | ~260°C |
The Welding Process for Copper
When welding copper, the skill lies in choosing the proper welding method depending on the specific copper alloy and its characteristics. Among the common welding methods are GTAW, GMAW and resistance welding. I always consider the preheating of the material, as the heat dissipates quickly due to copper’s high thermal conductivity; and I opt for filler materials compatible with the particular alloy to form a strong joint and reliable weld.
Overview of the MIG and Stick Welding
MIG welding, a versatile welding method, is adaptable and efficient, yet suitable for a variety of materials, copper included. The process involves feeding a solid continuous wire electrode by means of a welding gun into the weld area that is shielded by inert or semi-inert gas such as argon or a mixture of argon and CO2. Because it is fast yet adaptable, this method rates highly among welders working in fabrication shops. Present statistics reveal that depending on the respective type of equipment and material involved, the deposition rate ranges between 8 and 18 pounds per hour, ensuring maximized efficiency.
Another big player is the stick-welding method or SMAW (Shielded Metal Arc Welding), whereby the consumable electrode is surrounded by flux that may protect the weld area from atmospheric contamination. Stick welding is often appreciated for its simplicity and can reliably be performed outdoors, in less controlled environments, such as on construction or repair projects. Due to the increased depth of penetration, it is especially beneficial when working on thicker sections of copper. However, skilful welders must guarantee the production of clean, uniform welds. Set current for stick welding usually varies from 50 to 300 amp, allowing the fine-tuning for various thicknesses of materials.
Each of these techniques comes with its set of strong points; therefore, choosing one welding method over another depends on the spec of their project, the materials, and the conditions involved during welding. Technology advances continue to improve these methods, providing even better precision and efficiency for welders.
Preheating-Copper for Better Results
The preheating of copper metal is commonly regarded as a crucial step for achieving superior weld quality and ensuring strong bonds. Its thermal conductivity and rapid heat dissipation quality also mean that the preheating compensates for excessive quick cooling, which would otherwise cause cracks or weak joints to develop. Generally, preheat temperatures for copper lie in the range between 212°F (100°C) and 572°F (300°C). Yet, going up to about 752°F (400°C) might be an option for thick sections.
Furthermore, it has been found that when copper is hot, less welding current was needed, and the risk of porosity was decreased within the weld. Preheating allows for keeping temperature constant throughout the welding period, thus that it eases deeper penetration and lessens distortion. The use of infrared thermometers or thermal crayons throughout the preheating stage can ensure temperature precision, which is an essential factor for best results. Another advantage of this method is that it improves weld mechanical properties, thereby supporting long-term durability in structural applications.
Welding Equipment and Tools for Use and Support
Having the right tools and equipment is an essential combination that ensures safety, efficiency, and good quality of welds when preparing to weld. Following is a more comprehensive list of welding equipment with updated insights into their functions:
Welding Machine
With the advancement of technology and increased focus on precision and reliability, the latest generation of welding machines include MIG, TIG, and stick welding equipment. For instance, an international survey was conducted in 2023 and yielded data that MIG welding machines are preferred by over 52% of the welders from all around the globe, owing to the easy handling and its ability to weld diverse materials.
Protective Gear
Protective gears required by any welder range from helmets with filters that automatically darken to gloves made of materials resistant to heat and flame-proof clothing. As one of the recent innovations introduced, helmets are equipped with ventilation systems that help with utmost comfort and also reduce the chances of heat fatigue.
Cutting Tools
Plasma cutters or oxy-acetylene torches stand as some of the best material-preparation tools before the welding operations commence. The 2022 industry report states plasma cutters to be the first preference for professionals as they are extremely precise and can cut metals up to 1.5 inches thick.
Measuring and Alignment Tools
Accuracy measurements are guaranteed for tools such as calipers, angle finders, and laser levels. Now, laser levelers can be accurate up to 0.1mm, therefore, speeding up the set-up process and productivity.
Fume Extractors
Welding does have some hazardous gas emissions and, of course, any working environment should be kept free from these contaminants. Welding extraction systems are used for this purpose, with studies pointing out that modern-day portable extractors can remove 95% of toxic particles in a working environment, minimizing risks of long-term respiratory ailments.
Investing in high-quality equipment tailored to specific welding needs ensures not only effective operations but also aligns with current industry trends toward safety and efficiency.

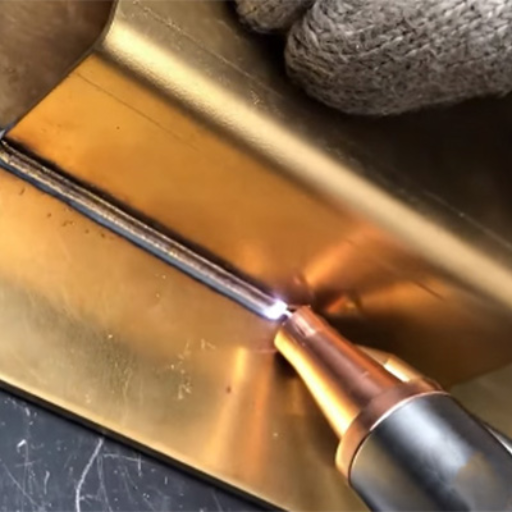

Common Challenges in Copper Welding and Their Solutions
A primary issue in copper welding is the very high thermal conductivity, which makes proper heat concentration difficult. To compensate, I tend to use heat sources of high intensity and preheat the material if deemed necessary. Oxidation can also be an issue, and I protect against this by using inert shielding gases in the welding process. I work around these challenges to produce a reliable and sound weld.
Heat Control and Distortion
Heat control is of utmost importance in the copper welding process, and in consequence, the engineering of the presence of aqueous copper allows for heat to disperse rapidly from its focal areas. Copper conducts heat rapidly, so it becomes very imperative to apply correct techniques that will produce proper penetration without severe distortion because of this property. It is found from industry sources that copper’s thermal conductivity is about 20 times more than stainless steel; hence, the importance of using high-power equipment that ensures consistent heat application.
As another method for reducing distortion, preheat copper at about 392°F (200°C), and thus thermal stresses from excessive temperature differences can be minimized. Also, utilizing a backing plate of steel or carbon can help with stabilizing the workpiece and ensuring its even heat distribution. It has been shown in research reports that keeping a controlled heat input is of prime importance, with the heat affected zone (HAZ) ideally being as narrow as possible to conserve the integrity of the material.
These methods, along with recent technological advances such as automated welding processes and laser-based techniques, calibrate present precision and repeatability and reduce the possibility of human error that occurs in manual welding applications.
Dealing With Oxidation and Contamination
Oxidation and contamination may be such severe problems that they could somewhat tilt or entirely jeopardize the weld’s legitimacy and strength. Whenever the molten metal contacts oxygen in the air, oxide materials will be formed; such oxides will threaten the weld joint weakly. Contamination, however, results from some spur impurities, such as dust, dirt, grease, and/or moisture sources either on the welding surface to be welded or from somewhere in the welding ambiance.
Advances in technologies and contemporary best practices are used to suppress these factors. For instance, an inert shielding gas of argon, helium, or a mixture of both can provide protection against oxygen and atmosphere gases upon welding. Studies show that argon works best for aluminum and stainless steel materials, whereas helium facilitates deeper penetration in welding for thicker materials.
To increase weld strength and eliminate defects, one must have a range of cleaning processes for surface preparation, all of which prevent contaminations. Cleaning may include chemical treatment, mechanical wire brushing, or ultrasonic cleaning, all of which prepare the surface for welding. Additionally, keeping a close eye on the environment in which welding is done-whether it be in a vacuum chamber, or an inert gas enclosure-would greatly minimize the risk of oxidation and contamination.
Utilizing state-of-the-art developments such as laser welding that is performed in highly controlled environments has exhibited exceptional results. For instance, it was recorded that laser welding attains a defect rate as low as 0.02%, while the traditional welding accounts for defect rates averaging between 1-2%. These precise methodologies not only intensify welding quality but also diminish the risk of post-weld treatment and repairs, therefore, saving industries a lot of time and money.
Expert Opinion on Tweaking Issues
Finding solutions to welding problems demands heavy knowledge about the materials, technologies, and techniques used in the welding processes. A prominent challenge in welding is porosity, which weakens the weld strength, as per recent insights found online. Industry experts have shown that by seventy to ninety percent, porosity can be greatly minimized through ensuring appropriate flow rates of shielding gas and maintaining clean surfaces right before welding. Advanced instruments for diagnosis, such as ultrasonic testing and X-ray, are equally in use for detecting subsurface imperfections, especially their accuracy has been reported to be more than 95%.
Distortion is another very common problem associated with input heat during the welding process. Recent sources claim that by preheating or heat sink application, distortion can be reduced by some 30-40%. The use of temperature sensors gives an active monitoring of the interpass temperature, thus improving precision and lowering inconsistency from another end of the spectrum. Empowering through technologies alongside systematic troubleshooting will represent a huge discovery for manufacturers, which is an increase in weld qualities alongside the efficiency of production by as much as 15-25% as some sources had observed.
Reference sources
1. High-power blue laser and copper welding with near-infrared fiber laser
- Authors: Taisuke Atsumi et al.
- Publication Date: March 12, 2024
- Citation: (Atsumi et al., 2024, pp. 128670A-128670A – 9)
- Summary: This study discusses the challenges of copper welding using near-infrared (NIR) fiber lasers due to low absorption and high thermal conductivity of copper. The authors present a hybrid laser system combining a 2-kW blue laser with a 3-kW NIR fiber laser. The blue laser enhances the absorption of copper, generating a stable molten pool and assisting in uniform welding with reduced spattering.
- Methodology: The research involved experimental setups to evaluate the performance of the hybrid laser system in welding copper, focusing on the characteristics of the molten pool and the quality of the welds produced.
2. Hybrid laser system with blue laser and near-infrared fiber laser for copper welding
- Authors: M. Nakazumi et al.
- Publication Date: March 4, 2022
- Citation: (Nakazumi et al., 2022, pp. 119830J-119830J – 8)
- Summary: This paper presents a hybrid laser system that combines a 1-kW blue laser with a 3-kW NIR fiber laser for effective copper welding. The blue laser’s high absorption rate allows for stable molten pool formation, which aids the NIR laser in achieving uniform and spatter-free welds. The study reports successful welding of pure copper with significant penetration depth.
- Methodology: The authors conducted experiments to assess the welding performance of the hybrid system, measuring parameters such as penetration depth and bead uniformity.
3. Blue laser-assisted kW-class CW NIR fiber laser system for high-quality copper welding
- Authors: Yuta Ishige et al.
- Publication Date: March 5, 2021
- Citation: (Ishige et al., 2021, pp. 116680M-116680M – 10)
- Summary: This research explores the combination of a blue laser with a kW-class continuous-wave NIR fiber laser to improve the quality of copper welding. The blue laser’s high absorptivity leads to efficient heat generation at the welding spot, enhancing the overall welding quality. The study demonstrates the effectiveness of this hybrid approach in producing high-quality welds.
- Methodology: The authors designed and tested a hybrid laser system, analyzing the effects of different laser parameters on the quality of the welds produced, including bead shape and penetration depth.
Frequently Asked Questions (FAQs)
What is copper used for in welding?
Copper is basically used in welding as fillers and as part of welding electrodes. Its excellent electrical conductivity coupled with favorable thermal properties makes it truly the metal to be used in MIG and TIG welding, allowing its users to make durable and strong welds.
Why is copper preferred over other metals in welding?
It is due to its rather high thermal and electrical conductivity, relatively low resistance, finishless patina, and corrosion-resistant nature that copper welds are used for different applications where heat distribution and joining need to be equal.
What kinds of welding can utilize copper?
Copper can be used in several types of welding processes: MIG welding (Metal Inert Gas), TIG welding (Tungsten Inert Gas), and resistance welding. Each one of these processes benefits from copper’s applications, strengthening both the weld and the weld efficiency.
Can copper be welded to other metals?
Yes, although with some distinctions, copper can be welded to various metals such as steel, aluminum, brass, and many more. However, a different welding technique or different filler material may be necessary to make sure that the bond is strong, because different metals have different melting points and properties.
What precautions must be taken when welding copper?
Aside from ensuring proper ventilation to avoid inhaling harmful copper fumes, the right welding technique and equipment need to be used. Since copper can warp easily, special caution should be exercised. Wear your protective gear.
How do you clean copper before welding?
Cleaning copper before welding involves removing any oxidation, dirt, or grease that may interfere with the weld. Generally, it may be done by using a wire brush, abrasive pads, or chemical cleaners that are particularly designed for metals to produce a clean surface for the best adhesion.
What are the advantages of copper electrodes in welding?
Copper electrodes have the advantages of better heat transfer, lower wear, longer electrode life, perfect arc stability, and higher current.
Is it necessary to use a specific filler material when welding copper?
Most probably; to weld copper, one should always use filler material compatible with copper for best results. The selection of filler land is based on the mating of the base metals and the kind of welding process used for resulting in a compatible, strong weld joint.
