Engrave with Precision: The Ultimate Guide to CO2 Laser Marking Machine on Wood

The Union of Craftsmanship and Artistry Predates Wood Engraving. Engraving Tools Now Come with CO2 Laser Marking Machines. These machines allow users to do finer etching and marking. Whether you craft, are a hobbyist, or simply own a business, ensuring that you pay attention to the value that a CO2 laser engraving provides is crucial. In This Guide, I Will C The Everything Step By Step, So You Know All The Tools And Techniques Needed To Achieve Perfection. This Includes Setting The Right Parameters For Different Types of Wood. This Blog Post Is Designed To Make Sure You Master Laser Wood Engraving. Grab those ideas and turn them into reality with our unmatched CO2 laser technology.

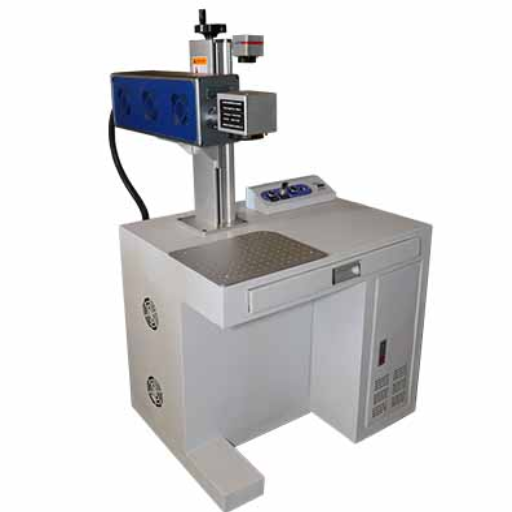

What is a CO2 Laser Marking Machine?

How does a CO2 laser engraving machine work?

A CO2 laser engraving machine generates a carbon dioxide gas laser that produces an intense beam of infrared light. This starts when an electrical current “excites” a laser tube gas mixture of carbon dioxide (CO2), nitrogen, helium, and some hydrogen or xenon. When excited by an electric current, the gas molecules further amplify the existing light energy, creating a laser beam. This beam is passed through several mirrors before it is focused with a lens on the material’s surface.

The material is then heated with a laser beam to the point that it either vaporizes or melts, creating precise cuts or engravings. The movement of the laser-controlled head is executed by computer-controlled software, allowing intricate patterns, texts, or designs to be engraved with precision. For example, advanced CO2 laser engraves can achieve resolutions up to 1,000 DPI (dots per inch); hence, high detail and professional-quality output are ensured.

As with all machines, the power of a laser—typically manifested in watts—will measure its capability. For engraving less abrasive materials like plastic or wood, entry-level machines capable of 30- 60W will suffice. Advanced machines can exceed 100W and cut through denser materials like stone or acrylic. These machines are typically fitted with air-assist systems that blow away debris and cool the engraved surface, improving precision while reducing burn marks.

Modern CO2 laser engraving machines have enhanced efficiency features. Most machines today have incorporated auto-focus mechanisms that maintain a constant distance from the laser to the object, as well as rotary attachments that allow for easy engraving of cylindrical objects. Depending on the model of the machine, some are capable of engraving at speeds up to 1000 mm/s, which enables cost-efficient production in high-volume applications.

An all-in-one solution with a CO2 laser, precision machining, and modern technology allows for engraving signs, custom engravings for medical devices, and other engravings across various industries. CO2 laser engraving machines fully integrate precision engineering with advanced technology and are, without a doubt, the most advanced tool that a professional engraver could ask for

What types of wood can be used with a CO2 laser marking machine?

Various timbers can be used with a CO2 laser marking machine, with different characteristics and engraving results. Here are five commonly used types of wood:

• Plywood

Plywood is best used in a layered form as it is more durable and versatile. It engraves well and is often used for detailed designs in signage and decorative projects.

• Birch

Birch wood has a delicate and uniform grain that enables clean and precise engraving. It can also be used for intricate craft patterns and is popular in artistic applications.

• Maple

Medium-density fiberboard, also known as MDF, is easily available and reasonably priced. Plywood’s distinct engraving quality makes it useful for prototyping and large-scale tasks.

• Cherry

Cherry wood is prized for its warm reddish tone and fine grain. Engravings on Cherry Wood tend to have a warm and rustic feel, making them highly favorable for custom gifts and luxury goods.

• MDF (Medium Density Fiberboard

MDF is readily available and highly prized for its reddish shade and delicate lines. Core and luxury good mdf.

Since various kinds of wood respond to the laser differently, it’s paramount to change the machine’s power and speed settings to achieve optimal results. Trying out different woods ensures that individual applications are tailored to the needs of particular projects.

What are the benefits of using a CO2 laser for wood engraving?

• Flexibility and Detail Or Laser Precision

Wood CO2 lasers custom and detail engraving wood, enabling intricate detailing and intersections to be etched on wood. They are suited for creative artistic works and fine prototypes.

• Customization of Different Types of Wood

CO2 beam lasers can engrave a broader range of materials, including softwoods, hardwoods, ply, and MDF. Such woodworking laser capabilities provide more diversity for several tasks.

• High Speed and Efficient Work

CO2 lasers equipped with varying levels of power and speed settings, ideal for intricate wood designs, help save time and optimize the quality of the work done. This is helpful when dealing with bulk-sized orders or when time is limited.

• Professional Results of Superior Quality

Achieving high-quality results depends on the flexibility and reliability of these lasers. The laser beam is uniform, which means consistency in engraving with increased precision, accuracy, and even finish is guaranteed. The best lasers achieve professional results without any undesirable outcomes.

• Engraving Without Contact

As non-contact CO2 lasers are a definite non-contact process, wear or tear on engraving tools is practically fictional; this also means there is zero damage risk on the wood surface. It is safe for the machine while improving its lifespan.

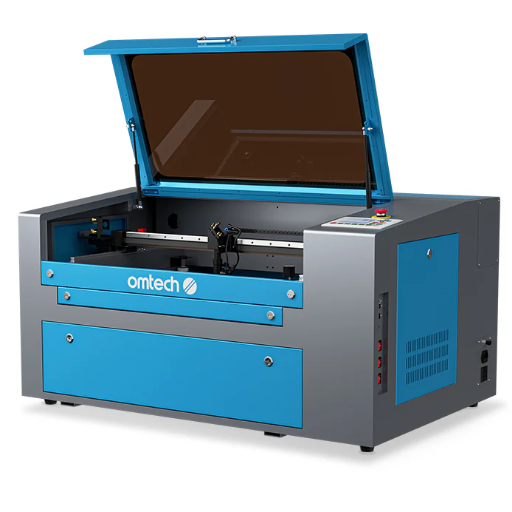

How to Choose the Best CO2 Laser Engraving Machine?

The best CO2 laser engraving machines are subjective, as they vary from person to person based on their needs. Here are some of the most critical points to keep in mind.

• Power and Speed

Choose a power level in watts depending on the material to be processed and the depth of engraving. For thicker materials, the power should always be higher to allow for faster processing.

• Work Area Size

Think about the work area. Larger machines will have bigger engraving beds to accommodate materials used in large projects.

• Software Compatibility

Check if the machine works with software relevant to your projects. Pay attention to the ones that offer guides, as such machines work with multiple extensions.

• Build Quality and Durability

The machine should be well built because it will reduce the need for superfluous repairs and maintenance work in the future.

• Budget

Expenditures should be less than what you need. Scale precision, affordability, and value keenly without compromising results, functionality, and quality.

By following the advice provided, you can analyze the engraver without losing focus and strategically hone in on enjoying the required CO2 laser engraver.

What is the difference between CO2 and fiber laser machines?

Key Point	CO2 Laser Machine	Fiber Laser Machine
Initial Cost	$8,000–$50,000	$20,000–$500,000
Operating Cost	Higher, $12.73/hour	Lower, $6.24/hour
Maintenance Cost	Higher, mirrors & tubes are replaceable	Lower, minimal maintenance
Energy Efficiency	10% efficiency	30-50% efficiency
Material Compatibility	Best for non-metals	Best for metals
Long-term Cost-effectiveness	Lower initial cost but higher running cost	Higher initial cost but efficient running

How do you determine the best laser power for wood engraving?

Selecting appropriate laser power for wood engraving depends on the type of wood, the design’s detail level, and the engraving’s depth required. Explanatory data supporting the two reasons of concern are stated below:

• Type of Wood

Wood type also differs based on how it gets engraved by lasers. Softer wood, such as pine or basswood, will use less laser power (approximately 10 to 30W); however, they tend to burn easily at higher power. On the other hand, oak and walnut (hardwoods) need approximately 40 to 60 watts of power to enable deep contours while still keeping excessive burning to a minimum.

• Power vs. Speed

Stronger laser power delivers deeper engraving at a normal pace because broader energy is given at every pass, which is optimal for mass production. For instance, ornately detailed engravings of around 1.5mm on oak are achievable at 50% speed using a 50W laser engraver. On the other hand, power settings that are not enough to achieve the desired results will require longer speeds, hence elongating production time.

• Design Complexity

Less powerful and slower speeds render intricate designs to prevent excess burning while maintaining fine details. For instance, a 30W laser at 300mm/s can achieve intricate engraving on light woods.

• Desired Depth and Finish

Lower power settings are advisable to achieve shallow engravings for details like logos and text. Higher power levels (50W and above) are recommended for deeper and more pronounced engravings and cutting through the wood.

What is the Laser Engraving Process Like?

Each laser-engraved wood design begins with applying a laser beam to the material’s surface, which could be wood, metal, or plastic, and creating patterns, texts, or designs. The design undergoes some preparation stages as a digital design, which is stored in a computer and later transferred into a machine with laser capability. This laser cutting machine directs laser beams into the material marked digitally. The laser’s strength and movement are altered based on the material type to ensure no damage to the material’s surface. This type of method is considered cost-effective and accurate when large products need to be fabricated.

What steps are involved in the engraving process?

• Preparation of the design

The initial stage involves finding or developing a digital design through graphic design software. This drawing will be engraved as the cutout template during the engraving. Most laser engraving machines accept SVG, AI, or PDF files.

• Material Selection and Preparation

Of great importance is choosing the appropriate material for engraving. It could be wood, acrylic, metal, glass, or leather. After the selection is made, the material’s surface is cleaned and glued to the machine’s work area to prevent movement during the engraving work.

• Setting Up the Machine

Each type of material and design has its level of complexity. The machine has to be set accordingly for the best outcome possible. The laser intensity, speed, resolution, and focus point, among other things, need to be changed to achieve the best outcome for the particular work.

• Execution of engraving

Calibrating the machine and uploading the design are the first steps in starting the engraving process. The machine guides the laser beam along the path within the preset borders, applying the engraving accurately and quickly according to the parameters.

• Finishing after engraving

The material is checked after the work is done to see if there are visible subtleties. If there are, cleaning, polishing, or coating are optional processes that can be applied to improve attractiveness and product strength.

How do you prepare wood material for laser engraving?

Taking the proper steps before working with wooden materials will ensure the highest quality results when engraving with a laser. Below is a step-by-step guide to getting the wood ready for laser engraving, utilizing the newest strategies and improvements in the field:

• Choose the Right Type of Wood

Choosing the right piece of wood is crucial. A softer piece, such as basswood or alder, will be easier to engrave. Softer wood types have clean, light engravings that are appealing. If you want richer engravings, oak or maple hardwoods offer dense contrast, although they will require more power when being engraved. Any wood that stores a lot of oil or resin should be avoided, as it leaves residue during the process.

• Sanding the Surface

You will want the wood’s surface to look even and smooth, so fine-grade sandpaper like 220-grit will work best. Sanding also removes defects and guarantees a constant interaction between the material and the laser beam. When done with sanding, remove all debris to avoid particles disrupting the engraving process.

• Make Sure that The Wood is Dry

The amount of moisture present in a piece of wood can severely impact its performance during engraving. Ideally, the water content should be between 6% and 8%. Using a moisture meter to check this is a good way to avoid inconsistent engravings or damage to the material.

• Test With A Sample Piece

It’s helpful to run tests on a sample wood piece of the same type prior to engraving the final piece. Fine-tuning settings such as laser power, speed, and resolution can achieve the desired design and appearance.

• Surface Masking (Optional)

In cases where designs have sharp details, edges without burn marks can be achieved by utilizing masking tape or laser-safe adhesive film. The tape layer applied over the wood can be removed after the engraving.

• Material Securing on The Laser Bed

To prevent the wood from moving around causing shits/ unalignment to occur, the wood should be secured in place with clamps/ weights. Moving parts combined with an unstable engraving surface can distort the design.

• Adjusting The Laser Settings

Before adjusting the laser power, speed, and focus, the design and the type of wood must be taken into account. The following points can help in the case of engraving different types of wood:

Lighter wood (Pine, Basswood): suggested slower speed and lower power.

More complicated wood (Walnut, Maple): higher power or slower speed engraving tends to be required.

Wiping the wood with a damp cloth or a tack cloth will remove any lingering dust or debris from the surface. This will help the engraving remain bold without marks.

Following these steps will immensely enhance the quality and definition of your laser wood engraving projects, making them fit your or your customers’ expectations. Remember to test and play around with the settings tailored to the specific materials you are using with your laser machine.

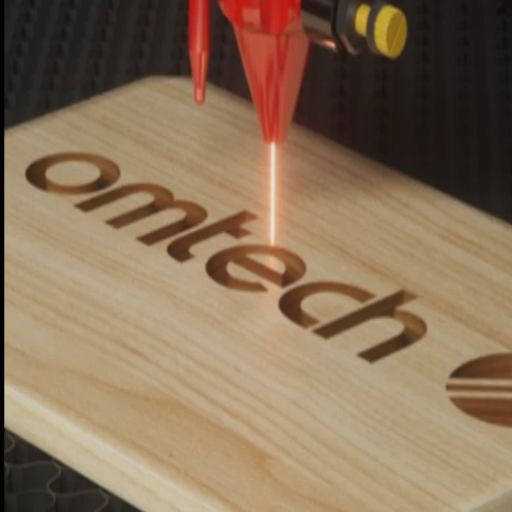

Common Applications of CO2 Laser Marking Machines on Wood

CO2 laser marking machines are popular in wood engraving and cutting for various purposes. These include custom gifts like plaques, photo frames, and decorative pieces. They are also used to engrave detailed designs into furniture, signs, and other artistic pieces. Moreover, CO2 lasers are commonly used in industrial applications like labeling or marking wooden boxes by engraving logos, barcodes, and other production information. Most machines are multifunctional and achieve engravings or cut-outs on numerous types of wood, attaining remarkable detail and precision.

What are popular products engraved with a CO2 laser?

CO2 laser engraving machines are widely used across various industries due to their

• Preparation of Design

The initial stage incorporates making or choosing a design from well-known graphic design software. This design will be used as a template for the engraving. Most laser engravers accept SVG, AI, or PDF files, which makes these formats popular.

• Selection and Preparation of Material

Choosing the right material is critical for successful engraving. Some of the widely used materials include wood, acrylic, metal, glass, and leather. The selected material is then cleaned, and to prevent movements while engraving, it must be fixed correctly in the working region of the machine.

• Setting Up the Machine

The settings on the laser engraving machine will depend on the material type and the complexity of the design. Some of the important adjustments to be made are the laser intensity, speed, resolution, and focus point. These settings greatly affect the results of the specific project.

• Execution of Engraving

The engraving is done with the machine set, and the necessary design is uploaded. Setting the machine to follow a parameter allows it to move unguided while the laser beam draws the design. This is a quick method and leads to optimal accuracy.

• Finishing After Engraving

Check that all outlines on the design and engravings are smooth. Depending on how polished the custom project was, the part might need a few other things added to it, such as cleaning, polishing, and surface coats, to make it shine more.

How is laser technology used in custom wood products?

Key Point	Black Steel Pipe	Galvanized Steel Pipe	Copper Pipe	PEX Pipe
Material Cost	~$5–$8/ft	~$8–$12/ft	$2–$8/ft	$0.40–$2/ft
Durability	Moderate, prone to rust	High, zinc-coated	Very high, 100 years	High, flexible
Corrosion Resistance	Low, rusts without coating	High, resists moisture	Very high, bacteria-resistant	High, non-corrosive
Maintenance	Requires frequent upkeep	Minimal upkeep needed	Low, lasts long	Low, simple to repair
Applications	Gas lines, fire sprinklers	Outdoor, liquid pipelines	Plumbing, high-end jobs	In-floor, heating systems

What are some creative projects using a laser marking machine for wood?

For as long as I can remember, I have loved working on laser marking machines for wood. Some of the more fascinating projects include custom engraving on cutting boards, furniture, personalized wooden signs, jewelry pieces, and coasters. Such projects let me channel my creativity in a whole new way since I can also make meaningful gifts or unique items for myself.

Reference Sources

1. Optimization of Wood-Based Birch Plywood Engraving using a CO2 laser with Taguchi Method derived from the Process Parameter Analysis. It Is a Proceeding of The International Forestry and Wood Industry Symposium

• Authors: Mehmet Güneş, Çağatay Ersin
• Publication Date: September 2, 2024
• Journal: Black Sea Journal of Engineering and Science
• Summary: This study focuses on optimizing engraving parameters on birch plywood using a CO2 laser machine. The Taguchi method established the variable levels for laser power, engraving speed, and head height. The results showed that laser power and speed greatly affected engraving depth, while head height affected engraving depth to a lesser extent. The optimal parameters were head height of 5 mm, speed of 100 mm/s, and power of 30 W for maximum engraving depth.
• Methodology: The authors implemented an industrial laser system comprised of a 150W glass tube, undertaking the Taguchi L25 orthogonal array to carve out the effects of various parameters on engraving quality (Güneş & Ersin, 2024).

2. Optimization of Cutting Parameters of Sengon Plywood (Paraserianthes falcataria) using CO2 laser with Response Surface Methodology

• Authors: Nugraha Muhammad Dimaz et al.
• Journal: Journal of Sylva Indonesiana
• Summary: This study focused on optimizing the parameters of laser cutting Sengon plywood with a CO2 laser to improve cut quality. It sought to determine the impact of laser power and cutting speed on the quality of the cuts. The results indicated that the greatest cutting width and depth occurred at a power of 50 W and a speed of 2 mm/s. Additionally, there was a higher overall color change at higher laser powers.
• Methodology: The study was conducted using RSM, which is known for optimizing processes, as an analytical tool to explore the effects of altering cutting parameters on the resulting quality of the cuts (Nugraha et al., 2024).

3. Top Co2 Laser Marking Machine Manufacturer And Supplier In China

Frequently Asked Questions (FAQs)

Q: What is a CO2 laser marking machine used for on wood?

A: A CO2 laser marking machine is used for precise marking, engraving, and cutting of wood. It utilizes a laser source to create detailed designs and patterns on the surface of the wood, making it ideal for wood crafts and personalized items.

Q: What are the advantages of using a fiber laser marking machine compared to a CO2 laser marking machine on wood?

A: While both machines provide excellent marking solutions, a fiber laser marking machine is more suited for metals and some plastics, whereas the CO2 laser marking machine is designed explicitly for organic materials like wood. Due to its wavelength, the CO2 laser offers better performance on wood, allowing for deeper engraving and cleaner cuts.

Q: Can I use a CO2 laser cutter to cut wood?

A: Yes, a CO2 laser cutter is specifically designed to cut wood and can achieve clean edges and intricate designs. It is one of the best tools for cutting wood, especially when paired with the right settings and lens.

Q: What types of wood can be used with a CO2 laser engraver?

A: A CO2 laser engraver can be used with a variety of wood types, including plywood, MDF, hardwoods, and softwoods. Each type of wood will produce different results based on density and grain, so it’s important to test settings for optimal results.

Q: What is the difference between laser engraving and laser etching on wood?

A: Laser engraving involves removing material from the surface of the wood to create a design, while laser etching simply changes the color of the wood without significant material removal. Engraving creates deeper marks, while etching offers a more subtle effect.

Q: What related products can I use with my CO2 laser marking system for wood?

A: Related products include various types of laser lenses for different engraving effects, rotary attachments for cylindrical wood items, and different kinds of wood to experiment with. Accessories for dust collection and ventilation can also enhance the marking process.

Q: What is the 2025 best CO2 laser wood machine for engraving and cutting?

A: The 2025 best CO2 laser wood machines are typically recognized for their high power, precision, and user-friendly features. Machines such as the 100W CO2 laser and those equipped with advanced laser generators are often recommended for their efficiency and versatility in engraving and cutting wood.

Q: How do I maintain my CO2 laser engraving and cutting machine for optimal performance?

A: Regular maintenance includes cleaning the laser lens, checking the CO2 laser tube for leaks, and ensuring the machine’s alignment is correct. It’s also essential to replace worn parts and update the machine’s software to provide the best performance.

Q: Can I achieve intricate designs when cutting wood with a CO2 laser?

A: Yes, a CO2 laser cutter can achieve intricate designs due to its high precision and the ability to control the speed and power of the laser beam. This makes it an excellent choice for detailed wood crafts and custom projects.
