CNC Router Machine: Automatic Tool Changer (ATC)

CNC routers with automatic tool changers (ATC) mark a revolutionary change in woodworking and precision manufacturing. These machines are ideal for companies and experts wanting to boost their productivity while maintaining their standards. Whether you’re an experienced artisan, a producer, or just want to learn more about the newest technologies changing the industry, this guide has everything you need to know about CNC routers with ATCs. This all-inclusive guide will ensure you understand the features and benefits of ATC routers, how they improve efficiency, and how to leverage these devices to maximize your operations and transform your business. As we reveal the limitless potential of these routers and the new era they are ushering in for automation manufacturing, we invite you on this journey.

CNC Router: What Is It and How Does It Work?

What is a CNC Router Machine?

The CNC router machine is perhaps the most sophisticated machinery available today. It performs precise machining and cutting in woodworking, metal fabrication, plastics, and composites. Moreover, it follows instructions provided via computer interfaces, making it exceptionally accurate and efficient in reproducing complex designs. A CNC router machine consists of a router spindle, worktable, and axes (most commonly X, Y, Z), allowing for complex movements in three-dimensional space to facilitate detailed cuts and engravings.

How Does a CNC Router Operate?

A CNC (Computer Numerical Control) router functions through the integration of both hardware and software, where each component interfaces efficiently, enabling accurate cuts. The entire process begins with producing the digital outline of the piece to be manufactured using CAD (Computer-Aided Design). The outline is then translated into a coded format that machines and computer-aided manufacturing (CAM) software understand. The code is usually in the form of G-code that contains instructions regarding the router’s movements. As soon as the code is uploaded to the control unit of the CNC router, the specified commands will be executed automatically.

The CNC router employs three basic axes, also known as X (horizontal), Y (vertical), and Z (depth), to position and move the cutting tool. Some newer models feature added axes, such as A and B, which can enable some degree of rotation, allowing rudimentary 3D carvings to be performed. The rotating spindle and modified cutting tools or bits move with the required precision across the material to be shaped along these axes. Stepper or servo motors drive each axis, making executing even the most complex designs possible.

Modern-day CNC routers have features like automatic tool changers, allowing for quickly and easily changing bits to suit various cutting, engraving, and drilling tasks. They also have incorporated vacuum tables or clamps that secure the material in place while operations are ongoing. Depending on the material processed, which can include wood, metal, plastic, or even composite materials, a very wide range of cutting speeds is available as well as spindle RPMs (Revolutions Per Minute) ranging from 24,000 to high-performance machines over 8,000 RPM.

With every part of furniture, auto parts, or even aerospace sections built under an exact template, the systems’ en masse precision also cuts material waste, raises the production line’s efficiency, and becomes very obseque.

Adding high-end technologies such as the Internet of Things (IoT) alongside sophisticated software is enhancing the capabilities of CNC routers even further. Tools can now accept cloud programming, monitoring, and predictive maintenance, which are becoming easier to acquire, making these machines some of the most advanced in automated industrial machinery.

What Are the Key Components of a CNC Router?

CNC routers contain parts like the frame, spindle, cutting table, cutting tool, controller, and software.

Component	Description	Key Role
Frame	Steel/Aluminum	Provides stability
Spindle	Electric cutting tool	Cuts material
Cutting Table	Fixed/Adjustable	Holds workpiece
Cutting Tool	Drill/Mill bits	Shapes material
Controller	Computer system	Controls movement
Software	CAD/CAM programs	Generates G-code

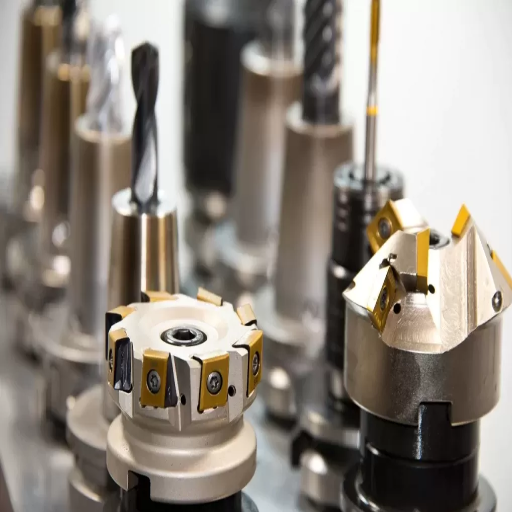

Understanding Automatic Tool Changer (ATC)

What is an Automatic Tool Changer?

An Automatic Tool Changer (ATC) is a sophisticated accessory on a Computer Numerical Control (CNC) machine that simplifies the tool-changing actions needed in a machining operation. Using an ATC enables machines to automatically change tools from a magazine, carousel, or chain, thus performing multi-step processes without human input. Modern ATCs integrate intelligent algorithms and sensors, enhancing precision and reducing tool-change times, making them indispensable in environments where productivity and accuracy are critical. Advancements in technology have expanded the types of tools that can be used with ATCs, making it possible to handle more intricate machining operations, which boosts manufacturing efficiency and lowers production costs.

How Does an ATC Work in a CNC Router?

An automatic tool changer (ATC) in a CNC router works by automating the tool changing process during machining, both simplifying and making the process more seamless, as no manual interaction will be required. The CNC begins the process by receiving instructions that are in its digital form while pre-programmed. Usually, the ATC mechanism contains tools stored in a magazine or carousel. The system determines the appropriate tool for any given machining task, then ejects the current tool held at the spindle and repositions the next tool from the magazine using a manipulator or robotic arm.

Contemporary ATCs incorporate sensors alongside other elements of software and advanced technology to ensure the correct and held placement of the tools being exchanged, which minimizes the occurrence of mistakes in the process. Additionally, they can accept different sizes and types of tools, making them suitable for multi-dimensional cutting, engraving, drilling, and shaping. The sequence of elementary operations involving tool changing can be completed within seconds, considerably augmenting speed while maintaining precision and repeatability and CNC routers with ATCs are perfect for these kinds of industries and are therefore made suited for other industries with heavy workloads like aerospace, woodworking, and metal fabricating.

Benefits of Using an Automatic Tool Changer in CNC Routers

Automatic Tool Changers (ATCs) offer many benefits for CNC routers, greatly increasing efficiency, precision, and workflow across different industries. Below are five significant advantages when employing an ATC in CNC routers:

• Increased Productivity

ATC systems help reduce machine downtime by automating the tool-changing process. Changes that would take several minutes can now be completed in seconds. For example, a study found that production ATCs can reduce production time by 30–40% in some operations.

• Improved Accuracy and Uniformity

Automatic tool changers prevent human error by ensuring the right tool is chosen and properly mounted during each tool transition. This is critical in many industries, such as aerospace and automotive manufacturing, where precision is vital.

• Flexibility for Complicated Designs

ATCs streamline the execution of intricate designs and multi-step projects because they can execute a range of operations, such as cutting, drilling, and engraving, all in a single setup. This flexibility enhances manufacturers’ operational capability.

• Decreased Operational Costs

Because tools are changed automatically, constant manual oversight and intervention are reduced. This alleviates the number of personnel needed and enables machine operators to oversee several units simultaneously or to perform more valuable functions, generating cost savings over time.

• Increased Tool Life

Wear and tear data can be programmed to determine which tools to select, thus guaranteeing maximum performance and longevity. Advanced systems also incorporate constantly updated monitoring of the tool’s condition, which minimizes the chances of breakage and unnecessary downtime.

These gains make CNC routers with ATCs highly appraised in environments where production demand is high due to the efficiency and accuracy ATCs bring.

Choosing the Right ATC CNC Router for Your Needs

While selecting an ATC CNC router, consider your budget and production needs. Determine the shape and dimensions of the materials you will be working with first. This ensures that the machine you purchase has the right cutting area and capabilities. Evaluate the quantity of tools the ATC system can hold; machines with larger tool capacities perform better with diverse or complex tasks. Also, make sure that the spindle power is strong. This helps in cutting thicker and denser materials efficiently. Also, look for customizable software and features like real-time monitoring, which trims down operational and maintenance tasks. Lastly, look for manufacturers or suppliers with a good market reputation for customer support. This ensures good performance in the long run and service when needed.

What to Consider When Buying an ATC CNC Router Machine?

Key considerations include the machine’s size and work area, tool capacity and change speed, controller, software compatibility, and material compatibility.

Purchasing an ATC (Automatic Tool Changer) CNC router machine requires careful consideration of some elements that determine the value of the machinery. With the developments made recently, make sure to keep the following in mind:

• Machine Size and Work Area

Assess the machine size and work area relative to the scope of the project and the materials you wish to work on. Large machines with extensive workspaces are best suited for large-scale industrial applications, while smaller machines work best in compact workshops.

• Tool Capacity and Change Speed

Tool capacity for the ATC system must be at the top of your concerns. When faster tool-changing systems are in place, downtime is reduced, and efficiency increases. To match your production requirements, check how many tools the ATC can hold.

• Controller and Software Compatibility

Look for machines with easy-to-use and sophisticated control systems. CNC controllers must be reliable, as they add value in terms of accuracy and operational ease. Do not forget to check the machine’s software to be compatible with the ones you already have. Popular design software and workflows should be integrable.

• Material Compatibility

Wood, metal, plastic, and composite materials are all examples of materials you may work with. Choose a router with the right spindle power, tooling options, and cutting capabilities tailored to your material needs and requirements.

Precision and stability refer to the level of accuracy where repeated measurements yield the same result. The machine’s construction increases performance and durability; the design features linear guides, which help with stability and accuracy during functioning.

Adding automation equipment can increase the precision of a CNC machine. Some automation features, like vacuum clamps, can speed up the work process and keep the work area clean. More features installed mean higher productivity.

High-quality service with good terms allows the client to have him serviced properly, right on time, with rapid response when the services are needed. Free and timely support guarantees that all activities will be performed without downtime.

While developing a budget, they have to consider the efficiency of the machine over time. Other costs, such as the amount saved due to enhanced productivity, must also be calculated.

The features allow the customer to create any needed curve templates, which assures the delivery of the ATC CNC router machine that is specific to the customer’s production needs, promising efficiency and accuracy on every delivery.

Comparing 4×4 and 5×10 CNC Routers with Automatic Tool Changer

The 4 by 4 CNC routers are small and cheaper for personal projects, but the industrial five by 10 CNC routers are more productive and can do more work in a single session.

Parameter	4×4 CNC	5×10 CNC
Work Area	4’x4′	5’x10′
Size	Compact	Large
Cost	Lower	Higher
Productivity	Moderate	High
Applications	Small projects	Industrial tasks
Material Size	Limited	Large
Portability	Easy	Difficult
Setup Space	Small	Large

Maintenance and Troubleshooting for ATC CNC Routers

Regular maintenance is necessary to keep ATC CNC routers running smoothly and to extend their operational life. Some of the most critical maintenance actions are:

• Every day’s cleaning: Clear the working area, machine surface, and any other places within the machine where dust, debris, or leftover materials may get stuck to prevent interference with optimal performance.
• Do not forget to execute: Attention should also be given to these areas to lubrication: Ball screws as well as linear guides and any other moving parts must be lubricated as wear and tear is sure to happen without it, then there will be too little in adherence to what the manufacturer stipulates.
• Collets and tools need to be routinely checked for defects. Accuracy is also determined by the replacement of tool holders and collets, so they must be regularly checked for defects.
• Check air pressure consistency and hoses: Look for leaks and defective air hoses.

To solve commonly recurring issues:

• Tool change complications: Mechanically check if the tool magazine is correctly aligned, and sensors that could be blocking it are also examined.
• Software errors: If parameter resets are in order for the CNC software, then software updates are not. In that case, be sure to check because anything improper in the scope of the configuration could be the cause.
• Abnormal sound and vibration: Look for the answer in loose screws, bearings as well as spindle check.

If you have any advanced concerns, refer to the manufacturer’s manual or contact technical support. Proper maintenance and timely issue resolution can achieve optimal performance and efficiency.

How to Maintain Your CNC Router with a Tool Changer?

Cleaning, proper maintenance, and servicing of your CNC equipment are critical to ensuring accuracy, efficiency, and tool longevity. Follow these steps to maintain your tool changer:

• Regularly Clean the Tool Changer

Dust can accumulate and become a nuisance if the tool carousel or tool magazine section is left unattended for an extended period. Blow or wipe any dirt particles, collected dust, and small rubbish with a dry cloth from the tool changer, paying special attention to slots and moving parts.

• Inspect and Lubricate Moving Parts

It is critical to periodically clean the spindle, tool holder, and linear rails to prevent corrosion or mechanical wear. Using lubricants as suggested by the manufacturer, ensure that torque and friction do not cause movement resistance.

• Check Tool Calibration

Ensure that you regularly check the changer’s calibration and placement alignment to ensure that the tools on the device are not positioned incorrectly, scraping against each other. Tools blunted through this process can affect machinery or production material, leading to poor-quality work.

• Control Other Pneumatic and Electric Connections

A CNC router equipped with a tool changer often relies on pneumatic means to switch out toolholder units. Thus, appropriate checks should be done by monitoring air pressure, possible leaks, and hose and fitting wear. For hardware parts, check all connections, wiring, and physical sensors, and make sure all parts operate properly.

Common Issues with Automatic Tool Changer and How to Fix Them

While automatic tool changers are meant to boost performance and accuracy, they may sometimes fall short due to technical, operator, or other issues. Here are some common problems and additional potential solutions.

Misaligned holders may cause improper tool selection and/or excessive machine damage. Slow progression or unintentional impact, as well as improper setup, may cause this.

Resolution: To prevent repercussions, conduct straightforward tool alignment and calibration inspections according to the set instructions. Further complications can easily be avoided by replacing damaged tool holders immediately.

• Waste of Time Tool Changes

Any incomplete actions during the tool change process, such as incomplete clamping or dropping the tool, can completely disrupt production workflows, as this is often the case with sensor malfunctions and mechanical obstructions.

Resolution: Ensure no debris or tools are left at the changer and clean the area to prevent tool suspension accidents. Later, run checks on the sensors to double-check the changes made and their impact.

• Changed but Not Gone

Misplacing tools inside the changer alters their usability and preset locations, creating new preset locations that may not be recognized by the system. In the process, this alters mobility and makes rigid motions fluid. This incident stems from working incorrectly with insufficient controls, bad machine parameters, or unruly operational conditions.

Corrective action: Match the cutting parameters to the specific material being worked with. Replace tools regularly and keep them in a clean place to prevent cross-contamination.

• Failures in Pneumatic or Hydraulic Systems

Many ATCs are equipped with hydraulic or pneumatic systems for tool swapping. These systems may encounter problems like leaks or failing to maintain adequate pressure, which can lead to an inoperable ATC.

Corrective measures include inspecting the pneumatic or hydraulic system for sealed leaks and confirming that the working pressure is within the recommended limits set by the manufacturer.

• Mistakes in Software or Logic Programming

Outdated software can lead to out-of-date programming, which can cause miscommunication with the controller, resulting in the tool changer not performing as intended.

Corrective measures: Ensure the machine’s software is updated regularly and check that all control program codes are correct prior to system takeoff. Run simulations to mitigate unanticipated hitches.

Understanding and troubleshooting these changes as soon as possible, along with a consistent maintenance plan, can significantly reduce the automatic tool changer’s non-productive time and idle time. The user must remember to refer to the CNC router’s performance manual and consult an expert in case advanced kinematic and software engineering puzzles surface.

Reference Sources

1. “Study of the Effect of Friction on the Errors of the Stopping Position of the Automatic Tool Changer on CNC Machine Under Variable Relative Humidity Conditions” (2021) (Hùng et al., 2021, pp. 396–404)
   • Key Findings: This study investigated the influence of relative humidity and friction on the accuracy of the ATC’s stopping position in a CNC machine using a pneumatic cylinder. The findings are relevant to improving ATC precision under varying environmental conditions.
   • Methodology: The researchers conducted experimental studies to analyze the relationship between environmental factors (humidity), friction within the pneumatic system, and the resulting positional errors of the ATC.
2. “Smart Machine Box with Early Failure Detection for Automatic Tool Changer Subsystem of CNC Machine Tool in the Production Line” (2021) (Lin et al., 2021, pp. 1–8)
   • Key Findings: This research developed an innovative system for early failure detection in ATC systems. The system uses machine learning algorithms to analyze sensor data and predict potential failures. High-ranking indicators were identified for accurate and stable performance.
   • Methodology: The researchers collected data from multiple CNC machines, extracted features using statistical methods, selected high-ranking indicators, and trained a machine learning model (Naive Bayes achieved the best accuracy) to classify system states (usual, caution, danger).
3. “Implementation of bi-directional searching Chemical Reaction Optimization (CRO) algorithm towards achieving cutting tool indexing time minimization in Automatic Tool Changer(ATC)” (2021) (Karthikeyan et al., 2021)
   • Key Findings: This study proposed a Chemical Reaction Optimization (CRO) algorithm to optimize an ATC system’s cutting tool indexing time. The CRO algorithm efficiently found near-optimal solutions with reduced computational cost.
   • Methodology: The researchers used the CRO algorithm to determine the optimal cutting tool positions in the tool magazine to minimize indexing time. They also used benchmark case studies to evaluate the algorithm’s performance.

Frequently Asked Questions (FAQs)

Q: What is a CNC router with ATC?

A: A CNC router with ATC, or Automatic Tool Changer, is a machine designed for woodworking that allows for automatic tool changes during the cutting process, enhancing efficiency and precision in projects.

Q: How does the automatic tool change feature work?

A: The automatic tool change feature in a CNC router utilizes a tool changer to switch between different router bits or tools without manual intervention, streamlining the workflow and reducing downtime.

Q: What are the benefits of using a CNC router table with an ATC?

A: The benefits of using a CNC router table with an ATC include increased productivity, the ability to handle complex woodworking tasks, and reduced labor costs as it minimizes the need for manual tool changes.

Q: What types of materials can be processed with a CNC router for woodworking?

A: A CNC router for woodworking can process various materials, including solid wood, plywood, MDF, and composites, making it versatile for different projects.

Q: What is the best CNC router with an automatic tool changer for small shops?

A: The best CNC router with an automatic tool changer for small shops often depends on specific needs, but models like the 4×4 CNC router and small CNC router with ATC are popular for their compact size and functionality.

Q: Can I upgrade my existing CNC router to include an ATC?

A: Many CNC routers can be upgraded to include an automatic tool changer. However, the upgrade’s feasibility and complexity depend on the specific machine and its compatibility with available tool changer kits.

Q: What is a linear tool changer in a CNC router?

A: A linear tool changer in a CNC router is a system that organizes and swaps tools linearly, allowing for quick access and efficient tool changes during the machining process.

Q: What should I consider when choosing the best CNC router for woodworking?

A: When choosing the best CNC router for woodworking, consider factors such as the size of the work area, compatibility with tool changers, the power of the spindle, and the types of materials you plan to work with.

Q: What are some typical applications for an ATC CNC router?

A: Common applications for an ATC CNC router include cabinet door manufacturing, intricate wood carving, engraving, and producing complex designs in various woodworking projects.

Q: How does an industrial ATC CNC router differ from a standard CNC router?

A: An industrial ATC CNC router is designed for high-volume production and typically features more robust construction, higher precision, and faster tool change capabilities than a standard CNC router, making it suitable for larger-scale woodworking operations.
