As with other processes, cutting burrs require a degree of precision—along with a set of specific tools—especially in the dental or metalworking industries. This blog hopes to address the information gaps regarding various burr cutting methods, especially with carbide burrs and the benefits brought about by double-cut techniques. Whether you are a veteran in the industry or a budding enthusiast, this guide will help you understand tool choices and provide handy suggestions to improve your outcomes. Knowing the aspects involved in burr cutting will help improve the quality and operational efficiency of your work in many applications.

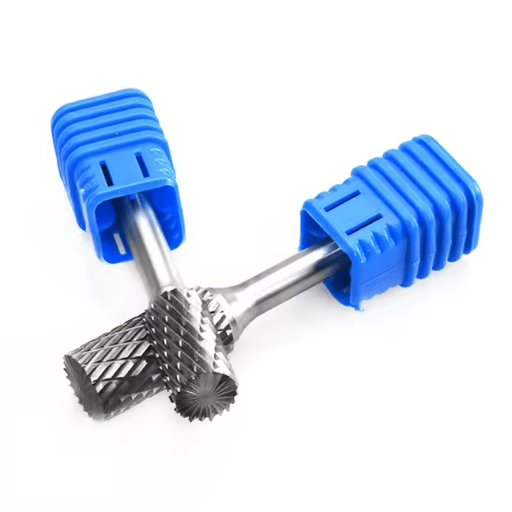

What are carbide burrs and how do they work?
Primarily utilized for shaping, deburring, and material removal on hard metals, wood and plastics, carbide burrs are rotatory cutting tools that are manufactured out of tungsten carbide due to their hardness and long-lasting properties. They function by rotating at very high speeds and performing cutting or grinding via specially designed teeth or flutes. Carbide burrs work even more effectively with double-cut designs since they reduce chip size and vibrations, allowing for more control during operation as well as smoother finishes.
Appreciating the Properties of Tungsten Carbide
The tungsten carbide material features a compound made of tungsten and carbon atoms, with a nearly diamond like hardness of 9 on the Mohs scale, and a density of 15.6 to 15.8 g/cm, which is above average when considering metals. The material also possesses an impact resistance, and a compressive strength greater than steel and titanium alloys. Tungsten also has a considerable melting point of 2,870°C (5,198°F), and a boiling point greater than 6,000°C (10,832°F) which makes it ideal for regions which experience extreme temperatures.
The material’s riport is true for its Youngs modulus as well, stated to range between 450 and 650 GPa. It does however retain enduring performance even in abrasive settings, showcasing incredible resistance to wearing. Alongside these properties, tungsten performs wonderfully thermally and electrically, affording an even wider range of industrial applications.
How Does Shank Diameter Affect Performance
The performance of cutting tools and associated machinery are affected by shank diameter. Increasing shank diameter tends to increase deflection and diminish rigidity, which is usually very important in detriment in highly precise applications. Smaller shank diameters are more flexible, and while they are less rigid, are more beneficial for more intricate or fine machining. The material being machined, the cutting speed, and how precise the operation needs to be all contribute to the decision regarding shank diameter. Moreover, proper interfacing between the tool shank and machine spindle increases stability while reducing mechanical vibration, thus improving operational efficiency, tool life, and shank longevity.

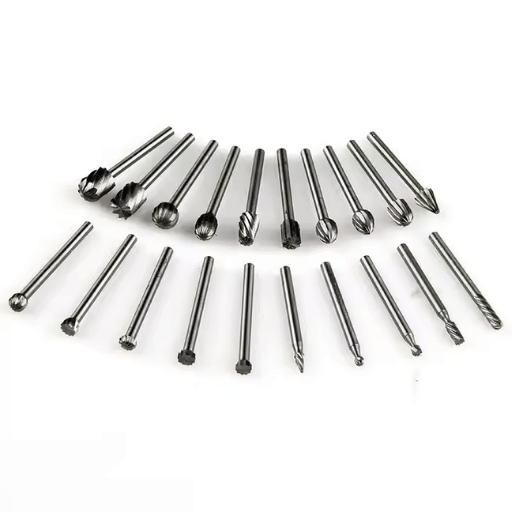

Exploring Different Carbide Burr Shapes
Cylindrical burrs are made for the effective removal and shaping of flat blocks and surfaces and edges. These tools are ideal for tasks such as deburring, leveling, and flattening flat surfaces. Unlike other shapes, cylindrical burrs doze straight cuts or polish edges without disturbing adjacent areas. These tools effectively serve in precision applications where uniformity is required on a flat surface or lightly curved surface.
How to Choose the Right Tungsten Carbide Burr for Your Project?
Assessing the application of Metals and Non-Metals
When choosing a tungsten carbide burr, you must assess information related to the material, application type, and intended results. Below is a listing:
- Steel (mild, hardened, stainless)
- Aluminum
- Brass and Copper
- Titanium
- Cast Iron
- Non-Metals
- Plastics
- Ceramics
- Wood
- Glass Fiber
- Burr Shape
- Surface Roughening and Smoothing are done by Cylindrical Burrs.
- Ball Shaped Burrs are used for hollowed areas.
- Tree Shaped Burrs works on edges and corners.
- Flame Shaped Burrs are for detailed contouring.
- Cone Shaped Burrs focus on areas and countersinks.
- Single Cut: This is used on steels and other hard materials where finish quality and smoothness are paramount.
- Double Cut: One roughing passes are good for softer metals and non-ferrous materials. Dual who provides variable geometry also offers good control with reduced chattering.
- Aluminum Cut: Definitely, do not let any powdered metals slow down the other important processes to make this tool.
- With compatibility with various rotary tools or die grinders, common sizes of the rotors are 1/8″, 1/4″, 3mm.
- Adhering to the manufacturer specifications is very important. For more precise cuts, 20,000 – 35,000 RPM is usually recommended, but for most tools is followed guideline.
- Titanium Coating is added to increase the durability and heat resistance of the work tool.
- For ultra-hard materials ceramics are coated with diamond; hence they receive said coating for being ultra hard.
Selecting the right burr combination is important because it yields optimal results, reduces wear, and increases efficiency in completing the project.
Factors to Analyze: Double Cut vs. Single Cut
The following analysis outlines the primary factors to help guide the selection of double cut and single cut burrs tailored to your specific applications.
- Achieves smoother finishes.
- Best for medium to light material removal.
- Effectively reduces operational vibrations.
- Higher material removal rates.
- Best for heavy stock removal and rough work.
- Produces more aggressive cuts.
- Commonly employed for fine detailing, sanding, polishing, and intricate deburring.
- Suitable for more difficult materials such as stainless steel and tool steels.
- Preferred when softer materials, including aluminum and non-ferrous alloys, are present for rapid material removal.
- Widely used in weld preparation and general shaping.
- Excels on steel, stainless steel, titanium, and hard plastics.
- Most effective on aluminum, brass, copper, and other soft metals.
- Slightly slower than other designs to operate due to the focus on finishing.
- Lowered operator fatigue through reduced feed force.
- Faster for bulk material removal in the earlier phases.
- Increased precision and careful control over chip flow may be necessary.
- Produces smaller, finer chips, which lowers the clean up effort, and reduces chances of clogging.
- Larger chips are also generated, though the process is more difficult to manage.
Considering all these aspects, professionals can make sure they select the right burr type that optimizes productivity while delivering efficient results on the desired project.
Cutting Efficiency and RPM of the Rotating Tool
RPM is one of the key operational parameters with a direct effect on the efficiency of cutting tools. Getting the right RPM value will directly affect cutting productivity, equipment lifetime, and quality of the workpiece. These are the most important considerations and facts accompanying RPM for selection:
Softer materials such as aluminum or plastics need to be worked on at greater RPMs, in the range of 15,000 to 25,000RPM, in order to smooth and cleanse cuts.
For softer materials like stainless steel or titanium, greater low RPMs of around 8,000 to 15,000 is recommended in order to prevent overheating and excessive wear of the tool.
Carbide tools are capable of operating at higher speeds of 30,000 rpm and above due to greater amount of heat resistance, varying from material to material.
High-speed steel (HSS) tools have a lower tolerance to extreme heat, performing efficiently at rpm values between 10,000 and 18,000.
Effective material removal is achieved with higher spindle speeds for smaller tool diameters. For instance, a 3mm burr can operate efficiently between 20,000 and 30,000 rpm.
Tools with diameters 12mm or greater usually operate better beyond the lower rpm range of 6,000 and 12,000.
A proper chip load per tooth must also be maintained to provide a balance between suffashing and over burdening the cutting edge. To prevent under or over-cutting, load values are altered by changing the rpm settings.
The optimal RPM value directly relies on the interaction among the above-mentioned components. Following manufacturer’s recommendations accompanied with slight adjustments during work ensures performance, avoiding wear issues.

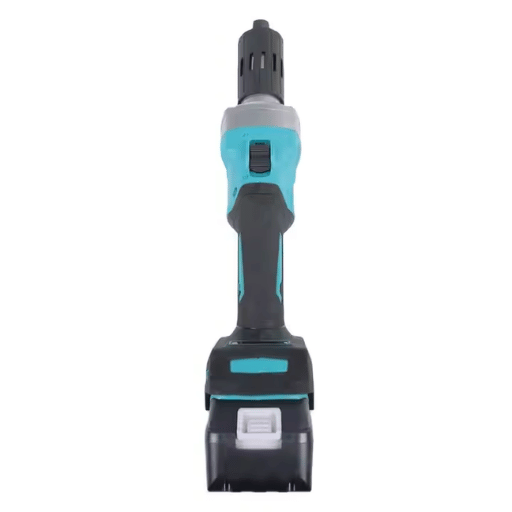

What are the Best Practices for Using a Die Grinder with Burrs?
Setting Up The Right Cutting Speed
Following specific best practices while using a die grinder with burrs provides safety, precision, and maximizes tool life. Below are key considerations and steps:
Each of the materials are categorized on their own, soft metals range from 15,000-25,000 RPM, hard metals from 8,000-15,000, and plastics/composite materials vary from 10,000-20,000 based on their density.
Soft Metals (ex: Aluminum/Brass): 15,000 – 25,000 RPM
Hard Metals (ex: Steel/Stainless Steel): 8,000 – 15,000 RPM
Plastics or Composite Materials: 10,000 – 20,000 RPM (Depending on Density)
Larger burrs demand lower RPM to avoid tool heat or failure.
Small Burrs (ex: <3mm Diameter): Higher speeds within manufacturers suggestions
Large Burrs (ex: over 6mm diameter): Lower speeds to avoid excessive vibrations and regain control.
Appropriate feed pressure helps in smooth operations.
Great amounts of force should be avoided as it dulls the burr and strains the die grinder.
Light and consistent feed pressure ensures uniform cuts without tool deflection.
Cuts made will depend on temperatures when dealing with material deformation and tool overheating.
When dealing with aluminum and similar materials cutting oil/coolant should be applied to prevent galling.
Non ferrous materials require dry/surface cleaning with compressed air to keep surfaces clean.
Thorough, consistent evaluations guarantee that the equipment functions optimally.
Inspect for wear and damage to the burr prior to each use.
To maximize their lifespan, grinders and burrs should be cleaned immediately after use.
In order to maintain the optimal cutting performance, routine replacement of worn tools is essential.
The structured approaches outlined for die grinder operation instruct users on how to achieve superior results while maximizing equipment care and safety.
Extending the Service Life of Your Burrs
Optimal performance of burrs as well as their service life are influenced by operational conditions. Knowledge of these factors is essential if tool longevity and usage optimization are to be achieved:
Burrs have a rated range of hardness that they are designed to work with. They perform best when utilized on materials that fall within their specified rating such as:
Soft Materials (e.g. Aluminum): Under normal operational circumstances, carbide burrs have an average life expectancy of 50 hours of use.
Hard Materials (e.g. Steel): Due to faster pace and greater level of pressure applied, cutting softer materials tends to shorten average lifespan to about 20-30 hours.
Maintaining the recommended RPM reduces heat and wear on the tooling. RPM recommendations are as follows:
Small Burrs (Diameter ≤ 1/4 inch) – 17,000–25,000 RPM
Large Burrs (Diameter > 1/4 inch) – 10,000–16,000 RPM
Exceeding either of these ranges can cause excessive RPMs which creates added friction and leads to failure.
Maintaining consistent pressure and lead angles enhances precision while reducing strain on the tools. A common error is applying too much force which leads to premature chipping or deformation of the cutting edges.
Use of proper lubricant or coolants directly relates to thermal stress and wear. Research shows that applying cutting fluid can extend burr life by 30–50% depending on the workload.
Following these recommendations allows operators to maximize the service life and performance of their burrs while reducing costs. These goals require regular monitoring and adherence to the manufacturer’s specifications.
Using a Rotary Tool for Precision Work
In precision work with a rotary tool, the following key data points must be understood and implemented:
Type of Material:
Wood: 15,000–20,000 RPM
Plastic: 5,000 – 10,000 RPM
Aluminium: 10,000 – 15,000 RPM
Type of Tool Attachment:
Sanding Discs: 10,000 – 15,000 RPM
Cutting or Burr Attachments: 20,000 – 30,000 RPM
The motor brushes require inspection after every 50 hours of usage or as per the manufacturer’s guidance.
To avoid overheating, clean the air vents every ten hours of operation.
Water-based coolants are preferable to materials such as metals that have a high tendency to heat up.
While a major portion of the tool will be deemed ‘contaminated’ if too much lubricant is applied, a precise amount will maintain cutting efficiency, so it must be used carefully.
Burrs: For very fine detailing such as adding designs or carvings, use diamond burrs.
Rough Shaping: For quick removal of large volumes of material, tungsten carbide burrs work best.
Safety Measures:
Layered Eye protection and gloves are required while using the tool.
Secure any material expected to be worked on with clamps to prevent unintended relocation.
Employ these practices based on data-driven methods, for maximum efficiency, precision and safety during rotary tool operations.
Why is Deburring Important in Metalworking?
The Role of Carbide Rotary Burrs in Achieving Smooth Finishes
Due to their remarkable durability and precision, carbide rotary burrs are a must for all machining deburring activities. Because they are made of tungsten carbide, these burrs can efficiently remove materials and create smooth surfaces at astonishing speeds of 10,000 to 40,000 RPM. These tools are especially useful on titanium, stainless steel, and steel alloyed with other metals, as their resistance to wear is up to 10 times greater than high-speed steel counterparts.
It is reported that burrs with rotary cutting tools can offer surface roughness as low as 0.4 to 0.8 micrometers in Ra value after machining, depending on the conditions and materials used. The stability andminimum volatility provided by the fluted cutting edges of high-speed rotary burrs ensures reliable performance. Other studies indicate that consistent controlled deburring decreases stress concentration, which without could be detrimental over time by causing structural fatigue or material fracture. Applying these improvements into metalworking processes increases productivity, tool life, and quality of the parts produced.
Strategies for Optimal Material Removal
Here is some evidence regarding the most prominent drivers of the efficiency and effectiveness of the material removal processes during metalworking:
Aluminum and other “softer” materials need less aggressive forces and thus abrasive wear of the tools are less substantial.
Steel and other “harder” materials demand greater IT precision which as a result increases operation time.
For most applications, optimal cutting speeds are between 50 to 100 meters per minute depending on the utilized material.
Cutting speed limits must always be respected as exceeding them may cause overheating which shortens the lifespan of the tool.
Fluted edge geometry lowers vibrations and leads to smoother finish than other edge types.
Complex shapes can be detailed more easily with rounded or ball-end geometires.
To overcome material inconsistency, common practice would suggest a feed rate of 0.1-0.3 mm/rev.
In regards to throughput, higher geometry angle of attack improves results but roughness of surfaces may suffer.
Cooling fluids when applied appropriately lower thermal consequences and thus the chances of deformation.
Surface finish improvements from adequate lubrication demonstrates a 20 to 30 percent figure.
Stress concentration with regular deburring in between cutting stages can be reduced by 40 percent.
End product irregular deburring increases fatigue and microfractures risks.
Operational efficiency is preserved by equipment sharpened after every 8 to 10 hours as they are easier to use.
Dull tools increase effort to 20 percent while causing inferior results.
These data points highlight the importance of precision practices, consideration to the appropriate level of contours, and following operational procedures as protocols to achieve an optimal outcome during material removal activities.
How to Maintain and Extend the Life of Your Carbide Burr Bits?
Best Cleaning and Maintenance Practices
To maximize the lifespan of your carbide burr bits, regular cleaning and maintenance is crucial. Make sure the tool is free from overheating materials from the last use. Heating can slow down efficieny while overheating makes cutting near impossible. Compressed air and soft wire brushes as well as solvent-based cleaners are effective in removing build up.
Cleaning is not the only factor; routine inspections for wear should be conducted, looking specifically for chipped cutting edges. Studies show that burr bits with worn edges are very common and have been proven to decrease cutting performance by 15-25% while unevenly removing material increases work piece damage. To avoid excessive wear in these cases, let go of applying too much pressure because overdoing it will make a degrade men faster.
Prevention of other types of damage starts with proper storage. Carbide burr bits should be organized into designated protective spaces which prevent cutting edges from scrapping against hard surfaces. Research shows these types of storage not only protects from scratches but increases the tool’s lifespan up to 30%.
Storing Your Burr Set for Durability
To ensure safety and optimal performance of your burr bits, adopting specific storage and care routines is critical. Below are actionable steps and focused data points for proper maintenance:
Burr bits should be kept within a room temperature dry area of 59°F and 77°F (15°C to 25°C).
Avoid excessive humidity as this can compromise cutting edges or lead to corrosion.
Utilize foam cases and wooden racks which properly cushion and separate each burr bit.
Avoid storing bit burrs loosely in a tool box, as bits being jumbled can lead to edge and impact damage.
After use, any visible residues on the burr bits must be cleaned off with a soft brush or compressed air.
Avoid the use of chemical cleaning agents as they may erode the carbide material over time.
Dull cutting edges, uneven surfaces and chips are indicators which require prompt action to mitigate further wear.
Significantly deteriorated burr bits should be replaced to maintain operational efficiency.
Supplying a time log will assist in estimating when switch out or sharpening is necessary.
Depending on the material being cut, burr bits can provide optimal performance for 40 – 120 working hours and are subject to performance degradation after each hour of use.
These instructions enable the users to improve the performance metrics of their burr sets while lowering the costs for their replacements. The cutting performance preserved through Proper storage and maintenance optimizes safety during operations.
The Cutting Tools Should Be Replaced When
In terms of tools, various signs indicate cutting instruments need to be replaced. Slower material removal rates, lack of cutting power, and greater effort needed to perform jobs are typical indicators of tool wear. During operational cycles, the tool’s cutting edges should not exhibit movements that increase and decrease the rotation of the mandrel. On examination, the tool’s edge may appear dull or chipped, obstructions on the tool edge negates the operation’s finesse and precision. Furthermore, excessive noise and greater imbalance within the tool mechanisms are manifestations of worn mechanical components. With respect to carbide burrs, the discolouration and overheating of the tool’s surface material indicates that the tool does not have much life left. By actively managing these components, arrangements and timely replacements can be ensured which lowers expenses related to safety and productivity.
Reference Sources
- Burr Formation in Drilling of Aluminum Plates Under Cutting Conditions Modeled for Manual Operation
- Authors: Y. Miyake, Y. Kondo
- Published: 2023-05-01
- Journal: Journal of Physics: Conference Series
- Summary: This study investigates burr formation during the drilling of aluminum plates, focusing on manual operation conditions. The research emphasizes the relationship between thrust force and burr formation, suggesting that lower thrust forces can minimize burr generation. The study involved drilling over 200 holes under varying loads and analyzing the impact of drill exit surface inclination on burr formation.
- Methodology: The authors conducted experiments with different applied loads and analyzed the resulting burr formation through visual inspection and measurement of burr heights(Miyake & Kondo, 2023).
- Evaluation of the Cutting Force, Burr Formation, and Surface Quality During the Machining of Carbon Nanoparticle Modified Polymer Composites for Structural Applications
- Authors: S. Kesarwani, R. Verma, S. Jayswal
- Published: 2023-01-01
- Journal: Materials Today Communications
- Summary: This paper evaluates the effects of carbon nanoparticle modification on the cutting force, burr formation, and surface quality during machining. The findings indicate that the addition of carbon nanoparticles significantly influences burr formation and surface finish, suggesting potential applications in structural components.
- Methodology: The study involved experimental machining tests, where cutting forces and burr sizes were measured under different machining conditions(Kesarwani et al., 2023).
- Tool Wear and Burr Formation During Drilling of Aluminum Alloy 7075 in Dry and with Cutting Fluid
- Authors: A. Dahnel et al.
- Published: 2022-01-01
- Journal: Materials Today: Proceedings
- Summary: This research examines the impact of drilling conditions (dry vs. with cutting fluid) on tool wear and burr formation in aluminum alloy 7075. The results show that using cutting fluid reduces burr formation and tool wear compared to dry drilling.
- Methodology: The authors conducted comparative drilling experiments, measuring tool wear and burr sizes under both conditions, and analyzed the results statistically(Dahnel et al., 2022).
Frequently Asked Questions (FAQs)
Q: What is a carbide bur and how is it used in burr cutting?
A: As a rotary cutting tool, a carbide bur is used in shaping, grinding, and removing materials from a hard surface. Burr cutting uses a carbide bur as it is strong and durable enough to work on different shapes and materials including ferrous and non-ferrous metals as well as non-metals.
Q: How does the double cut carbide method enhance burr cutting?
A: The double cut carbide method has cross-cut teeth with a smoother finish than single-cut teeth, while still allowing efficient material removal. This method improves control while reducing tool chatter and is, therefore, useful in precision work in burr cutting.
Q: What is the purpose of using a die grinder bit in burr cutting?
A: Die grinder bits are mounted on a dremel or pneumatic grinder in order to perform cutting, grinding, and carving at a detailed level. These bits are useful for burr cutting due to their various shapes and sizes specifically excellent for sharp edges and complex designs.
Q: Why is end cut important in the context of burr cutting?
A: End cut is the feature on a burr where cutting edges are incorporated on its tip. This is important in operations that demand advanced end milling or penetration such as slot and groove formation in the metal burr applications.
Q: What role does a rotary file play in mastering burr cutting?
A: A rotary file, usually synonymous with carbide burs, serve equally to rotary burs in surface finishing and surface roughness reduction. Its effectiveness in carrying out both coarse and fine activities is especially useful during final edge and surface treatment in burr cutting jobs.
Q: In what ways does a dremel aid in burr cutting?
A: A dremel is an example of an electric tool which adapts to different tasks and has many attachments including carbide burs and rotary files. It’s high speed rate enables even the most delicate burr cutting because the user can carve, grind and deburr with great precision.
Q: What benefits do solid carbide bring to burr cutting tools?
A: The solid carbide tools possess remarkable hardness along with wear resistance when formed into a specific shape. This makes it possible to cut tougher materials such as tungsten carbide. With their effectiveness, these cutting tools guarantee a longer tool life and dependable performance when subjected to rigorous burr cutting operations.
Q: Under what circumstances is an aluma cut burr preferred over other types?
A: An aluma cut burr is designed to operate on soft materials comprising aluminum and non-ferrous metals as a essential component in most engineered parts. Its specialized cutting geometry minimizes clogging and ensures the removal of material with smoothness. Thus, aluma cuts are preferred during burr cutting procedures with softer substrates.
Q: What are the ways in which a radius end burr assists in the enhanced performance of burr cutting?
A: Radius end burrs are designed to have cutting edges which are rounded and are better for contouring a workpiece into smooth transitions. Because of this design, the sharp features are reduced which leads to better finishing and overall better quality and accuracy in burr cutting operations.
