Each element has a world of wonders waiting to be uncovered, yet, few metals capture fascination paired with beauty like Bismuth. It is known to many for its dazzling beauty and feather like geometric structures, but Bismuth is more than just marvelous to look at. Its unique chemical and physical properties make it truly one of a kind. In this article, we will discuss one of its most remarkable features; melting point which is surprisingly low comparatively to other metals. What makes this metal that is solid and dense at room temperature so easily melted? For such a seemingly diabolic matter, Bismuth behaves remarkably, so come with us as we uncover the culture and uses surrounding it, while also tackling the myster into its melting point. Trust us when we say that you’ll look at this baffeling element quite differently after!
What is Bismuth and Its Importance in the Metal World?
Bismuth is a brittle crystalline with a silvery-white color And very colorful layered styling on the top. And unlike other metals, bismuth stand out because it has a melting point of 271.5 degrees Celsius And its density is rather high. For this reason, bismuth is useful in many areas such as modern medicine, and cosmetics and even in alloys that require melting at low temperatures. Bismuth’s non-toxicity enables better utilization especially in place of lead, an element primarily used in many goods and items.
Placing Bismuth on the Periodic Table
With an atomic number of 83, bismuth is a post-transition metal and falls under group 15 of the periodic table. It is situated beneath Sb and to the left of Po. Bismuth’s atomic weight stands at 208.980 which is the average. Bismuth is unique in that he is the last stable element that can be found, and while some isotopes do undergo radioactive decay they do it at such a slow rate that for all practical purposes, they can be considered stable.
Bismuth: Physical Characteristics
This metal comes with a pinkish-silver shining color and has a crystalline structure. Bismuth has a melting point of 271.5 °C and 1,564 °C boiling point. With a density of 9.78 g/cm³, it is one the densest metals known. Out of all known metals, Bismuth has the lowest thermal conductivity, only surpassed by mercury. Unlike most other metals, Bismuth expands slightly upon solidifying. This makes it useful for certain castings in which accurate molds are needed.
Because there’s no other substance weaker than bismuth in withstanding magnetic force, it is classified as the most diamagnetic element. This feature is also important for access as it alters the way something interacts with magnetic fields. Bismuth has the ability of having high optical reflectivity that makes it useful in spectialized optical equipment. Because of these and many other fascinating traits, scientists are intrigued by Bismuth, especially because it can be useful in technology and industry as well.
The Abundance of Bismuth in the Earth’s Crust
The abundance of bismuth in the earth’s crust is around 48 parts per billion which indicates it resides amongst the rare metals. Although bismuth is considered rare, its abundance exceeds that of gold and platinum. Bismuth is usually found as a bismuthinite (Bi₂S₃) or bismite (Bi₂O₃) and is often extracted while processing lead, copper, silver and gold ores.
According to USGS, the world production of bismuth is estimated to be between 15,000 to 20,000 metric tons in the last few years. The number one producer is China which provides about 70% of the supply, with other producers including Mexico, Canada and Bolivia. There is a high demand of bismuth due to its applications in technology and medicine, especially where eco-friendly technologies are involved, which has made extracting bismuth from industrial waste streams imperative.
These trends underscore the need for resource management and innovation while highlighting the increasing value and demand for bismuth.
How Does Bismuth Melt Compared to Other Metals?
Bismuth has a melting point of 271.4°C (520.5°F) which is much lower than copper’s (1,085°C) and iron’s (1,538°C) melting points. Because bismuth melts easily, it can be applied to soldering as well as forming tailored alloys.
The Melting Point of Bismuth: 271°C Explained
The difference between Bismuth and other metals reverses when comparing their melting points. Bismuth’s 271.4°C (520.5°F) is one of the lowest values in the periodic table which makes this element useful. The atomic structure facilitates weak metallic bindings which makes it different when compared to iron and copper. Bismuth melting point provides the capability to be applied on multiple devices like fusible safety alloys , low melted solders and required alloys.
The drawback lead caused with his toxic properties makes it unfit to use in applications such as soldering and alloys. Bismuth retains all the properties bismuth-tin alloys come with. For example bismuth-tin alloys have a melting temperature of 100°C which allows them to be used in fire detection and mold making.
Research shows bismuth has a peculiar characteristic expansion during solidification that differs from contraction which most metals exhibit. Bismuth’s unique low solidifying temperature makes it useful for making molds for complex shapes as it will capture all the details accurately during casting. Further development in technology and material science is finding new uses for the unique properties of melting and solidifying of bismuth.
Comparing Bismuth’s Melting Point with Other Metals
Bismuth has a melting point of 271.5°C (520.7°F), which is significantly lower than many common metals such as iron (1538°C), copper (1085°C), aluminum (660.3°C), and gold (1064°C).
| Metal | Melting Pt. | Comparison |
|---|---|---|
| Bismuth |
|
Low |
| Iron | 1538°C | High |
| Copper | 1085°C | Medium |
| Aluminum |
|
Medium |
| Gold | 1064°C | Medium |
Uses of Bismuth’s Low Melting Point
The low melting point of bismuth makes it useful in many industries, and particularly where precision temperatures are required. Bismuth is most popularly used in alloys for soldering. Bismuth based solders e.g. solders containing bismuth with tin, are easy to use for soldering fragile parts in electronics because of their lower boiling points of 138-183°C.
Also, bismuth is important for making fusible alloys which are important for safety appliances such as fire sprinkler systems. These alloys are made to easily melt when exposed to high temperatures so that mechanisms may be triggered to shut down fires, for example, by releasing water. One good example is Wood’s metal, a bismuth-based alloy with lead, tin and cadmium having a melting point of 70°C.
Bismuth is also used in medicine for making implants and prosthetics shells by casting which do not ruin adjacent parts. Moreover, bismuth alloys which are environmentally friendly and do not contain lead are more frequently replacing lead in ammunition and fishing weights.
What Role Does Bismuth Play in Alloys?
Bismuth is an important alloying element because it improves the qualities of alloys for certain applications. It is useful in the production of fusible alloys which are employed in safety devices such as fire sprinklers and electrical fuses. Moreover, bismuth is replacing lead in environmentally safe alloys serving for fishing weights and ammunition to mitigate environmental damage. The non-toxic bismuth is also machinable which makes it easier to work with when alloying, broadening its uses in manufacturing alloys.
Investigating Bismuth Low Melting Alloys
In my view, low melting alloys of bismuth are interesting because of their practical value and unique properties. Their ability to melt at low temperatures is useful for making safety devices like fire sprinklers and thermal sensors. I admire that these alloys are able to replace toxic metals and still serve their purpose, as well as protecting the environment. The flexibility and eco-friendliness of these alloys is what strikes me the most.
Bismuth Alloys in Soldering and Fusible Applications
Soldering and fusible applications use bi- and tri-metallic alloys known for their low melting points and toxicity. Bi-based alloys stand out as replacements for traditional lead solders, aiding significantly in electronics and plumbing. Bismuth-tin (Bi-Sn) and Bismuth-Indium (Bi-In) alloys of bismuth prove extremely useful in positions where accuracy and safety are primary concerns.
Consider, eutectic bismuth-tin alloys which mends parts of electronics that need to be intimately held together. They perform better than other solders as their melting point is as low as 138 °C (280 °F). Bismuth-indium alloys are also used thermally in fuses and safety devices. Bismuth alloys have a wide temp range for melting, usually between 60 to 120 °C. Apart from soldering, fusible plugs in computer systems are made out of bismuth to protect devices from overheating. Due to high density, bismuth alloys can substitute lead in other engineering and industrial applications, making them safer.
Recent research indicates that bismuth alloys are increasingly being used for environmentally friendly innovations. As stated in industrial reports, there is a noticeable increase in the demand for lead-free solders across the globe and its market size is projected to exceed 6 billion dollars by 2027 owing to RoHS compliance guidelines. In addition to aiding compliance with the legislation, bismuth alloys also address the need for sustainable manufacturing techniques. Due to this, bismuth alloys are will be important in the sustainable future of manufacturing since they are safe, multifunctional, and eco-friendly.
Bismuth alloys alongside other metals exhibit characteristic behaviors which makes bismuth a useful material in many brands. Bi and tin alloys, for instance, are common in components that need to undergo very fine torques with minimum thermal stress during the process.
Lower the Melting Point of Alloys
Businesses embrace bismuth’s unique features because they help expand the potential for a variety of industries.Besides, bismuth reacts well with the lead-free substitutes of tin, silver, and copper. Bismuth-tin-silver alloys have a greater strength as well as an outstanding thermal and electrical conductivity making them useful in electronics which require high reliability. Besides, bismuth also complies with environmental standards such as RoHS and WEEE (Waste Electrical and Electronic Equipment Directive).
Emerging automotive, electronics, and medical device industries are estimated to adopt bismuth alloys with a compound annual growth rate (CAGR) of 5%-7%. This is due to manufacturers focusing on high-performance and eco-friendly materials.
Also, replacing lead with bismuth is favorable because it is non-toxic and environmentally friendly. The combination of bismuth with metals like cadmium or indium creates specialty alloys for use in safety devices such as fire sprinkler heads and fusible plugs. The use of bismuth in these applications showcases its regulatory compliance as well as meeting functional needs.
To date, bismuth’s unique properties alongside its blendability with other metals makes it a principal metal for the sustainable solutions in the manufacturing and technological advancements throughout the world.
How Does Bismuth Crystal Formation Occur?
Bismuth crystals sprout from supercooled bismuth at a temperature just above freezing. While atoms are cooling, they form distinct geometric shapes accumulating into bright rainbow colored, shimmery, step-like pillars. This process results in vivid colored bismuth due to light being refracted off the thin oxide layer crystals. As the temperature lowers, bismuth crystals change its form.
The Method Of Bismuth Crystal Formation
Deep violet and gold bismuth crystals emerge from a very specific cooling process that optimizes bismuth metal’s features. Stovetops and lab setups are easy methods to melt the metal because it only requires around 520°F (271°C) to melt. Hoppers, as they are known, are formed when water cooled bismuth is slowly cooled. When the outermost portions of the bismuth solidifies, the inner portions gradually refuses to reconstitute, creating a “hopper” pattern, serving as the crystallization pattern for bismuth.
The iridescent hues that are visible on the surface of bismuth crystals result from light interference due to a thin layer of bismuth oxide. This oxide layer is created when the surface of the crystals cools and reacts with oxygen in the air. The hue of the crystals may range from violet to gold to green depending on temperature and time.
The formation of bismuth crystals is also affected by the rate of cooling. Studies show that uniformly controlled and more gradual cooling processes lead to larger, deeper, and well-defined hopper-etched crystals. Conversely, faster cooling tends to shrink and distort the crystal shape. It is suggested that the optimal range of cooling is set around 1-2°F per second to achieve quality-honed structures.
Bismuth is one of the least toxic heavy metals which makes it suitable for artistic and decorative uses. As a result of being non-toxic, bismuth is also used in the medical field, cosmetics, and alloys, as published in newer literature. Its easy handling and safety, alongside its aesthetic qualities, have made bismuth crystals highly sought after by scientists, artists, and collectors.

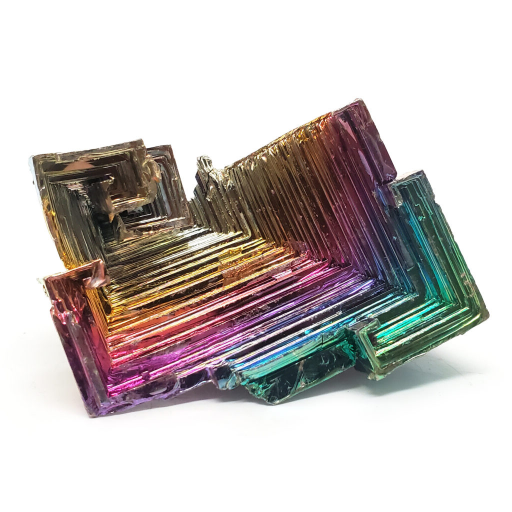

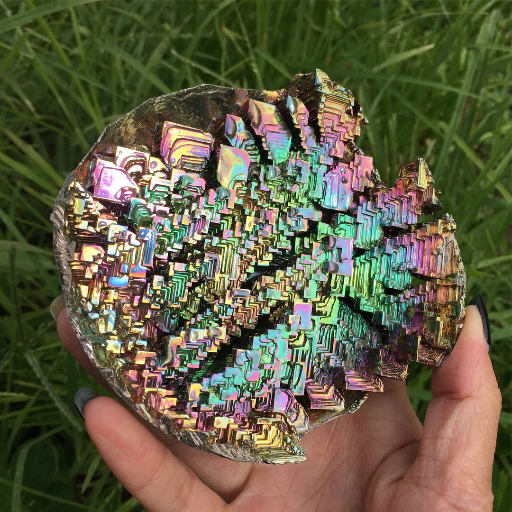

Features of Bismuth Crystals
Apart from the energetic, colorful attributes of bismuth crystals, they also display complex geometric forms that are molded by steps and scaffolds. These structures are a result of the oxidation process of the crystal, where a bismuth oxide layer of about 100 to 200 nm thick precipitates on the surface. This bismuth oxide layer interacts with light causing it to refract giving off rainbow colors. The eoctrs vary according to the thickness of the layer and this phenomenon of thin film interference.
The density of bismuth is approximately 9.78 g/cm³ which is less toxic than lead. Bismuth also has a melting point of 271.5°C (520.7°F) and a boiling point of 1,564°C (2,847°F). These characteristics allow the production of high purity bismuth crystals using a method known as “crystallization from melt” which is usually done under controlled laboratory conditions.
New research indicates that bismuth displays remarkable diamagnetic characteristics, which means it is capable of repelling magnetic fields stronger than most substances. Furthermore, bismuth is known for having low thermal conductivity making it a good addition to thermoelectric devices.
Businesses all over the globe use bismuth for different applications, with its production being nearly 20,000 metric tones and climbing. All reasoning points to China as the primary producer, as they lead other countries in the usage of bismuth for eco-friendly purposes, such as using bismuth in for cheaper, non-toxic bullets. Moreover, bismuth and its crystals are gaining momentum across different industries due to their eye-catching and colorful features which can be used for creative and scientific purposes.
The Uses and Color of Bismuth Crystals
In recent years, bismuth crystals positioned themselves not only as appealing decorative pieces but items that can serve different applications across all industries. With bismuth being used in the construction of lead-less solders, it is easier to monitor and control, particularly in electronic device manufacture as well-a s the environment. Stronger environmental regulations motivate industries to use non-toxic alternatives, pushing electronics to adapt.
In medicine, bismuth possesses other catalytic applications like acting as a component in pharmaceutical production catalysts. Bismuth also has traits like high density which make it a staple for several radiological applications making it a popular choice for other medical solutions. Moreover, bismuth bullets which are non-toxic and seeked by shooting sports fans further aid this industry.
Crystals with a rainbow oxidation sheen are particularly admired for their beauty in the art and jewelry world. In the creative industries, there has been an increase in popularity of bismuth crystals for use as both functional and decorative pieces. Bismuth’s current market trends indicate growing demand.
Bismuth production is mostly concentrated in China, which dominates the world production with 70% of supply. Bismuth is still considered an important material in many industries, and the global market is expected to grow steadily, cementing this status. Further research aims to discover new sustainable uses for this intriguing element.
Why is Bismuth Considered a Less Toxic Metal?
Bismuth’s health effect, especially regarding toxicity, stands out because it is less harmful in comparison to heavy metals. It is non-carcinogenic and does not pose as a significant health threat when compared to other heavy metals; mercury, lead or cadmium on the other hand, tend to accumulate within the body. With low toxicity, bismuth is safe for various applications such as medication, cosmetics and most importantly in the environment. Furthermore, its low toxicity also allows its use without danger to the environment and its replacement over hazardous metals is permissible.
Bismuth’s Chemical Properties and Safety Profile
Bismuth is a post-transition metal ascribed the atomic number 83 and BI as its Chemical symbol. It is known for its distinct chemical and physical properties and has a low melting point of 271.5 centigrades as well as 1,564 centigrades for boiling. These values make it suitable for bismuth to be utilized in low melting alloys. Having a density of 9.78 g/cm³ gives it a lustrous brittle look which when compared to lead is slightly lower. Furthermore, bismuth is capable of being diamagnetic which is the strongest among all naturally occurring metals, in addition to that bismuth does not conduct as much heat compared to other metals.
From a safety standpoint, bismuth is known to have low toxicity. It is not categorized as a hazard, which means it has very low risk for humans and the ecosystem. Research shows that some of bismuth’s compounds, for instance bismuth subsalicylate that is found in the over-the-counter drug Pepto-Bismol, are safe for use in medicine when the dosage is controlled. Also, in contrast to the metals lead and mercury, bismuth does not significantly bioaccumulate in human tissues, which reduces the risk for chronic toxicity.
More recent studies have also added to his other areas of interest by pointing out his role in sustainable and green chemistry. One example includes the exploration of bismuth-based catalysts as alternatives to heavy metal catalysts in industrial processes where they are used harshly and blatantly.
In general, it also has great eco-friendly qualities which allow it to replace lead in the manufacture of free cutting brasses and solders as well as other components used in electronics and automotive parts.
In conclusion, the bismuth subsalicylate is an important and most commonly used drug in medicine since it still retains all the properties conotensome these reagents, and the Pepto-Bismol from which it is derived is harmless at ordinary doses unlike many other medicines.
Industrial and Medical Uses of Bismuth
The unusual characteristics of bismuth make the metal useful in medicine and industry. Bismuth is used in medicine for gastrointestinal disorders. As an example, bismuth subsalicylate is used as a treatment for diarrhea, nausea, and cephalgia (headache) and is available in Tablets of Pepto-Bismol. Almost all recently published information suggests that bismuth compounds can help in managing Helicobacter pylori infections which is one of the most important reasons for peptic ulcers. It has been demonstrated in studies that the medications which contain bismuth are able to achieve almost 90% success in treating H. pylori when prescribed with antibiotics and proton pump inhibitors.
Within the industry, bismuth is recognized for its low toxicity and an excellent lead substitute. Market analytics project a bismuth consumption of around 20,000 metric tons per year, growing steadily at a compound annual growth rate (CAGR) of 5.5%. Its use in free cutting brasses significantly alleviates the environmental impacts of lead exposure in industries. Further, the strength and low melting point of bismuth solders makes them essential in electronics. Thermoelectric materials which use bismuth telluride, has the potential to increase energy efficiency in converting waste heat to reusable energy up to 15%.
This innovation emphasizes the sustainable and adaptable properties of bismuth, reinforcing its role in technological and healthcare advancements. Further research is bound to unlock his potential in new areas.
Bismuth mining as a side-product of other mining operations
Bismuth is mostly extracted as a by-product during the mining of metals like lead, copper and tin. Global bismuth production in 2022 reached an astonishing seventeen metric tons and China accounted for over seventy percent. Bismuth is recovered during the extraction and refining processes, though it is not the primary metal being mined, in order to fulfill the required market needs.
Most importantly, mining operations have started considering the environmental aspects of mining for by-products such as bismuth. Modern practices concentrate on minimizing waste and maximizing resource recovery and in turn bismuth’s extraction supports sustainable economic models. To illustrate, secondary sources such as recycled bismuth from industrial uses are now supplementing primary production, which enables greener supply chains. Innovative recycling technologies are now some of the most critical solutions and are achieving recovery rates over ninety-five percent.
Additionally, polish techniques for bismuth are enabling recovery of bismuth for pharmaceutical and electronic applications which require stringent quality. This not only expands the applications of bismuth, but also lessens the environmental impact of mining operations.
Reference sources
- Ab initio melting curve of body-centered cubic bismuth
- Authors: L. Burakovsky et al.
- Published: June 27, 2024
- Journal: Journal of Applied Physics
- Key Findings:
- This study presents the calculation of the melting curve of body-centered cubic bismuth (bcc-Bi) up to 400 GPa using quantum molecular dynamics simulations.
- The melting curve was found to be (quasi-)parallel to that of rhenium, making bcc-Bi the second highest melter behind rhenium among the elements of the third row of the periodic table.
- The research emphasizes the importance of accurately knowing the equation of state (EOS) and melting curve for future high-pressure and high-temperature experiments.
- Methodology:
- The authors utilized quantum molecular dynamics simulations with the Z method implemented in VASP (Vienna Ab-initio Simulation Package) to calculate the melting curve and EOS of bcc-Bi(Burakovsky et al., 2024).
- Current Status and Outlook of Low‐Melting‐Point Metals in Biomedical Applications
- Authors: Jianbin Mao et al.
- Published: October 8, 2023
- Journal: Advanced Functional Materials
- Key Findings:
- This review summarizes the properties and applications of low-melting-point metals, particularly focusing on bismuth-based alloys.
- It discusses the melting point’s influence on the properties of these metals and their potential applications in flexible electronics and biomedicine.
- The review highlights the challenges and opportunities associated with low-melting-point metals, including their biocompatibility and thermal/electrical conductivity.
- Methodology:
- The authors conducted a comprehensive literature review, analyzing recent studies on low-melting-point metals and their applications, particularly in biomedical fields(Mao et al., 2023).
- Microstructure and mechanical properties of indium–bismuth alloys for low melting-temperature solder
- Authors: S. Jin et al.
- Published: July 27, 2018
- Journal: Journal of Materials Science: Materials in Electronics
- Key Findings:
- This study investigates the microstructure and mechanical properties of indium-bismuth alloys, which are used as low melting-temperature solders.
- The research found that the melting point of these alloys is significantly lower than that of traditional solders, making them suitable for applications requiring lower processing temperatures.
- The mechanical properties were evaluated, showing that the addition of indium to bismuth improves the ductility and strength of the solder.
- Methodology:
- The authors performed experimental analyses on the microstructure and mechanical properties of the alloys, including tensile tests and microstructural characterization(Jin et al., 2018, pp. 16460–16468).
Frequently Asked Questions (FAQs)
Q: What is the melting point of bismuth?
A: Melting Point of bismuth is at 271 °C (520 °F). Such a characteristic renders pure bismuth perfect for application in low melting point alloys.
Q: Melted down lower relative to other metals is bismuth’s melting point?
A: Bismuth has lower melting point than a lot of other metals. Most notably bismuth’s melting point of 271 °C easily beats Zinc, Tin, and Lead melting point which makes it easier to use in alloying or in the case of fuse wires.
Q: Is bismuth fusible with other metals?
A: Indisputably, bismuth is fusible with other metals such as Tin and Lead where they can form low melting point alloys which can be used for electric fuses or protective gadgets.
Q: What is Bismuth’s function in the periodic table of elements?
A: Bismuth is a post transition metal which rests on Group 15 of the Variety of Elements also known as Periodic Table, has a definite low toxicity level and ability to form wide range of compounds such as bismuth subnitrate and bismuth carbonate.
Q: In what ways does bismuth oxidation affect its properties?
A: It may change Bi’s surface characteristics through oxide layers which could change Bi’s surface and reactivity. Still, bismuth metals remain stable against oxidation compared to other metals.
Q: What is bismuth most famously used for?
A: Bismuth was used as a pigment and in cosmetics much earlier in history. During 1753, Georgius Agricola and Geoffroy were the first individuals to note this. It’s uses have expanded in modern times as it is now utilized for industrial purposes.
Q: Can you list down nuclear isotopes of Bismuth?
A: Out of the nuclear isotopes of bismuth, only bismuth-209 is known to have a stable isotope. Interestingly however, it is the heaviest known stable isotope and the most “theoretically radioactive” with a tremendously long half life. It is functionally stable for all practical uses.
Q: Why is bismuth important in pharmaceuticals?
A: Bismuth is helpful for treating several health issues. Compounds like Bismuth subnitrate and Bismuth carbonate are used for gastrointestinal disorders owing to their antibacterial action.
Q: What are the bismuth forms found in nature?
A: Bismuth occurs in nature, principally as a constituent\nof mixed oxide compounds, and as elemental bismuth. It is also obtained by smelting ores containing bismuth\nmineral, often together with other metals.
Q: What are the known significant contributions to bismuth research?
A: Bismuth’s properties and applications are documented in\nmany sources, including The Royal Society of Chemistry, and The Handbook of Chemistry and Physics. Georgius Agricola, as well as scientists around 1753,\nhad significantly contributed to the knowledge of this metal.
