For companies and individuals dealing with metals, pipes, and other materials which require careful bending and shaping, selecting a bending machine optimally designed is crucial. The wide range of models, features, and technologies available can make deciding which one will best suit your unique requirements is the perfect challenge. This guide aims to ease that burden. No matter if your priority is flexibility, effectiveness, or particular functions, we’ll outline the important criteria so you can decide wisely. After reading this article, you will know how to successfully pick the best bending machine to improve your business operations and get the best possible outcome.
What is a Bending Machine?
A bending machine is a type of machine tool that shapes materials, typically metal, by bending them into angles or curves. These machines help in the construction, automotive, and manufacturing industries where reshaping materials is done with high accuracy and speed. These machines can be classified into different groups including rotary, manual, hydraulic, and CNC (Computer Numerical Control) machines, each fitted for specific types of operations along with their complexity and requirements.
Different Categories of Bending Machines
- MH003 HMB 100 – Operated manually. Best suited for simple thumbs, small in scale and uncomplicated.
- HMB 125/150 S – Uses hydraulic energy for powerful and precise thrusts. Good for medium and half heavy workloads.
- HMB 500 S – These are equipped with computer control systems. Best for accurate and efficient outcomes. Best suited for large and complex works.
How does a bender work?
Materials, especially metals, are manipulated, altered into specific forms through a mixture of bending, sufficient force, along with precise machining applied. The bending process begins when in the case of a workpiece, the material is placed on a machine’s clamping component. Depending of the type of bending machine one uses, a punch, die, or roller will then move to apply force at different angles or curves.
Sentence Construction: Advanced programming is changing the game in the modern CNC bending machines as movements are now controlled with pinpoint accuracy. Precision is crucial in industries like aerospace, automotive, and construction, and these machines are capable of performing complex tasks with tolerances of up to ±0.1 mm. For example, CNC press brakes can bend sheet metals as thick as 20 mm under immense pressure of over 300 tons depending on the machine’s capacity.
In industry soldering tasks, precision and accuracy goes hand in hand with productivity. An example is the hydraulic mandrel tube bender, capable of bending pipes up to 1 metre in diameter while maintaining surface integrity. This unit is key to preserving productivity in oil and gas pipelines.
Electric powered press breks are a perfect illustrate an industry facing advancements as they seek to be more energy efficient. Another advantage is the cut down in energy needed during operations when compared to traditional models as these next generation models consume almost 50% less energy. The enhanced performance and maintenance efficiency in machines is achieved through automation and IoT which allow real monitoring and predictive maintenance.
Meeting the industries needs for advanced technology has rapidly improved bending machines precision and accuracy making them essential tools across numerous industries.
Uses of Tube Bender in Different Industries
Due to the need for accurate bends in metal tubing, tube benders are used in multiple industries. They are critical in the automotive industry for producing exhaust systems and in framing and hydraulic lines. The aerospace industry also uses tube benders in the production of fuel lines and structural supports as they are lightweight and durable. In construction and architecture, tube benders are used to make framework, handrails, and ornamental parts. Because of their flexibility, tube benders are a crucial piece of equipment in all industries that require design and functionality adaptations.
How to Select the Best Tube Bender for Your Project?
- Material Type: Identify the material you will be working with, including steel, aluminum, or copper since some tube benders have preferences.
- Tube Size: Ensure the diameter and wall thickness of the tube corresponds with the bender’s specifications.
- Bend Radius Requirements: Establish the angles and radii that need to be obtained. Pick a bender that is capable of achieving those parameters.
- Volume of Work: If the project is high volume, choose a bender that is either fully automated or CNC controlled. Manual and hydraulic benders are more suitable for low volume tasks.
- Budget: Find a tool that best fits to your specifications and is within budget, ensuring a good balance between price, quality, and accuracy.
Understanding Differences Between Automatic and Manual Bending Tools
Performance, efficiency, and costs all play an integral role when the decision between an automatic and manual bending tool is made. With these factors in mind, automatic bending tools like CNC benders are far more suitable for larger operations due to their speed, precision, and consistent performance. These machines are outfitted with powerful software which permits the user to set up sophisticated bends with extremely low chances of error. Take for instance, CNC benders; they can achieve accuracy levels to the material within ±0.1mm which reduces wastage.
As a separate consideration, bending tools are practical for custom low-volume work. Such projects are best suited for an operator’s skill and hands-on adjustments for accuracy, which within manual methods aids in unique and flexible bends. It is estimated that funds spent on manual benders is 40-70% cheaper than automated ones with a trade off on speed and precision.
The report tracking the automated market tells us that the global sheet metal bending machine market is forecast to grow within a CAGR of 4.3% from 2022 to 2030. This marks growth achieved through increased investment of CNC technologies within aerospace, automotive, and construction. Offsetting the productivity automated solutions bring is a heavier initial financial investment paired with constant servicing expenditure, all which require deep consideration prior to implementation.
Knowing these factors helps choose the bending tool best suited for the project scope, scale of operations, and budget set.
Accuracy, Angle, Endurance: As Key Determinants
Each tool brings a decisive set of factors that derive value for the aimed application making them critical when choosing a bending tool. Its gauges of angle capacity, accuracy, and durability determine the quality output as well impact productivity, driving efficiency and operational streamlining.
The extent of bending angles of a given tool determines the complexity of the shapes and designs that could be achieved. Modern CNC bending machines often support bending angles of up to one hundred eighty degrees, which is useful for complex projects in aerospace and automotive industries. While selecting a tool, do note the maximum bending angle needed for your applications to ensure smooth operations.
Bending operations require precise accuracy, especially in the case of electronics and medical devices, where precision is a must. The latest CNC machines can now achieve a repeatability rate of ±0.01mm which guarantees consistent output even in adverse production conditions. Such tools should always be selected that can provide these parameters to achieve minimal material loss and consistent product standards.
A bending tool’s durability affects its performance and cost-effectiveness over time. Cutting tools made from hardened steel or alloy composites tend to resist wear better over prolonged use. Investing in these machines may be more expensive initially, but some reports show that they can lower maintenance costs by up to thirty percent over their entire lifespan.
Considering the angle capacity, accuracy, and durability factors, you can make a choice that suits your precise requirements and financial constraints, thus improving the efficiency and quality of the production processes.
The Importance of Sheet Metal and Tube Bending
In my opinion, the significance of sheet metal and tube bending is exceptionally high in terms of modern manufacturing and construction. They allow the fabrication of complex designs and strong elements while keeping minimal waste in materials and damage to the structure. Ensuring optimal accuracy and effectiveness during metal bending opens up possibilities to manufacture parts with high tolerances which is important for several industries such as automotive, aerospace, and architecture.
How Does an Automatic Bending Machine Work?
An automatic bending machine uses control programs to shape metal parts with accuracy and efficiency. Such a machine has tools and dies that exert force to bend the material at a given angle. Errors of human intervention are removed as the operator inputs the specifications and the machine performs the process automatically. This in turn saves time, enhances accuracy, and maintains quality in the output.
Features of a Fully Automatic System
A fully automatic bending system adds robotics features to enhance the existing technologies. Such devices possess functions of advanced sensors and real-time monitoring of activities that help to eliminate mistakes. Accuracy of modern systems goes beyond limit where precision of up to ±0.001 inches is possible which is advantageous to fields such as aerospace and medical devices. Other functionalities like automated tool changers and digital control interfaces cut down the time needed to set up for the job thus increasing effectiveness. Some of these machines surpass the speed and efficiency of manual operated systems by almost 30%.
Implementation of fully automatic bending machines is reported to increase operational efficiency by over 40% due to reduced downtime and human error. These systems are usually equipped with AI and ML algorithms for predictive maintenance and optimization of operations. Activities such as AI-powered diagnostics predicting tool wear cycles are examples of maintenance-free operation guarantees.
Moreover, the IoT (Internet of Things) connectivity enables communication between machines and control centers, making it possible to monitor remote production processes, analyze data, and make adjustments in real time. Many manufacturers have reported saving up to 20% of connected system expenditures annually, proving that these systems are beneficial to contemporary industrial production settings.
Advantages of CNC Technology in Bending Operations
CNC (Computer Numerical Control) technology has ushered into the bending applications market a new level of precision, efficiency, and repeatability in manufacturing processes. Enhanced precision associated with CNC bending machines ensures each part is produced to specification and errors or wastage incidence is minimized. Recent statistics show that CNC bending technology users have reported production efficiency improvement of up to 30%, alongside material waste reduction of about 15%.
As an example, modern developments in CNC programming software grant operators the ability to simulate bend processes in advance, providing them with the opportunity to identify problems and streamline operations prior to any material or time expenditure. This simulation capability greatly improves the flow of operations and guarantees timely completion of workflows even with stringent deadlines without compromising the quality of the end product. In comparison to conventional bending approaches, integration of CNC technologies does not only simplify the achievement of consistency but also enhances the ability to generate sophisticated shapes and patterns which could be utilized for advanced applications in aerospace, automotive, construction, and other fields.
CNC systems also benefit from IoT connectivity, which allows for performance analysis and real-time monitoring of the machines. For example, 60% of manufacturers implementing IoT-enabled CNC systems report an increased efficiency in their maintenance schedule, leading to a decrease in machine downtime of as much as 40%. The combination of IoT technology-enabled CNC systems along with these insights makes CNC bending a critical component in meeting the changing requirements of modern-day manufacturing.
Improving Productivity with Reliable Bending Machines
Productivity in manufacturing processes is best enhanced with reliable bending machines. The effectiveness with which high-speed bending, automated tooling systems, and smart data systems are integrated is a major determinant of how well processing times are reduced precision is kept. Recent studies suggest automated bending machines boost production efficiency by over 25%. This significantly improves a manufacturer’s capability of meeting strict deadlines while maintaining quality.
Furthermore, real-time monitoring innovations address unanticipated downtime. Predictive maintenance, a real-time monitoring system, uses sensor technologies to estimate faults before breakdowns, thereby reducing unexpected losses. Recent industry studies suggest that manufacturers applying predictive maintenance to bending machines record an average of 35% longer lifetimes of such machines alongside a decrease of 20% in total operating expenses.
Reliable bending machines assist in dealing with ultra-thin sheet metals and high strength alloys simultaneously. As such, they increase the versatility of facilities. Global manufacturers using versatile bending machines are better poised to take advantage of rising market demands which are emerging from precision components in industries like electric vehicles and renewable energy. Thus, reliable and highly sophisticated bending equipment has become a must-have strategic investment for manufacturers who do not wish to lag behind competitors.

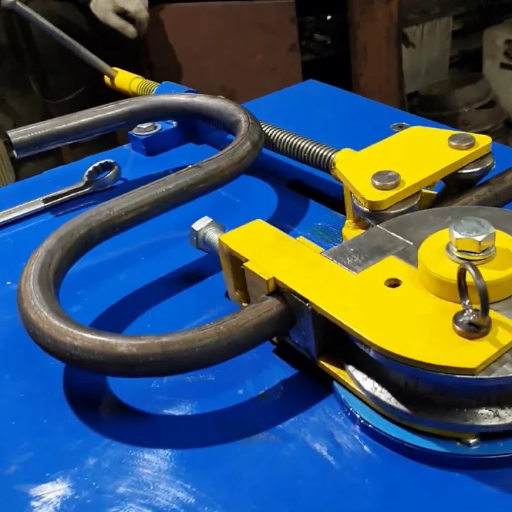

Can a Hydraulic Pipe Bending Machine Meet Your Needs?
Certainly, a hydraulic pipe bending machine will work well for your needs if you want accurate and efficient bending of pipes for different materials and sizes. These types of machines are reliable for more than just small-scale projects; they can efficiently handle large industrial tasks, making them very adaptable and dependable. Due to the simplicity of their operation and ability to undertake complex bends, these machines are a preferred choice in multiple manufacturing processes.
Strengths of Hydraulic Systems
Systems that use hydraulics are popularly known for their effectiveness, long lasting nature, and ability to withstand intense pressure. Working on the principles of fluid mechanics, these systems can lift and apply great force while still retaining great control. The use of the hydraulics system has increased and as of now, over 60 percent of contemporary industrial machines use it since it is dependable and efficient in power transmission.
An important strength to note is the enhanced ratio of weight to power. Due to this, machines need not to be very heavy or bulky in size in order to perform heavy duty work. Tools installed with hydraulic systems also ensure constant and controllable speeds which benefits tasks that need delicate movements. They are also energy-efficient, losing energy in the form of waste in modern designs by fifteen percent compared to older models.
As shown by statistics, sectors such as construction, aerospace, and automotive are major users of hydraulic systems. For example, the use of hydraulic excavators illustrates this fact; they are capable of lifting more than 85 tons, showcasing their ability to manage enormous workloads. Moreover, modern technologies like IoT sensors allow hydraulic systems to transmit real-time performance and maintenance data, reducing industrial downtime and operating expenses by as much as 20%.
These advantages provide further evidence of the significance and value of hydraulic systems in contemporary technology, emphasizing the diverse industries and uses in which such systems are employed.
Comparing Hydraulic vs Manual Bending
Hydraulic bending is more efficient, precise, and versatile than manual bending, which is labor-intensive, less accurate, and suitable for simpler tasks.
| Parameter | Hydraulic | Manual |
|---|---|---|
| Efficiency | High | Low |
| Precision | High | Moderate |
| Versatility | High | Low |
| Labor Effort | Low | High |
| Speed | Fast | Slow |
| Complexity | Complex | Simple |
| Maintenance | Moderate | Low |
| Cost | High | Low |
| Safety | High | Moderate |

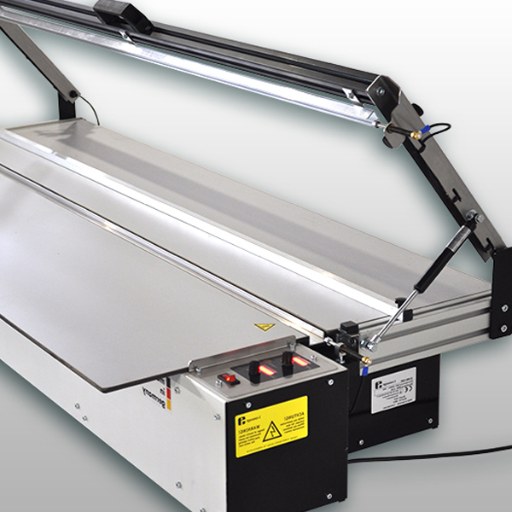

Why Choose a Plastic Bending Machine?
A plastic bending machine is capable of bending different kinds of plastics with precision and versatility. This machine will help save time and effort while ensuring good-quality results. The investment on purchaising such machine pays off over time, since its complexities make certain tasks safer and easier, especialy for industrial and professional purposes.
An Overview On The Vacuum Forming Procedure
In modern machines, there are very accurate and precise thermostats that control the temperature, guaranteeing ideal precision, efficiency, and speed. IVacuum forming machines are equipped with highly efficient and high-tech heating devices, for example, infra-red or quartz heaters.
It is believed that vacuum forming machines can achieve temperature ranges between 150 F and more than 500 F. For instance, acrylic sheets need about 320 F for proper bending. Moreover, within industrial procedures at large scales, these machines can process materials at appropriate speeds, up to 10 feet per minute.
Also, today’s equipment has programmable controls and users can perform intricate designs which are repeatable and precision programmable, thus, minimizing error. A reduction in waste of up to thirty percent compared to traditional methods is achieved due to consistency of outcomes. Stringent automation alongside safety innovations has plastic allowing them to serve the automotive, aerospace, and construction industries; thus, making them integral to the manufacturing process.
Uses of Acrylic Bending Machines
There is no single industry which does not make use of acrylic bending machines. They play a major role in signage where acrylic sheets are heated and molded into bespoke designs for better display. A recent study suggests that the global sign market is expected to grow to $63.3 billion by 2030 with Acrylic being one of the most popular materials owing to its lightweight attributes and robust nature.
A more prominent use is in making protective barriers and shields which saw unprecedented growth as a result of the COVID-19 pandemic. This demand was coupled with manufacturers utilizing acrylic bending machines to quickly make these barriers which greatly assisted some manufacturers in meeting the boosted demand reporting increased orders of 40%.
Moreover, in the automotive sector, acrylic bending machines play a crucial role in manufacturing vertex complex parts like the headlight lens, dash boards, and sculptured trims. Their precision plays a major role in ensuring vehicle safety and aesthetics, as every piece produced must meet strict quality standards.
Productivity has increased by 25% with the use of acrylic bending CNC controllers, and turnaround times are still faster without losing precision due to modern technological innovations. These innovations make the tools irreplaceable in the contemporary manufacturing processes.
Understanding Vacuum Forming
Plastic sheet bending is very important in modern manufacturing because it enables the automotive, construction, and sign making industries to create new complex shapes and designs. It was PVC (polyvinyl chloride) that was valued the most because of its rigidity, ease of use, and low cost, which made it popular in the bending and forming markets.
This approach requires that the material be heated until it softens, and then it is shaped using molds, presses, or bending machines. In the case of PVC sheets, the optimal heating temperature is usually between 140°F to 176°F (60°C to 82°C) for the thickest and most specific type of plastic being processed. High-end equipment such as CNC controlled heat bending machines ensures accuracy by providing precise uniform heat and uniform pressure throughout the process, thus reducing warping or inaccuracies during shaping.
As of late, there have been reported advancements in the efficiency of bending plastics. Trends report that these automated systems are capable of decreasing production time by 30% while retaining high levels of accuracy, often within ±0.5 mm. There has also been improvement in environmental impact by reducing waste with the use of new plastic tooling materials such as heat resistant silicone molds, extending the equipment’s lifespan.
The innovative capabilities of engineers and advanced technology have transformed the bending of plastic from a simple procedure to a highly precise and sophisticated process. The multitude of practical applications for sheets of PVC and other plastics, such as durable cladding used in construction and lightweight components in consumer products showcase their versatility. The bending procedure uses the plastic sheets and makes them into functional, exceptional high-performance products.
Reference sources
- Penn State University – Sheet Metal Forming: 48″ Roller, Bending, Shear: Discusses the use of bending machines for sheet metal forming, including specifications and applications.
- University of California, Berkeley – Design of a Hydraulic Bending Machine: Details the design and construction of a hydraulic bending machine, including its components and functionality.
- Fermilab – Bending Machine/Press for GEM Electromagnetic: Explores the use of bending machines in forming absorber and signal electrode plates for electromagnetic applications.
Frequently Asked Questions (FAQs)
Q: What is a tube bending machine and how does it work?
A: As the name implies, a tube bender is a type of a bending machine which need fully automated tube bending machines that can bend tubes to particular angles like 30, 45 90 exhaust pipes elbow and others. They achieved the required angle by twisting in bending die, and precision is achieved by compensating for springback.
Q: How does a rebar bender differ from other bending machines?
A: With the other types of bending machines, a rebar bender is unique because it is made solely to bend rebars or reinforcing bars. These metals are pivotal in construction and are utilized to provide strength for concrete structures. It differs from other bending machines because it has to have hydraulics which enables it to flex rebar due to its strength and rigidity. Hence, it is a stronger and powerful machine.
Q: Can a letter bending machine be used for metal channel letters?
A: Letter bending machines are intended to prepare the molded pieces of channel letters and as such can be utilized to make metal channel letters. These devices are capable of bending thin plastic sheets or even metals like stainless steel. They are geared towards high accuracy and efficiency in terms of robotic automatic bending which make them easy to operate.
Q: Why is a press brake beneficial for metal bending?
A: A press brake is very efficient for diminishing steel and aluminum since it can apply great power to make certain the the necessary bends have been made. It serves well in bending rectangular profiles and can be designed to satisfy particular production requirements which improves production speed and precision.
Q: What is the importance of dies in the process of bending tubes?
A: In terms of the tube bending procedure, dies have a significant role regarding bending because they add the radius and angle of the bend. Top-end machines designed for bending possess holes that are specifically made for them so no extra time is spent correcting them, which streamlines the process of creating accurate bends.
Q: What are the ergonomic features one should pay attention to when dealing with small bending jobs?
A: For small bending jobs, the profile is far easier to work with if the machine itself is simple to control. Such machines can remove time from the bending process if they have an adaptive design and are capable of automating simple tasks.
Q: In what ways does a rotary machine improve the bending process?
A: Rotary machines assist the bending process by offering smooth, uninterrupted rotary movement which minimizes potential material weakening and fracture. This is helpful for maintaining high accuracy of specific angles and overall precision.
Q: Is it possible to use a bending machine for straightening of materials?
A: Straightening of materials is not a primary designated function for most bending machine. It is possible, however, some machines may have the ability to straighten materials, particularly those which have features that modify the shape of the bend being applied.
Q: Bending machines: what are common power sources for them?
A: There are differing sources of power for bending machines. For smaller user-friendly machines, one hundred and ten electrical volts is a common source. Larger industrial machines tend to make greater demands, and thus require higher amounts of power, needing to draw three phase power to operate effectively.
Q: Why is understanding the concept springback in bending?
A: Springback is important because it is the reason why material wants to revert back to its original shape after going through springback. Considering springback helps operators achieve desired angles during the ben done thus improving the quality and precision of the work.
