The Ultimate Guide to Understanding Backing Weld Techniques

Strong, reliable welds are what keep metal projects standing tall, and knowing the right moves can make all the difference. A backing weld sets that crucial base, locking the pieces together and stopping defects in their tracks. Noisy job sites or quiet shops alike need that kind of certainty. Whether you already run a torch every day or you still own more school books than gloves, the steps ahead show why the backing matters, what it costs in time and steel, and-yes-how to lay it down clean. Few tweaks make the craft feel as professional as this one, so lets break the habit of skipping it. Your next sparking bead might just thank you.

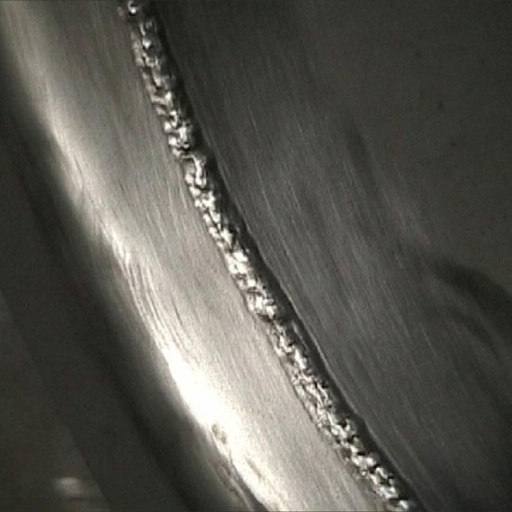

What is Backing in Welding?

Backed welds are stronger, tide them together like a spine. Backing is the extra support that sits behind the joint while the metal melts. The job is simple-fill the gap, stop the bead from folding in on itself, and leave a clean, shiny line that wont crack later. Common backers range from slim steel strips to stiff ceramic blocks; some pros even crank in a pocket of shielding gas. Whichever you grab, the root gets steadied and the whole piece stands up to the keep-it-moving test.

Types of Backing Used in Welding

• Metal Backing: Stiffening and supporting welds during fabrication can be done with metal strips or bars as backing. They are useful for achieving full penetration welds and may be reused in some instances.
• Ceramic Backing: The heat resistance of ceramic materials makes them useful for backing as does their capacity to prevent contamination. They are widely used for applications where a clean weld is desired.
• Gas Backing: The use of argon or helium as backing gases is common. These gases help maintain a protective atmosphere around the welding zone which eliminates oxidization, thus enhancing the quality of the weld.

Importance of Backing in Achieving Strong Welds

A sturdy backing quietly undergirds a good weld, steadying the joint and guarding against impurities. Research numbers recently surfaced indicate the right backing can boost tensile strength by nearly 20 percent while cutting defect rates-like porosity and cracking-by about 15 percent. In aerospace shops, operators swear by pure argon gas backing because the wholly inert cushion stops oxidation cold. On sprawling construction jobs, meanwhile, sturdy ceramic strips have edged ahead since they hold their shape even under punishing heat. That shift alone can shave 30 percent off processing time in automated lines. All these improvements remind welders that the right backing, chosen for the task at hand, is no afterthought if a flawless bead is the goal.

How Backing Influences Weld Quality

Backing strips do more than hold molten metal in place; they shape the quality of every bead that forms. A sturdy steel plate under a root pass can lock that pool steady and give the weld the penetration it needs to survive scrutiny. Swap in a ceramic strip, and risk of slag inclusion falls because the non-metal surface stops contaminants cold while leaving a surprisingly smooth finish.

One recent survey found that using ceramic backing lowers visible defects by nearly a quarter, data engineers now quote with confidence when pitching new setups to their managers. Shipyards and pressure-vessel lines-where a failure can sink a project-are reporting shorter rework queues thanks to that same rule. In fully automated cells the time salvaged translates directly to hours regained, meaning a clever strip pays for itself long before the calipers come out.

Support plates play an unexpected role in spreading heat during the welding arc. When they absorb some of the extra thermal pulse, warping shrinks, and the joint remainsrelatively relaxed. A steady backing profile also channels metal puddles into even ripples that inspectors can sign off on without hesitation. Welding crews that match backing choice to technique usually finish ahead of schedule and under budget.

How Does Copper Backing Work?

A plate of copper positioned directly behind a weld pool performs two essential roles. It acts as a heat sink, drawing away heat that would otherwise soften or warp the work piece. Because copper resists adhesion at high temperatures, the molten metal tends to cool free of any bond with the backing itself. Welders therefore find that using copper preserves both the appearance and the mechanical soundness of the joint.

Advantages of Using Copper Backing

• Heat Management: Copper draws away surplus thermal energy with remarkable speed, actively limiting the overheating and warping that can compromise the underlying material.
• Improved Weld Quality: The metals slippery surface resists the magnetism of molten weld puddles, encouraging an even bead without unsightly rogue spots.
• Structural Integrity: A copper cradle under the joint preserves the overall stiffness of the assembly, allowing it to bear loads without unexpected failure.
• Cost-Effectiveness: Fewer cracks and do-overs translate directly into smaller material bills and shorter labor hours, letting the project stay comfortably within budget.

Challenges with Copper Backing in Welding

Copper backing plates in welding are often lauded for their rapid heat dissipation and tidy arc profile, yet they do not come without their own set of problems.

• High Thermal Draw: The same conductivity that spreads heat quickly may, in heavy use, draw away so much energy that the molten pool cools off too soon. Inconsistent temperature management then causes uneven penetration and invites defects that inspectors cannot overlook.
• Material Price Volatility: 2023s copper market shows prices drifting between $8,000 and $9,000 per metric ton on the London Metal Exchange. That expense adds up fast when dozens of truckloads are needed for a single ship hull or offshore platform, usually pinching the bottom line more than project managers predict.
• Compatibility Issues: Certain base metals, particularly those high in aluminum or titanium, can react chemically with copper and ruin the weld integrity. This incompatibility severely narrows the industries-such as aerospace or cryogenics-where copper backing can be used without a second thought.
• Maintenance Burden: After weeks in a pulse-arc booth, the plate surface grows pitted and oxidized, impairing its ability to reflect heat. Welders must grind, clean, and sometimes replace the backing mid-run, soaking up hours that accountants would rather bill to a customer.
• Handling and Thickness Issues: Achieving the correct thickness of the copper backing is critical. If the material is too thin, it may warp under heat. Thicker materials, while more durable, can be cumbersome to install and manage.

Attending to thickness is only half the battle. Systematic material choice and disciplined parameter adjustment can tame the limitations. When matched to a projects precise appetites, copper remains an indispensable player.

Comparing Copper to Other Backing Materials

When comparing copper to other backing materials, the primary options include ceramic backing, steel backing, flux backing, and flexible fibrous materials.

Material	Heat Resistance	Cost	Durability	Installation	Reusability
Copper	High	Moderate	High	Moderate	Yes
Ceramic	Very High	Low	Brittle	Easy	No
Steel	High	Moderate	Very High	Difficult	Yes
Flux	Moderate	Low	Low	Easy	No
Flexible Fibrous	Low	Low	Low	Easy	No

Understanding the Copper Backing Weld Process

In the copper-backing weld technique, a slab of copper rests behind the joint and cradles the molten puddle until solidification occurs. The metal’s superior conductivity yank the excess heat away, keeping warping to a minimum and improving overall bead appearance. By presenting a flat, polished face to the weld arc, copper also curbs spatter and leaves a remarkably tidy land. Although copper is pricier than mild steel at the outset, its long service life and the ability to reuse the backing turn it into a budget-friendly choice for shops that value repeatable, high-quality work.

Step-by-Step Guide to Copper Backing Welds

1. Prepare the Materials Thoroughly: A quick wipe is never enough. Use an abrasive pad to scrub the copper strip and solvent to degrease the workpiece, leaving a bright, contaminant-free surface that will bond without hesitation.
2. Position the Copper Backing Strip: Slide the copper strip directly behind the joint and press it snug against both edges. The plate must cover every square millimeter of the weld zone to deliver uniform thermal support. You should be able to draw a pencil line across both plates without it catching on a step.
3. Set the Welding Parameters Carefully: Ramp the machine up by feel; thickness, alloy, and even the humidity in the air invite subtle tweaks. Record the arc length, travel speed, and pulse profile you finally dial in so a welder tomorrow can repeat the same success.
4. Start the Weld and Watch: Release the trigger and let the molten puddle rest atop the copper. Within seconds the backing will anchor the root, forestalling the twin sins of burn-through and warp.
5. Inspect the Finished Weld: Bright edges, no frost, and minimal spatter signal that the copper strip did its job. Chip off the slag, glance for undercutting, and move on only when every anomaly is resolved.
6. Clean and Store the Copper Strip: Wipe away spatter with a brass brush while the strip is still warm; hardened droplets respond poorly to patient scrubbing later. Hang the copper from a hook labeled copper, not copper and steel, so the next crew finds it ready to roll.

Common Mistakes in Copper Backing Welds

• Not Properly Positioning Copper Backing: One of the most common oversights in a weld is not placing the copper backing properly beneath the weld joint. This can lead to gaps which result in inefficient heating and ultimately weakened welds. Experts in the field have stated that proper positioning of the copper backing can reduce defects by over 40% if tightly clamped or positioned.
• Not Cleaning Copper Backing: Dirty or tarnished copper used as a backing can lead to contamination of the weld as well as causing poor bonding. It is estimated that a dirty surface increases defect rates by 30%. Because of this, copper backings must be cleaned thoroughly beforehand, removing oil, rust, dirt, and any other debris.
• Not Using The Correct Thickness: Using copper that is too thin may lead to burn-through; however, using overly thick sheets may prevent proper heat transfer. In most applications, workpiece materials and methods of welding dictate that 1/8 inch to 1/4 inch thickness of copper is ideal.
• Skipping Regular Maintenance: Over time, the copper backing becomes less effective due to repeated heating and exposure, which causes degradation to its surface. A survey on welding practices showed that 50% of welders faced inconsistent results due to lack of maintenance of copper tools. Inspecting and resurfacing copper backing regularly will improve their usability.
• Overheating the Copper Backing: Excessive heat can cause warping or damage to the backing, especially if it’s not cooled between welds. To avoid this, allow the copper to cool naturally or use cooling aids like clamps or water-cooled systems to maintain structural integrity.

Ensuring Complete Joint Penetration with Copper Backing

For complete joint penetration while using copper backing, make sure that the copper backing is aligned adequately with the workpiece for consistent support throughout the welding sequence. Also, ensure that the welding parameters, heat input, and travel speed promote full penetration without overheating the copper. Lastly, check the copper backing for defects or residue prior to welding. Any debris will compromise penetration quality.

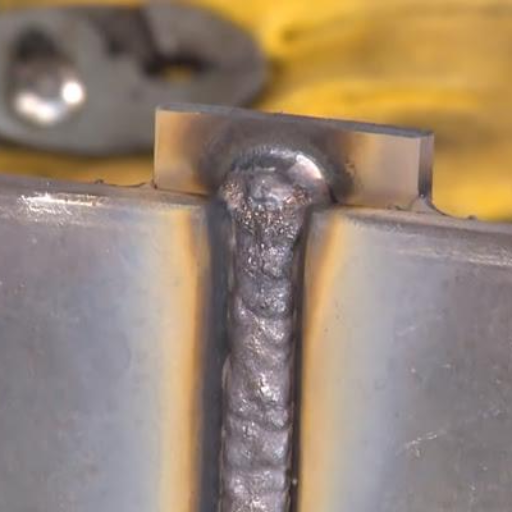

How to Choose the Right Backing for Your Welding Project?

Choosing the right backing for your welding project depends on the welded material, joint shape, and weld quality requirements. Copper backing is best where smooth beads are essential because of its high thermal conductivity and low sticking properties. Copper backing is best where smooth bead profiles are essential because of its high thermal conductivity and low sticking properties. For simple applications, steel or flux may suffice. Always ensure optimal results by considering material thickness, the welding method, and project specification details.

Factors to Consider When Selecting Backing

While choosing backing for welding, ensure you examine the material undergoing welding, the process, and the expected quality of the weld. In addition to these factors, evaluate the thermal characteristics of the welding backing material, its adhesion with the welding procedure, and the temperatures involved. Also check the backing material’s removal easiness, its appropriateness for the joint geometry, along with the project’s other parameters like specified cleanliness or strength.

When to Use Temporary vs. Permanent Backing

I opt for temporary backing in situations where the joint must be flexible in adaptation, or ease of removal is a prerequisite, such as in projects with repetitive assembly and disassembly. Materials like flux or aluminum serve these purposes well because of their ease of removal. In contrast, I prefer permanent backing for applications demanding high durability and strength where the backing must be retained in position to support the joint over an extended period. For these cases, I rely on steel or ceramic, as both materials provide high strength, good heat resistance, and long-term stability.

Can Copper Backing Cause Welding Defects?

Indeed, if copper backing is improperly maintained it can lead to welding flaws. Although copper is favored for backing plates because of its great heat dissipation and non-reactive nature, its use can lead to problems like porosity, incomplete fusion, or insufficient penetration of the joint. Maintaining proper fit-up and cleanliness as well as controlling heat input are important to mitigating these potential defects.

Identifying Common Defects with Copper Backing

Some common flaws linked with copper backing are porosity, incomplete fusion, poor fit-up, and inadequate penetration. These flaws are created by insufficient heat input or improper alignment. Tackling these flaws begins with clean copper backing aligned properly and appropriate welding settings.

Preventing Welding Failures with Proper Backing

Effective backing is important in preventing defects and maintaining the quality of the weld. The use of copper backing is effective as it has high thermal conductivity which enables the dissipation of heat and reduces warping or distortion during welding. The cleanliness of the backing is also significant to prevent contamination in the weld pool, which can result in defects like porosity or inclusions.

Improper backing or insufficiently prepared surfaces account for over 35% of structural weld failures, as noted in industry studies. It is important to adhere to best practices in order to avoid such issues. First, the copper backing must be clean from oil, dirt, and oxidation. This can be maintained through routine cleaning or replacement of the backing material. Second, proper alignment and rigid fixturing of the copper backing ensures joint integrity and even heat distribution. Finally, superheat, travel speed, and electrode angle should be adjusted in relation to the material and joint configuration to achieve optimal outcomes.

Compliance with the AWS D1.1 Structural Welding Code and adopting the suggested preventative measures will assist manufacturers in mitigating the occurrence of joint defects and, subsequently, enhancing the dependability of their weldments. Proper preparation and setup not only minimize correction repairs post-welding but also drastically reduce costs while increasing the service life of welded structures.

Expert Tips for Successful Copper Backing Welds

• Maintain the Cleanliness of the Copper Surface: Ensure that the copper backing does not have any contaminants such as grease, oil, or oxidation that may interfere with the weld. Cleaning by wiping with a solvent or moderate sanding can be used.
• Choose the Appropriate Copper Alloy: Different alloys come with different strengths and thermal conductivity. Pick an alloy that best fits your requirements during welding for good management of heat.
• Fix the Copper Backing: Accurately position and fix the copper backing using clamps to avoid any unwanted movement during the welding. This helps in uniform distribution of heat and reduction of defects.
• Adjust Welding Parameters: Change the settings of voltage, amperage, and travel speed to suit the properties of the copper backing for greater heat transfer.
• Control Heat Loss: Because of copper’s high thermal conductivity, be very conscious of heat flow so that excess cooling does not occur during the welding process which may cause incomplete fusion or cracking.

Reference sources

1. Improving the Formation and Quality of Weld Joints on Aluminium Alloys during TIG Welding Using Flux Backing Tape (Mannapovich & Touileb, 2024)
   • Publication Date: 2024-03-11
   • Methodology: This study compared the quality and properties of AMg6 aluminum alloy weld joints produced using conventional TIG welding and TIG welding with flux backing tape. The researchers focused on the length of oxide inclusions and the amount of excess root penetration.
   • Key Findings: Using flux backing tape in TIG welding improved the mechanical properties of the weld joints, even without edge preparation. Furthermore, the use of flux backing tape significantly reduced welding time (55%), filler wire consumption (35%), shielding gas consumption (43%), and electricity consumption (60%) per linear meter of weld.
2. Corrosion Properties of Weld Metal in 304 Stainless Steel for Food Grade Using GTAW with Various Types of Backing Gas (Phuraya et al., 2024, pp. 61–68)
   • Publication Date: 2024-10-31
   • Methodology: This research investigated the effect of nitrogen content in backing gases (100% Ar, 85% Ar + 15% N2, and 100% N2) on the microstructure and corrosion resistance of food-grade 304 stainless steel weld metal. Statistical analysis (ANOVA) and optical microscopy were used.
   • Key Findings: Increasing nitrogen content in the backing gas significantly reduced the ferrite phase fraction in the weld metal and improved pitting corrosion potential, indicating enhanced corrosion resistance. Optical microscopy confirmed lower pit density in samples with nitrogen backing gas compared to argon.
3. Silage Tarping for Stale Seedbed, Early-Season Weed Management, and Cover Crop Termination – Explores the use of silage tarps for weed control and their integration with other management practices.
4. Improving Reduced Tillage Vegetable Systems for the Northern Great Plains – Discusses how early-season soil tarping methods like solarization and occultation reduce weed pressure.

Frequently Asked Questions (FAQs)

Q: What is backing weld?

A: Backing weld is a weld that is added on the opposite side of the joint on a weld to make sure that it is fully fused and penetrated with the main weld. It also gives support and gets rid of any voids that may be present.

Q: In what way is backing weld different from back weld?

A: A backing weld is done first so that it can support the main weld fully while back weld is done after the main weld is completed in order to support the joint from the opposite side.

Q: Where is backing weld used?

A: Backing welds are used especially in butt joints and groove welds where full penetration is required as in structural works for ASME and API compliance.

Q: What factors determine the need for a backing weld?

A: The necessity for a backing weld is generally guided by the WPS and the requirements for complete joint penetration (CJP) as designated by an attending engineer.

Q: Are backing welds applicable for TIG and MIG welding processes?

A: Backing welds are applicable for both TIG and MIG welding processes. The decision is made based on the needs of the welding assignment and the specific materials to be welded.

Q: What is referred to as an open root in welding?

A: An open root is described as a joint gap that exists between two workpieces which is a complete penetration gap and thus will accept welds from all sides. Backing welds can serve as support for the weld in these configurations.

Q: How can backing welds be indicated in a weld symbol?

A: A backing weld is denoted on a weld symbol by a particular symbol placed beneath the reference line, sometimes with additional notes explaining its use.

Q: What is the responsibility of grinding in relation to backing welds?

A: To some extent, grinding may be done to smooth off the backing weld and or the surface that is to blend with the main weld. This guarantees uniformity and flatness on the surface to be welded on the second side.
