3D Fiber Laser Marking Machine: Engrave with 3D Laser Engraving

One of the most sought-after technologies in modern industries is laser engraving due to its effectiveness, versatility, and precision. Out of the many options available, 3D fiber laser marking machines are particularly noteworthy as they uniquely integrate innovative technology that enables admiring detailed and permanent markings on different materials. But in what ways do these machines stand out? And how can they transform both entrepreneurs and hobbyists? In this article, we will explore 3D fiber laser marking machines and provide a detailed analysis of how they work, their main features, and the various industries that use them. If you are planning to invest in laser engraving systems, regardless of your expertise, this article will ensure you make the best decisions when using this modern technology.

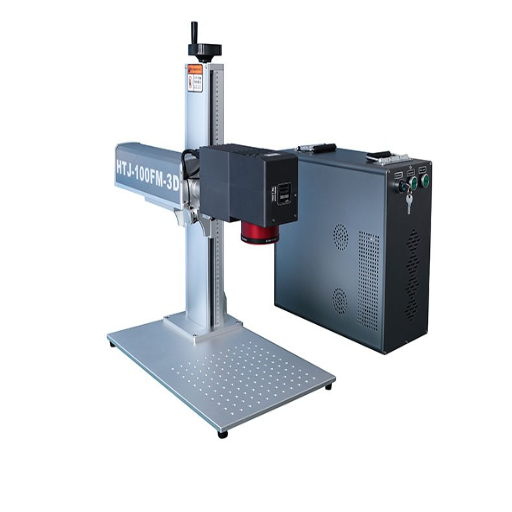

What is a 3D Fiber Laser Marking Machine?

How does a fiber laser marking machine work?

To mark a material, a fiber laser marking machine focuses a beam of light onto the material’s surface and alters its characteristics. This is done through a process called laser cutting. The marking machine has a fiber optic cable containing rare elements such as ytterbium. This cable amplifies light energy, which is later focused on the fiber optic cable. After that, the fiber optic cable directs the light to the marking surface through a controlled galvanometer system. This system marks the laser beam precisely and rapidly.

Like all machines, the marking machine has significant components, including its control software, laser source, scanner head, and marking field lens. The machine functions by ‘activating the laser beam’ to make its temperature exceedingly high. Subsequently, this vaporizer or engraves the material’s surface. Depending on the settings and laser used, different processes can be done to the material, like etching or engraving. For example, during the process of annealing metals, the mark produced on the metal is clear and durable while ensuring that the oxidation state keeps changing.

Research from industry reports suggests that fiber laser technology can reach marking speeds over 7,000mm/s with accuracy levels finer than 0.001mm. This makes them quite useful for elaborate designs and detailed barcodes. Moreover, fiber lasers are forecasted to have lifetimes exceeding 100,000 hours, requiring lower maintenance than other marking technologies. This efficiency and longevity significantly enhance the cost-effectiveness of using fiber laser marking machines in industrial applications. Their versatility in processing materials such as stainless steel, aluminum, brass, and various polymers enhances their adaptability, reinforcing their importance as tools in contemporary manufacturing frameworks.

What are the benefits of using a 3D laser engraving machine?

• High Precision and Detail

3D laser engraving machines offer extraordinary accuracy and create intricate designs. 3D laser engraving machines can provide extraordinary levels of precision and accuracy. Fascinating, intricate details are a breeze to engrave. This precision is exploitable in the fine engraving sectors of the jewelry, aerospace, and electronics industries.

• Flexibility with Various Materials

These machines work on metals, glasses, ceramics, and plastics. They can also engrave on wood, making artistic creations easier. The machines’ versatility makes them applicable in diverse fields, from industrial production to martial art creations.

• Efficient and Time-Saving

3D laser engravers boast modern technology, which offers higher-quality 3D laser engraving machines. They boast enhanced 3D laser engraving machines with modern technology that offer higher speeds than traditional methods. Shorter precision and speed engraving will reduce the precision and speed of production in industrial and commercial settings.

• Durable and Long-Lasting Results

Every machine maintains the mark in its demanding laser engraving machines, which are known to endure harsh environments. The engraving markings done by these machines are done in and made to last. Harsh and demanding environments can weather many machines, and their markings are perfect for permanent, long-lasting results.

• Cost-Effective in the Long Run

The savings in material cost, operating costs, and after almost losing mechanisms facing low maintenance add complex increasing expenses, laser machines are cost-effective, imposing initial costs. Maximally spending through maintenance, periphery, and equipment peripherals creates an easy-edge gap, which makes 3D laser engraving systems foster savings in investment operations as an asset, for long-term sustainability, sought out solutions from evolving customers.

How to Choose the Right 3D Fiber Laser Engraver?

• Establish Your Material Requirements

To determine the class of engravings you can perform, classify materials into categories like metals, plastics, ceramics, etc. This will determine the power and specifications of the machine needed.

• Examine Depth of Engraving and Measurement of Distinction

Consider how deep and precise detailing is needed to achieve your objectives so that the machine in question is regarded as capable of accomplishing such tasks.

• Check Software Compatibility

Ensure that the engraver’s software does not conflict with your design applications and is programmatically compatible with your workflow for maximum productivity.

• Assess Item Size and Space Availability

Consider having sufficient space for the machine and items to be engraved without the machine obstructing your workspace.

• Conduct Reliability Testing and Support Documentation

Do thorough research on other users’ experiences with the machine to find a certified manufacturer who protects their clients with great support, customer service, warranties, constant maintenance, and other services that ensure no productivity loss.

Considering these criteria, optimally selects the machine for productive 3D fiber engravings, relieving clients from excessive cost burdens.

What factors should you consider when selecting a laser engraving marking machine?

Different engraving machines, like laser engraving marking machines, require a careful examination of their features. Each machine has its specifications and purposes. For your ratified purchase, understand the following attributes:

• Compatibility with Materials

Different machines serve different purposes. Ensure the machine you select corresponds with the materials you wish to engrave, be it metals, plastics, wood, or glass. A laser engraver’s effectiveness on different substances differs. For example, a fiber laser is ideal for metals, while CO2 lasers are perfect for non-metallic materials such as acrylic or leather.

• Power alongside Speed

Engraving speed and depth are determined by the power of the laser source’s fuel. The greater the wattage, the deeper and faster the engraving. For light engraving, a 20W fiber laser engraver works just fine. However, a 50W or higher level would be necessary if the project requires more elaborate work. Ensuring effectiveness and efficiency demands equilibrium in speed and power.

• Precision along with Resolution

Opt for a sophisticated engraver to obtain high precision and resolution. These devices produce high-quality instruments fit for intricate work. Fine detailing along logos requires sharp and clean engravings, which are only available with a higher DPI (dots per inch).

What is the difference between a MOPA fiber laser and a standard fiber laser?

Parameter	MOPA Fiber Laser	Standard Fiber Laser
Pulse Control	Adjustable duration, wider range	Fixed duration, limited range
Material Compatibility	Works on metals, sensitive plastics	Best for metals and hard plastics
Engraving Speed	Slower for intricate designs	Faster for bulk engraving
Special Features	Color marking possible	No color marking capability
Heat Impact	Reduced heat for sensitive materials	Generates more heat
Cost	Higher initial investment	Lower upfront cost

How vital is laser power for engraving quality?

The power of the laser highly influences the quality of engraving. I have seen a higher power setting being beneficial for faster and deeper engraving on tougher materials such as metals. On the other hand, delicate materials like porcelain might require lower power for finer details to be achieved. Striking a balance between power and detail is what makes the outcome valuable.

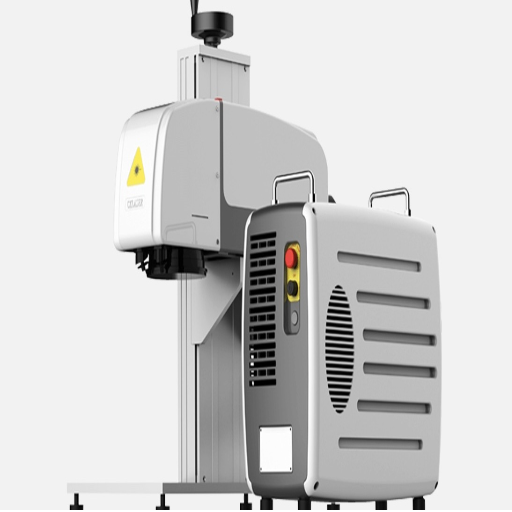

What are the Key Features of a 3D Fiber Laser?

1. Cutting Precision – 3D fiber lasers have the highest degree of engraving, cutting, and marking precision due to their practical application in intricate designs and detailed work.
2. Adjustable – These lasers are applicable in different industries as they can operate with many materials such as metals, plastics, and ceramics.
3. Capability – 3D lasers differentiate themselves from traditional lasers as they can engrave consistently curved or uneven surfaces.
4. Low Maintenance—Due to their effective energy consumption, fiber lasers have a durable design and extensive lifespan, which leads to low maintenance and reduced operational costs.
5. Increased Productivity – They optimize processing cost while maintaining engraving quality, which improves productivity.

What is 3D dynamic focus, and what are its advantages?

The latest development in the fiber laser system is 3D dynamic focuses, which allow for perfect and consistent engraving on three-dimensional surfaces. Unlike modern laser systems, which have a problem keeping steady focus throughout the entire surface, 3D dynamic focus technology adjusts the focal points of lasers on the goal surface seamlessly. This technology is specifically used in industries that require fine engraving on curvy or textured materials.

Consider the Following Benefits of 3D Dynamic Focus:

• Sharp Engraving on Difficult Surfaces

Having the power to control where the laser is focused guarantees perfect engraving on most rugged and rounded surfaces without losing any finer details.

• Enhanced Scope

The depth of field enhanced with 3D dynamic focus enables engraving to be done in a single operation at variable material heights and depths.

• Affordable and High Efficiency

Zero manual setting requirements and custom steps for different surface levels highly boost the productivity of manual labor at production and global costs.

• Improved Flexibility of Use

It works with almost every material, including metal, plastics, and glasses, making it perfect for varying types of unmatched manufacturing needs.

• Productivity Increase

The ability of high-speed engraving guarantees precision and boosts productivity overall, making this suitable for greater demand industrial needs.

How does a galvo system enhance the marking process?

A galvo system improves the marking process with high-speed, precise galvanometer scanners that direct the laser beam with high precision. These systems are built to move mirrors quickly so that laser engraving or cutting is done accurately and with little distortion, even for intricate designs.

• Recognition Criteria Are Fast

Galvo systems further increase processing speeds with scanning speeds up to 7000 mm/s. These systems are ideal for large-scale production because they can meet deadlines without affecting quality or precision.

• Recognition Criteria Are Detailed

The advanced control mechanisms in galvo systems maintain tight control over the placement of the laser beam, providing micrometer-level accuracy. This type of accuracy is tailored to the needs of specific industries such as microelectronics and medical device manufacturing, where, otherwise, minor errors could render the device nonfunctional.

• Dynamic Marking Field

The marking area for Galvo systems is wider than that of fixed-beam lasers. The software controls the ability to work on varying fields without moving the material, increasing optimization, workflow, and flexibility simultaneously.

• Reduced Downtime and Costs for Maintenance

Fewer moving mechanical parts result in increased reliability and lowered maintenance requirements over time. This ensures cost and production efficiency in the long run.

• Technology Brochure and Industry Overview Galvo:

Flexibility within a Wide Area of Application

Galvo laser systems are utilized in the automotive, aerospace, and electronics industries because of their versatility in materials like metals, polymers, and ceramics. Recent market reports highlight that the laser marking industry will grow at an estimated CAGR of 8.4% from 2023 to 2030 due to the increasing adoption of galvo laser systems.

The overwhelming advantage of speed and precision, combined with high operational efficiency, has revolutionized laser marking with surgical galvo systems, making them necessary in today’s manufacturing environment.

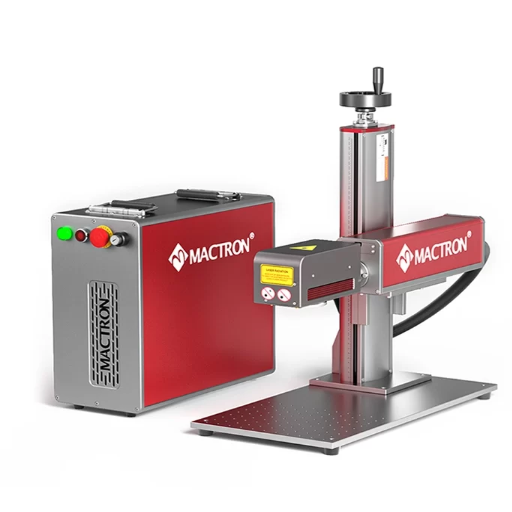

How to Operate a 3D Fiber Laser Marking Machine?

To use a 3D fiber laser marking machine correctly, here is what you need to do:

• Machine Setup

Put the machine on a steady surface and connect it to the power supply. Make sure the components, such as the laser head and the workspace, are mounted. Then, start building everything piece by piece.

• Material Preparation

Prepare the material by thoroughly cleaning its surface, getting rid of any residue that would overly complicate marking. Place the material on the workspace and position it according to the design, marking the boundaries in advance to avoid any uncertainty.

• Setup the Design

Using the provided software, upload the required design you wish to mark. Set the parameters based on material type, desired outcome, and depth speed, and power.

• Setting Up Focus

Correctly set focus on the machine by fine adjusting the focal length so precise marking is guaranteed. Most if not all 3D fiber laser systems come with autofocus capabilities to make things easier.

• Start the Marking Cycle

If need be, try putting a test run to check alignment and quality. Initiate the setting you have adjusted in the previous stage to commence marking, relax and keep an eye that everything progresses smoothly, and enjoy the show.

• Verification of Output Marks

After marking is finished, check if the product obtained is correct and within the standard margins of required quality. If necessary, set parameters differently for a smoother function.

Regarding machine operation, you must complete each task from the manual in sequential order and adhere to the safety protocols in place for optimal performance. Caring for the machine will increase its life expectancy and maintain its operational efficiency.

What are the basic steps to engrave using a fiber laser engraver machine?

Achieving precision and quality while engraving with a fiber laser engraver machine requires meticulous planning, preparation, and a lot of execution. Here is a guide with best practices and effective methods that you can follow step-by-step:

• Preparation of the Material

Choose from a list of materials to engrave, including metal, plastic, and composites. Fiber laser engravers do particularly well with stainless steel, aluminum, and even brass, making them suitable for industrial applications. Always ensure that the material’s surface is clean from dust, grease, or any other contaminants so that the laser can perform optimally without achieving subpar results.

• Design the Artwork

Artwork with all engravings needs a supporting design program, such as Adobe Illustrator and CorelDRAW, or specialized software that works with lasers, where you can import or create artworks. Along with measuring shapes and text, ropes, and other art pieces you need to engrave must also be added. It is important to export the created artwork as engraver software design in DXF or SVG files as they are the most well-known formats.

• Adjust Machine Settings

Adjust laser settings within the machine, controlling the software parameters of laser engraving. One of the most notable parameters is the power, frequency, speed, and even line spacing. For example, a standard steel engraving setting starts with 20-50% laser power, 300-600mm/s speed with a frequency of 20- 80 kHz. Remember to fine-tune the parameters based on the material and depth of the engraving.

• Position the Material

Clamp or otherwise secure the material on the engraving platform to prevent movement during the engraving process. Adjust the machine’s autofocus or focus the laser beam manually to ensure the correctness of the material’s position relative to the laser beam.

• Run a Test Engraving

Set your cutting machine settings, in particular the speed and power of the laser, to the results you aim for. Make a test engraving on a spare piece of material or a less conspicuous side to avoid primary material waste. Testing guarantees that the result will meet expectations without using the material’s central section.

• Start the Engraving Process

Start the engraving after confirming that the test results for the engravings were satisfactory. Ensure that you are present and monitor the entire operation to verify that every step on the engraver works correctly.

Advanced fiber lasers that use galvo scanning technology allow for very high-speed and precision engraving. Typically, these types of engravers reach speeds of 7,000 millimeters per second.

• Inspect the Engraving

Check the end product’s quality after the procedural steps. The engraving’s sharpness, depth, and consistency should all be present and checked before confirming polishing. Fine-tuning those settings will further increase output quality.

• Clean the Finished Product

Using an appropriate nonabrasive cleaning solution or simply a soft cloth, clean the surface from burnt or leftover shavings. The objective of this step is to prepare the primary material and capture an aesthetically pleasing look before putting it up for display.

Fiber laser engravers are appreciated for their unparalleled engraving accuracy, reliability, and efficiency. Achieving results in industrial branding, personal projects, or decorative engravings is easy when the machine is correctly set up, maintained, cleaned, and calibrated.

What are the limitations of fiber laser engraving on certain materials?

Material Type	Reason for Limitation	Alternative Solution
Transparent Materials	Laser passes through, no absorption	Use CO2 laser
Organic Materials	Burns easily or chars	CO2 laser for better compatibility
Reflective Metals	Reflects the laser back to the machine	Apply an anti-reflective coating
Thick Metals	Slower cutting, poor quality	Use a plasma cutter or a high-power laser
Ceramics	Low laser absorption, brittle	Use mechanical or ultrasonic tools

How do you set up the laser machine for optimal performance?

Like any other machine, a fiber laser engraver requires close attention to detail and the following of best practices to achieve the best possible results.

• Optimize Workspace Environment

…hint at the healthiest and core conditions for optimal performance, f easibly for workflow efficiency

Like other CNC and laser systems, one gets placed to power; they require clean, well-ventilated areas free from dust, damp, and other forms of moisture. When it comes to the other CNC systems, ensuring leveling helps reduce vibrations the laser engraver sits on can help vibrational-related engraver precision issues to a great extent.

• Query Ventilation alongside Power Supply.

Power and ventilation go hand in hand. Check if the equipment is optimally vented by unplugging the engraver’s exhaust system to effectively ensure heat is vented and remove fumes during operation. Further,while checking the Connection, ensure the device is linked to a reliable energy source and also make sure constant voltage is kept, as fluctuations can help improve the device’s life span.

• Optimal Parameters

Change engraving settings based on the type of material. The following settings are critical:

For example, embedding a design into stainless steel requires a power setting of 80%, a speed of 500 mm/s, and a frequency of 30 kHz. The same might not be true for anodized aluminum; different parameters may be necessary.

• Conduct equipment routines.

To ensure optimal beam focus, it is essential to clean the lens and mirrors regularly using a microfiber cloth. Do not forget to check with the manufacturer for other software optimizations.

Always run trial engravings on a scrap piece of the raw materials you are working with to confirm settings and adjust other refinements needed. This greatly helps reduce material wastage.

Following the outlined steps ensures optimal functionality of the fiber laser engraver while preserving its durability, all without compromising performance or application versatility.

Reference Sources

1. Investigation of Surface Roughness of Carbon Steel Machined Parts After Nanosecond Fiber Laser Marking

• Authors: P. Tsvyatkov, E. Hristov Yankov, L. Lazov, E. Teirumnieks, Kārlis Pigožnis
• Publication Date: June 13, 2023
• Journal: ENVIRONMENT. TECHNOLOGIES. RESOURCES. Proceedings of the International Scientific and Practical Conference
• Key Findings:
  • The study investigates the impact of nanosecond fiber laser marking on the surface roughness of carbon steel.
  • It emphasizes the importance of surface roughness in evaluating the contrast of laser markings.
  • The results indicate that four process parameters—laser power, frequency, speed of marking, and step—influence roughness.
• Methodology:
  • Experimental studies were conducted to analyze the surface roughness using a 3D measuring laser microscope (OLYMPUS LEXT OLS5100).
  • Graphical analysis established the relationship between the roughness function and the marking parameters(Tsvyatkov et al., 2023).

2. Experimental Investigation of Nanosecond Laser Machining of 3D Printed Carbon Fiber Reinforced Polymer (CFRP) Composite

• Authors: Charles K. Ma, Lesly Aguilar, M. Karim, Muhammad Abdun Nafi, Jianfeng Ma, Muhammad P. Jahan
• Publication Date: August 1, 2023
• Journal: Manufacturing Letters
• Key Findings:
  • This study explores the application of nanosecond laser machining on 3D printed CFRP composites.
  • It highlights the effectiveness of laser machining in achieving precise cuts and markings on complex geometries.
  • The findings suggest that laser parameters significantly affect the quality of the machined surface.
• Methodology:
  • The research involved experimental setups to test various laser parameters and their effects on machining.
  • The study utilized quantitative measurements to assess the quality of the machined surfaces(Ma et al., 2023).
