CO2 Laser Cutter and Engraver for Laser Cutting and Engraving

CO2 laser cutting machines sit at the top of modern manufacturing and crafting technology. The precision, efficiency, and versatility these machines operate set them apart from their counterparts. Be it an industry professional, a small business owner, or an enthusiastic hobbyist, a CO2 laser cutter is available for everyone’s needs. The right CO2 laser cutter can open a world of possibilities in their work. But with endless options in the market, how do you know which one is best suited for you?

This complete guide will explain everything you need to know to get a CO2 laser cutting machine. It covers everything from features one should consider before purchasing to the benefits associated with CO2 laser cutting machines. By the end of this article, we aim to empower you with enough knowledge to make an informed purchase. Prepare for a journey that will introduce you to technology that can elevate the standard of your projects.

What is a CO2 Laser Cutter and How Does it Work?

A CO2 laser cutter is a machine that uses a CO2 laser gas beam to cut, engrave, or mark with precision various materials. The process consists of directing the laser beam on the material, and the heat generated either vaporizes or melts the material’s surface, producing smooth, clean cuts or designs. CO2 laser cutters are versatile and engage in woodworking, acrylic crafting, leather and plastic fabric working, and some textile cutting. Thanks to their incredible accuracy and efficiency with detailed results, they are widely used in industrial fields and creative projects.

Understanding the Laser Cutting Process

The technique of laser cutting utilizes a precision laser beam, both thermal and optical, in conjunction with CNC mechanics to focus on the surface of the material that is set to be cut. The material type and the desired outcome will influence the choice of either CO2, fiber, or YAG lasers for powering the machine. Each type of laser has pros and cons. For example, CO2 lasers help cut non-metal materials like wood or acrylic, and fiber lasers are more helpful in cutting metals like stainless steel and aluminum.

Laser cutting enables enhanced accuracy, which is considered one of its main advantages. According to industry reports, state-of-the-art laser cutting machines provide incredible precision and can achieve cutting tolerances between ±0.01 mm. A value as fine as this will mitigate material waste and allow for extremely detailed designs, which prove essential in fields like aerospace, automotive, and construction.

As per 2023 statistics, laser cutters can achieve operational speeds of over 20 meters per minute, increasing or decreasing with material thickness and type. For instance, steel sheets as thin as the fiber laser can cut 1 millimeter at almost 18 meters per minute. With these innovations regarding precision and speed, production efficiency becomes limitless, allowing suppliers to meet increased demands and maintain product quality.

Another important characteristic of laser cutting is its environmental impact. Because of the single-point cutting technique, nearly no waste is produced, and most machines have parts that lower their energy use. Researchers have found that newer models of laser cutters expend as much as 40% less energy than older ones while outperforming them.

The newest laser cutting systems allow changes and monitoring during production, thanks to the incorporation of smart technologies, including sophisticated software and IoT integration. This reliability improves quality assurance, increases operational control, and solidifies the position of laser cutting systems as a necessary technology across various industries.

Key Components of a CO2 Laser Machine

• Laser Tube

The central part of the machine is usually filled with a gas mixture of carbon dioxide, nitrogen, hydrogen, and helium. The CO2 laser tubes have distinguished themselves from others thanks to their efficiency and high-quality cuts, which are always precise.

• Optical System

This section is responsible of the mirrors and lenses that aim, focus, and direct the laser beam on the material being worked on. The beam will indeed reach the working surface however, high-quality optics are a must for precise cutting, fastening the delivery failure will make a difference.

• Cooling System

important in maintaining the temperature of the laser tube to avoid overheating. For optimal equipment effectiveness and durability, most CO2 laser machines are water-cooled.

• Control Panel

Control panels allow the setup and limitation of speed, power, and even design patterns of ‘cutting’. A customizable control panel may have real-time monitoring IoT capabilities.

• Worktable

A worktable is the area for placing materials to be cut or engraved. Worktables may feature adjustable settings, such as ‘honeycomb’ patterns, to reduce glare caused during cutting or engraving.

Applications of CO2 Laser Cutting

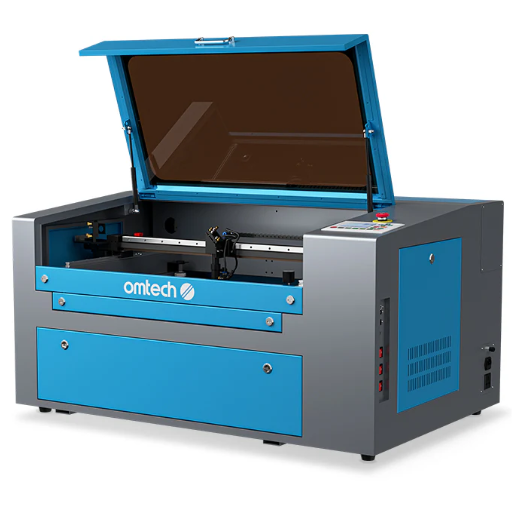

How to Choose the Best CO2 Laser Engraver for Your Needs?

Prepare to jot down notes regarding the use of a CO2 Laser engraving device as a handy guide when buying one.

• Compatible Materials

Check whether the engraver can handle wood, acrylic, glass, or metal.

Power and Size Requirements

The power output should be adequate for the tasks at hand, e.g., higher wattage for thicker materials. Most importantly, verify that the machine’s work area is commensurate with the size of the materials you will be using.

• User-friendliness

The presence of controls and software should not be too complicated to allow for easy maneuvering, especially if the user is new to laser engraving. Devices with simple interfaces should be prioritized for ease of navigation.

• Budget and Maintenance

The initial purchase cost of the machine, along with any other associated long-term maintenance expenses, should be reasonable and balanced against durability, performance, cost-effectiveness, and return on investment.

• Customer Support and Warranty

Pick a vendor that provides adequate support for CO2 laser engravers, including handout guides, documentation, and other warranty claims that build trust.

Touching on these areas should help you nuance your performance with engravers by maximizing the benefits while minimizing the hassle.

Factors to Consider When Buying a Laser Cutter

When purchasing a laser cutter, evaluating a range of specifications and features is essential to ensure the device meets your requirements. Here are some key factors, enriched with recent insights:

1. Laser Power and Material Compatibility

The cutter’s laser power determines the types and thicknesses of materials it can handle. Low-power lasers (e.g., 40W to 60W) are suitable for materials like paper, leather, and thin acrylic sheets. Higher-power lasers (e.g., 100W or more) are essential for cutting thicker materials like hardwood, metal, or stone. Recent data suggests that a 100W CO2 laser can cut up to 10mm of acrylic or 12mm of wood, depending on the material density and laser brand.

2. Cutting Size and Work Area

Assess the size of the work area to ensure it accommodates your projects. Standard models often feature working areas around 300mm x 200mm, while industrial models may provide up to 1000mm x 600mm or more. Remember that larger work areas enhance versatility but may require more space in your workshop. Recent trends show an increasing demand for larger platforms for intricate designs and batch production among small businesses.

3. Precision and Speed

The precision of a laser cutter is measured in dots per inch (DPI). A machine with higher DPI produces more detailed cuts and engraving. For example, professional-grade cutters may offer resolutions of 1000 DPI or more. Additionally, laser cutting speed, usually measured in millimeters per second (mm/s), can directly influence production efficiency. High-end models from brands like Epilog or Trotec provide exceptional precision alongside speeds exceeding 500 mm/s.

4. Software Compatibility and Ease of Use

Modern laser cutters often come with proprietary software or are compatible with design software like Adobe Illustrator, AutoCAD, or CorelDRAW. For a seamless design process, ensure the cutter supports file formats such as AI, DXF, or SVG. The latest information highlights an increasing preference for cloud-based solutions that facilitate real-time monitoring and file sharing.

5. Safety Features

Since laser cutters pose safety risks, prioritize devices with advanced features, including enclosed designs, emergency stop buttons, and proper ventilation. Many modern laser cutters now feature automatic shut-off systems when a cover is opened, ensuring added safety during operation.

6. Cost and Operating Expenses

Beyond the purchase price, consider the cost of consumables such as laser tubes, lenses, and filters. For instance, CO2 laser tubes typically last between 1,200 and 2,000 hours, with replacements costing anywhere from $200 to $800, depending on the wattage. Consider energy consumption as well—energy-efficient models can help reduce operating costs over time.

By balancing these technical specifications with your specific needs and budget, you can select a laser cutter that maximizes performance and value. In 2023, advancements in laser technology will give buyers access to features that enhance precision, usability, and safety while keeping long-term costs manageable.

Comparing Different Types of Laser Cutting Machines

Top Features to Look for in a Laser Engraver

You must consider various detailed specifications and features before buying a laser cutter, ensuring it meets your every need. Some of the factors for consideration ,amalgamated with up-to-date information, include:

• Power of the Laser and Compatible Materials

The cutter’s laser power determines what materials and thicknesses it can work with. For example, low-power lasers (40W to 60W) can cut thin leather, paper, and acrylic sheets, while higher-powered lasers (100W+) are required for thick materials like stone, metal, and hardwood. Current statistics show that a 100W CO2 laser can cut 10mm acrylic or 12mm wood; however, this depends on the material density and brand of laser.

• Cutting Size and Work Area

Ensure that the work area is suitable for all your projects. Standard models usually have working areas in the region of 300mm x 200mm, while industrial models may also offer 1000mm x 600mm or even larger. It is important to remember that greater versatility in the workshop can facilitate creativity, though it modestly increases the footprint of your workshop. Recent trends suggest that small businesses are increasingly interested in larger platforms for intricate design and batch production.

• Speed and Precision

Precision is defined as the measurement in dots per inch (DPI) for laser cutters. The higher the DPI, the more detailed the cuts and engravings are. For instance, professional-grade cutters tend to offer more than 1000 DPI. Moreover, the speed of laser cutting, which is measured in millimeters per second (mm/s), can directly impact production efficiency. Brands like Epiloc and Trotec are known for their high-end models, which offer world-class precision and speed greater than 500 mm/s.

• User-Friendly Software and Compatibility

Most modern laser cutters have proprietary software or are compatible with design applications like Adobe Illustrator, AutoCAD, and CorelDRAW. The cutter should be able to take in files in AI, DXF, or SVG so that the design can be prepared efficiently. Recent updates indicate that users prefer real-time monitoring and file sharing through the cloud, making these solutions popular.

• Safety Features

With all the risks associated with laser cutters, it is vital to invest in models that have the most advanced features to block lasers, like enclosed cavities, emergency stop buttons, and ventilation systems. Many modern laser cutters are equipped with spring-sided covers that automatically shut off the laser, giving the user more safety.

• Cost and Operating Expenses

In addition to the purchase price, include the value of consumables like laser tubes, lenses, and filters. For example, CO2 laser tubes have a lifespan of between 1,200 and 2,000 hours. Depending on the wattage, replacements are between $200 and $800. Energy use should also be considered; more efficient models can lower operating costs over time.

After determining your budget, balancing your specifications will enable you to capture the laser cutter with the most value and optimal performance. Users have access to features that improve precision, ease of use, and safety from a cost perspective due to advancements in laser technology in 2023.

What are the Advantages of Using a CO2 Laser Cutting Machine?

As a preferred option among some industries, CO2 laser cutting machines have noteworthy benefits, which include:

• High Accuracy: They are exceptional in making detailed and accurate cuts, which are very useful for intricate designs and complex patterns.
• Multi-Purpose Use: These machines are CO2-powered and capable of cutting, engraving, and marking on various materials, from wood to acrylic and leather, and even select metals.
• Productivity: CO2 lasers work efficiently and at higher speeds by nature, improving production times without sacrificing quality.
• Cost and Material Balance: CO2 Power lasers minimize costs due to reduced material waste and lower maintenance. Shearing tools not only require extra resources but also increase ongoing maintenance costs.
• CO2 lasers are incredibly easy to use with the specialized software provided.

Considering the above advantages, CO2 laser cutting machines are an effective and dependable option for small businesses and mass production operations.

Precision and Efficiency in Laser Cutting

Laser technology is one of the widely used technologies in manufacturing. Its significance lies in its unparalleled capability of cutting various materials, such as metals, plastics, wood, and textiles, without any additional stress on the components that could result in some deformation. The automation and precision provided by laser technology enable the manufacturing world to achieve intricate cuts and high-detail patterns with relative ease. For instance, the CO2 laser technology, which is mainly used for industrial purposes, operates with an accuracy of ±0.1 mm, which makes it outstandingly effective in the automotive and electronics industries.

A remarkable assimilation of laser technology in the industrial world is the CO2 laser cutting machines equipped with advanced galvanometer systems. These permit the operating heads to make rapid axial rotations, thus allowing the CO2 lasers to operate at speeds of over 60 inches per second. This allows the machinery to reduce production time almost twice while maintaining the utmost quality. The recently improved systems not only speed up the cutting process but also help reduce energy expenditure.

In conclusion, equipping corporations with precise, accurate tools along with cutting-edge technology will enable them to maximize operational efficiency, thus reducing the overall costs associated with the manufacturing process. The strategically placed benefits of CO2 lasers in today’s world make them an indispensable resource for modern manufacturing infrastructure.

Versatility of CO2 Laser Engraving

CO2 lasers are reliable and versatile, used extensively across multiple industries. They can efficiently and meticulously engrave textiles, wood, paper, glass, coated metals, and plastics. This makes it easy for businesses to create customized pieces and intricate and tailored patterns.

With each passing day, CO2 laser uses are branching out further due to new innovations. These days, systems incorporate engraving features with a 1200 DPI resolution, which increases the detail of image engravings significantly. Moreover, user-friendly software is often added to those systems, which improves engraving and design processes and minimizes errors and time spent on production.

Sectors such as fashion, automotive, and packaging have created a surge in demand for personalized goods; hence, CO2 laser engraving systems are being embraced worldwide. A recent stat from industry reports states that CO2 laser engraving machines can expect 6% growth in sales every year from now until 2030.

For example, the engraving system’s unrivaled accuracy has allowed CO2 lasers to mark and engrave important parts in robotics and medical device manufacturing. In synergy with constant advancement, CO2 laser engraving will enable businesses to obtain functional and aesthetic results, making it a highly adaptable and essential instrument.

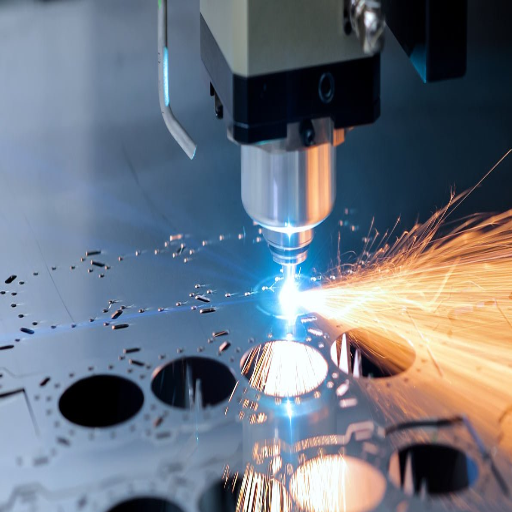

What Materials Can You Cut and Engrave with a CO2 Laser?

The following materials can be engraved and cut using CO2 lasers:

– Wood: Great for engraving complex designs and keeping them from fading.
– Acrylic and Plastics: Great for clear engraving and precise cuts.
– Leather: Good for detailed engraving in crafts and fashion.
– Cardstone: Widely used in personal crafts for engraving and customized packaging.
– Glass: Good for elegant and refined engraving on surfaces.
– Rubber: Best material for making stamps and seals.
– Fabric: Good for engraving and cutting textiles like cotton or polyester fabric.

Always verify the laser used, as metals and certain treated surfaces require other lasers, making CO2 lasers unsuitable for these applications.

Common Materials Suitable for CO2 Laser Cutting

The most common materials I use in CO2 laser engraving include wood, acrylic, paper, leather, and fabric. These materials suit CO2 lasers, meaning accurate engravings and cuts would be made. To avoid damage from laser beams, I ensure all materials used are verified to be laser-safe.

Safety Considerations for Different Materials

How to Maintain and Troubleshoot Your CO2 Laser Cutter?

Regular Maintenance Tips for Optimal Performance

To maximize the performance of your CO2 laser cutter, it is crucial to perform regular maintenance. These five tips will be of particular use in keeping your cutter in top form:

• Clean the Optics Regularly

The lenses and mirrors of a laser cutter may accrue a lot of dust, debris, and gunk that need to be cleaned. If these components are not cleaned often enough with appropriate cleaning solutions and fabric wipes, the cutter’s efficiency may be lower. Depending on how you usually use the cutter, this process may need to be done as often as once a week.

• Check Other Components

Incorrectly well-beam paths lead to inconsistent and inaccurate cutting. The other necessary details of the cutter also need to be checked to guarantee accuracy and control the energy consumption level of the cutter. Ensure that you test out the ‘add adjustment beam’ tool and do so regularly to achieve the best results.

• Inspect and Replace Exhaust Filters

The cutter’s exhaust system needs to function freely to guarantee the removal of the smoke generated when the cutter is at work. It is better to clean the filters frequently, as if they get too blocked, the knives’ ability to ventilate will diminish, which will heavily damage the machine’s performance.

• Lubricate Moving Parts

The parts that tend to move a lot, such as the guide rail and cutout bearings, are prone to friction and damage over time. To fight this, always apply lubricants—this is not only helpful but also makes the machine last longer.

• Examine and Restore the Cooling System

Every laser tube must be cooled to avert overheating. Check the coolant level regularly and inspect for possible coolant leaks. Distilled and deionized water is highly suggested to maintain high efficiency within the coolant system and prevent mineral buildup.

Proper maintenance on your CO2 laser cutter helps you avoid performance issues and extend the tool’s life.

Common Issues and How to Fix Them

CO2 laser cutters, much like any technology, face issues from time to time. Some of these issues include:

• Lack of Power:

All appliances deteriorate with time; the same goes for a laser tube. Dirt can also accumulate due to a poorly configured optic, significantly reducing what is deemed ‘efficiency’.

Solution: Cleaning mirrors and lenses is always an option, so address any dust. Make sure there aren’t any misalignments along the optical path, and if adjustments can be made, make them. Bear in mind that should the power supply still be drained after the attempt, then a change in laser tube is necessary.

Cuts can also be more jagged than expected alongside inconsistency, which can stem from:

• Misalignment in Straps:

Loose belts are often not accounted for while adjusting cambelts and pulleys, leading them to become slack. However, if they are rotated, changes in motion throughout the axis could become smooth. Another approach to improving cut quality would be cleaning the optics. Clean cuts also require grime-free optics. Lastly, ensure all constituents are clean.

• Burn Marks on Materials

Cause: Not using the proper cutting speeds and powering levels can lead to excessive burning or charring on pieces of material. Moreover, improper focus distance can make the situation worse.

Solution: Review the material’s cutting chart and adjust the power and speed if necessary. Perform a focus test and refine the focus distance when necessary. Set the settings accordingly for the best cutting results.

• Software or Connectivity Issues

Cause: Problems with the laser cutter’s firmware could lead to operational, software, or connectivity issues, such as loose connections between the computer and the laser cutter.

Solution: Check to see if the device’s firmware and design software are up to date. If there are loose, unreliable cabling connections, switch them out for stronger options. If available, try using a direct USB connection instead. If the issues continue, it may help to reinstall the software or drivers.

• Coolant System Malfunctions

Cause: Coolant system blockages, low coolant levels, or the use of unfit fluids can impede the flow of fluids and cause the laser tube to overheat.

Solution: Check coolant lines to ensure they operate and are not blocked. Distilled or deionized water should be added as needed. Make sure to apply all covers in a timely manner, as this may lead to damage to components. With most CO2 laser cutters, coolant temperatures must be maintained between 15°C and 20 20°C.

• Abnormal halting of operations

Cause: Safety interlocks, power supply issues, and overheating may result in the abrupt halting of operations.

Solution: Install surge protectors to ensure that the input power remains steady and within normal ranges, stabilizing the input and preventing damage to the machine. Always ensure that the operating temperature of the machine stays within safe limits and that all safety devices installed, such as door sensors or push buttons, are in proper working condition.

Many issues with the laser cutter can be avoided through consistent maintenance and attention. If these solutions do not resolve the issues, a user manual often contains instructions, or the manufacturer’s support team may offer valuable assistance.

Reference Sources

1.  Optimization of CO2 Laser Cutting and Engraving Parameters

• Objective: Research often focuses on optimizing parameters such as laser power, speed, and frequency to achieve the best results in cutting and engraving.

Key Findings:

• Studies may identify optimal settings for different materials (e.g., wood, acrylic, leather) to minimize thermal damage and achieve clean cuts or engravings.
• Investigations into the effects of varying assist gases (e.g., air, nitrogen) on the quality of cuts and engravings.

2.Material Interaction and Properties

• Objective: Understanding how different materials respond to CO2 laser cutting and engraving is crucial for improving precision and quality.

Key Findings:

• Research may explore the relationship between laser parameters and the physical properties of materials, such as melting point and thermal conductivity.
• Studies might analyze the kerf width and heat-affected zones to assess the impact of laser processing on material integrity.

3.    Top Co2 Laser Engraving Cutting Machine Manufacturer and Supplier in China

Frequently Asked Questions (FAQs)

Q: What is the best laser cutter and engraver for beginners?

A: The best laser cutter and engraver for beginners is the Glowforge or the xTool P2. These models are user-friendly and offer features such as an enclosed design and easy setup, making them ideal for those new to laser cutting and engraving.

Q: How does a CO2 laser cutting and engraving machine work?

A: A CO2 laser cutting and engraving machine uses a high-speed laser beam generated by a CO2 laser tube. The beam is directed through a lens to focus on the cut or engraved material, allowing for precise cuts and detailed engravings on various materials such as wood, acrylic, and leather.

Q: What materials can I cut with a desktop CO2 laser?

A: A desktop CO2 laser can cut various materials, including wood, acrylic, leather, paper, and fabrics. However, it is essential to check the specifications of your specific laser engraving cutting machine to ensure compatibility with the materials you intend to use.

Q: Is an air assist necessary for a laser engraving machine?

A: While not strictly necessary, an air assist feature significantly improves the cutting quality of a laser engraving machine. It helps blow away smoke and debris during the cutting process, leading to cleaner cuts and reducing the fire risk.

Q: Can I etch on metal with a fiber laser?

A: A fiber laser is specifically designed for marking and etching on metals. It can create high-contrast markings on various metal surfaces, making it an excellent choice for engraving metal items.

Q: What is the advantage of a rotary attachment for a laser engraver?

A: A rotary attachment allows a laser engraver to etch cylindrical objects like tumblers and bottles. This expands the range of projects you can undertake, making your laser cutter and engraver more versatile.

Q: How do I choose the best laser engraver for my workspace?

A: When choosing the best laser engraver for your workspace, consider factors such as the size of the workspace, the materials you intend to work with, and whether you need a portable laser or a larger desktop model. Additionally, assess the power of the laser, such as a 40W or 100W, to match your cutting and engraving needs.

Q: What is the difference between a diode and a CO2 laser?

A: The main difference between diode and CO2 lasers lies in their power output and application. Diode lasers are typically lower in power and are suitable for lighter materials. In contrast, CO2 lasers can cut and engrave a broader range of materials, including thicker substrates, thanks to their higher power output.

Q: Can I use a desktop laser cutter for professional projects?

A: Yes, many desktop laser cutters, such as the xTool F1 or Glowforge, can handle professional projects. They offer high precision and quality, making them suitable for small businesses or hobbyists looking to produce high-quality engravings and cuts.
